Ignition Switch: Replacement

Disconnect the negative (-) battery terminal.

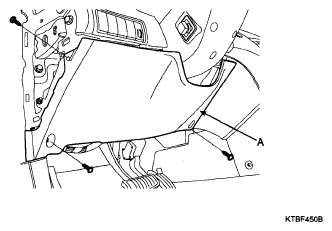

Remove the crash pad lower panel (Refer to the CRASH PAD ).

Fig 1: Identifying Driver Crash Pad Lower Panel
Courtesy of HYUNDAI MOTOR CO.

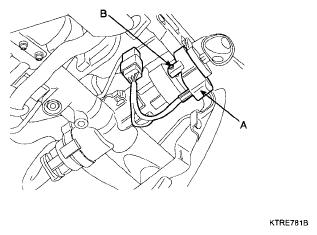

Remove the ignition switch (A) after loosening the screw with IG ON and disconnecting the 6P connector.

Fig 2: Identifying Ignition Switch
Courtesy of HYUNDAI MOTOR CO.
Remove the steering column shaft (Refer to the STEERING COLUMN / SHAFT ).
Remove the door warning switch and key illumination lamp (A) after loosening the screws (B) and disconnecting the 6P connector.

Fig 3: Identifying Coil Antenna
Courtesy of HYUNDAI MOTOR CO.

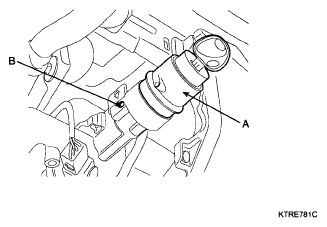

If it is necessary to remove the key lock cylinder (A), Remove the key lock cylinder (A) after pushing lock pin (B) with key ACC.

Fig 4: Identifying Key Lock Cylinder With Key in ACC
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal procedure.
