Function Of Safety Power Window

When driver door power window auto-up switch is operated, safety function is activated.

1. Safety function condition

   When detect the force of 100N during the window rising, window is reversed.

2. Length of window reversing (except holding the auto-up switch)
   • When it detects jamming within 4 mm ~ 250 mm from top of the door.

     → Window is reversed until 300 mm from top of the door.

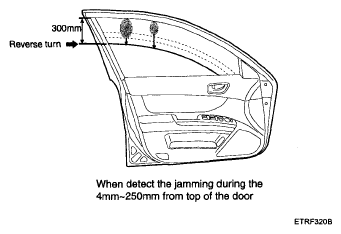

     Fig 1: Safety Function Condition - Window Reversed Until 300 mm From Top Of Door

     Courtesy of HYUNDAI MOTOR CO.
   • When it detects jamming over 250 mm from top of the door.

     → Window is reversed until 50 mm from jamming position.

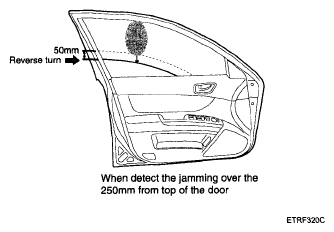

     Fig 2: Safety Function Condition - Window Reversed Until 50 mm From Jamming Position

     Courtesy of HYUNDAI MOTOR CO.
3. Length of window reversing (holding the auto-up switch)
   • When it detects jamming while holding the auto-up switch.

     → Window is reversed until 25 mm from jamming position.

   • Auto-up function is not available during the 5 seconds from above condition.

     → When holding the auto-up switch, window is operated as a manual-up function. (Safety function is not activated.)

   • When holding the auto-up switch after 5 seconds from above condition.

     → Window is reverse until 25 mm from jamming position.

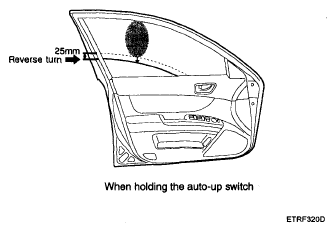

     Fig 3: Safety Function Condition - Window Reverse Until 25 mm From Jamming Position

     Courtesy of HYUNDAI MOTOR CO.
4. Safety function is not available area

   Safety function is not available during the 4 mm from top of the door.
