Power Window Relay: Inspection: Notes

Rear left/right power window relay

1. Disconnect the negative (-) battery terminal.
2. Remove the rear door trim panel. (Refer to the REAR DOOR TRIM REPLACEMENT )
3. Disconnect the 10P connector from the switch.

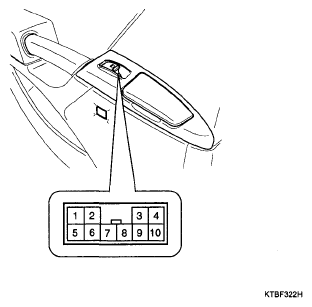

   Fig 1: Identifying Rear Power Window Switch Connector

   Courtesy of HYUNDAI MOTOR CO.
