Rear Power Window Switch Down

Check for continuity between the terminals.

1. There should be continuity between the No.1 and No.4 terminal when power and ground are connected to the No.5 terminal and No.6 terminal.
2. There should be no continuity between the No.1 terminal and No.4 terminal when power is disconnected.

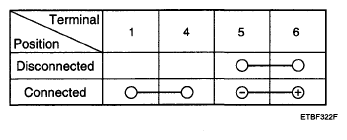

   Fig 1: Rear Power Window Switch Down Continuity Chart

   Courtesy of HYUNDAI MOTOR CO.
