Charging System: Alternator: Removal

  1. Disconnect the battery negative terminal first, then the positive terminal.
  2. Disconnect the alternator connector, and remove the cable from alternator "B" terminal.
  3. Remove the drive belt.
  4. Pull out the through bolt and then remove the alternator (A).

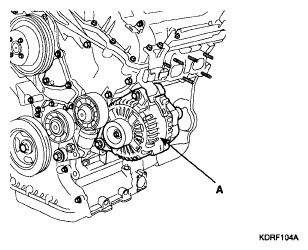

    Fig 1: Identifying Alternator
    G04879472Courtesy of HYUNDAI MOTOR CO.
  5. Installation is the reverse of removal.
