Battery Diagnostic Test (1)
>>
Checking Flow
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Checking Flow

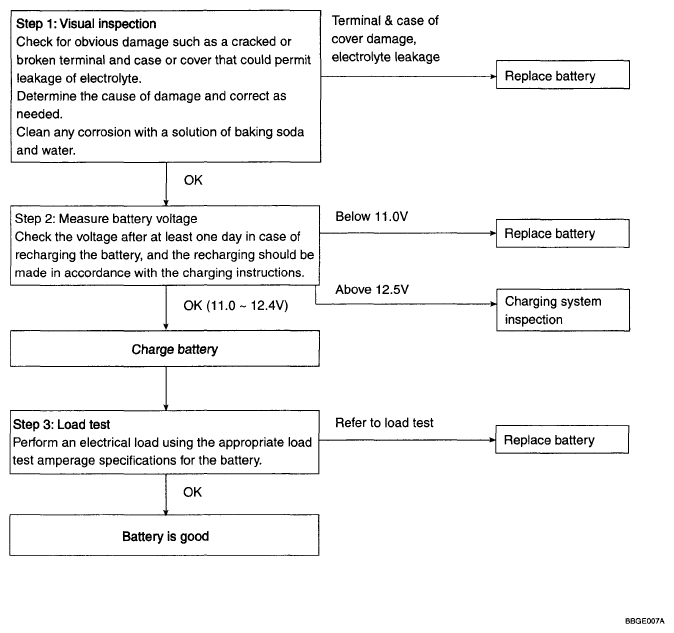

Fig 1: Battery Diagnostic Test Flow Chart
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
