Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Top Front Of Engine
Courtesy of HYUNDAI MOTOR CO.

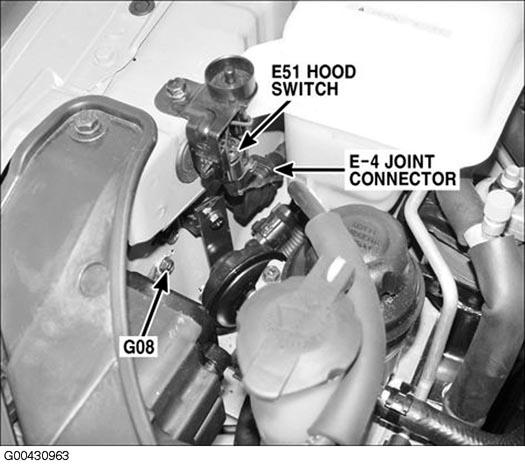

Fig 2: Left Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

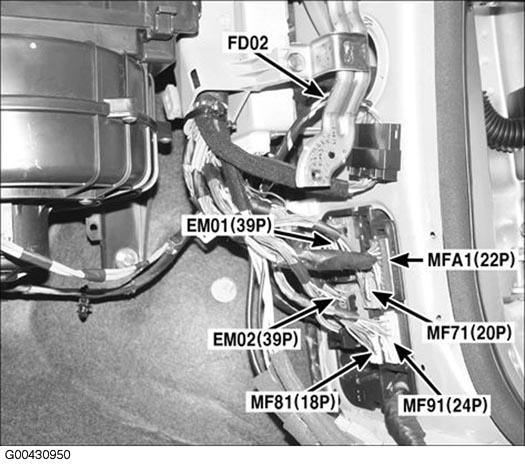

Fig 3: Right Kick Panel
Courtesy of HYUNDAI MOTOR CO.
Fig 4: Left Kick Panel
Courtesy of HYUNDAI MOTOR CO.

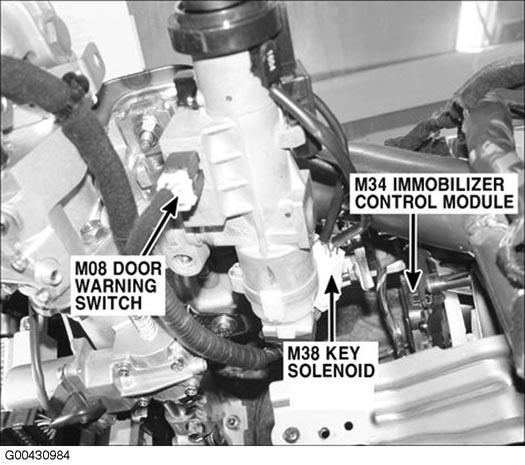

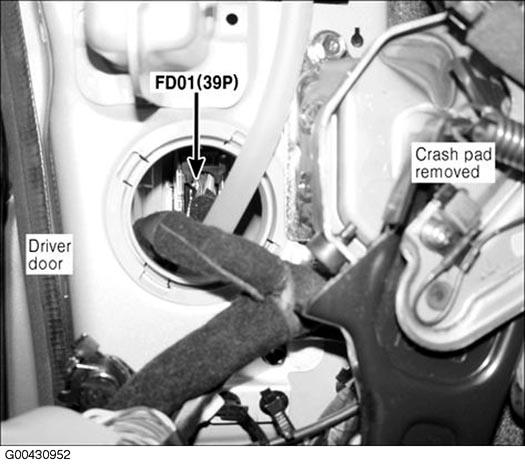

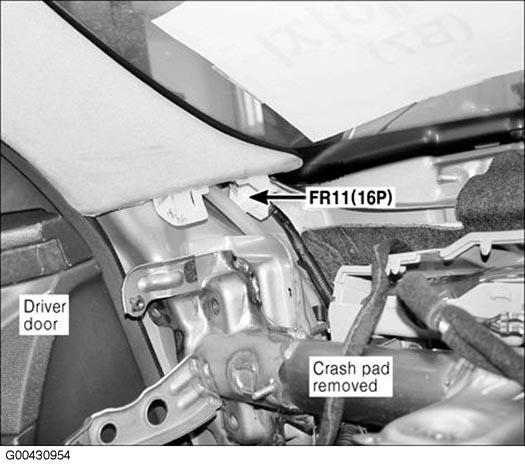

Fig 5: Left "A" Pillar
Courtesy of HYUNDAI MOTOR CO.

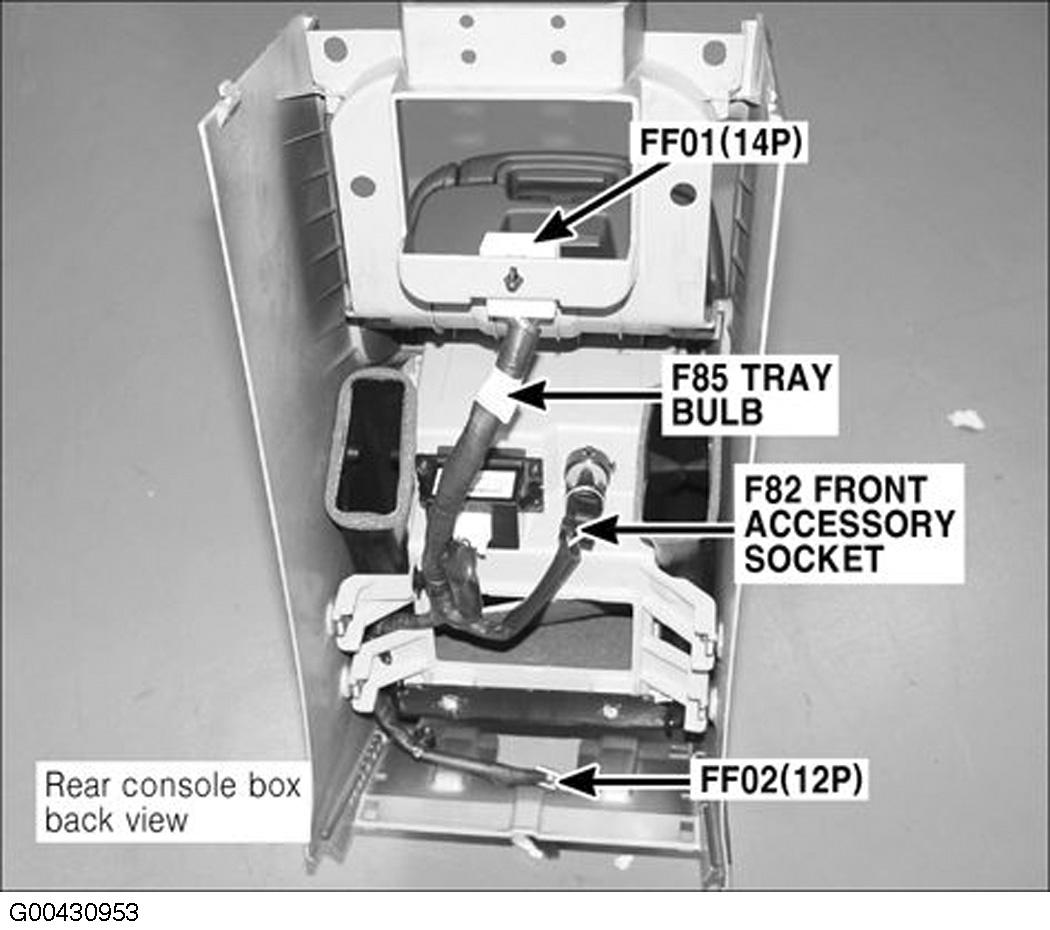

Fig 6: Rear Console
Courtesy of HYUNDAI MOTOR CO.
Fig 7: Left End Of Dash
Courtesy of HYUNDAI MOTOR CO.

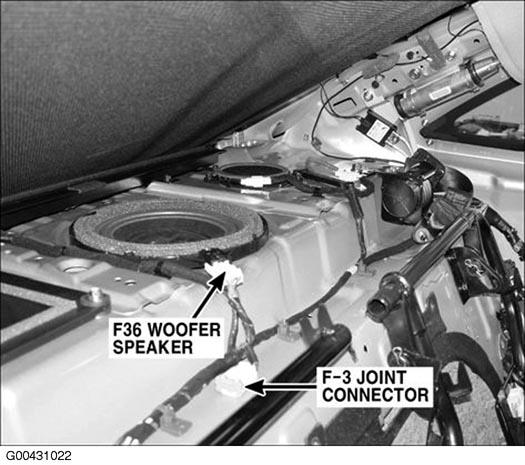

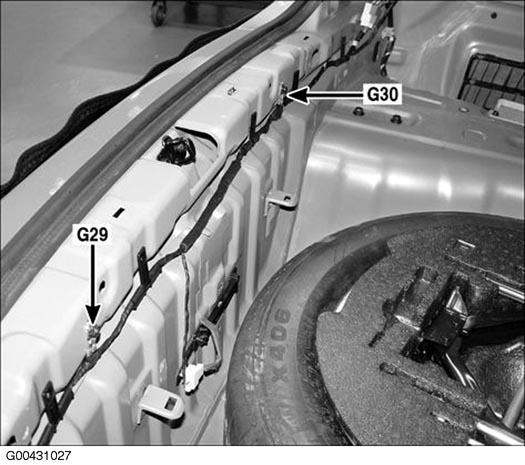

Fig 8: Left Rear Of Trunk
Courtesy of HYUNDAI MOTOR CO.

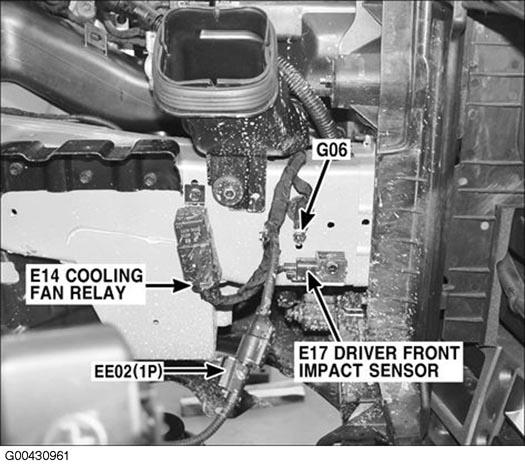

Fig 9: Left Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

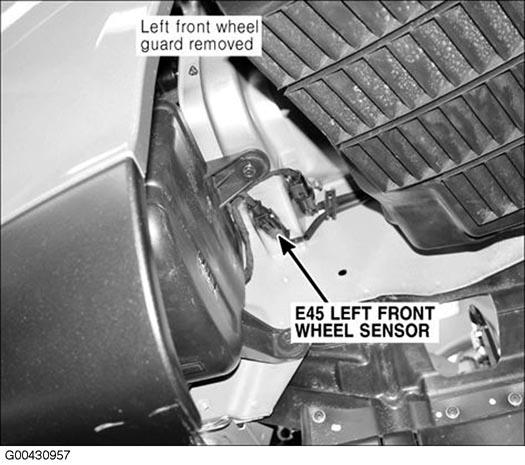

Fig 10: Left Front Wheelwell
Courtesy of HYUNDAI MOTOR CO.

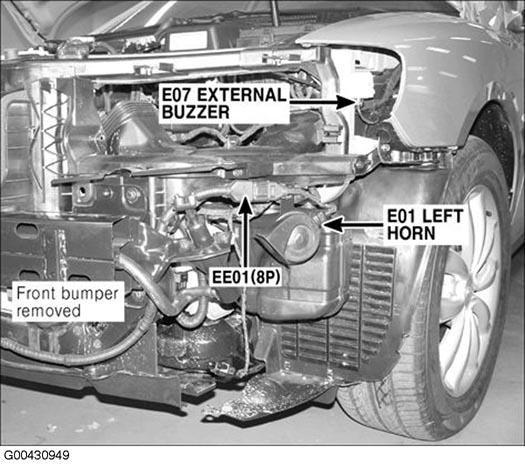

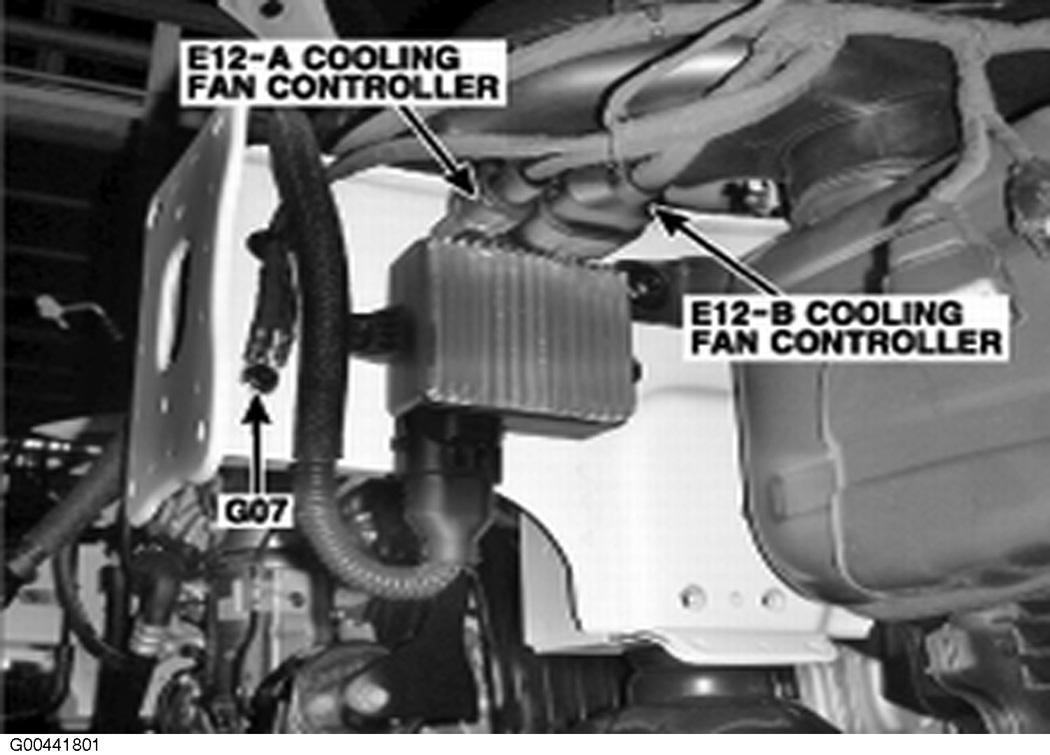

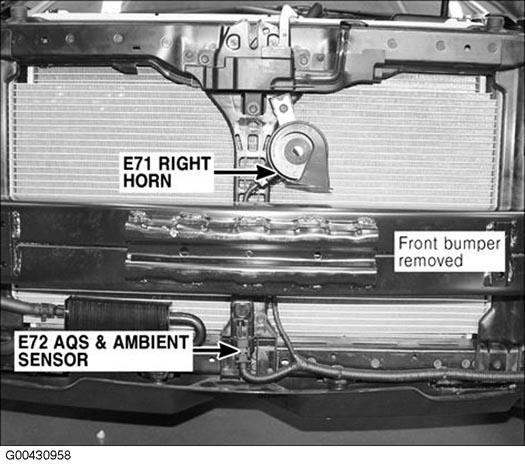

Fig 11: Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

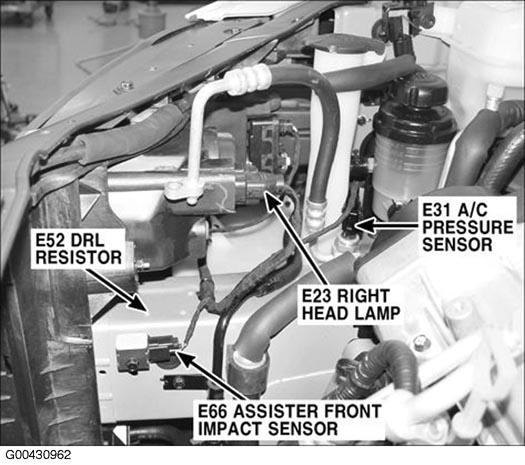

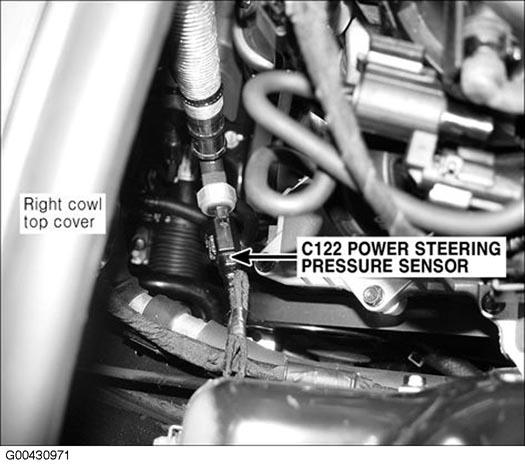

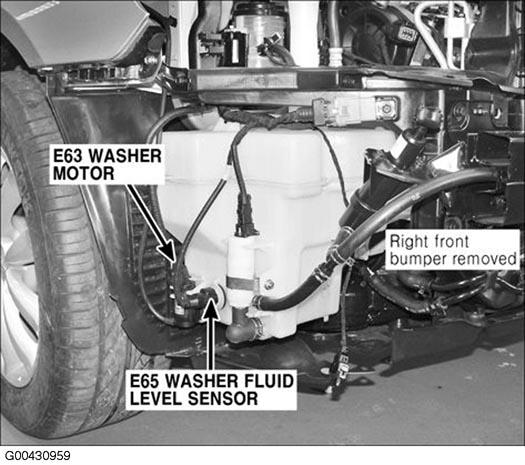

Fig 12: Right Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

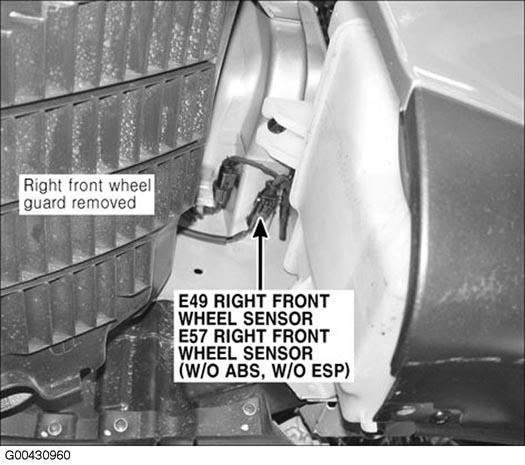

Fig 13: Right Front Wheelwell
Courtesy of HYUNDAI MOTOR CO.
Fig 14: Left Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 15: Right Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 16: Right Side Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

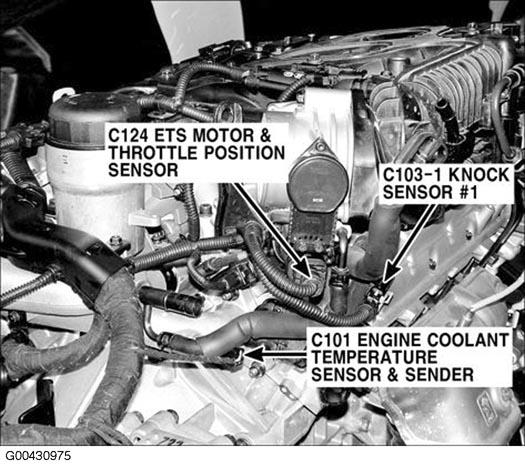

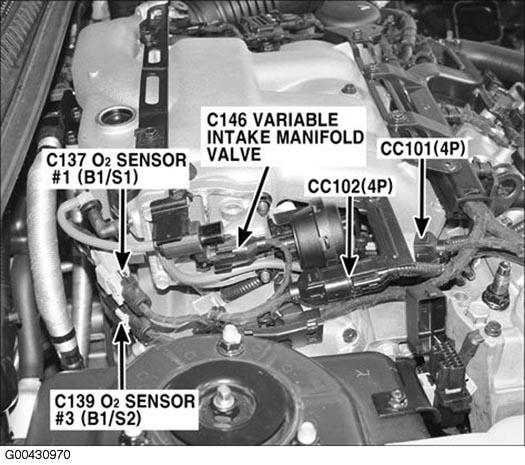

Fig 17: Left Front Of Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 18: Right Side Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

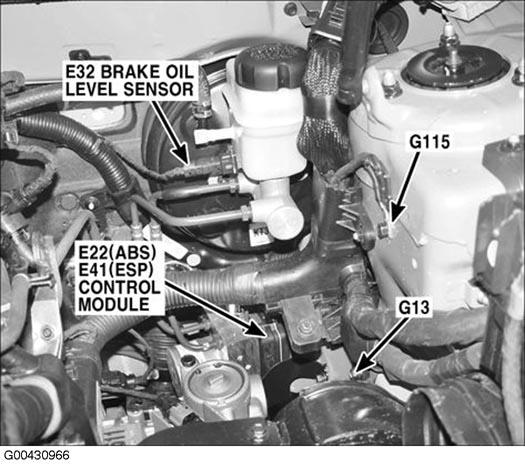

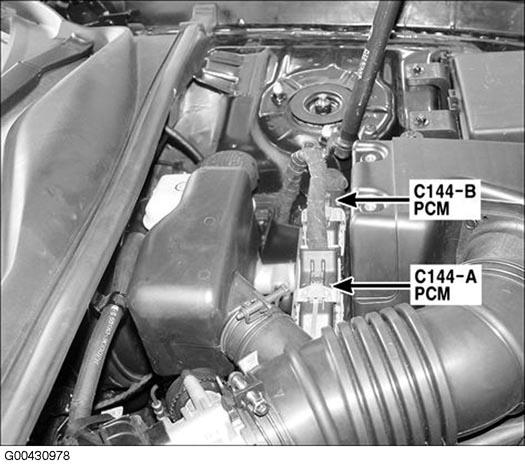

Fig 19: Left Rear Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

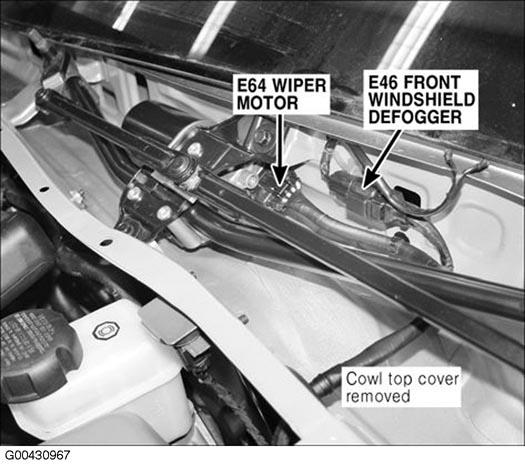

Fig 20: Rear Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

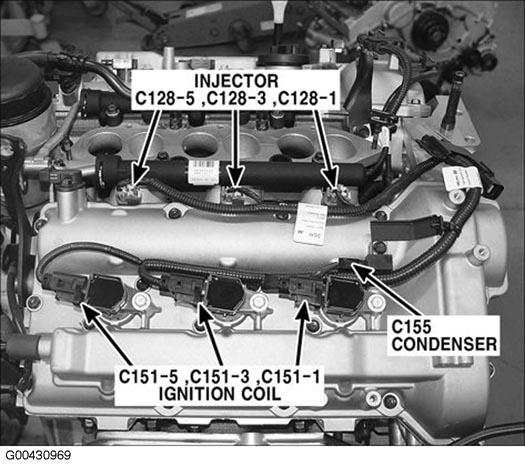

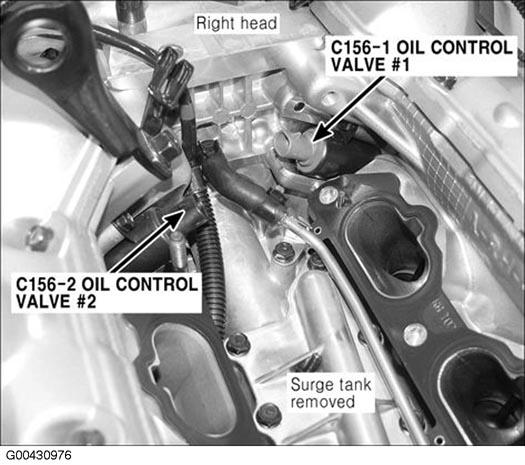

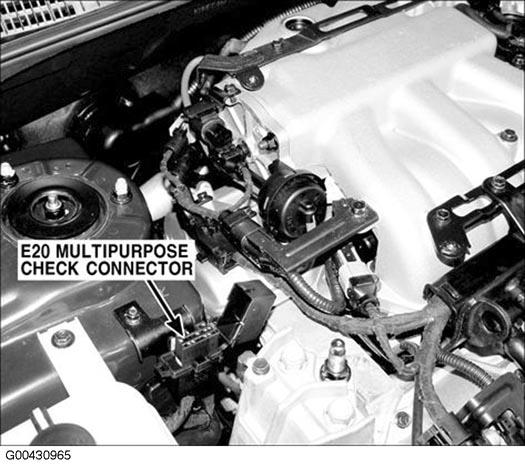

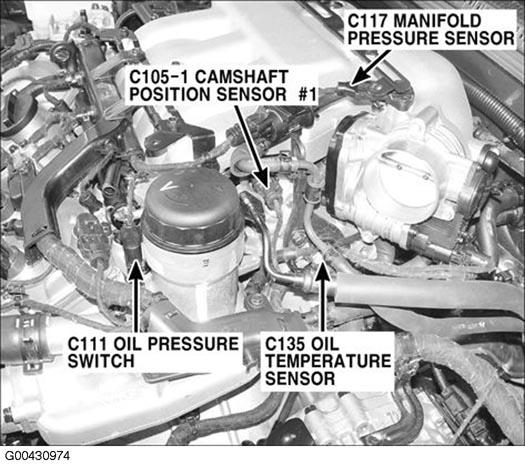

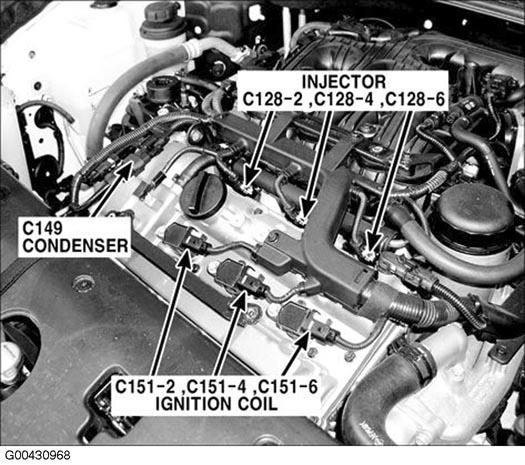

Fig 21: Top Left Side Of Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 22: Top Right Side Of Engine
Courtesy of HYUNDAI MOTOR CO.

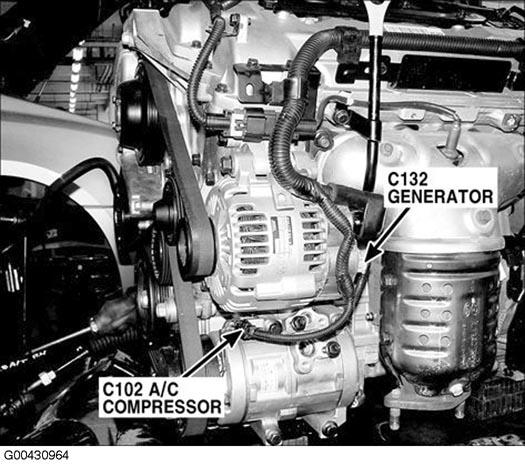

Fig 23: Right Front Of Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 24: Right Front Of Engine
Courtesy of HYUNDAI MOTOR CO.

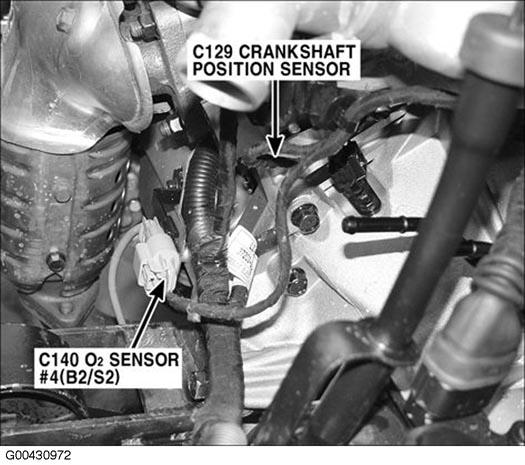

Fig 25: Left Rear Of Engine
Courtesy of HYUNDAI MOTOR CO.

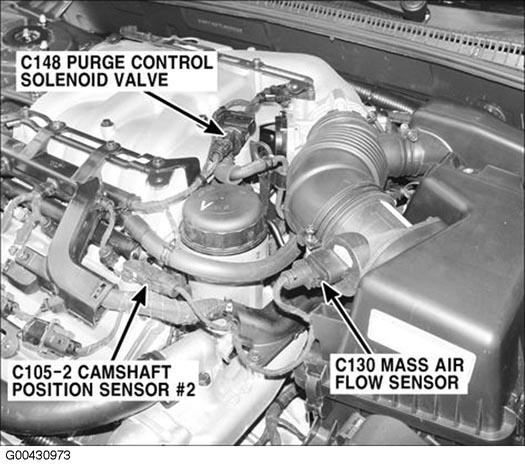

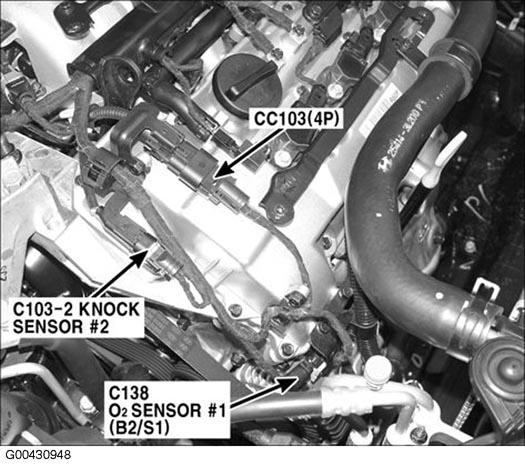

Fig 26: Top Rear Of Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 27: Top Rear Of Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 28: Right Rear Of Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 29: Top Of Engine
Courtesy of HYUNDAI MOTOR CO.

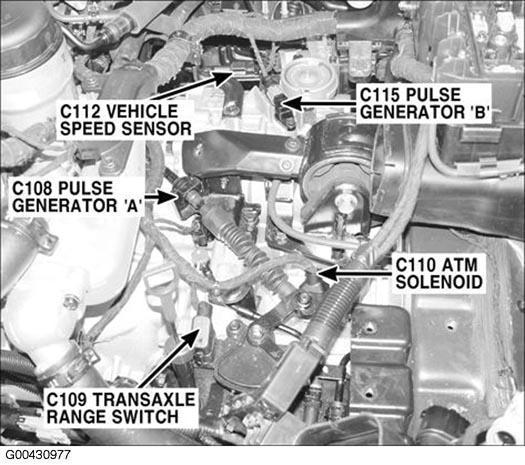

Fig 30: Top Of Transaxle
Courtesy of HYUNDAI MOTOR CO.

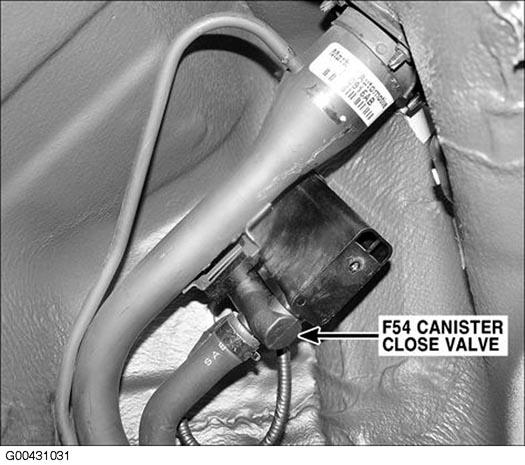

Fig 31: Left Rear Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

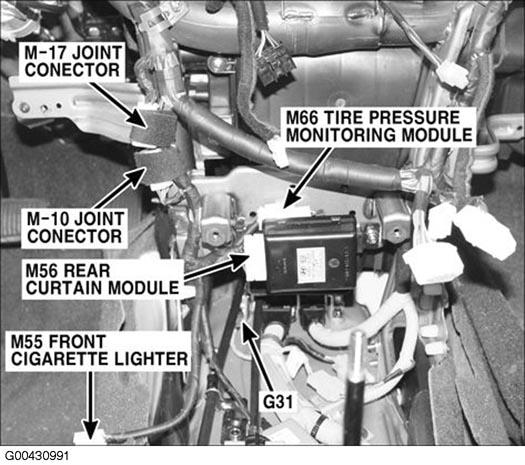

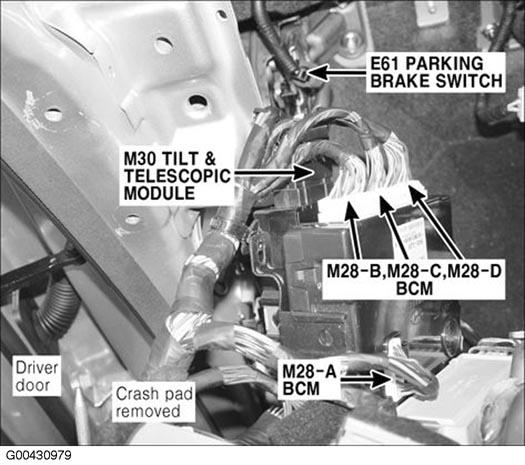

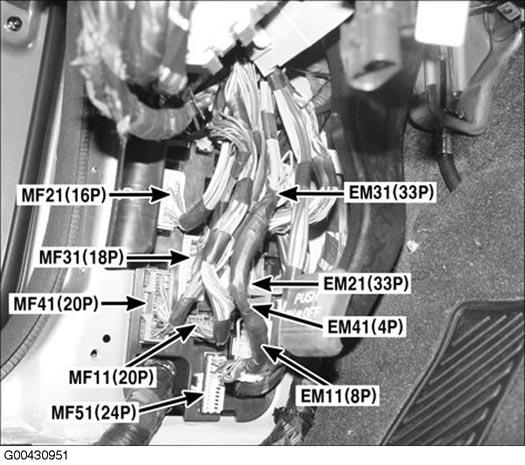

Fig 32: Left Kick Panel
Courtesy of HYUNDAI MOTOR CO.

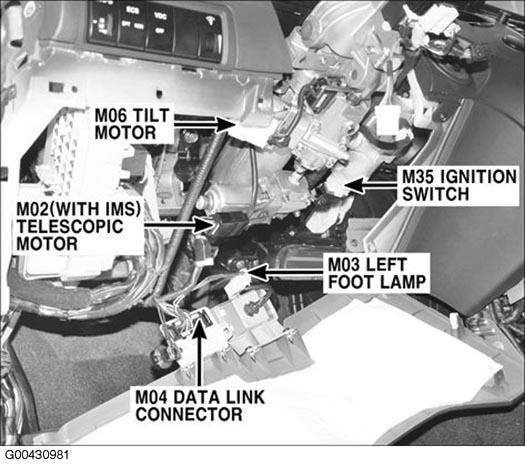

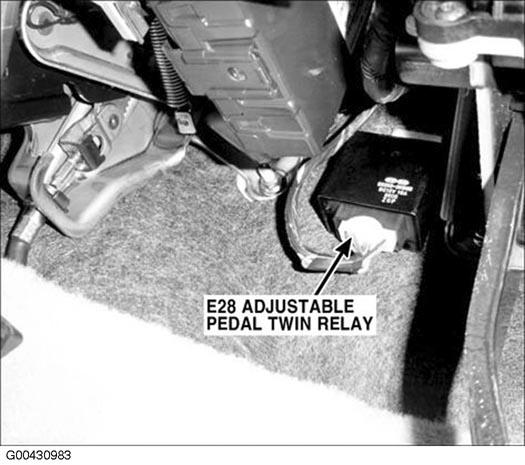

Fig 33: Under Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 34: Under Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.

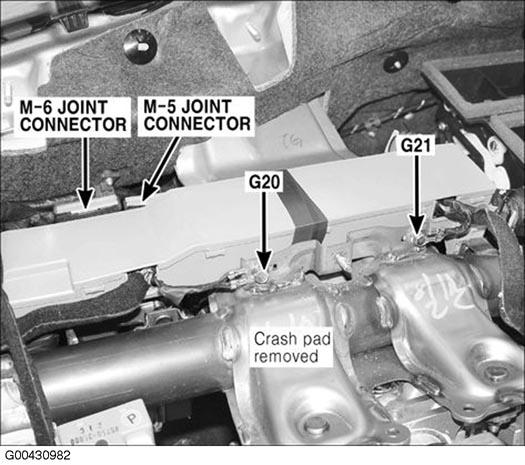

Fig 35: Behind Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 36: Under Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 37: Under Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 38: Under Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.

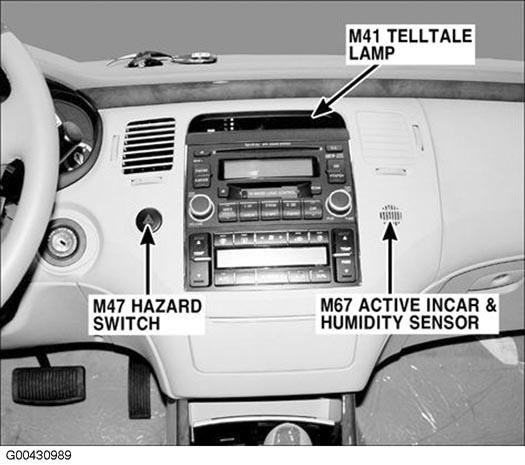

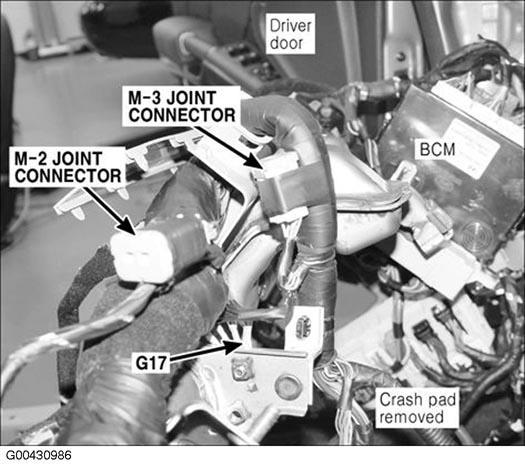

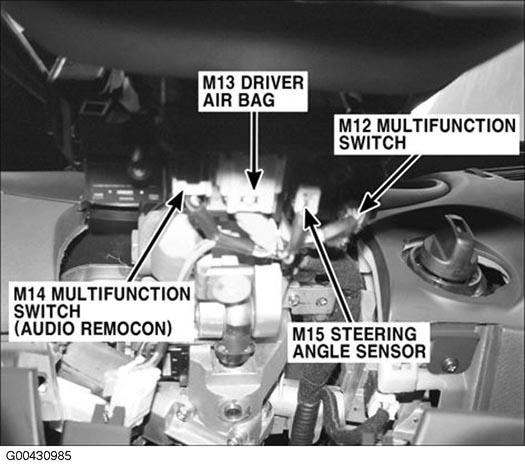

Fig 39: Left Center Of Dash
Courtesy of HYUNDAI MOTOR CO.

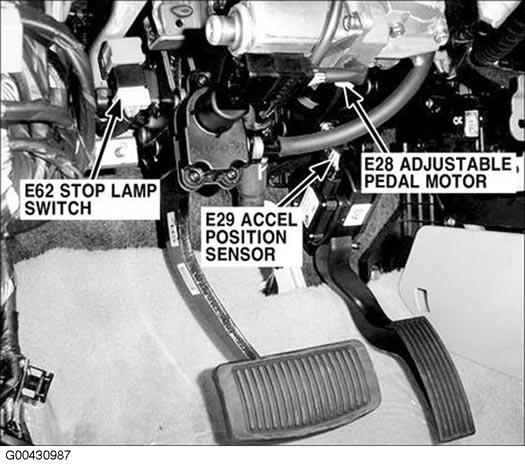

Fig 40: Under Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.

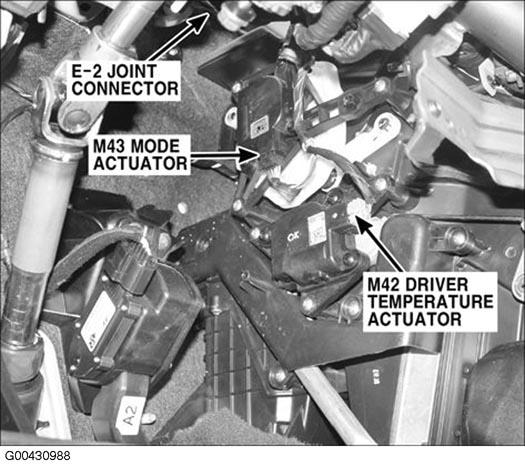

Fig 41: Under Left Center Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 42: Right Center Of Dash
Courtesy of HYUNDAI MOTOR CO.

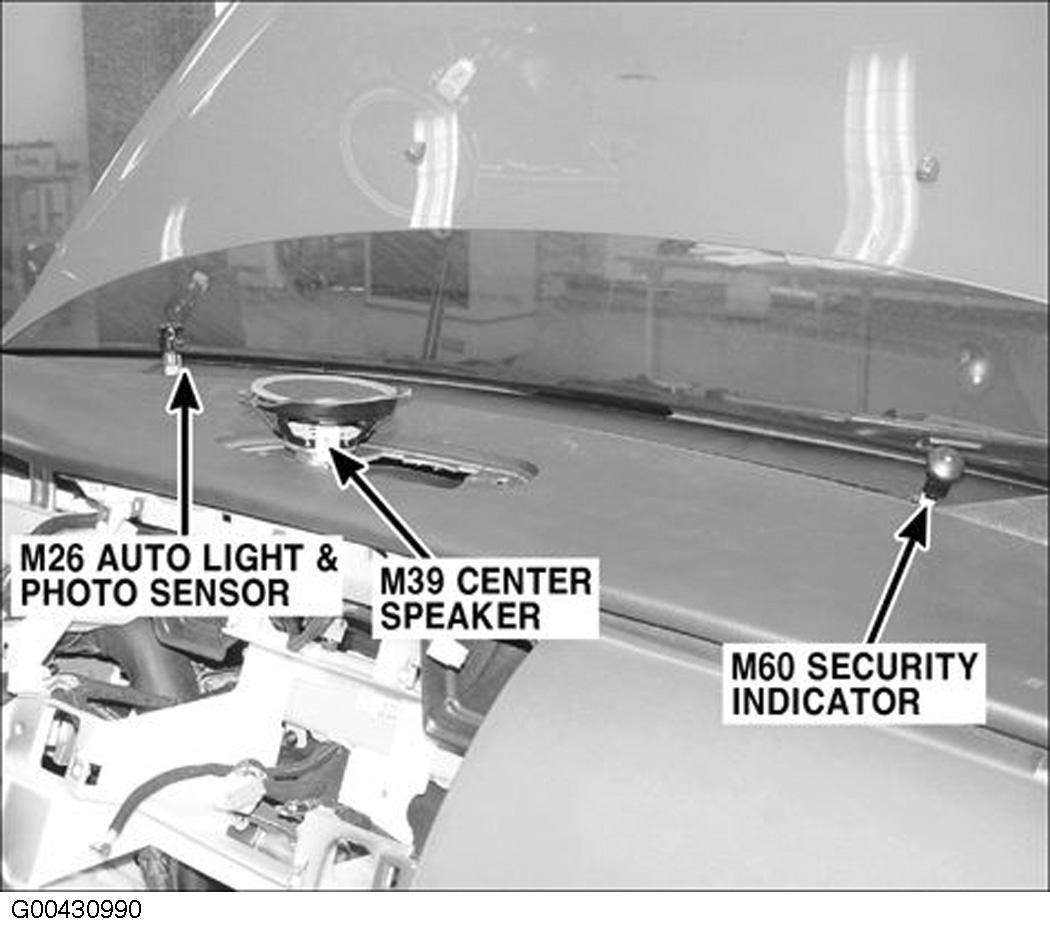

Fig 43: Top Center Of Dash
Courtesy of HYUNDAI MOTOR CO.

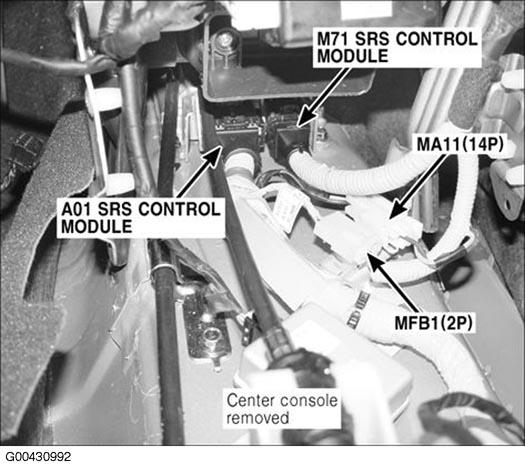

Fig 44: Under Center Console
Courtesy of HYUNDAI MOTOR CO.
Fig 45: Under Center Console
Courtesy of HYUNDAI MOTOR CO.

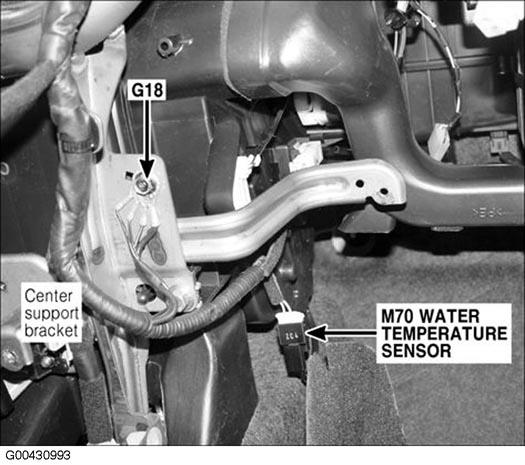

Fig 46: Under Right Center Of Dash
Courtesy of HYUNDAI MOTOR CO.

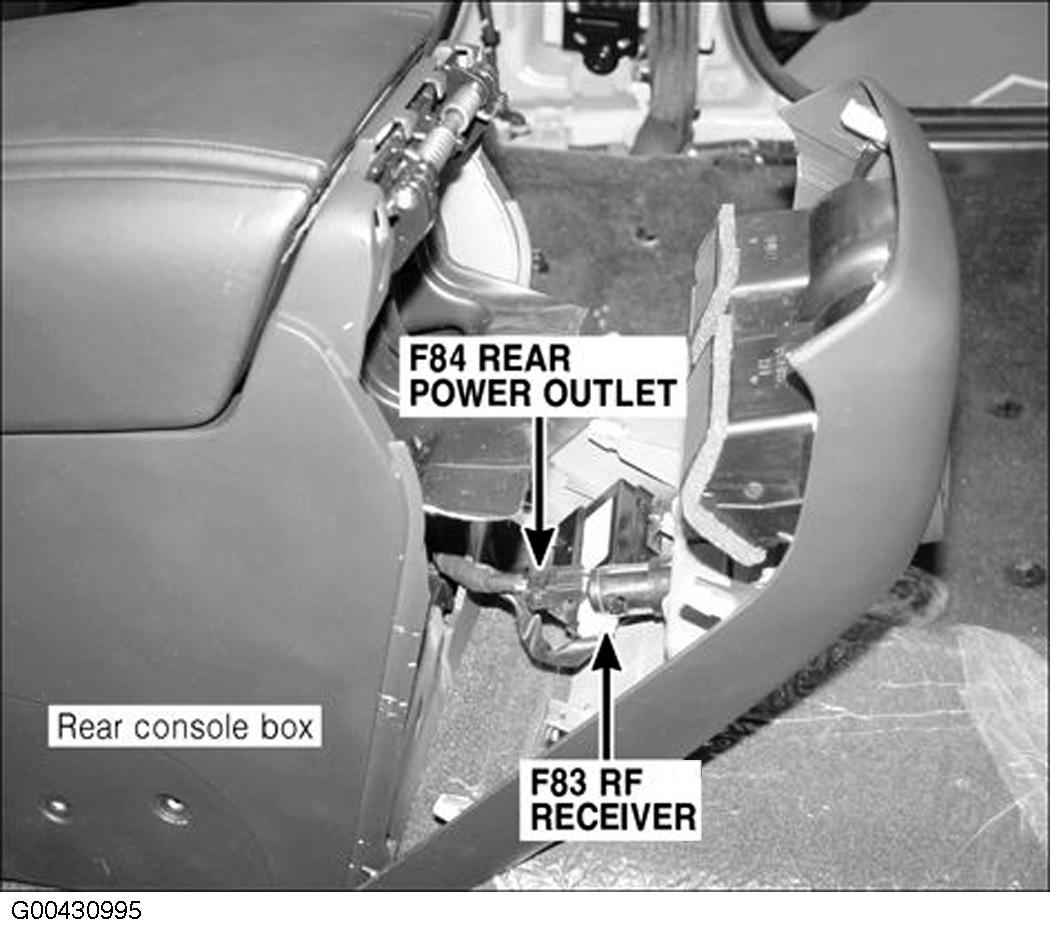

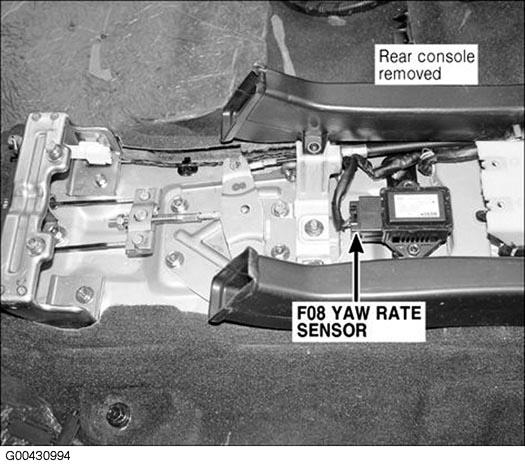

Fig 47: Under Rear Console
Courtesy of HYUNDAI MOTOR CO.
Fig 48: Under Rear Console
Courtesy of HYUNDAI MOTOR CO.

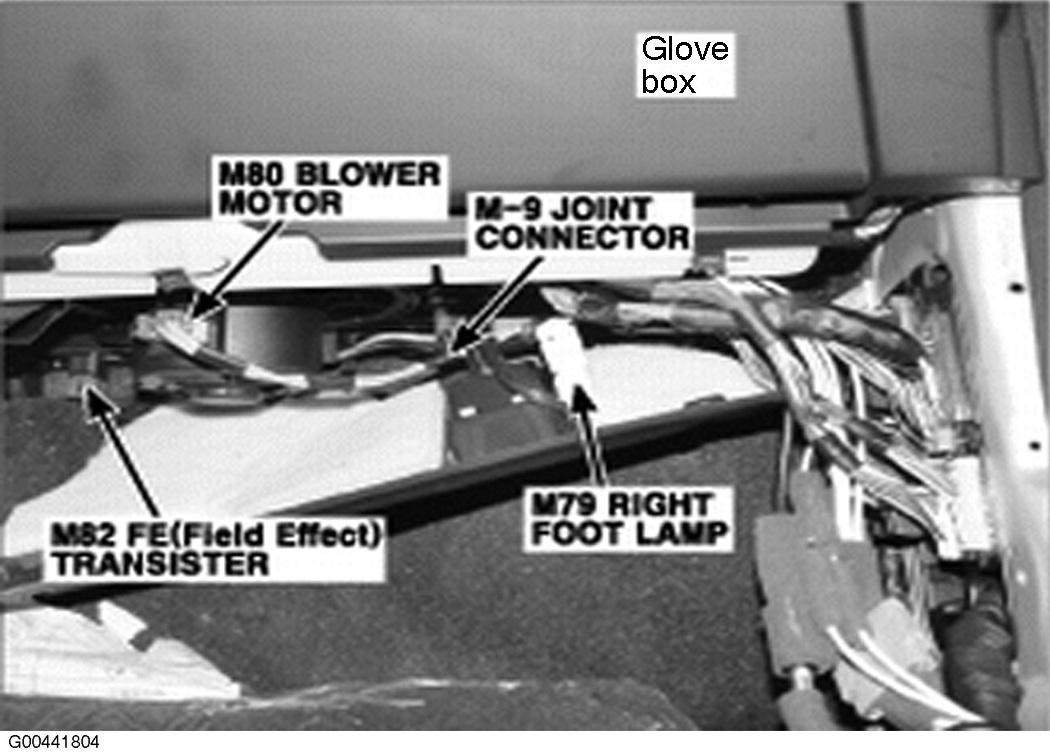

Fig 49: Under Right Side Of Dash
Courtesy of HYUNDAI MOTOR CO.

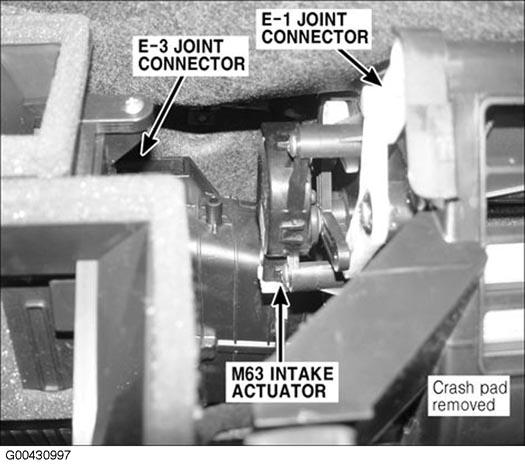

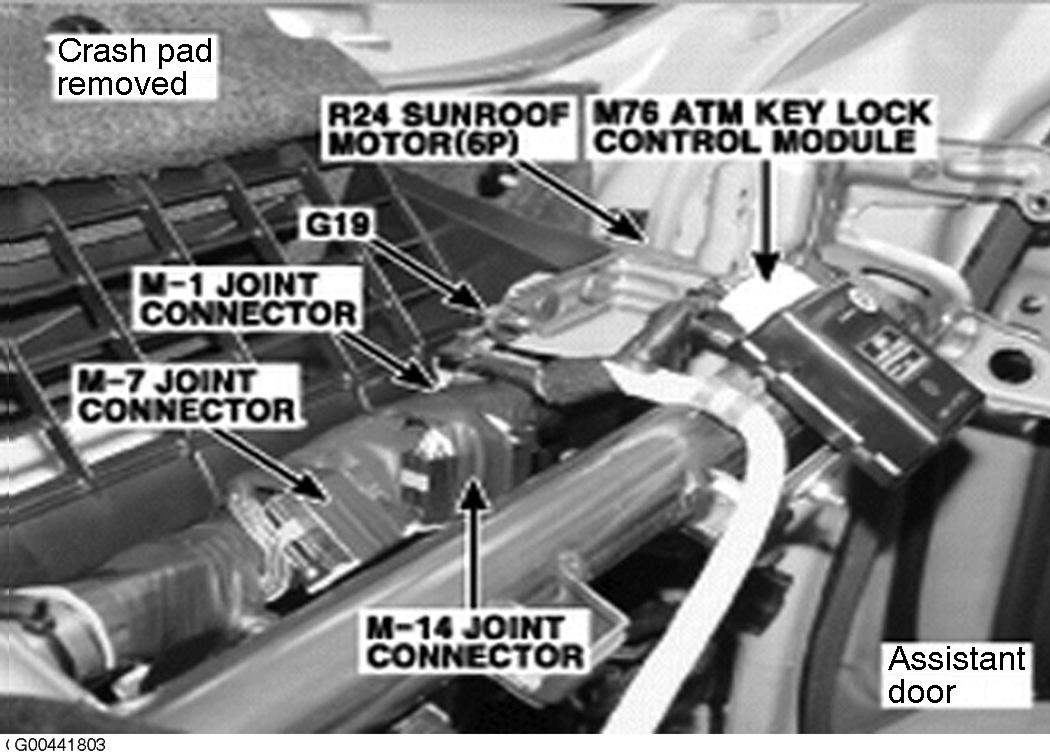

Fig 50: Behind Right Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 51: Behind Right Side Of Dash
Courtesy of HYUNDAI MOTOR CO.

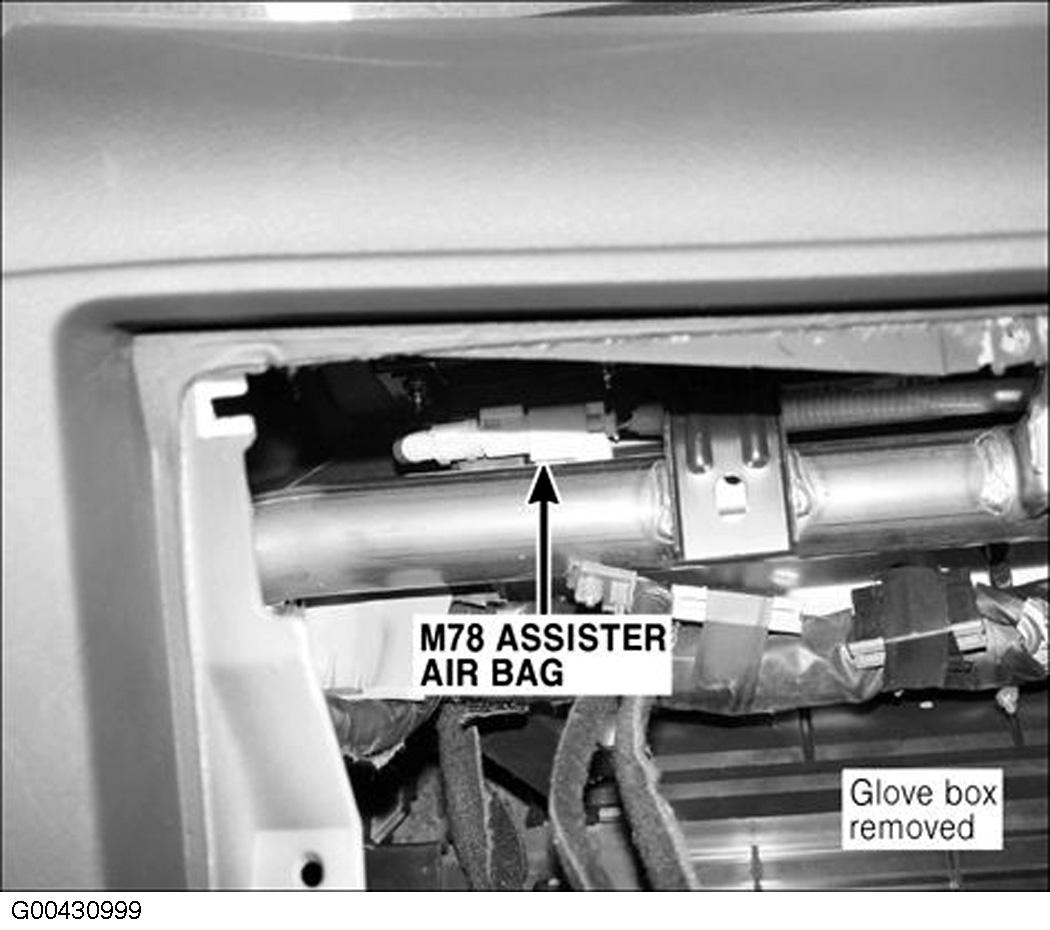

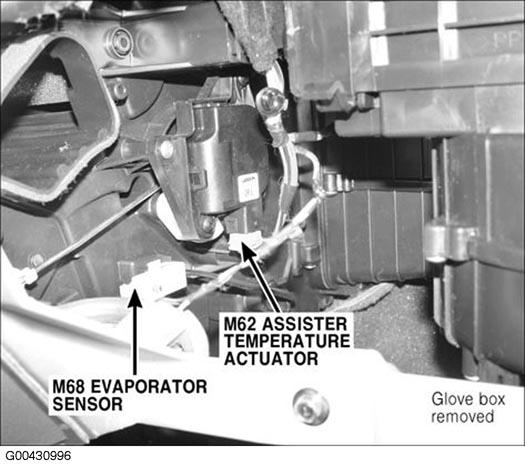

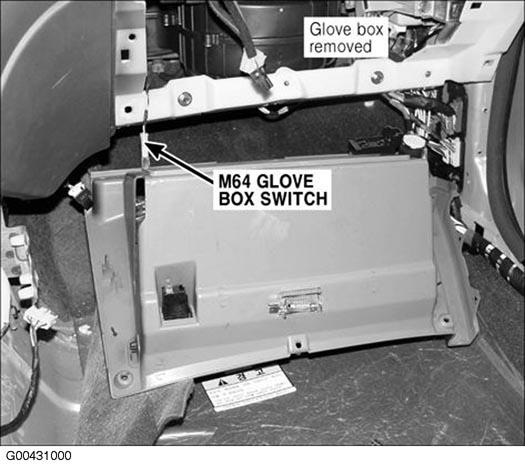

Fig 52: Behind Glove Box
Courtesy of HYUNDAI MOTOR CO.
Fig 53: Right Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 54: Under Right Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 55: Under Right Side Of Dash
Courtesy of HYUNDAI MOTOR CO.

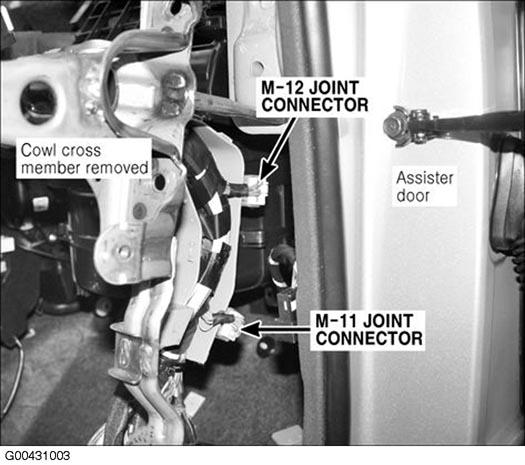

Fig 56: Right Kick Panel
Courtesy of HYUNDAI MOTOR CO.

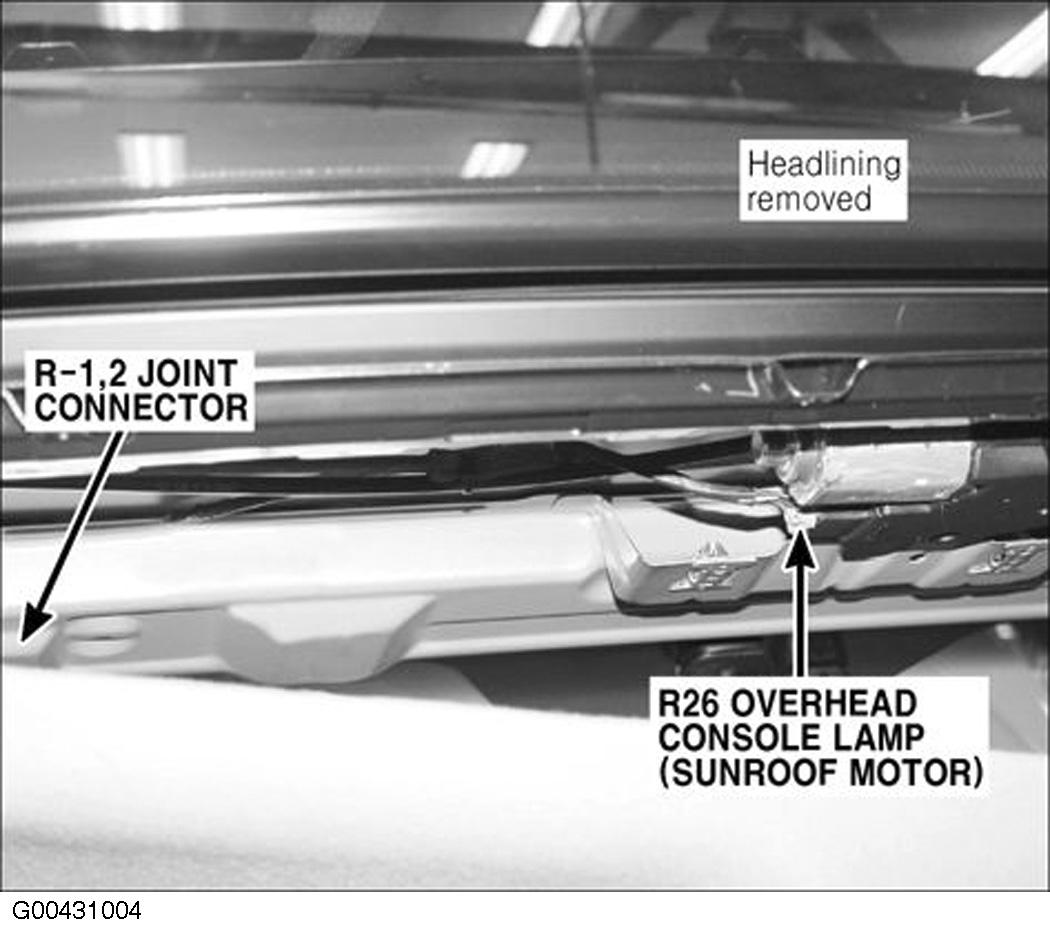

Fig 57: Front Of Roof
Courtesy of HYUNDAI MOTOR CO.

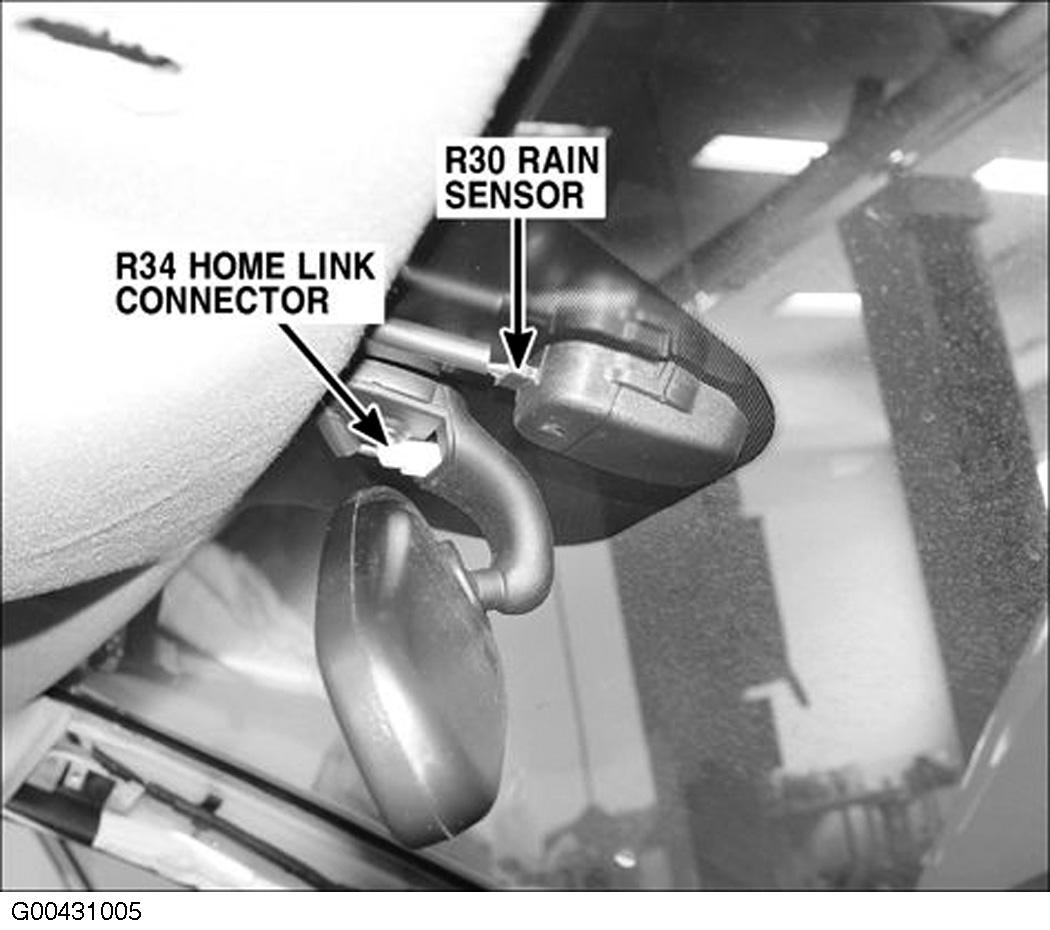

Fig 58: Front Center Of Roof
Courtesy of HYUNDAI MOTOR CO.
Fig 59: Right Front Floor (Left Similar)
Courtesy of HYUNDAI MOTOR CO.

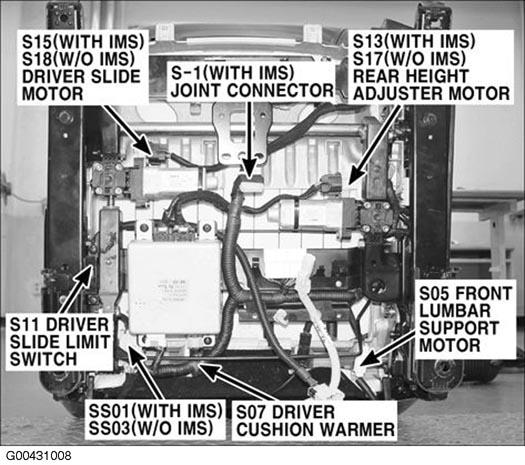

Fig 60: Under Driver's Seat
Courtesy of HYUNDAI MOTOR CO.

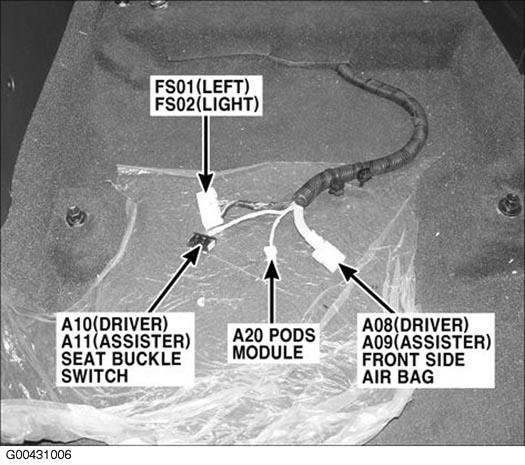

Fig 61: Under Driver's Seat
Courtesy of HYUNDAI MOTOR CO.
Fig 62: Under Driver's Seat
Courtesy of HYUNDAI MOTOR CO.

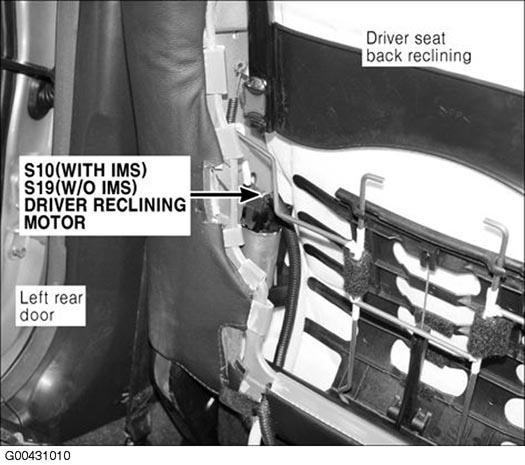

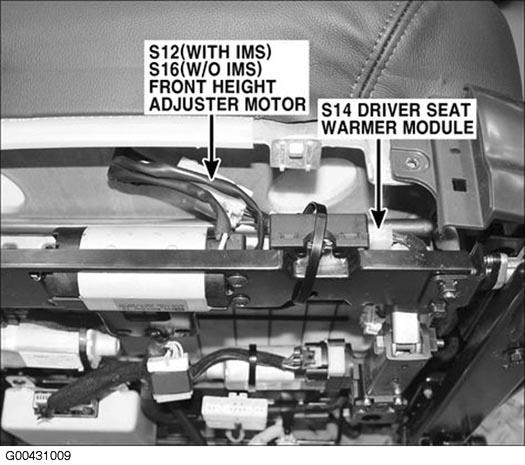

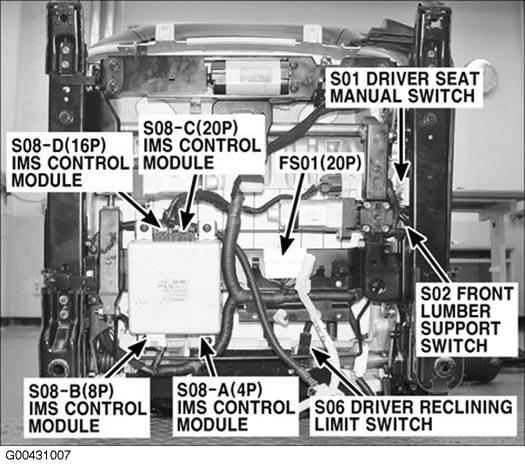

Fig 63: Driver's Seat Back
Courtesy of HYUNDAI MOTOR CO.

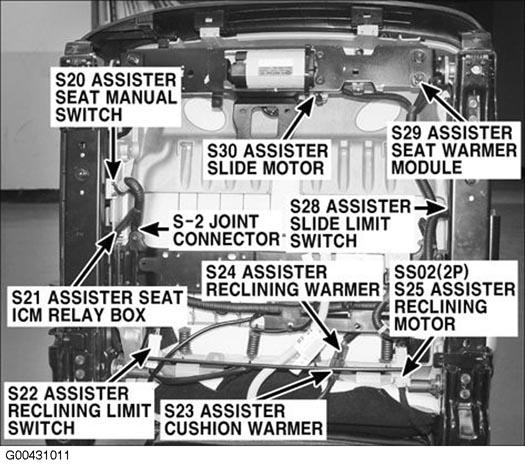

Fig 64: Under Right Front (Assister) Seat
Courtesy of HYUNDAI MOTOR CO.

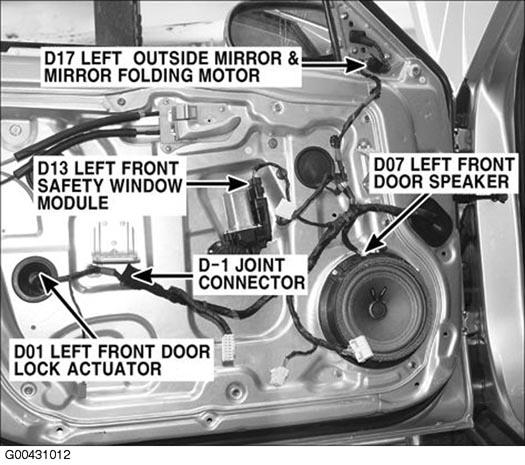

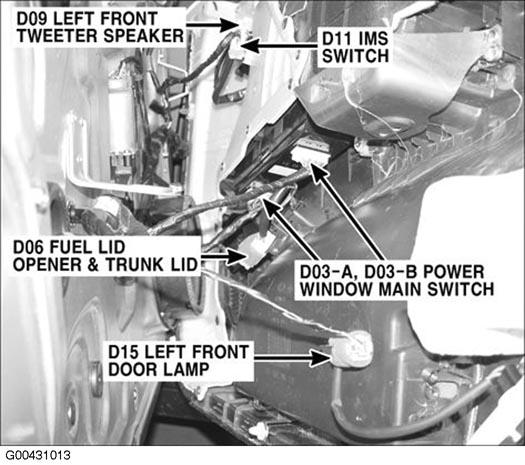

Fig 65: Left Front Door
Courtesy of HYUNDAI MOTOR CO.
Fig 66: Left Front Door
Courtesy of HYUNDAI MOTOR CO.

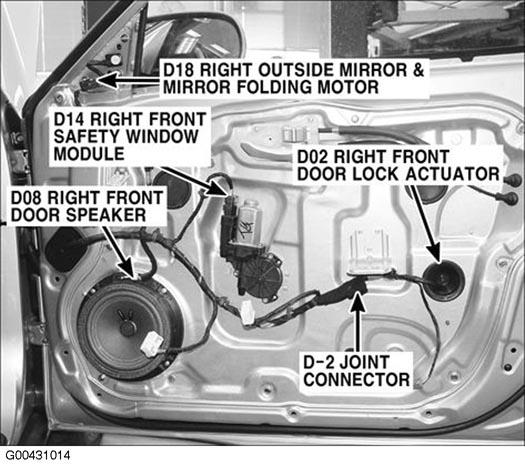

Fig 67: Right Front Door
Courtesy of HYUNDAI MOTOR CO.
Fig 68: Right "B" Pillar (Left Similar)
Courtesy of HYUNDAI MOTOR CO.

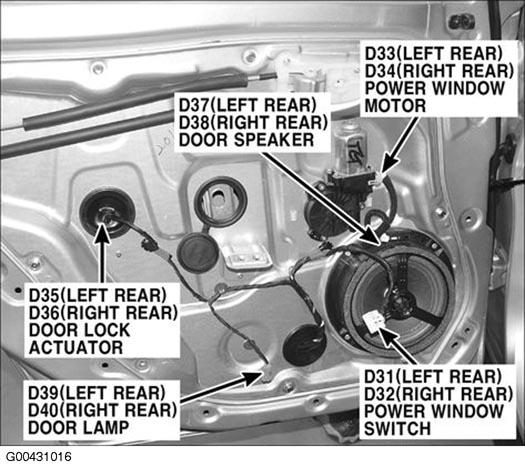

Fig 69: Left Rear Door (Right Similar)
Courtesy of HYUNDAI MOTOR CO.

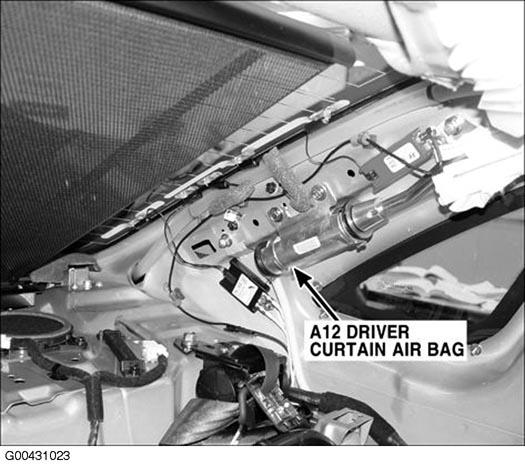

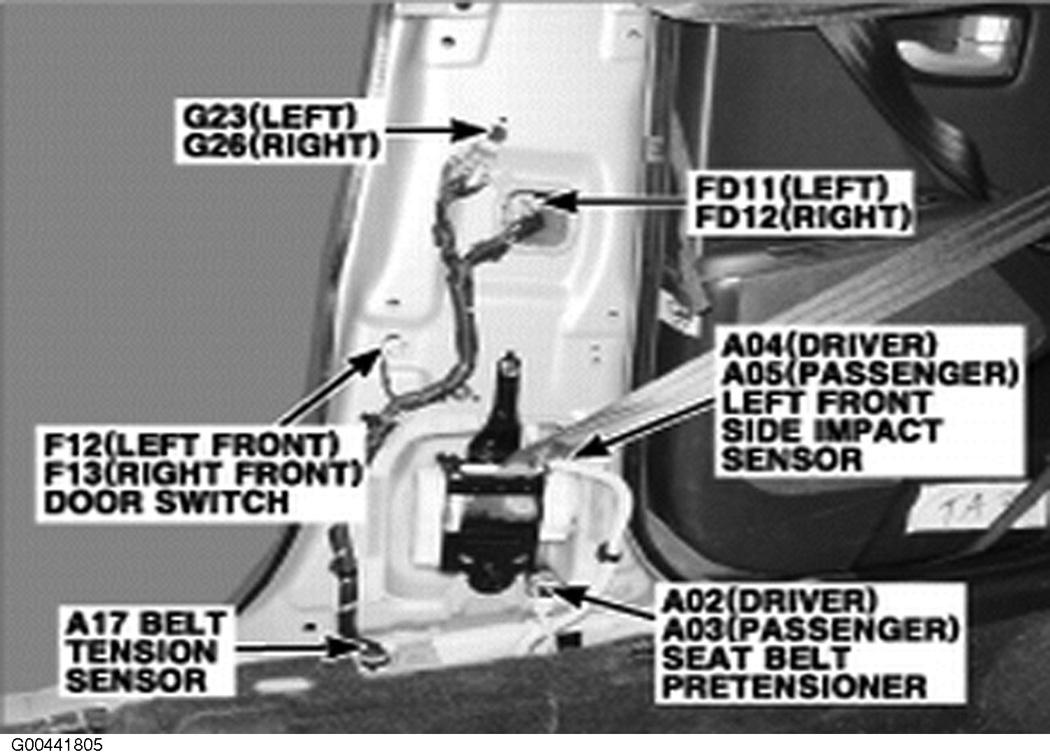

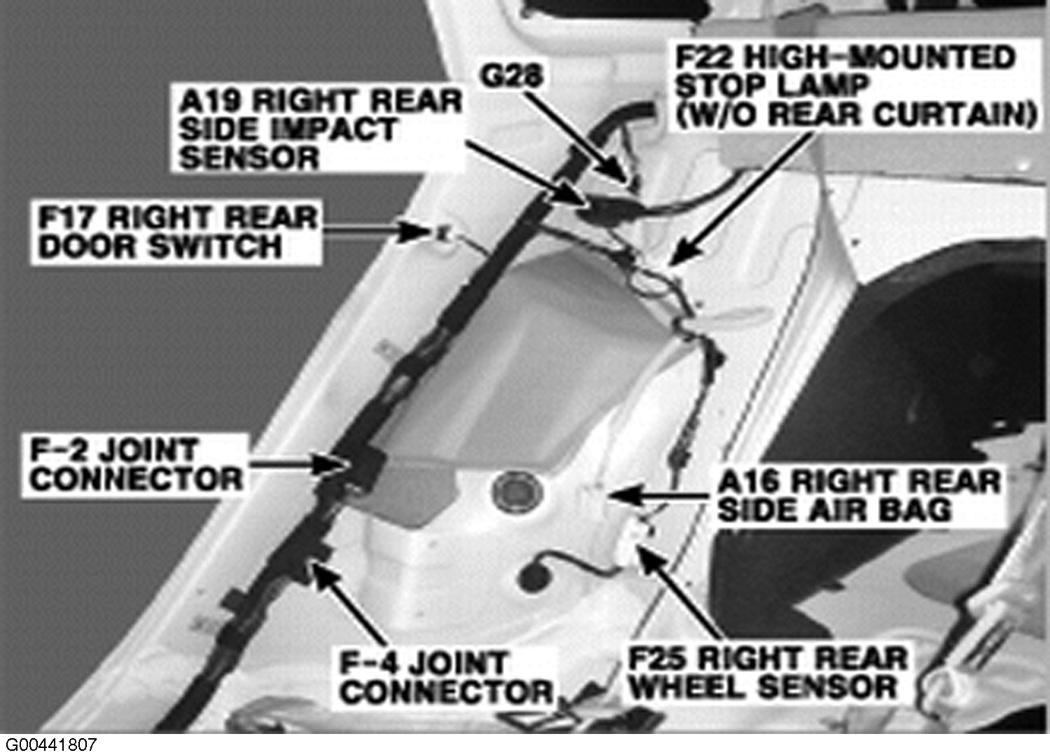

Fig 70: Left "C" Pillar
Courtesy of HYUNDAI MOTOR CO.

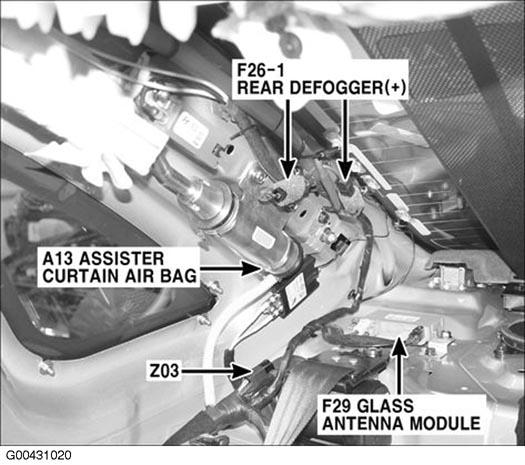

Fig 71: Right "C" Pillar
Courtesy of HYUNDAI MOTOR CO.
Fig 72: Right "C" Pillar
Courtesy of HYUNDAI MOTOR CO.
Fig 73: Behind Rear Seat
Courtesy of HYUNDAI MOTOR CO.
Fig 74: Left "C" Pillar
Courtesy of HYUNDAI MOTOR CO.

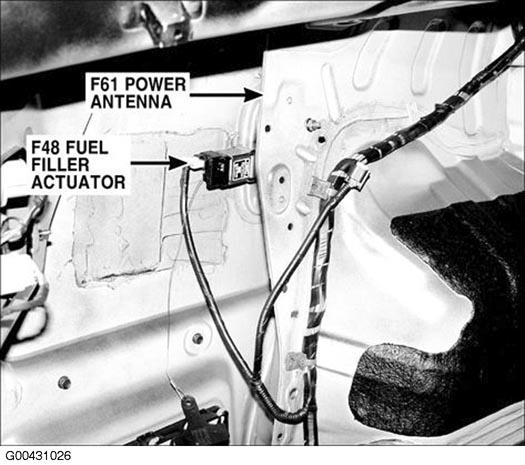

Fig 75: Rear Window
Courtesy of HYUNDAI MOTOR CO.

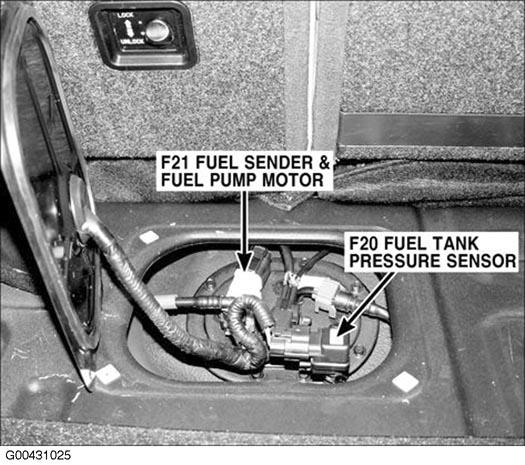

Fig 76: Under Rear Seat
Courtesy of HYUNDAI MOTOR CO.
Fig 77: Left Side Of Trunk
Courtesy of HYUNDAI MOTOR CO.

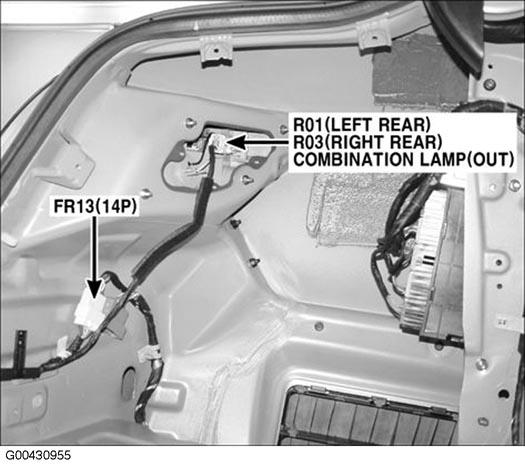

Fig 78: Rear Of Trunk
Courtesy of HYUNDAI MOTOR CO.

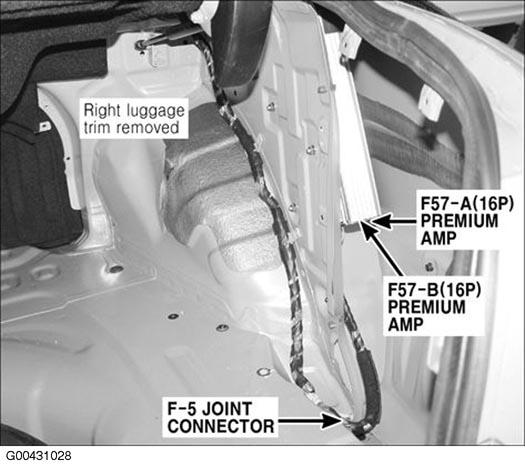

Fig 79: Right Side Of Trunk
Courtesy of HYUNDAI MOTOR CO.

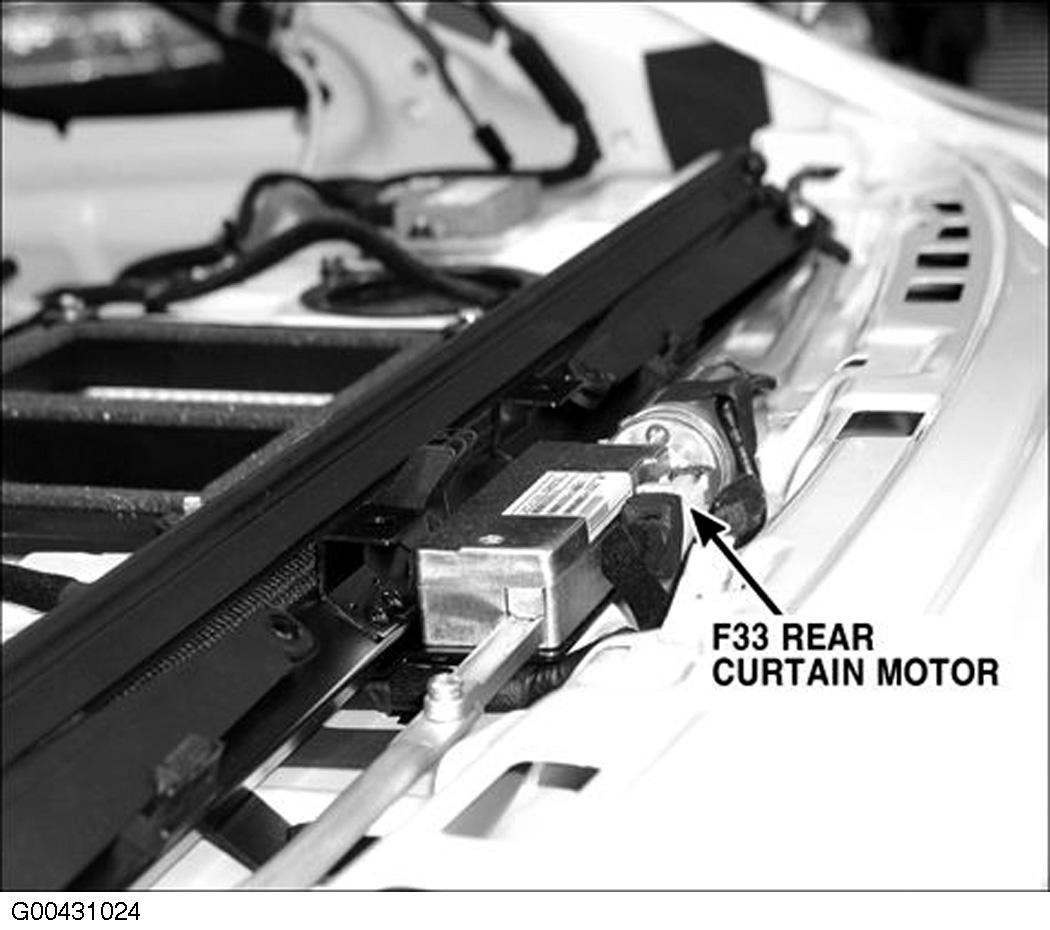

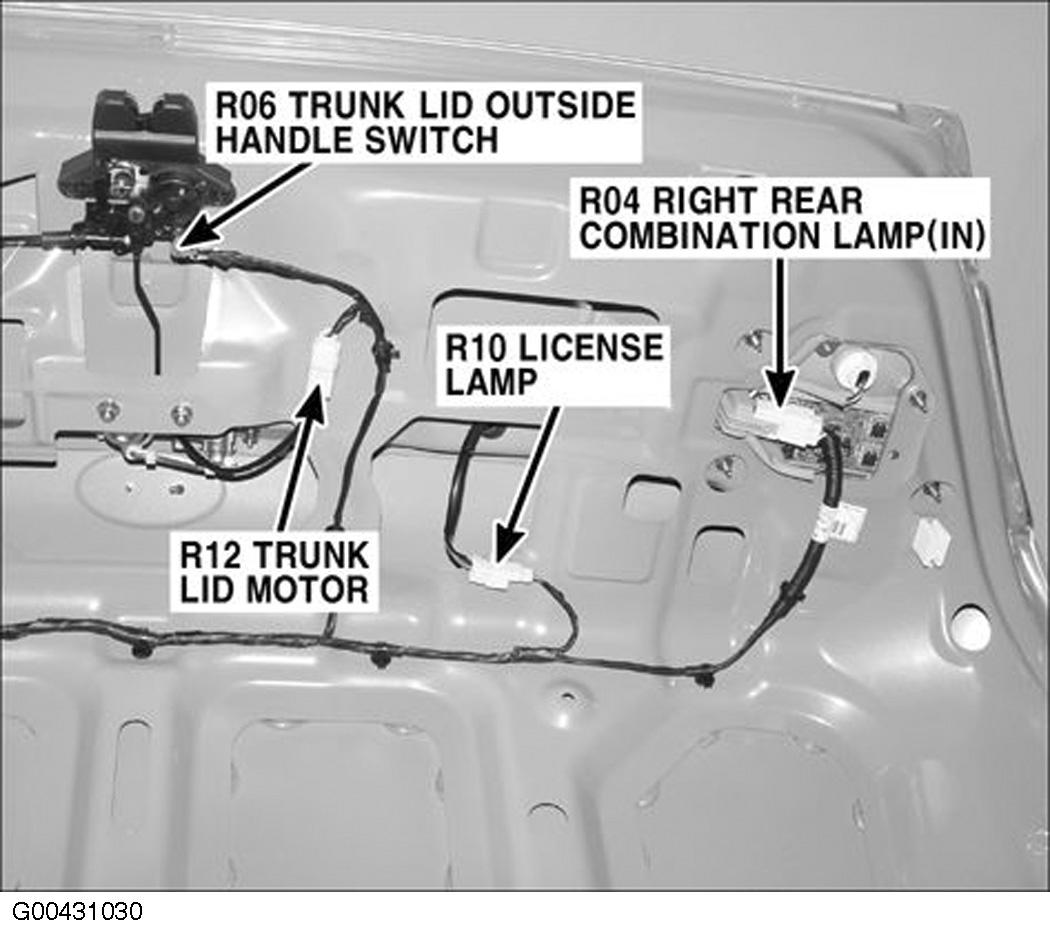

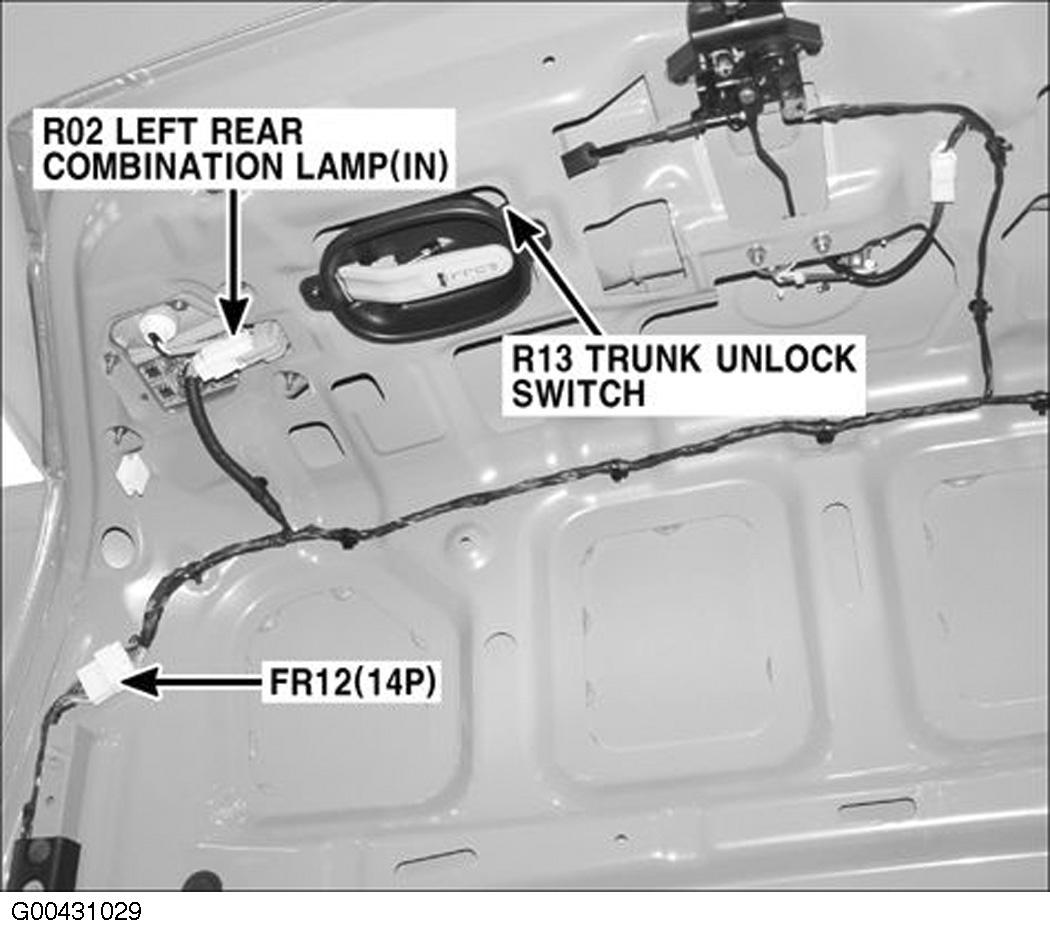

Fig 80: Trunk Lid
Courtesy of HYUNDAI MOTOR CO.
Fig 81: Trunk Lid
Courtesy of HYUNDAI MOTOR CO.

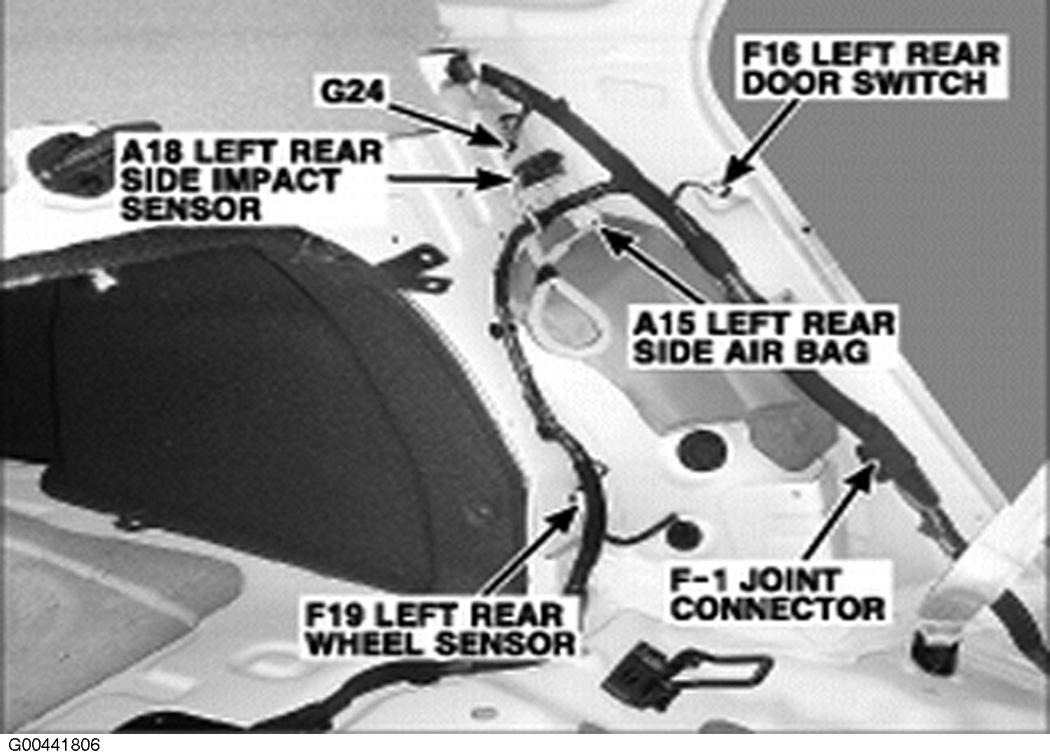

Fig 82: Left Rear Of Vehicle
Courtesy of HYUNDAI MOTOR CO.

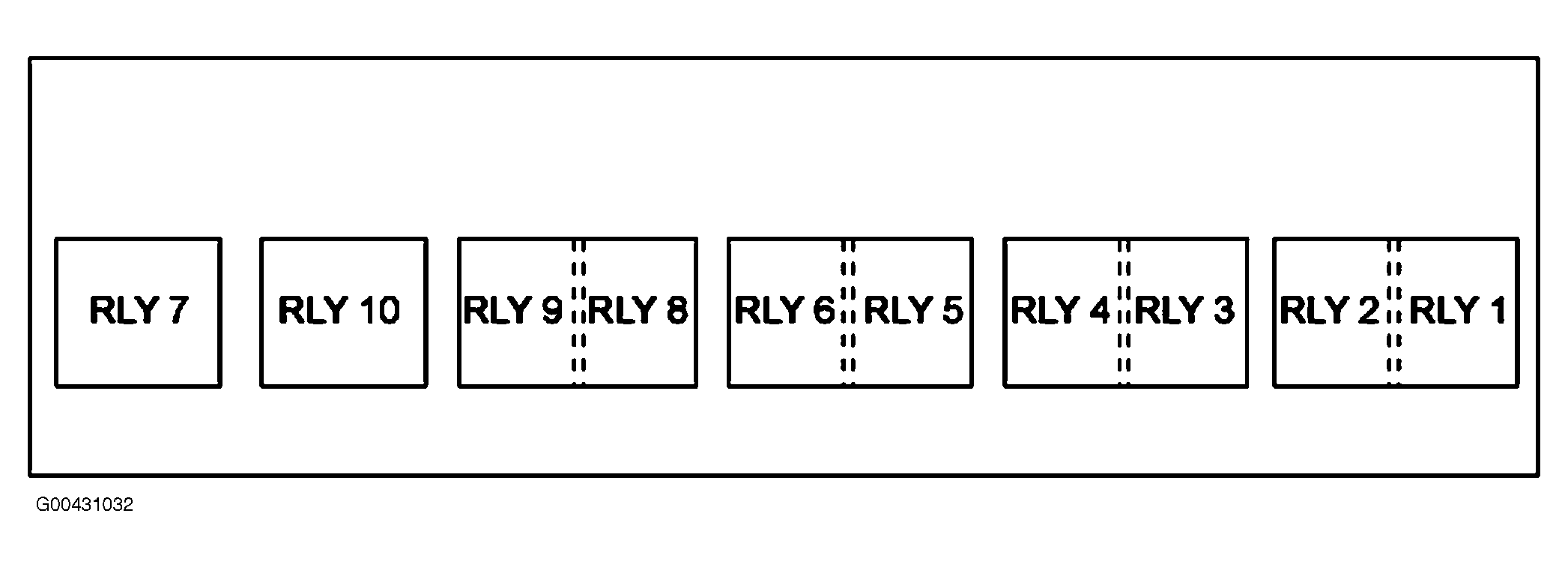

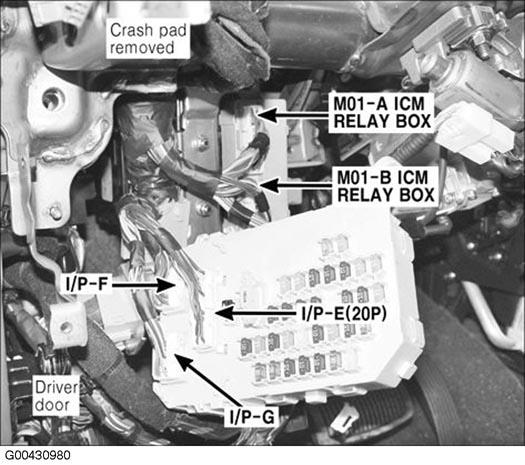

Fig 83: ICM Relay Box
Courtesy of HYUNDAI MOTOR CO.

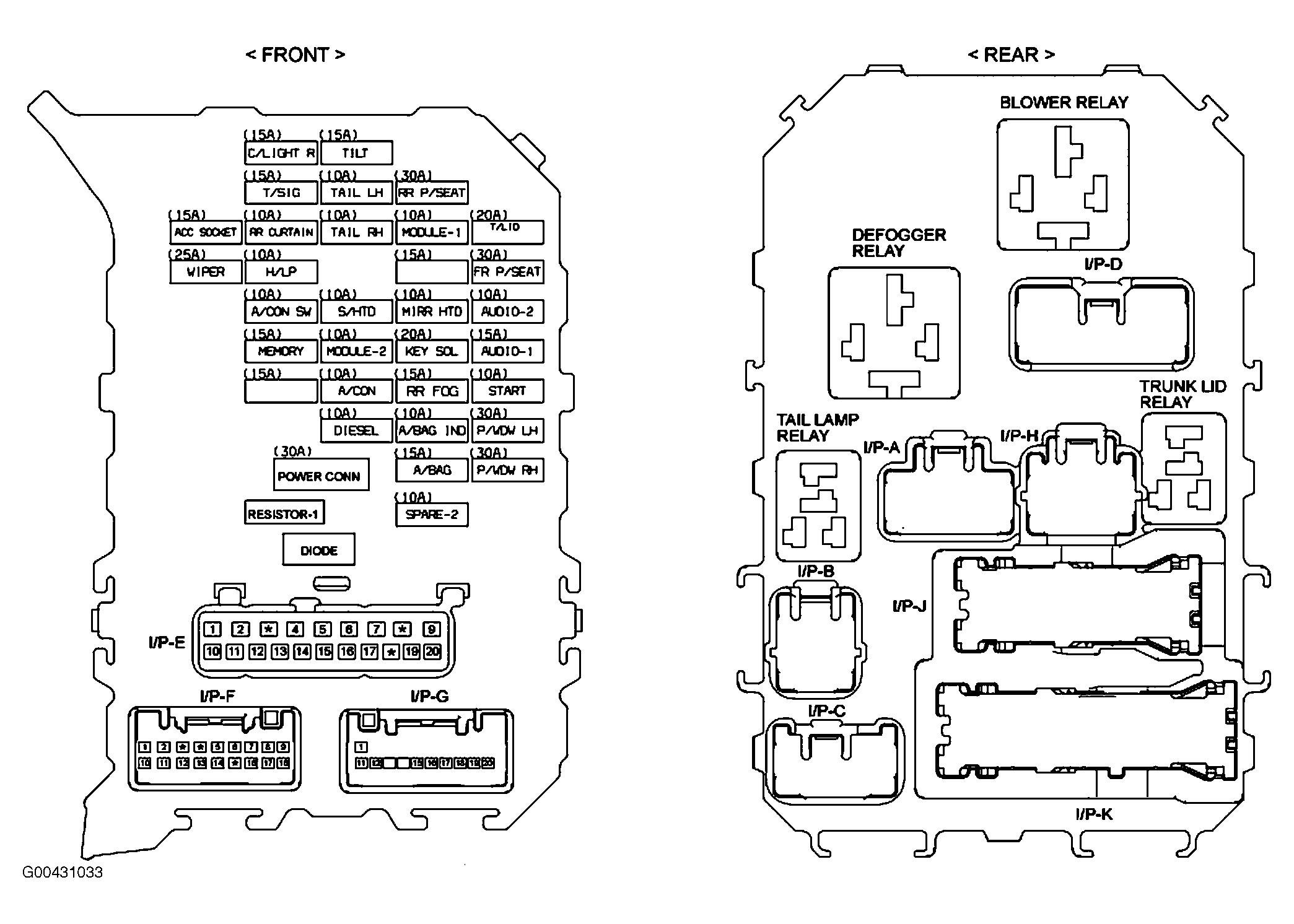

Fig 84: Passenger Compartment Junction Block
Courtesy of HYUNDAI MOTOR CO.

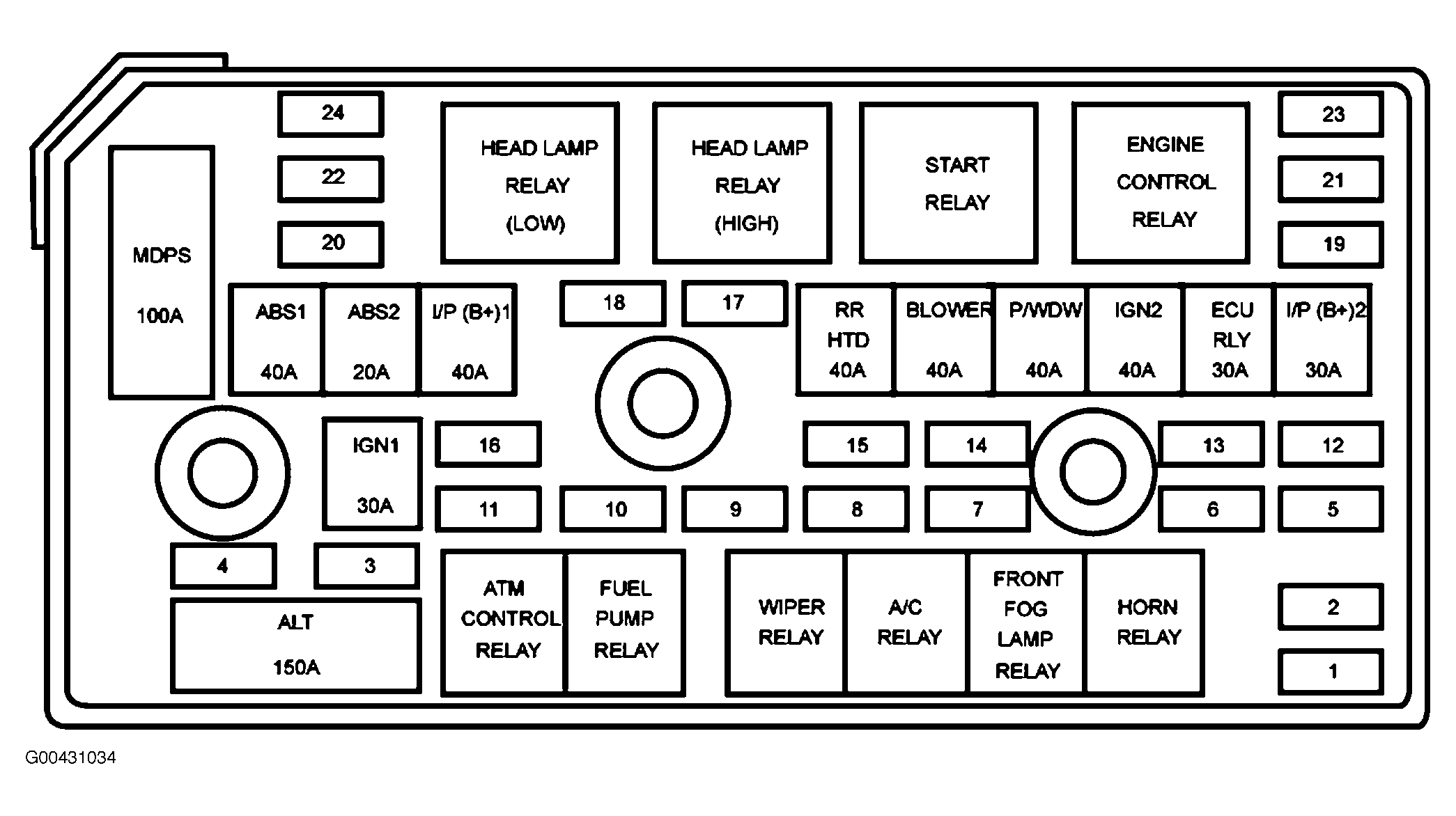

Fig 85: Engine Compartment Junction Block
Courtesy of HYUNDAI MOTOR CO.
