Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Module | Left rear of engine compartment. See Figure. |

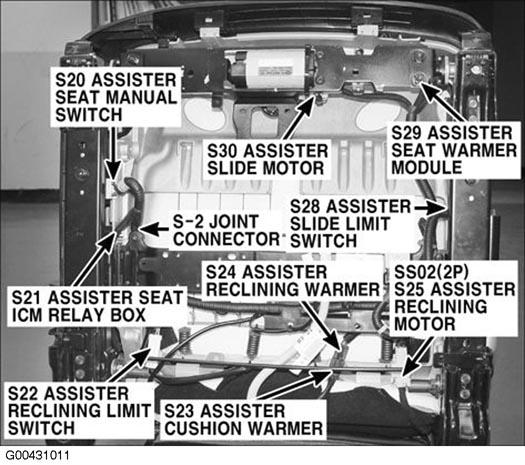

| Assister Seat Warmer Module | Under right front seat. See Figure. |
| ATM Key Lock Control Module | Behind right side of dash. See Figure. |
| BCM | Behind left kick panel. See Figure. |
| Cooling Fan Controller | Left front of engine compartment. See Figure. |
| Driver Seat Warmer Module | Under driver's seat. See Figure. |
| ESP Control Module | Left rear of engine compartment. See Figure. |
| Front Safety Window Module (Left) | In left front door. See Figure. |
| Front Safety Window Module (Right) | In right front door. See Figure. |
| Glass Antenna Module | In right "C" pillar. See Figure. |
| Immobilizer Control Module | Under left side of dash. See Figure. |
| IMS Control Module | Under driver's seat. See Figure. |
| PCM | Left rear of engine compartment. See Figure. |
| PODS Module | Under right front seat. See Figure. |
| Rear Curtain Module | Under front of center console. See Figure. |
| SRS Control Module | Under center console. See Figure. |
| Tilt & Telescopic Module | Behind left kick panel. See Figure. |
| Tire Pressure Monitoring Module | Under front of center console. See Figure. |
