Starter Relay: Inspection

Remove the fuse box cover.
Remove the starter relay (A).

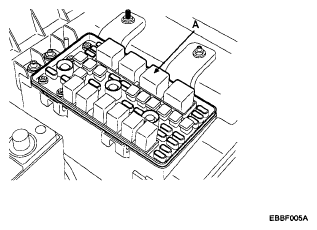

Fig 1: Identifying Starter Relay
Courtesy of HYUNDAI MOTOR CO.

Using an ohmmeter, check that there is continuity between each terminal.

CONTINUITY CHART

Terminal	Continuity
30 - 87	NO
85 - 86	YES

Apply 12V to terminal 85 and ground to terminal 86. Check for continuity between terminals 30 and 87.

Fig 2: Identifying Relay Terminals
Courtesy of HYUNDAI MOTOR CO.
If there is no continuity, replace the starter relay.
Install the starter relay.
Install the fuse box cover.
