Control Assembly, HVAC

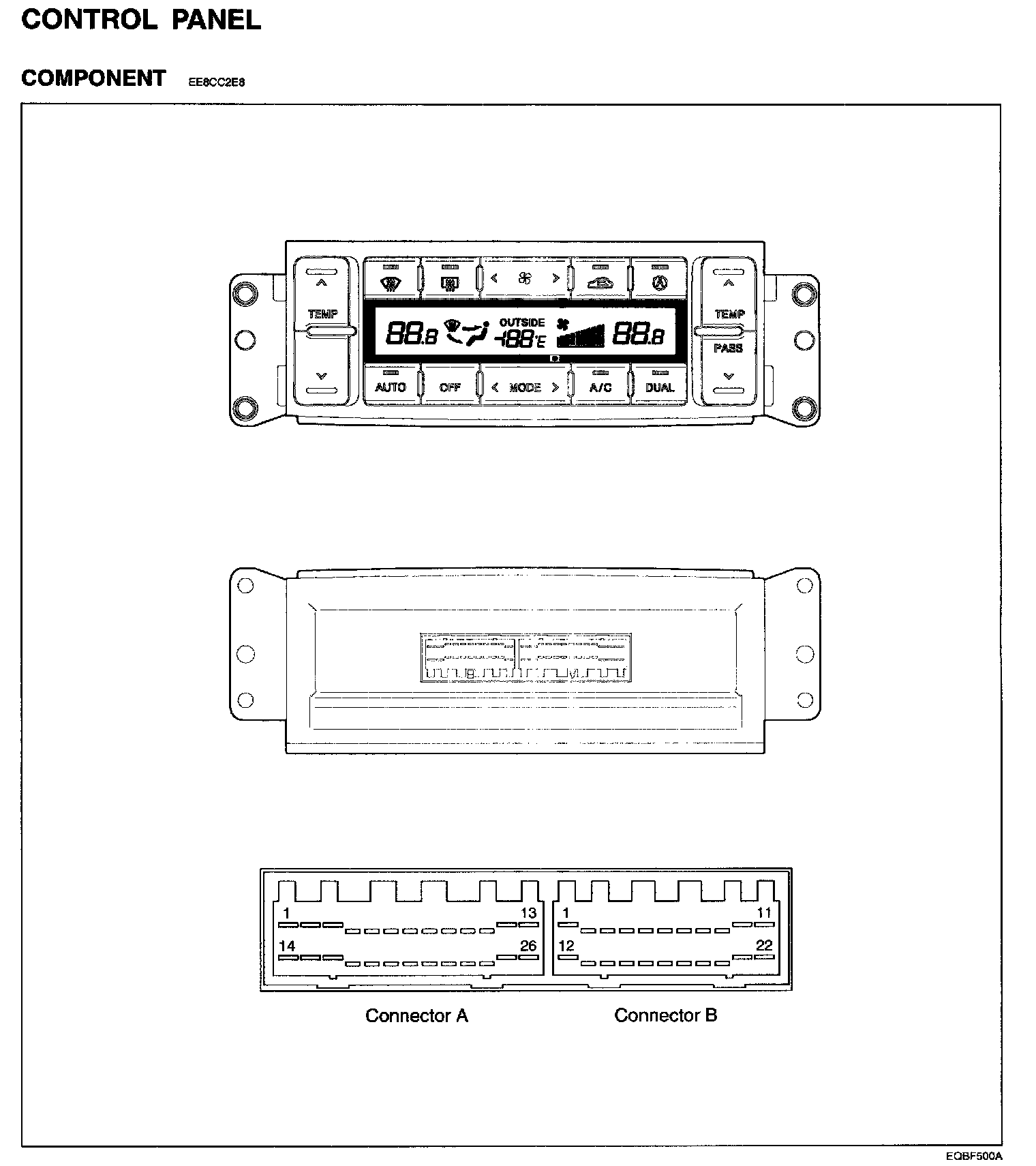

Control Panel (Automatic) - Component:

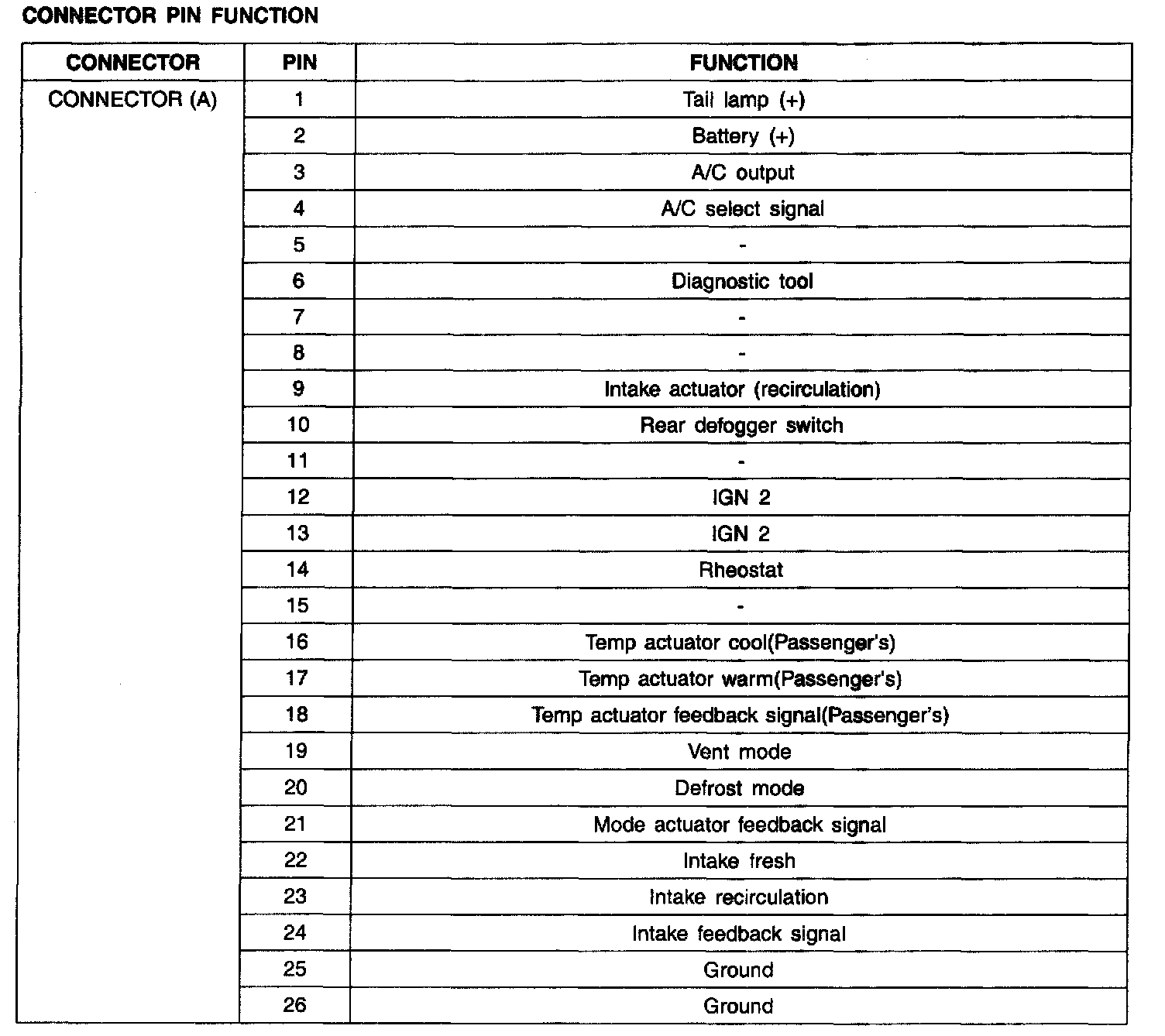

Connector Pin Function - Connector (A):

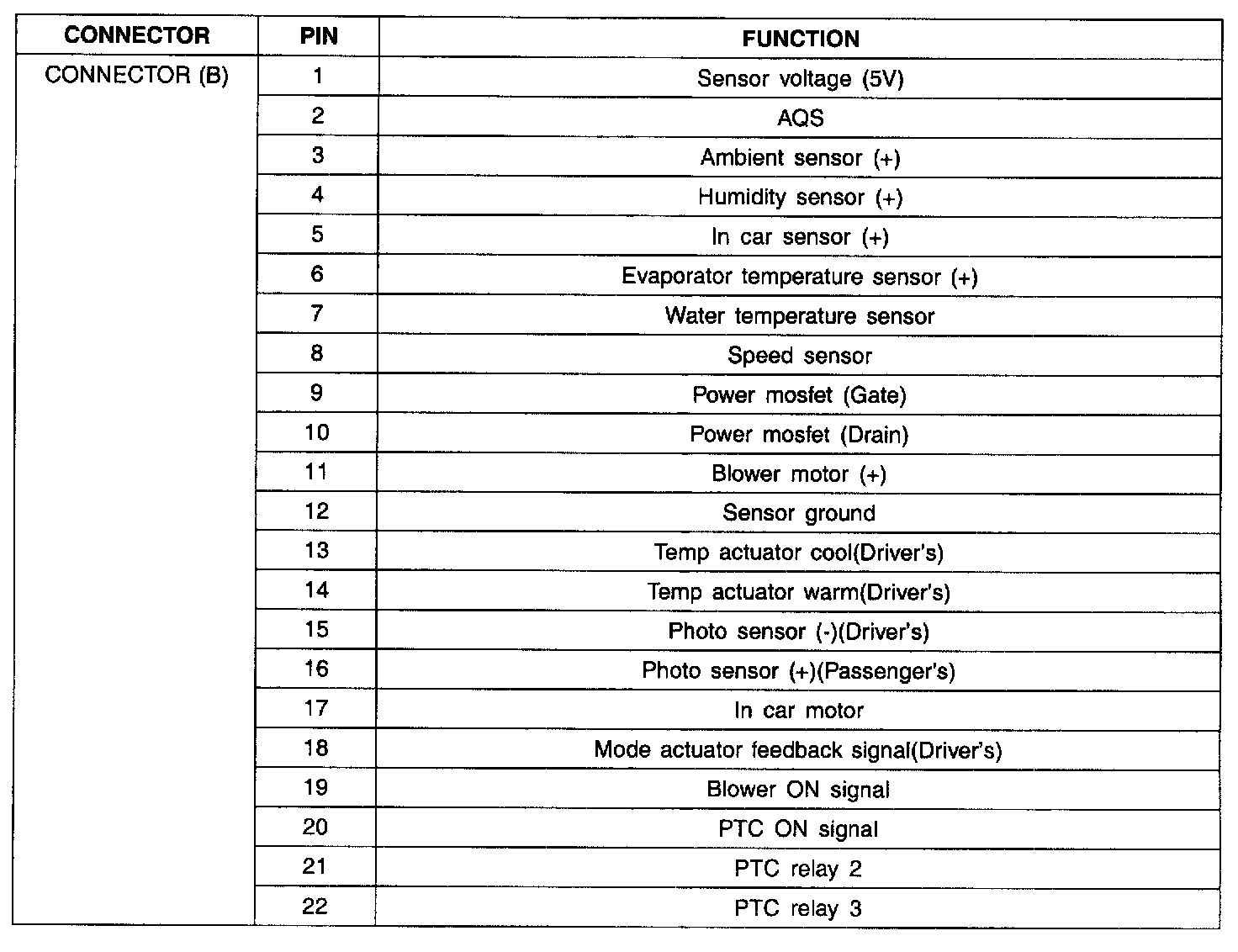

Connector Pin Function - Connector (B):
