ADM, DDM, IMS Self Diagnostic Function

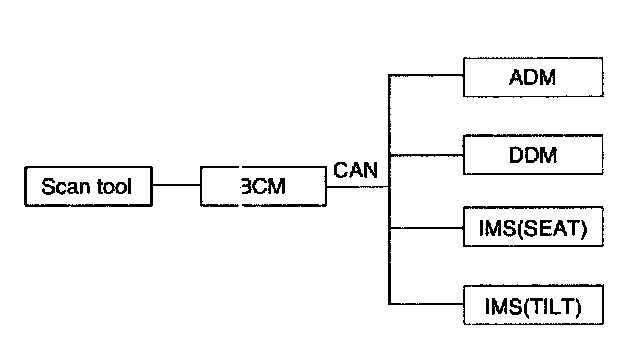

ADM, DDM, IMS SELF DIAGNOSTIC FUNCTION1. It can be communicated with scan tool through of BCM.
2. BCM receives the commands from scan tool and remits to DDM, ADM and IMS units with CAN. BCM receives the response from the units with CAN inversely, and feedback to scan tool with CAN.
3. Input display and output forced drive can be performed in each of DDM, ADM and IMS units. Though, failure diagnosis is limited to the certain diagnosis ranges.
