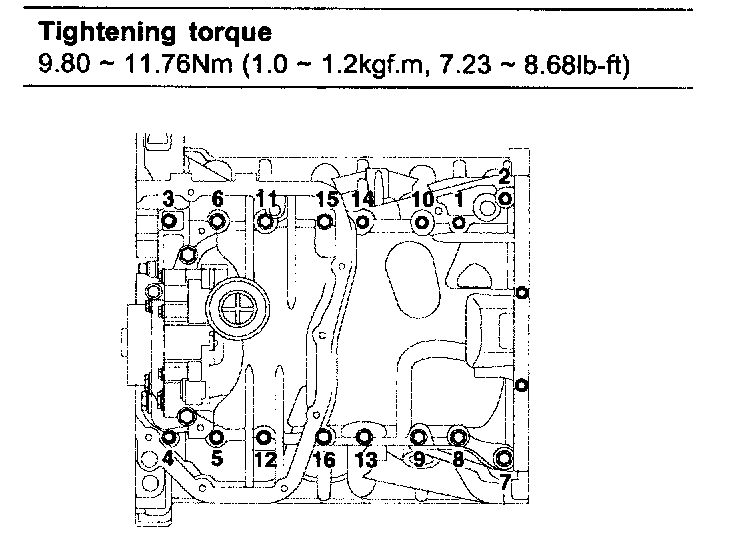

Oil Pan, Engine
Upper
oil pan
bolt
9.80-11.76 Nm (1.0-1.2 kgf-m, 7.23-8.68 ft. lbs.)
Lower
oil pan
bolt
9.80-11.76 Nm (1.0-1.2 kgf-m, 7.23-8.68 ft. lbs.)
