Ignition Switch: Replacement

  1. Disconnect the negative (-) battery terminal.

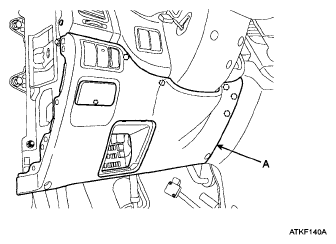

  2. Remove the crash pad lower panel.
    Fig 1: Identifying Crash Pad Lower Panel
    G05325189Courtesy of HYUNDAI MOTOR CO.

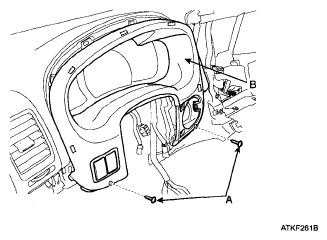

  3. Remove the screws (2EA) and trip switch connector. Then remove the crash fascia panel (B).
    Fig 2: Identifying Screws And Crash Fascia Panel
    G05325195Courtesy of HYUNDAI MOTOR CO.

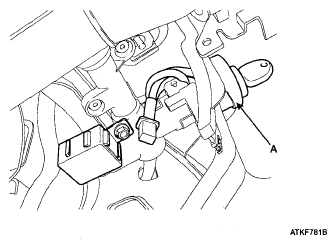

  4. Remove the ignition switch (A) after loosening the screw with IG ON and disconnecting the 6P connector.
    Fig 3: Identifying Ignition Switch
    G05325515Courtesy of HYUNDAI MOTOR CO.

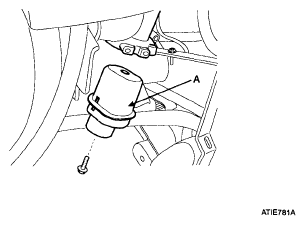

  5. Remove the door warning switch and key illumination lamp (A) after loosening the screw and disconnecting the 6P connector.
    Fig 4: Identifying Key Illumination Lamp And Screw
    G04803142Courtesy of HYUNDAI MOTOR CO.

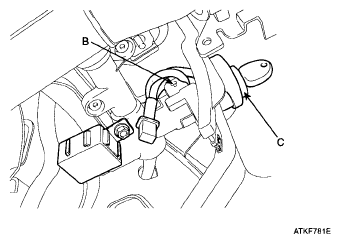

  6. Remove the key lock cylinder (C) after pushing lock pin (B) with key ACC.
    Fig 5: Identifying Key Lock Cylinder And Pushing Lock Pin
    G05325565Courtesy of HYUNDAI MOTOR CO.
  7. Installation is the reverse of removal procedure.
