Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references

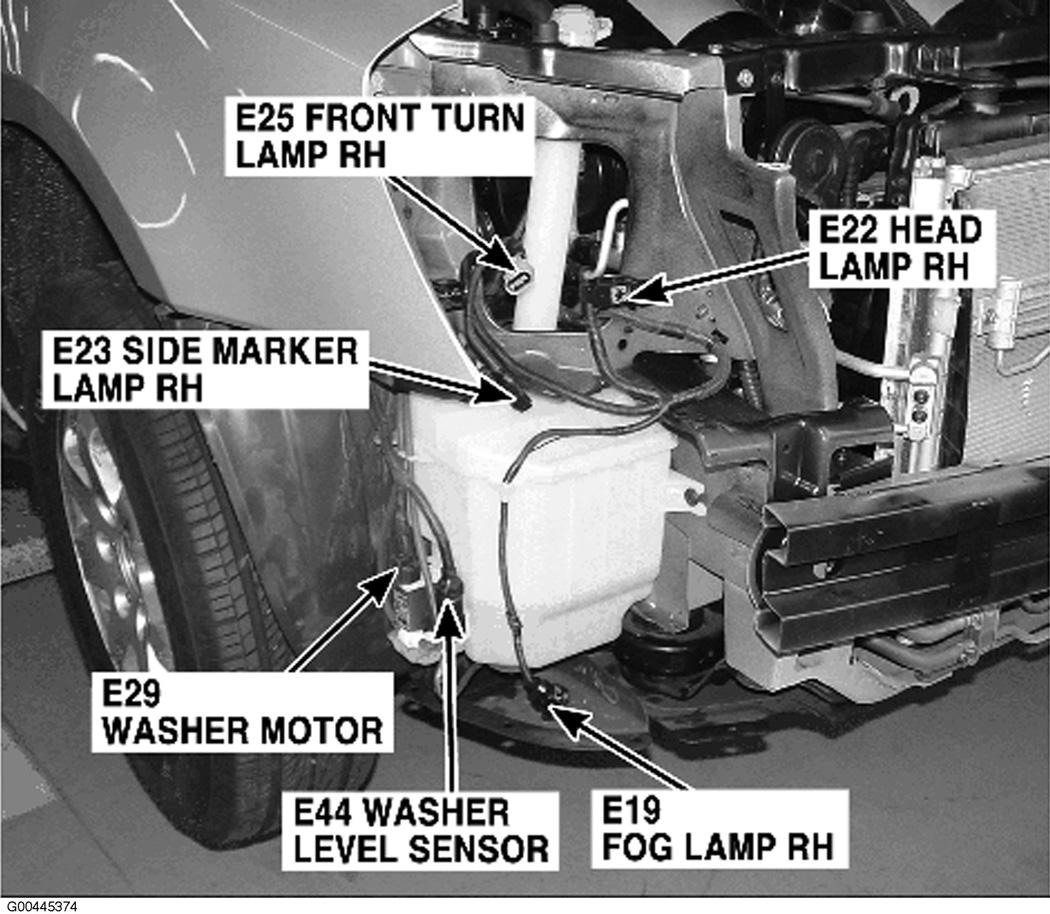

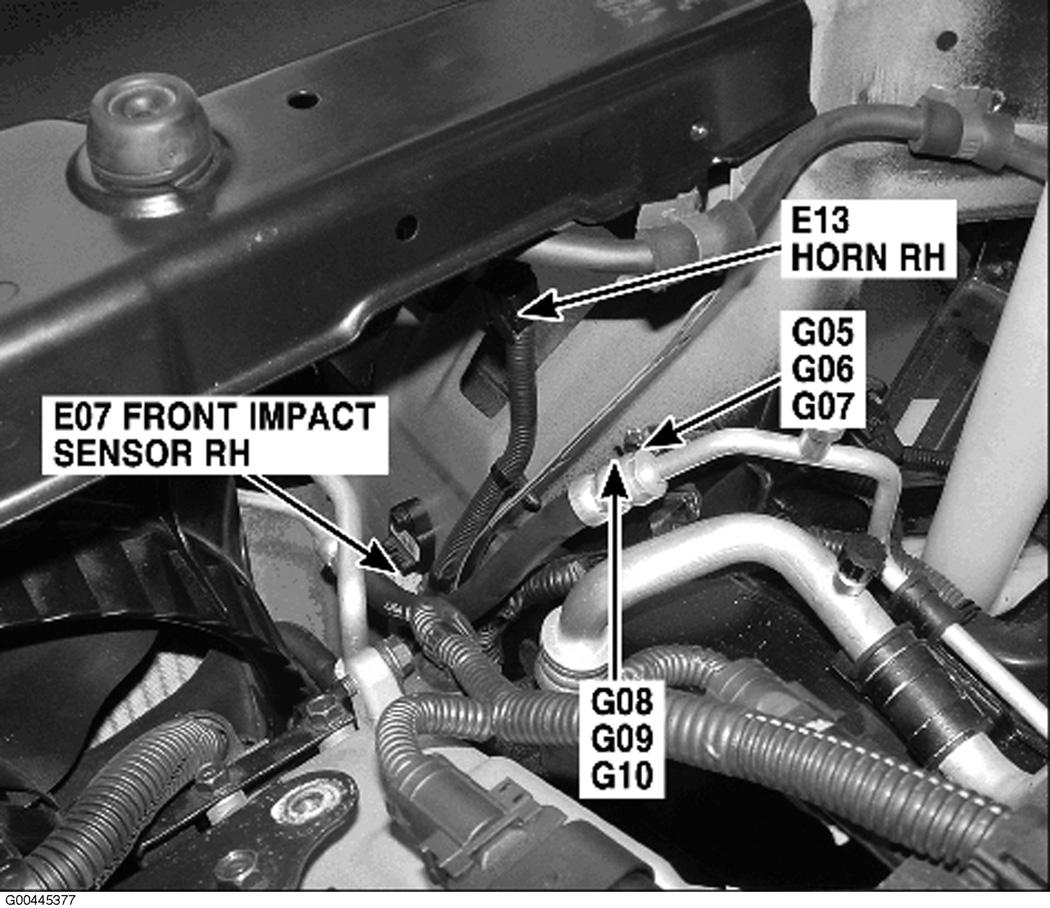

Fig 1: Right Front Corner Of Vehicle
Courtesy of HYUNDAI MOTOR CO.

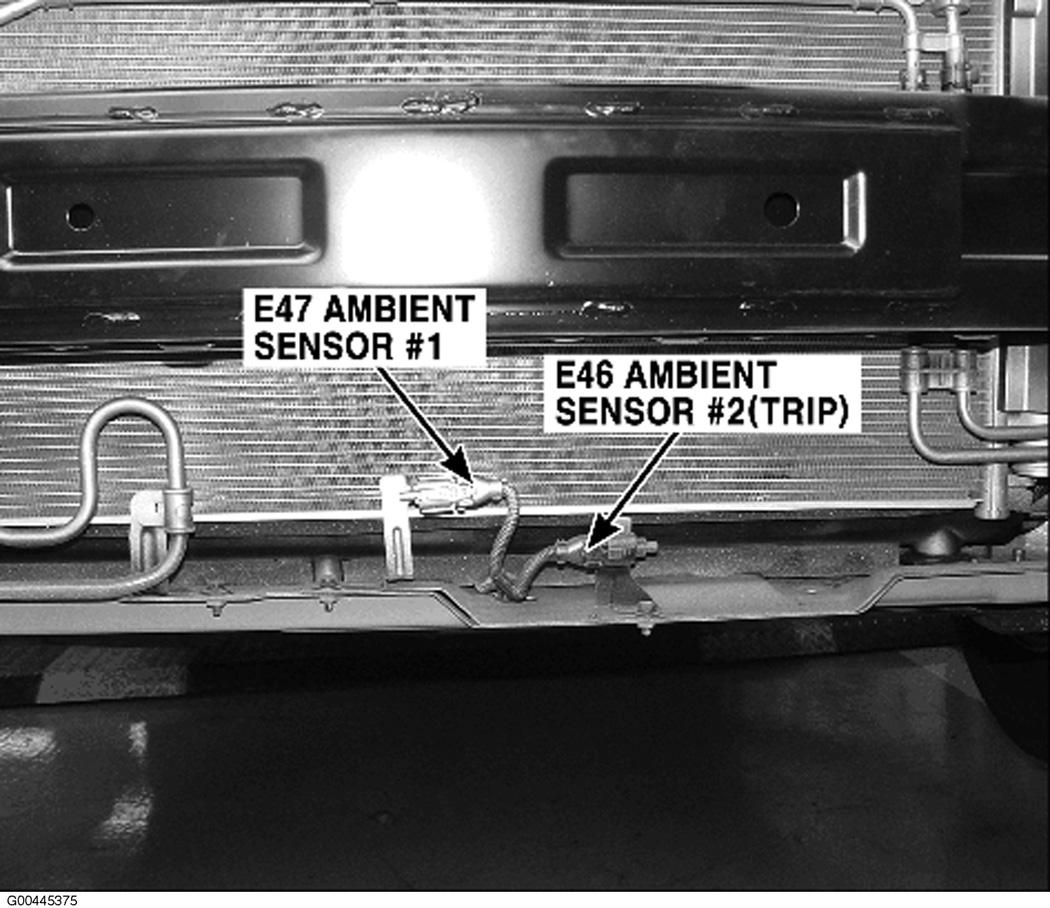

Fig 2: Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

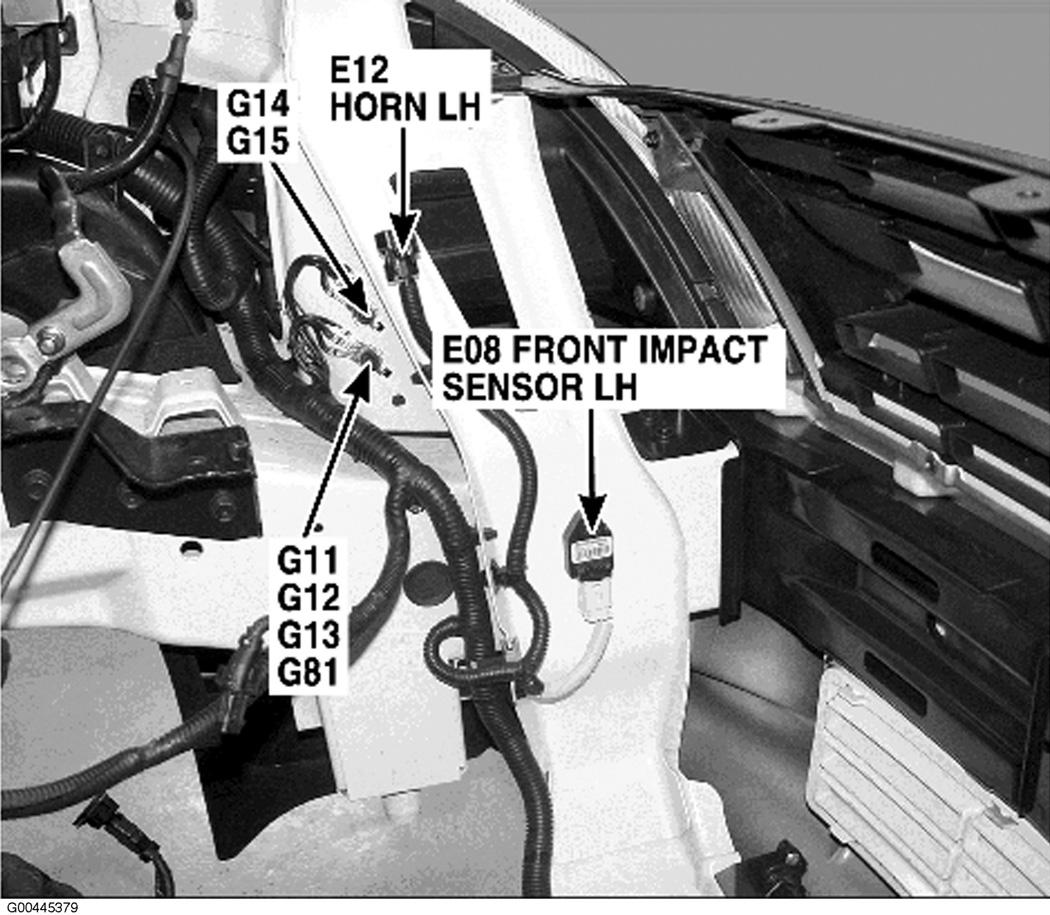

Fig 3: Left Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 4: Right Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

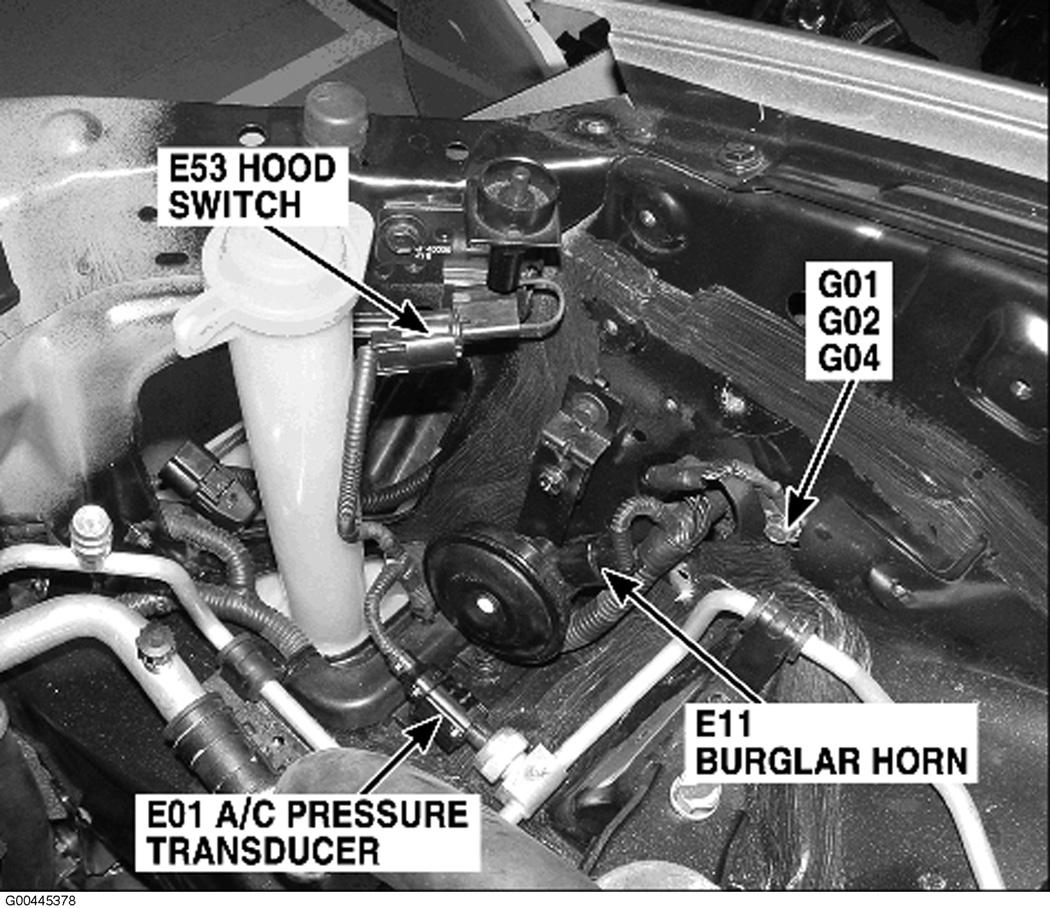

Fig 5: Right Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

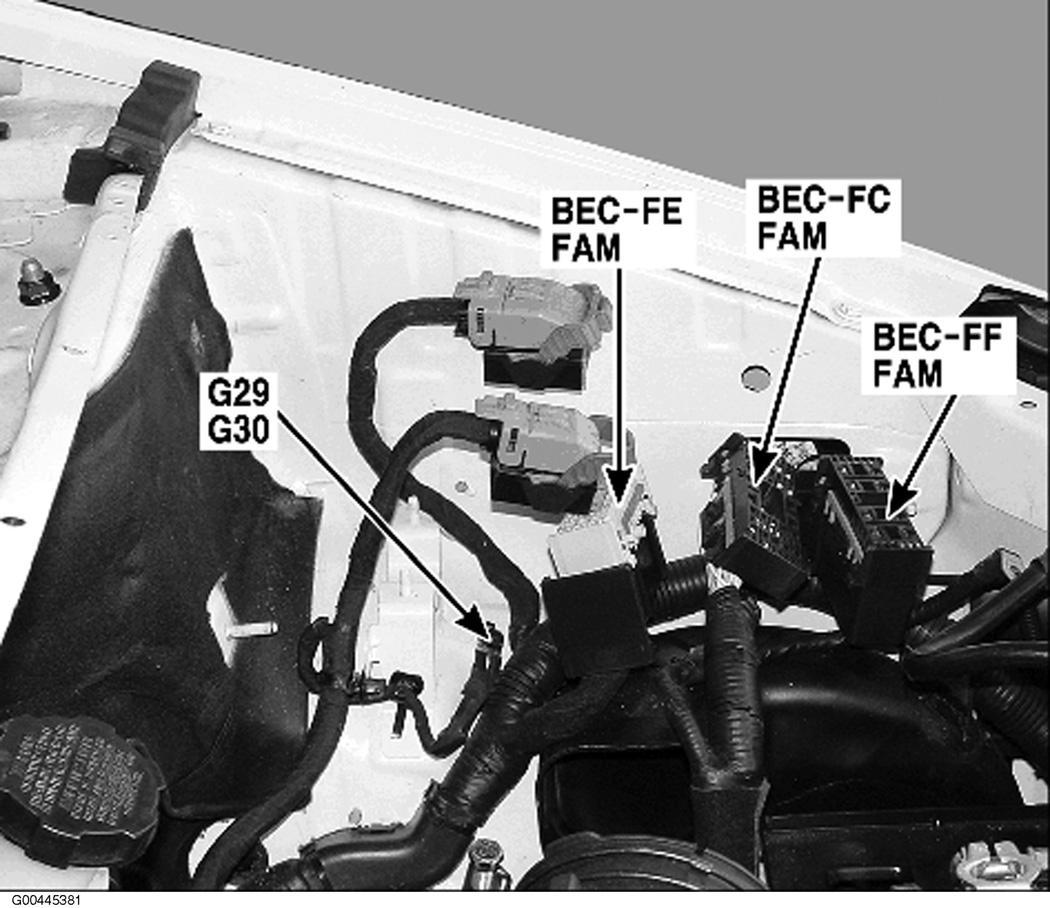

Fig 6: Left Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 7: Left Rear Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 8: Left Side Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

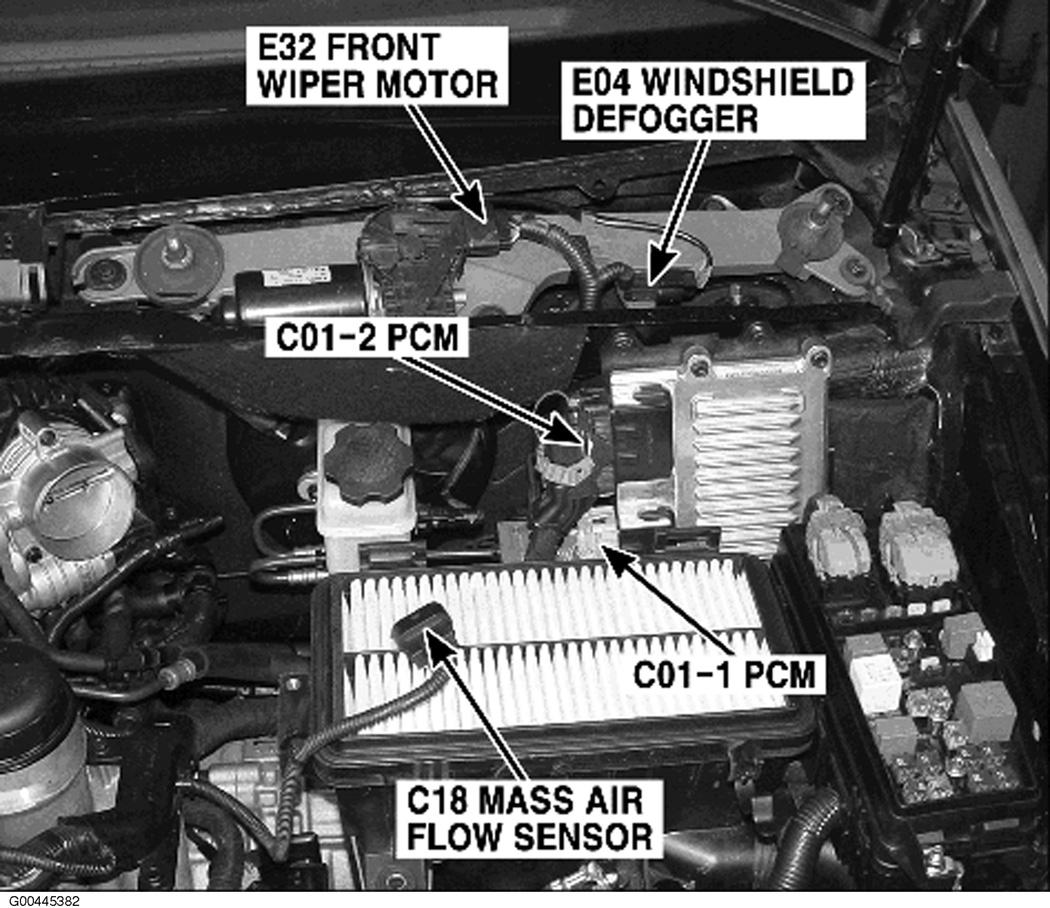

Fig 9: Rear Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

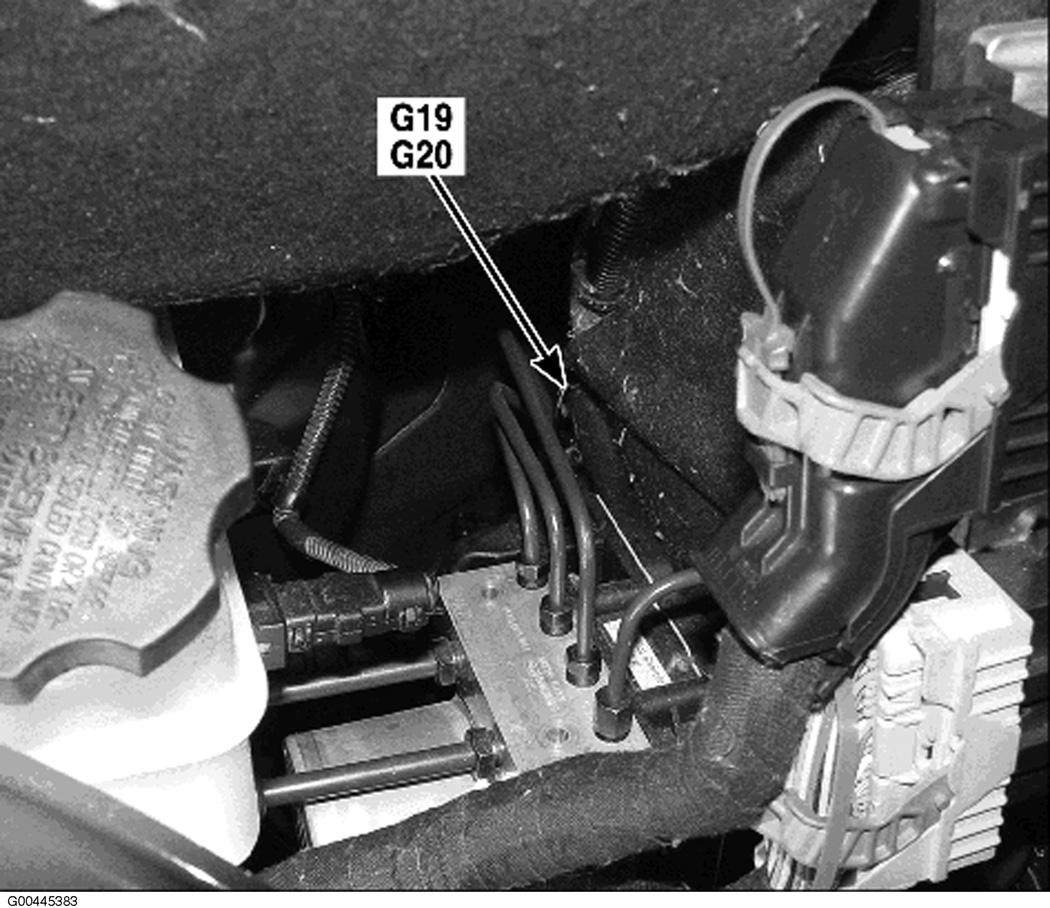

Fig 10: Left Rear Corner Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

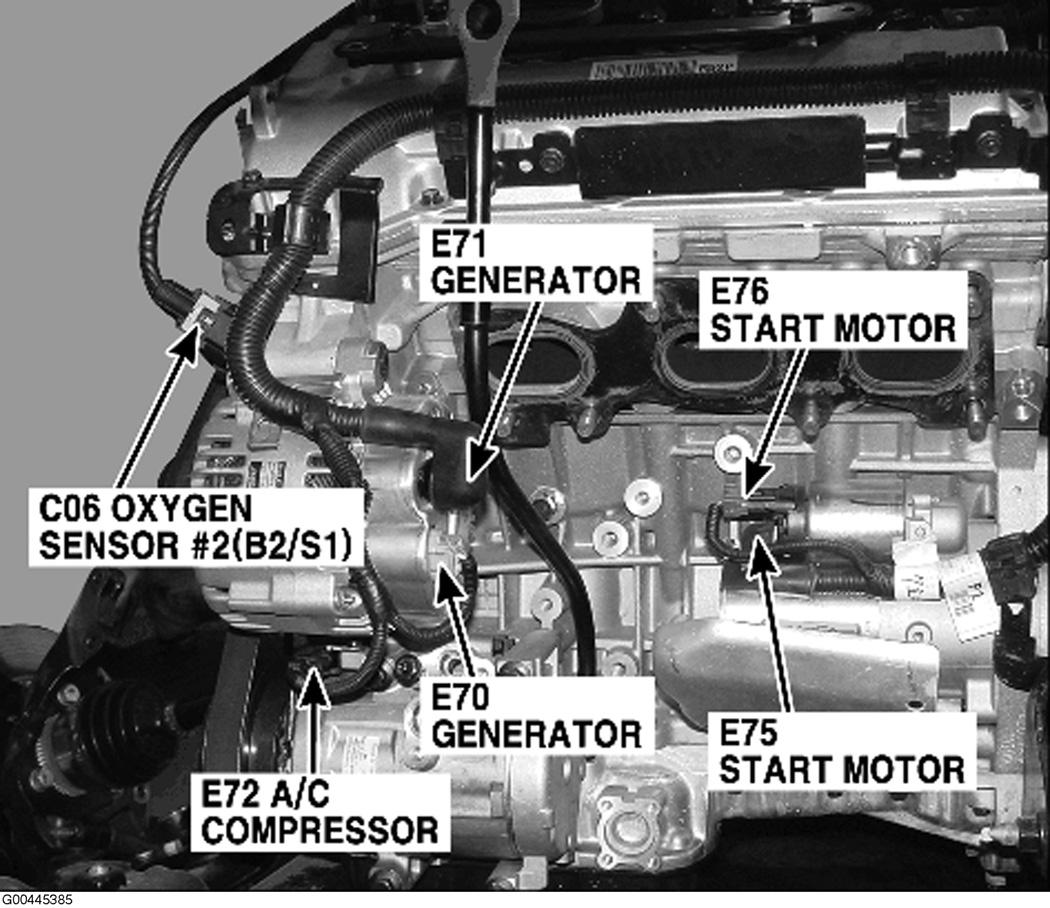

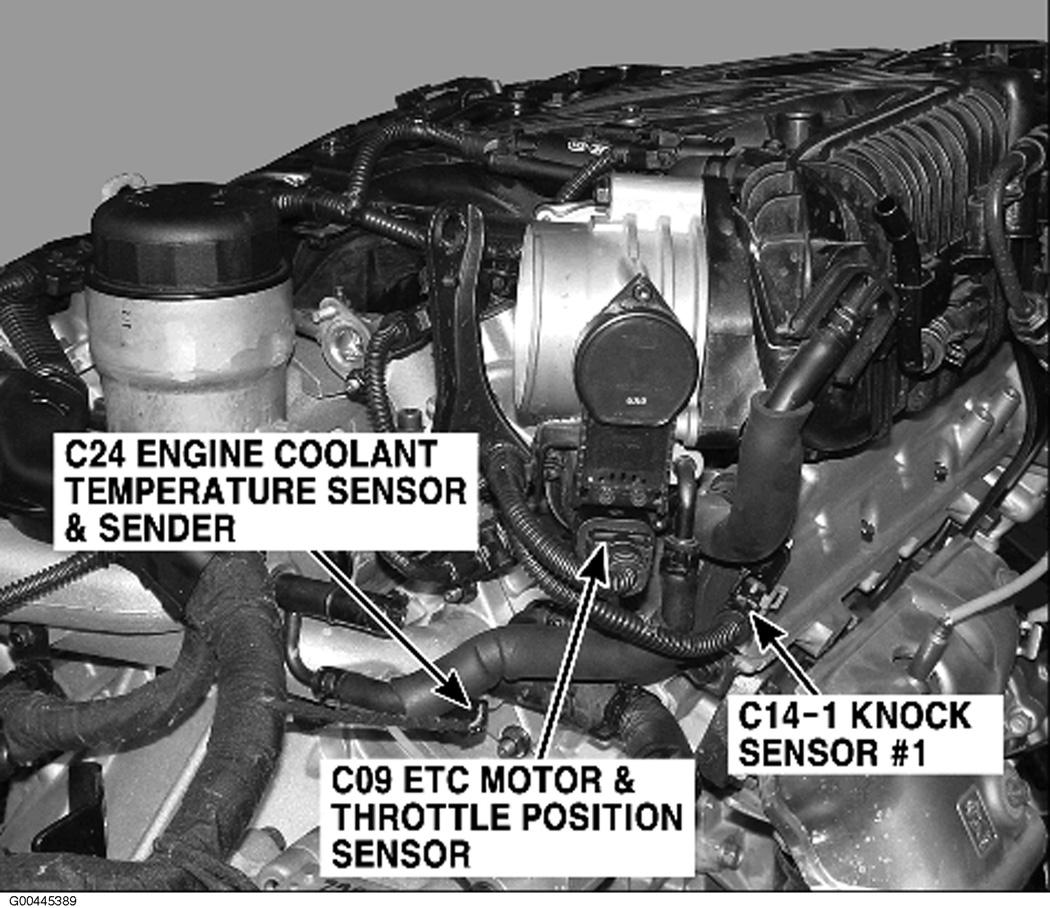

Fig 11: Front Of Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 12: Left Side Of Engine
Courtesy of HYUNDAI MOTOR CO.

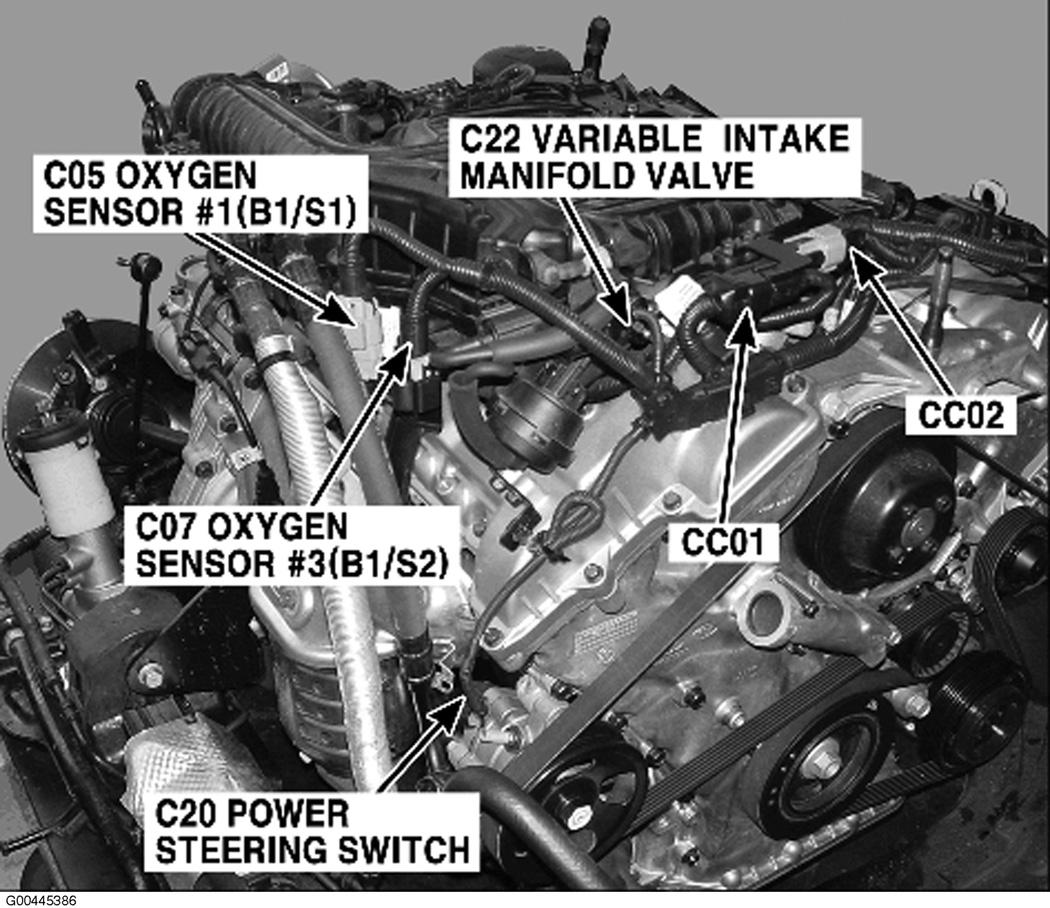

Fig 13: Right Front Of Engine
Courtesy of HYUNDAI MOTOR CO.

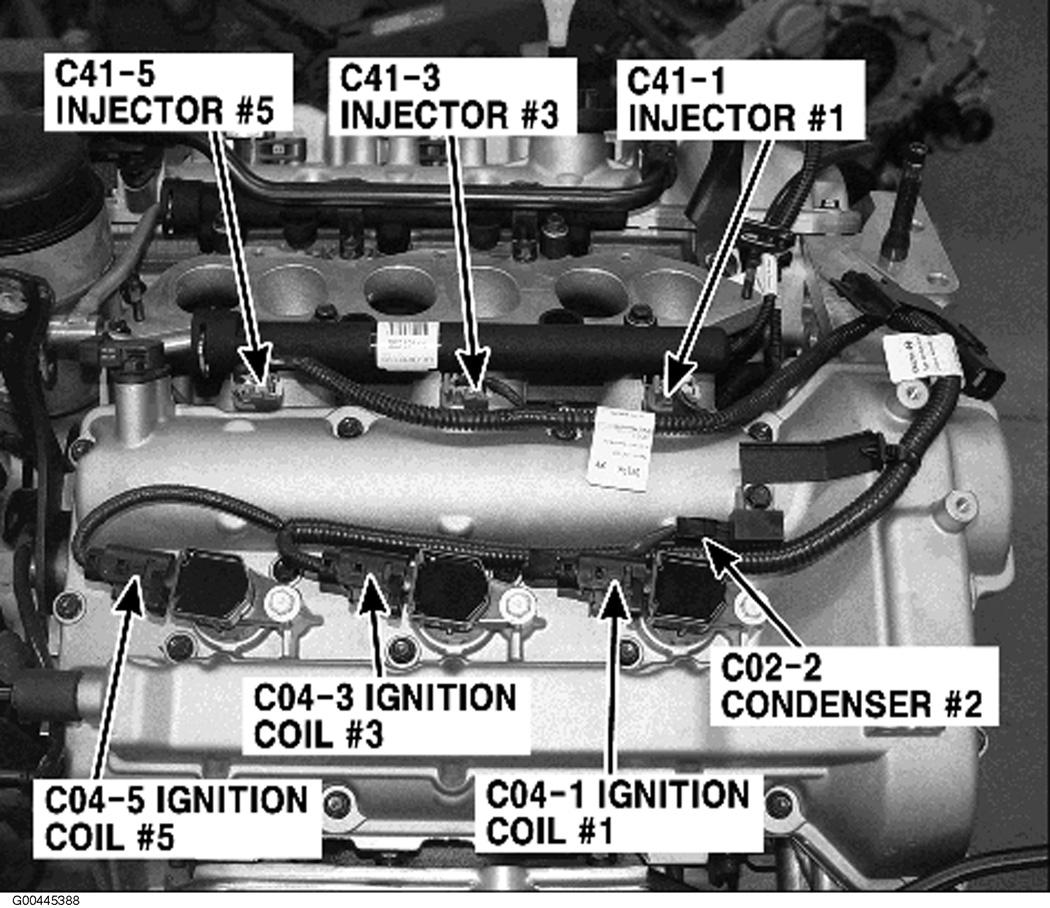

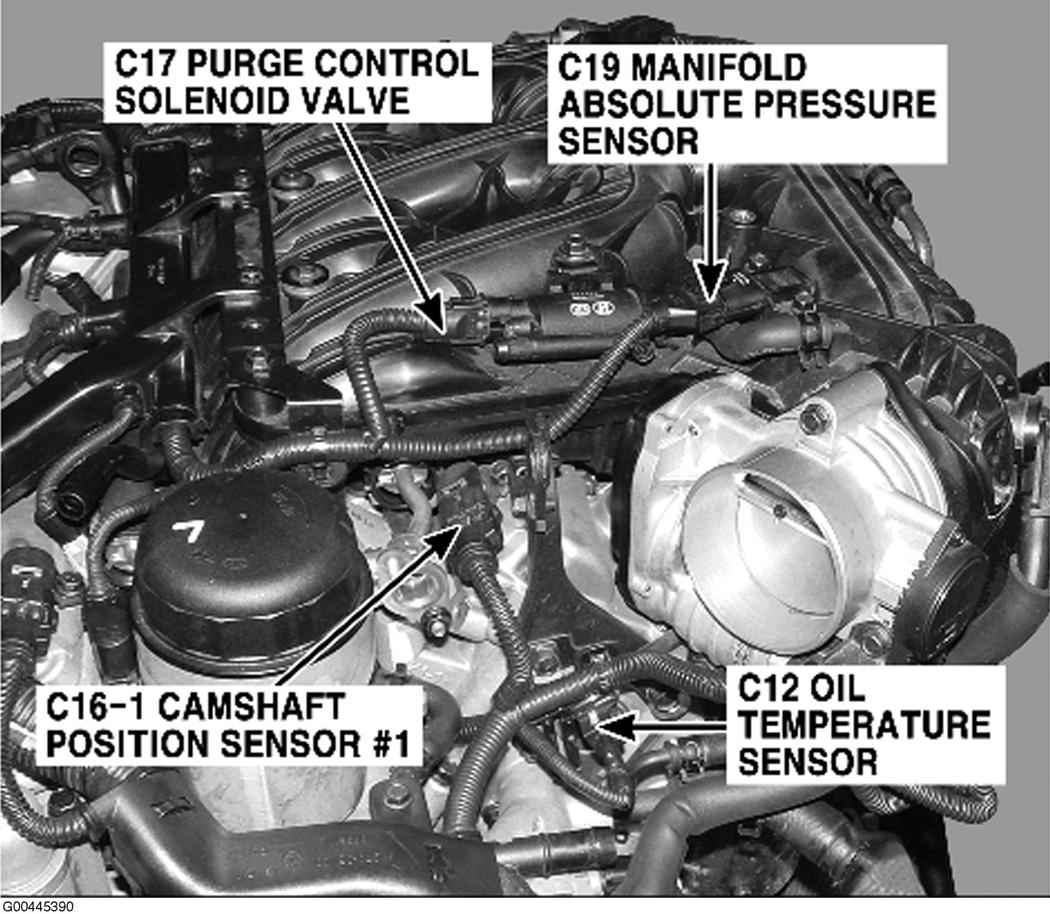

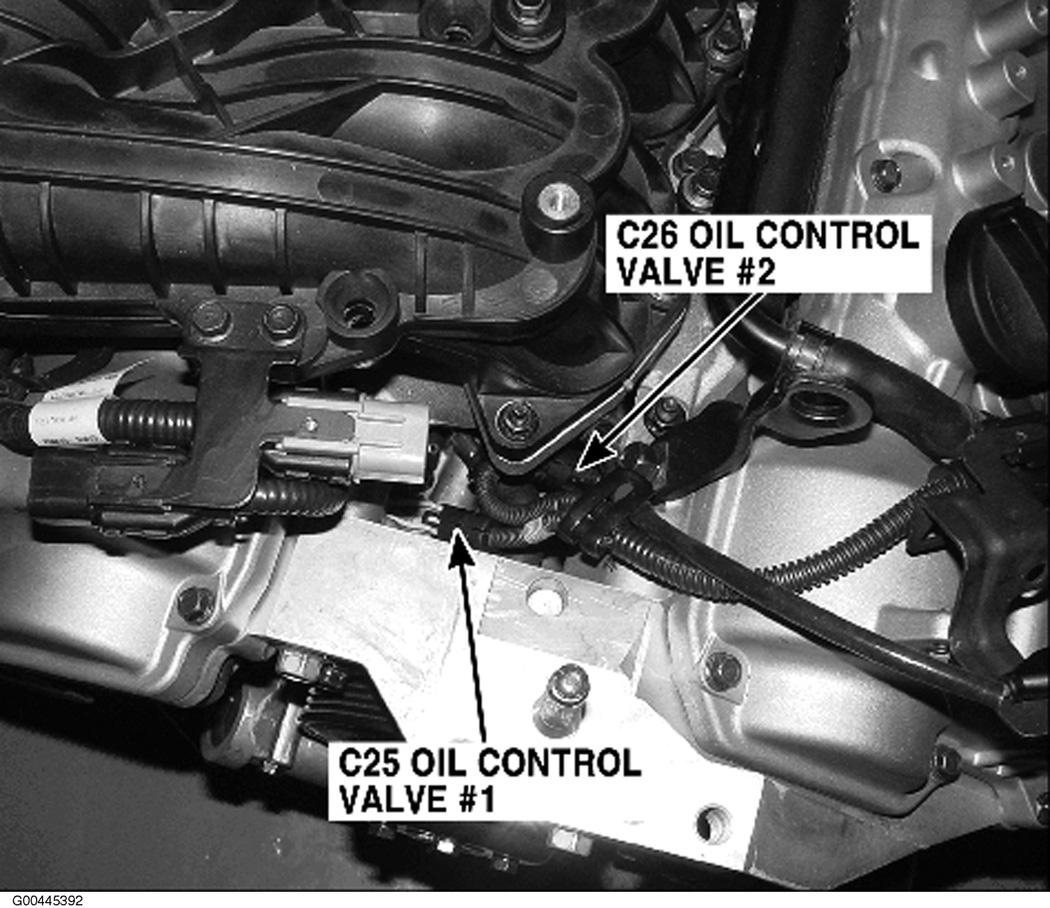

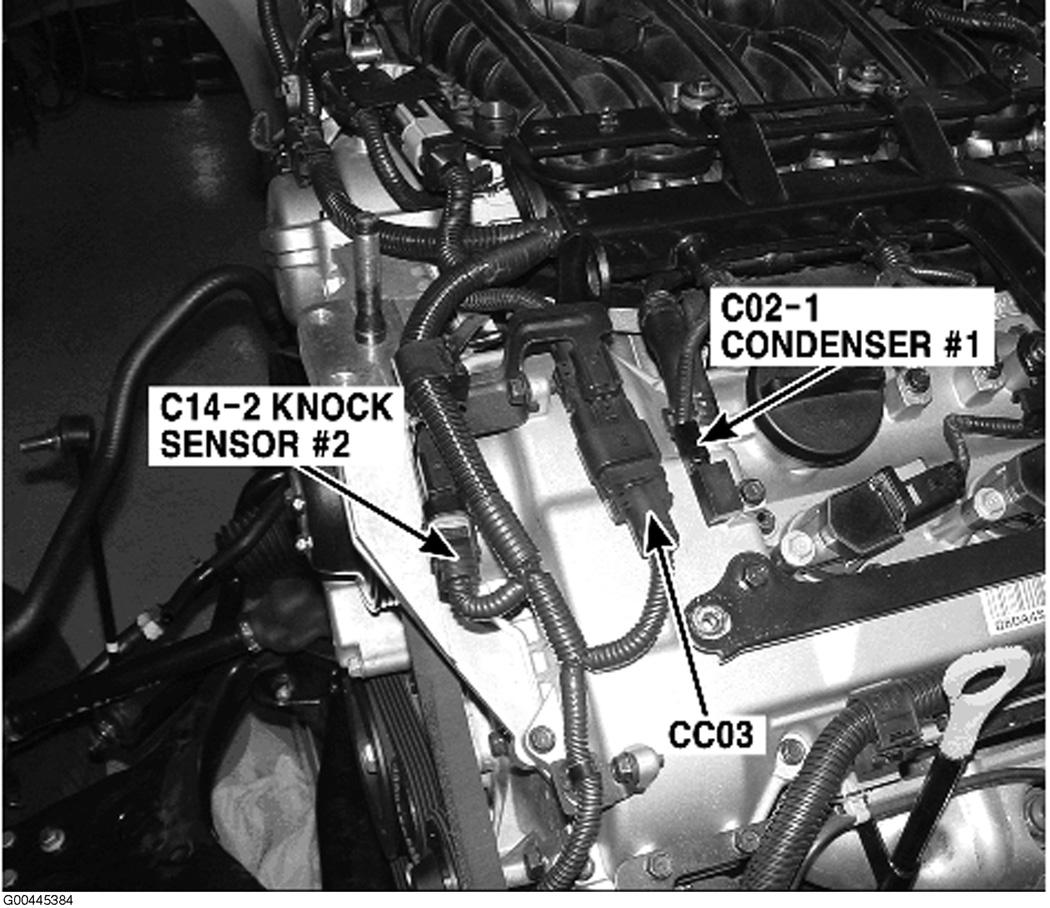

Fig 14: Top Left Side Of Engine
Courtesy of HYUNDAI MOTOR CO.

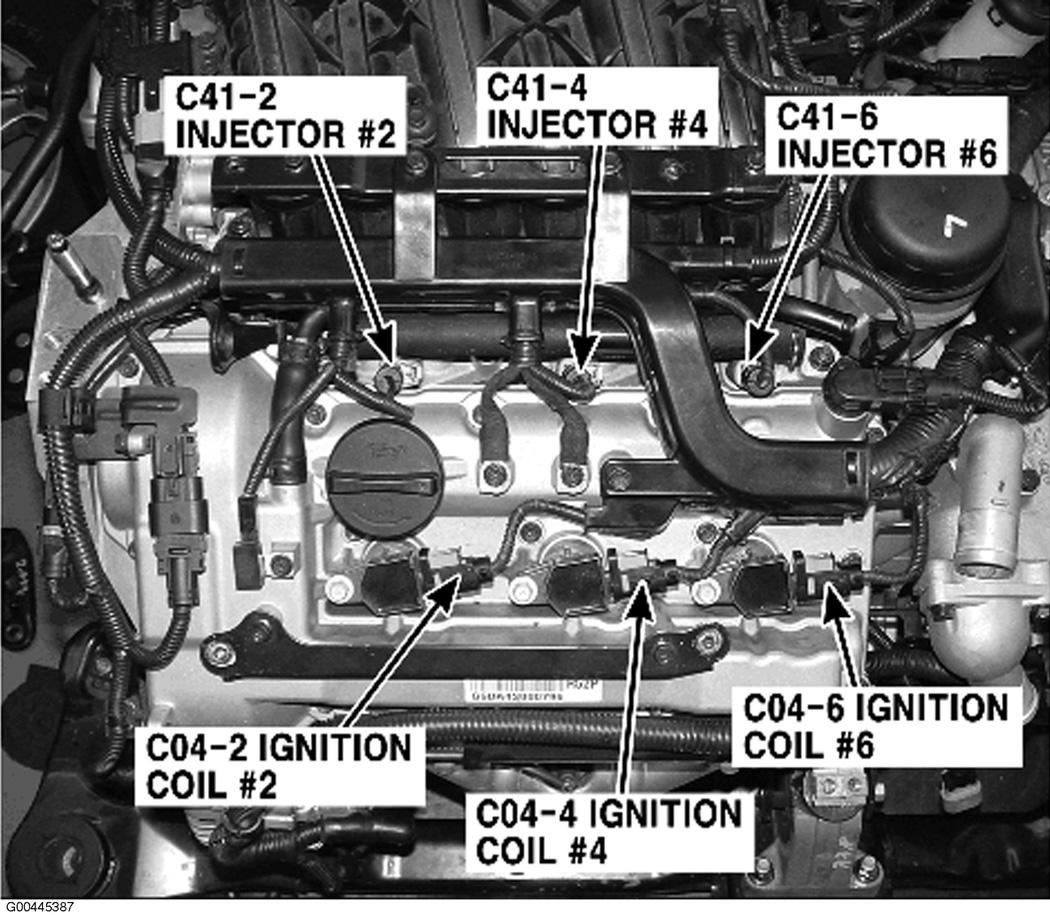

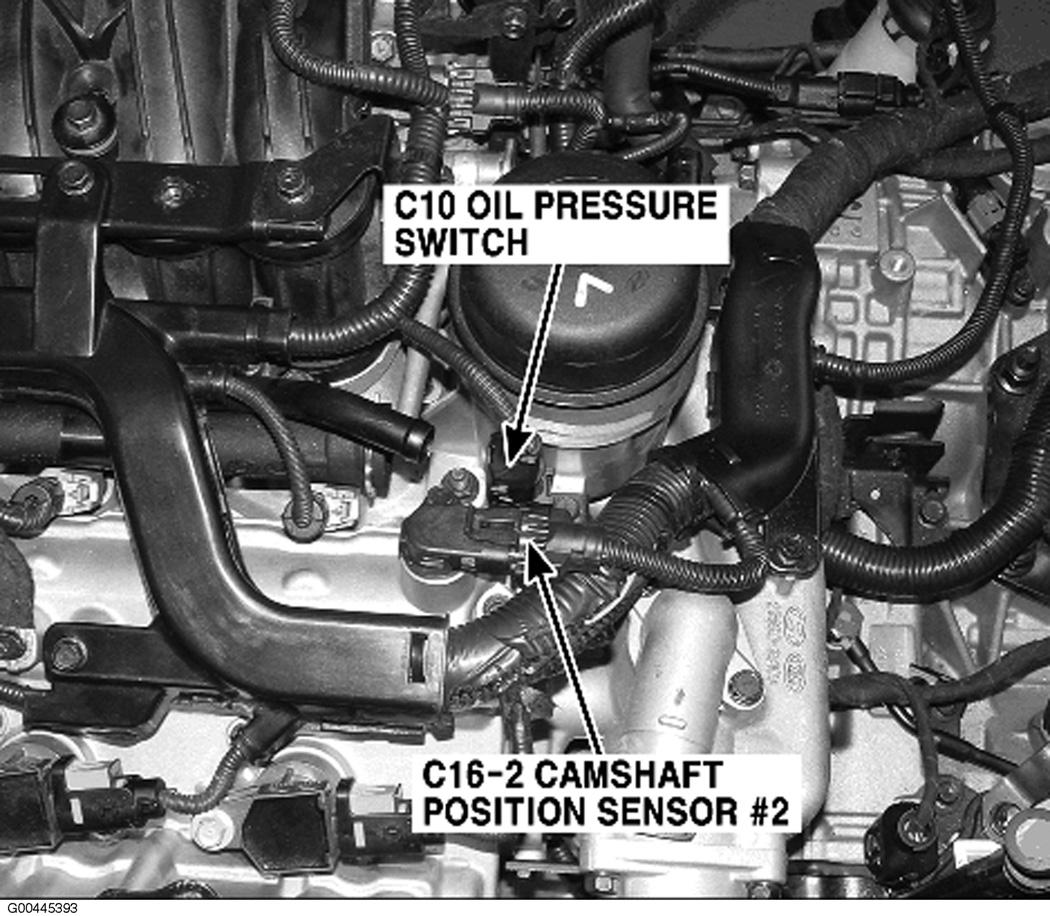

Fig 15: Top Right Side Of Engine
Courtesy of HYUNDAI MOTOR CO.

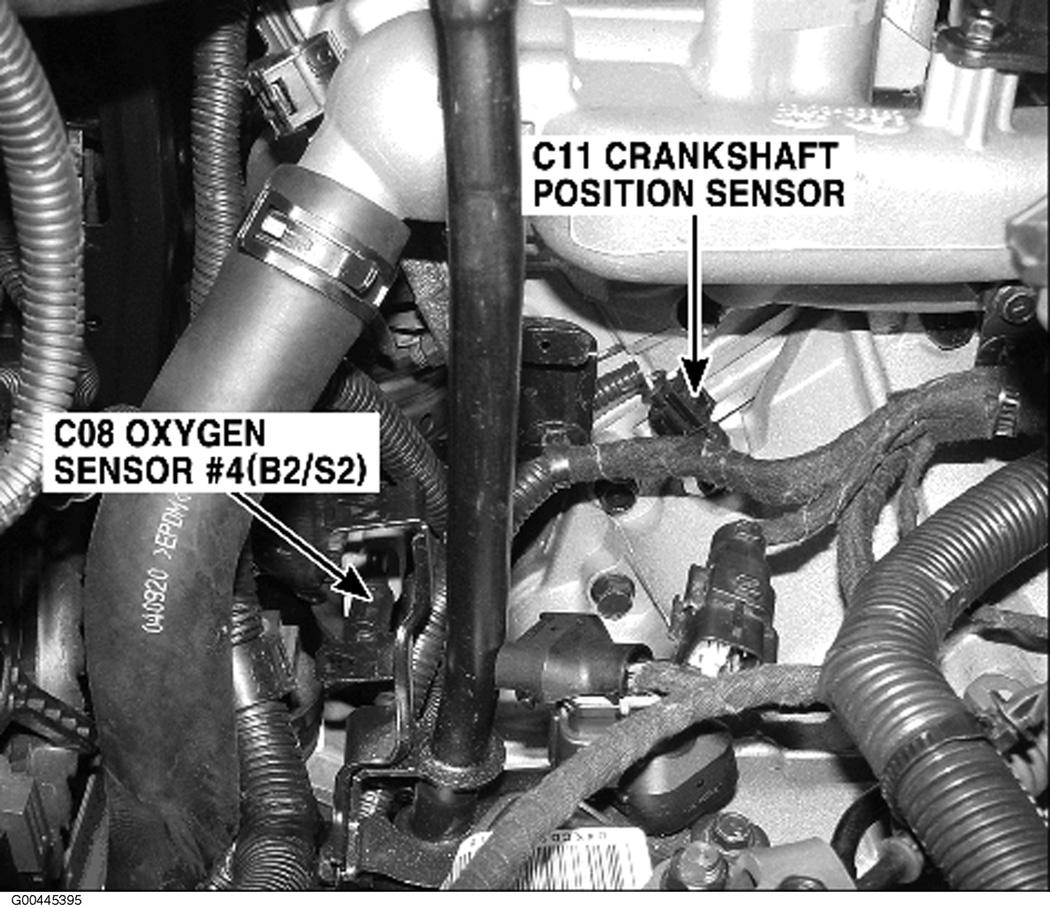

Fig 16: Rear Of Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 17: Rear Of Engine
Courtesy of HYUNDAI MOTOR CO.

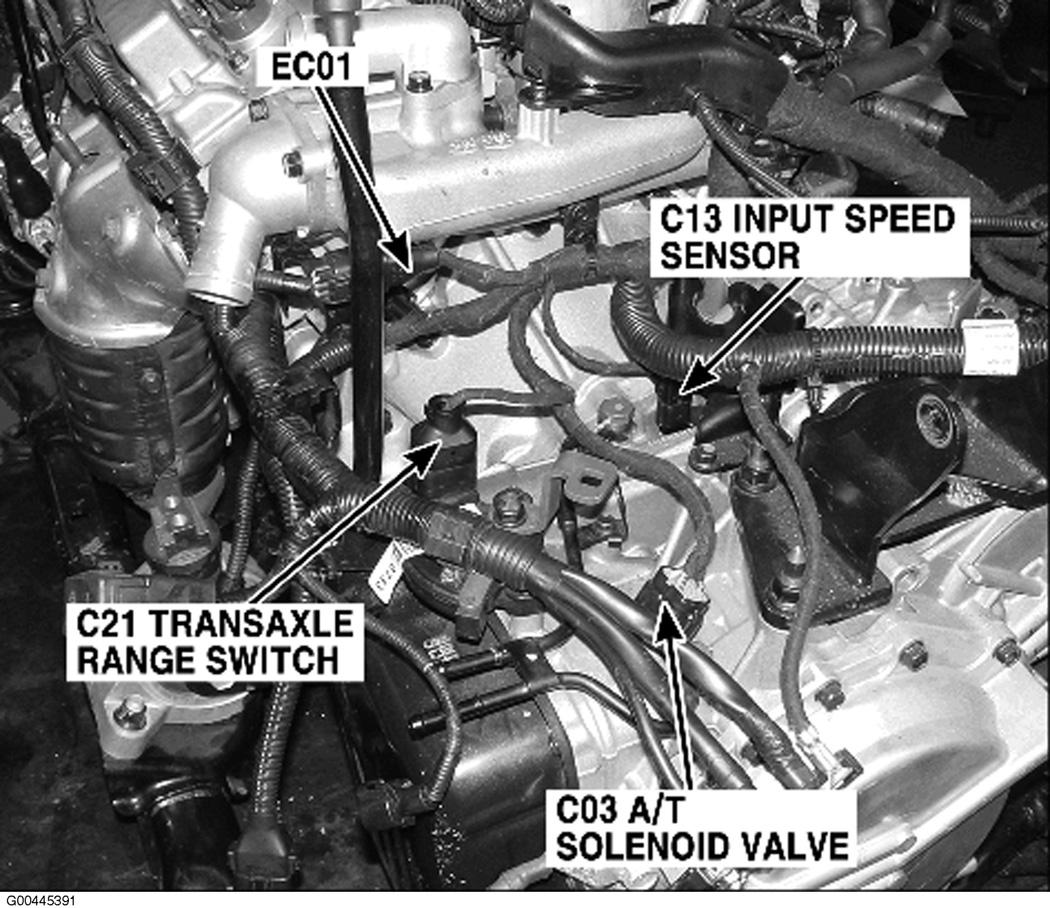

Fig 18: Top Of Transaxle
Courtesy of HYUNDAI MOTOR CO.
Fig 19: Front Of Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 20: Left Rear Of Engine
Courtesy of HYUNDAI MOTOR CO.

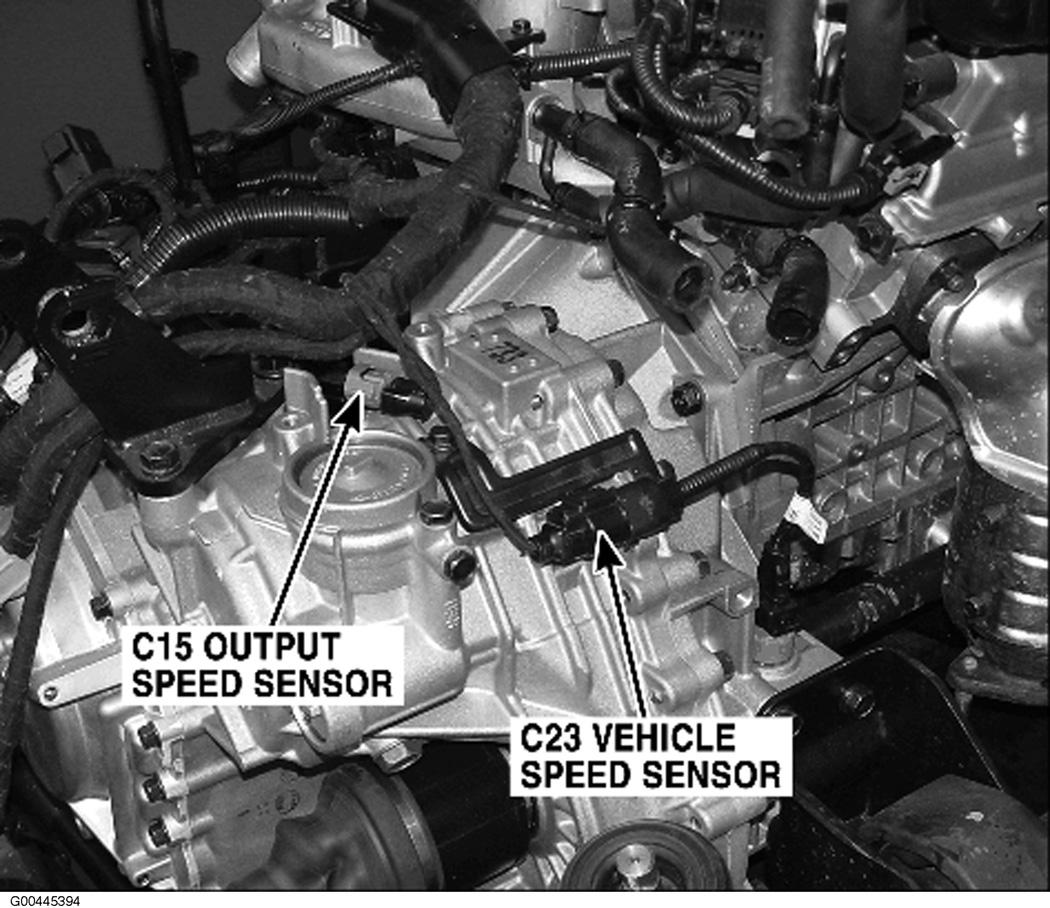

Fig 21: Right Side Of Transaxle
Courtesy of HYUNDAI MOTOR CO.
Fig 22: Left Rear Of Engine
Courtesy of HYUNDAI MOTOR CO.

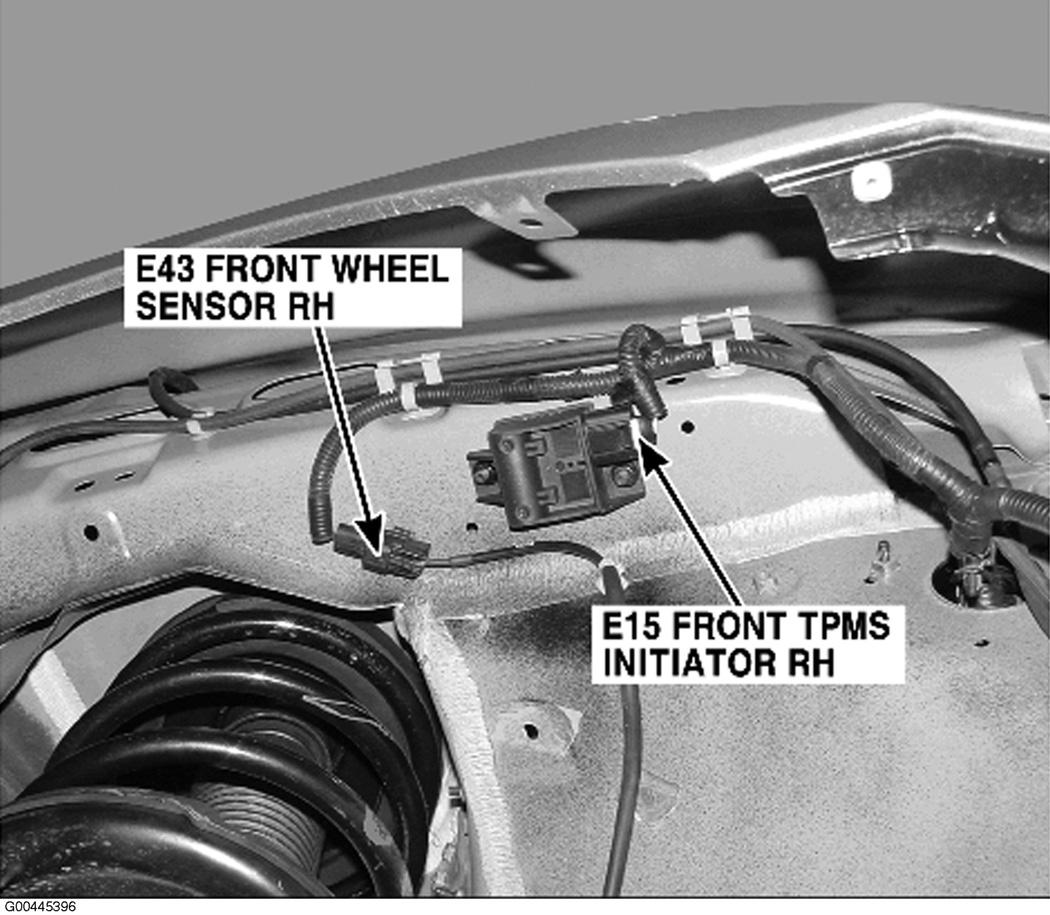

Fig 23: Right Front Wheelwell
Courtesy of HYUNDAI MOTOR CO.

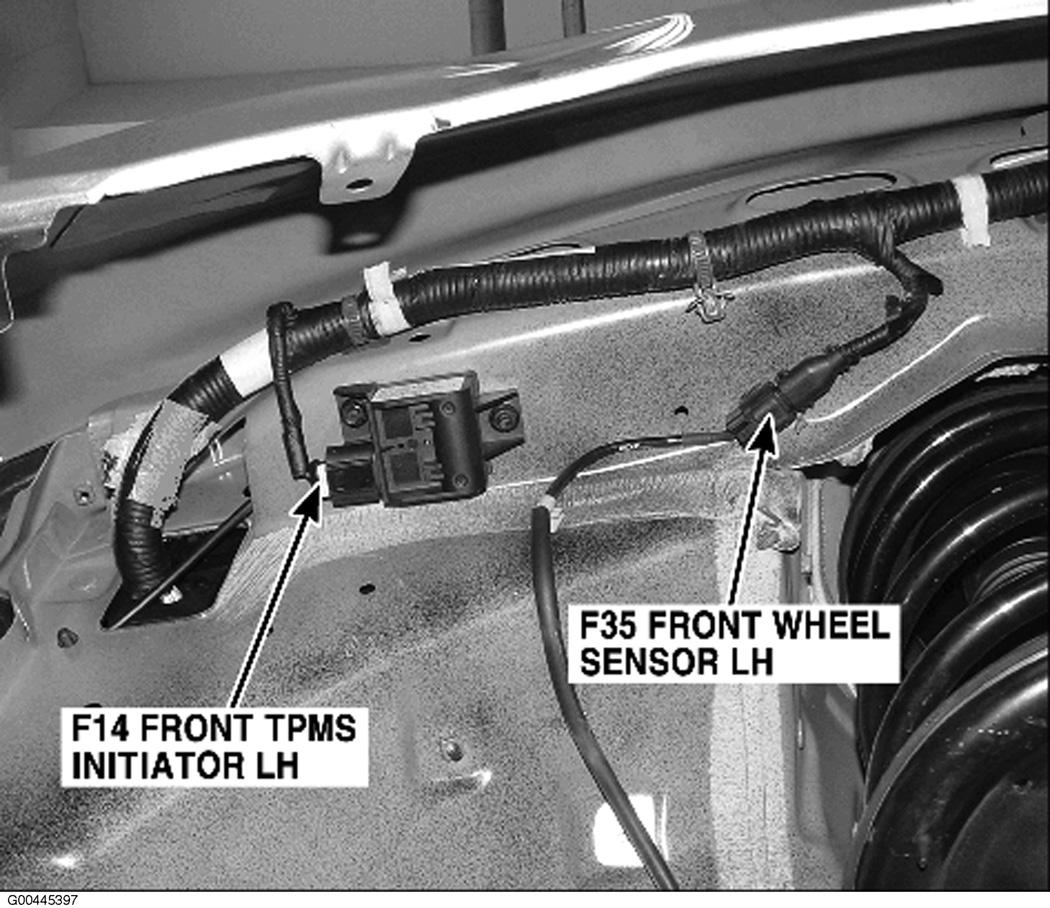

Fig 24: Left Front Wheelwell
Courtesy of HYUNDAI MOTOR CO.

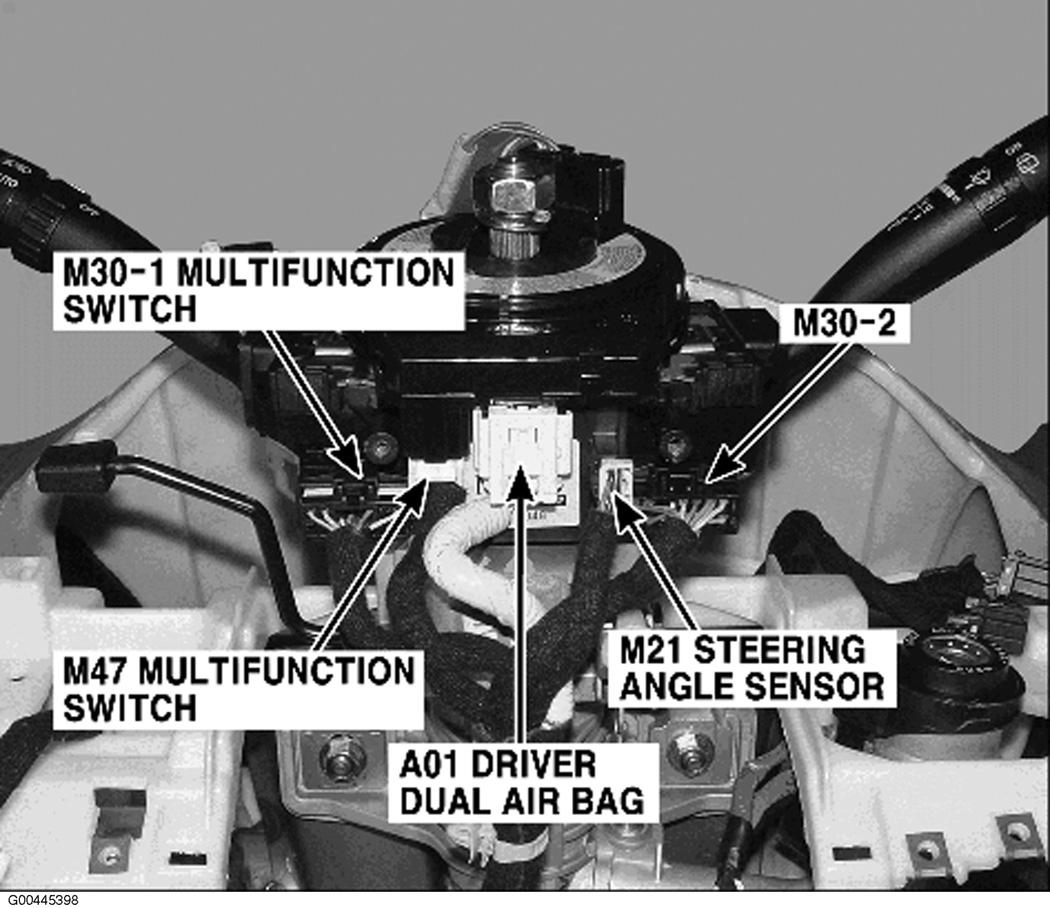

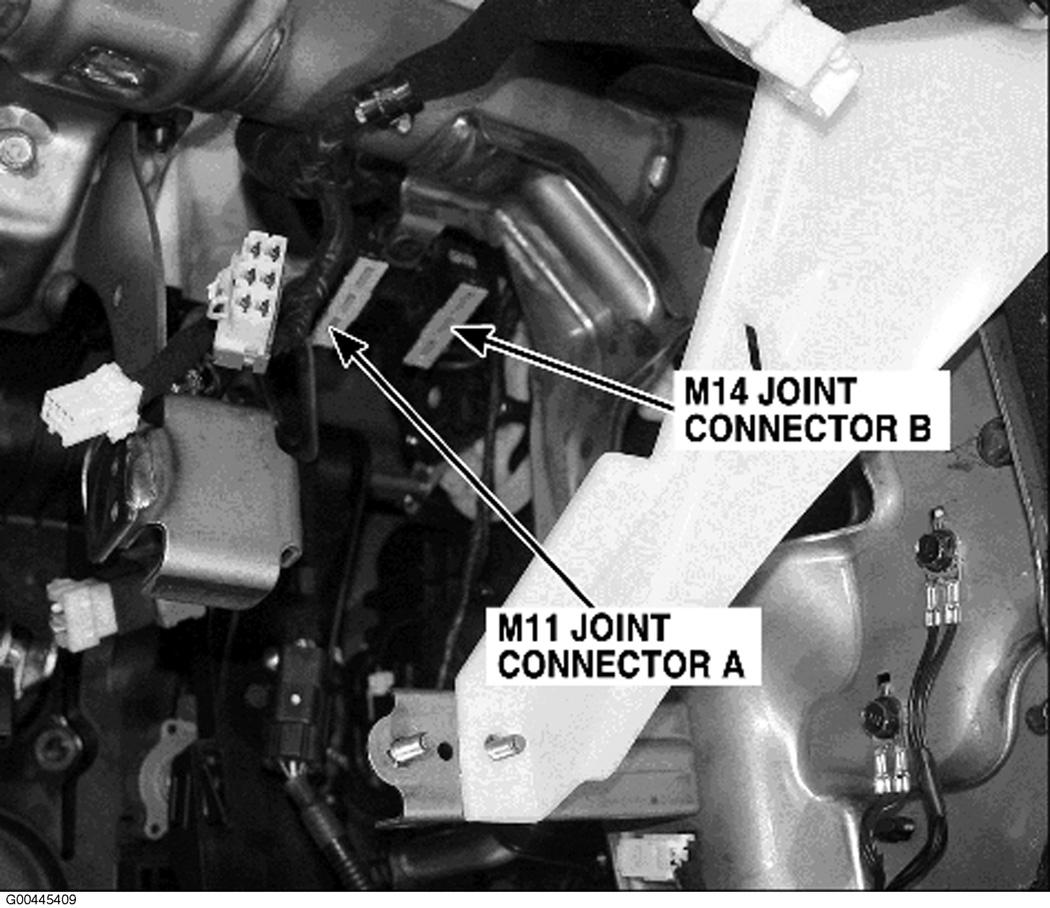

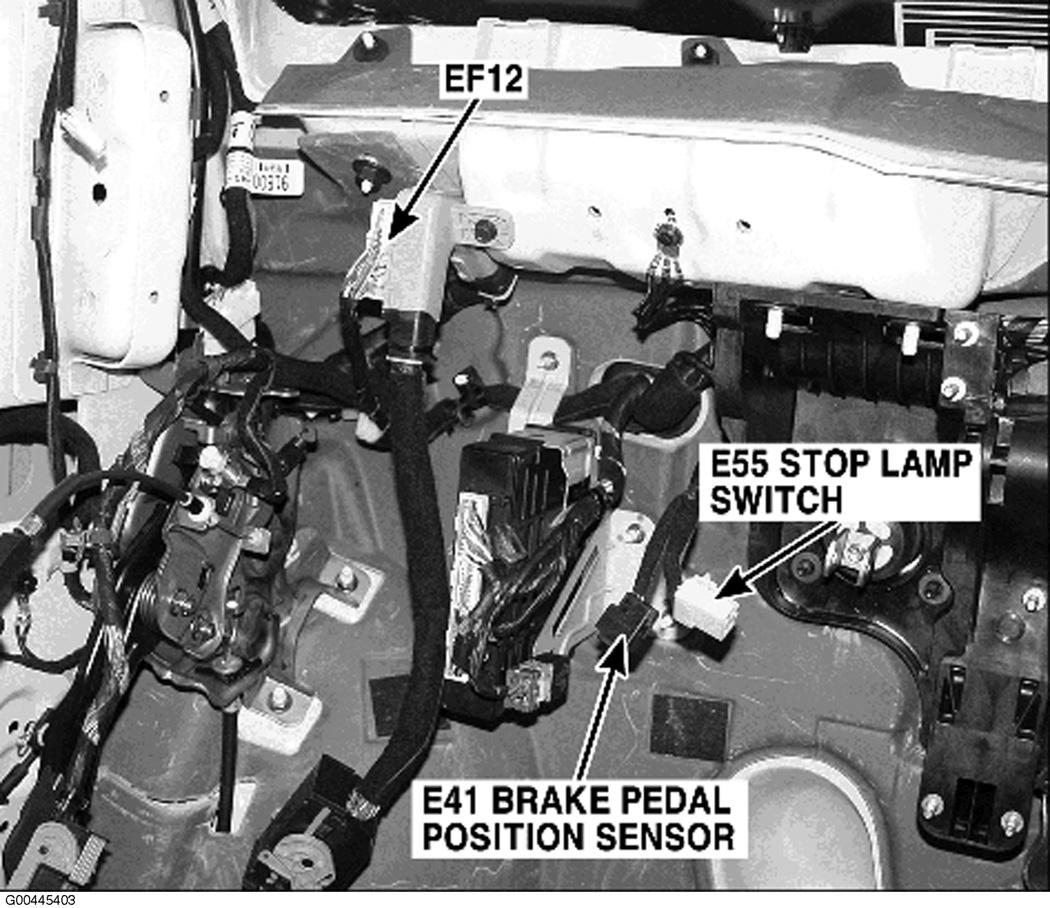

Fig 25: Steering Column
Courtesy of HYUNDAI MOTOR CO.

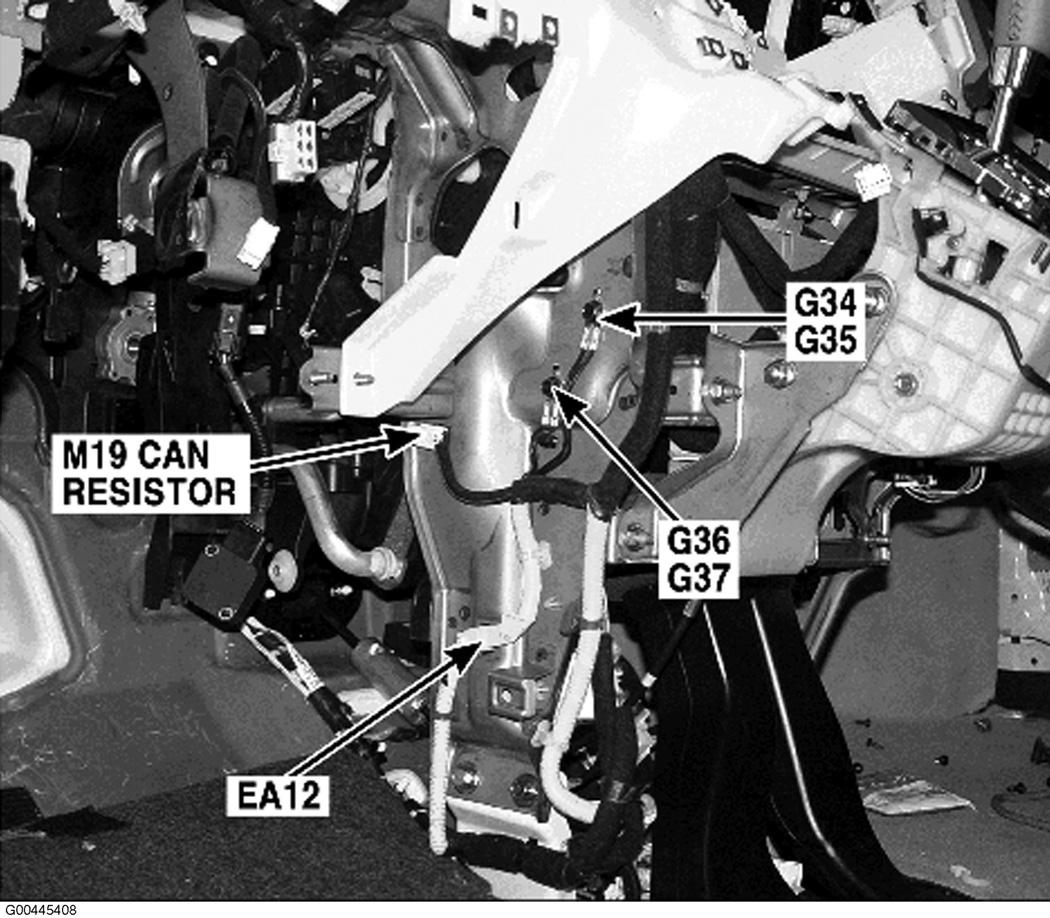

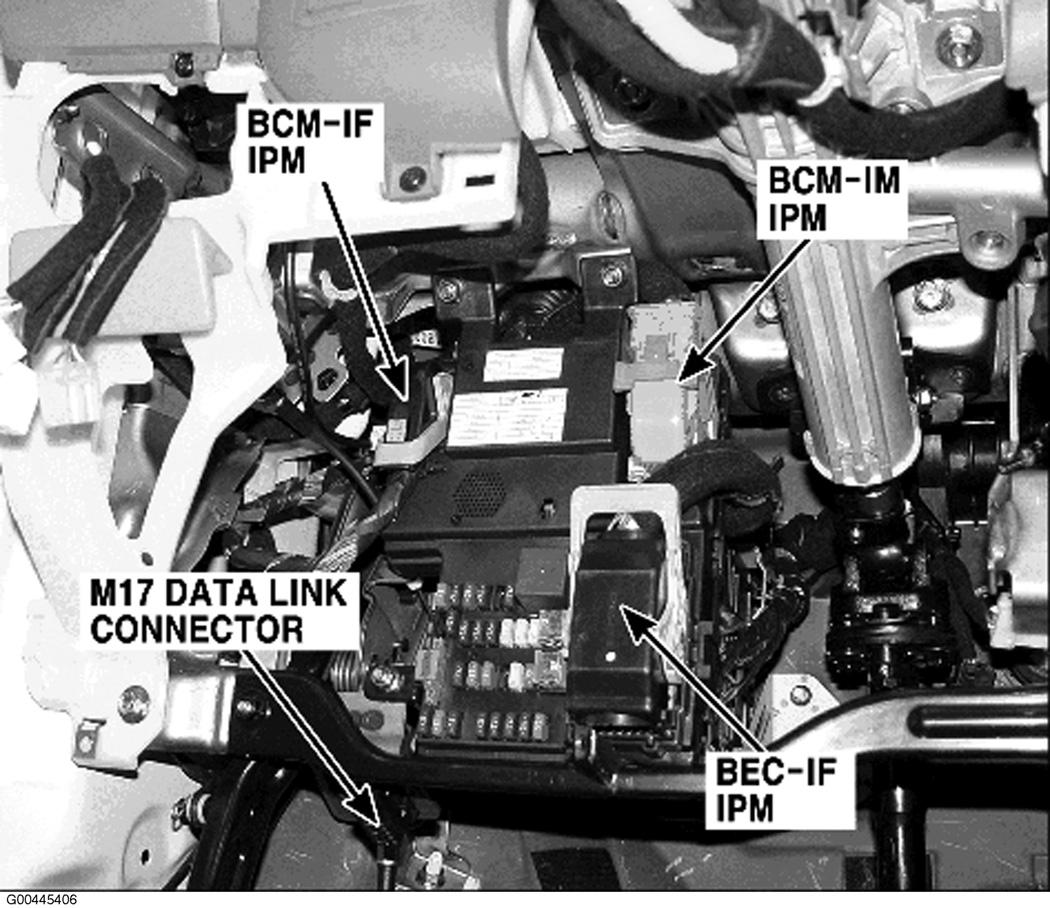

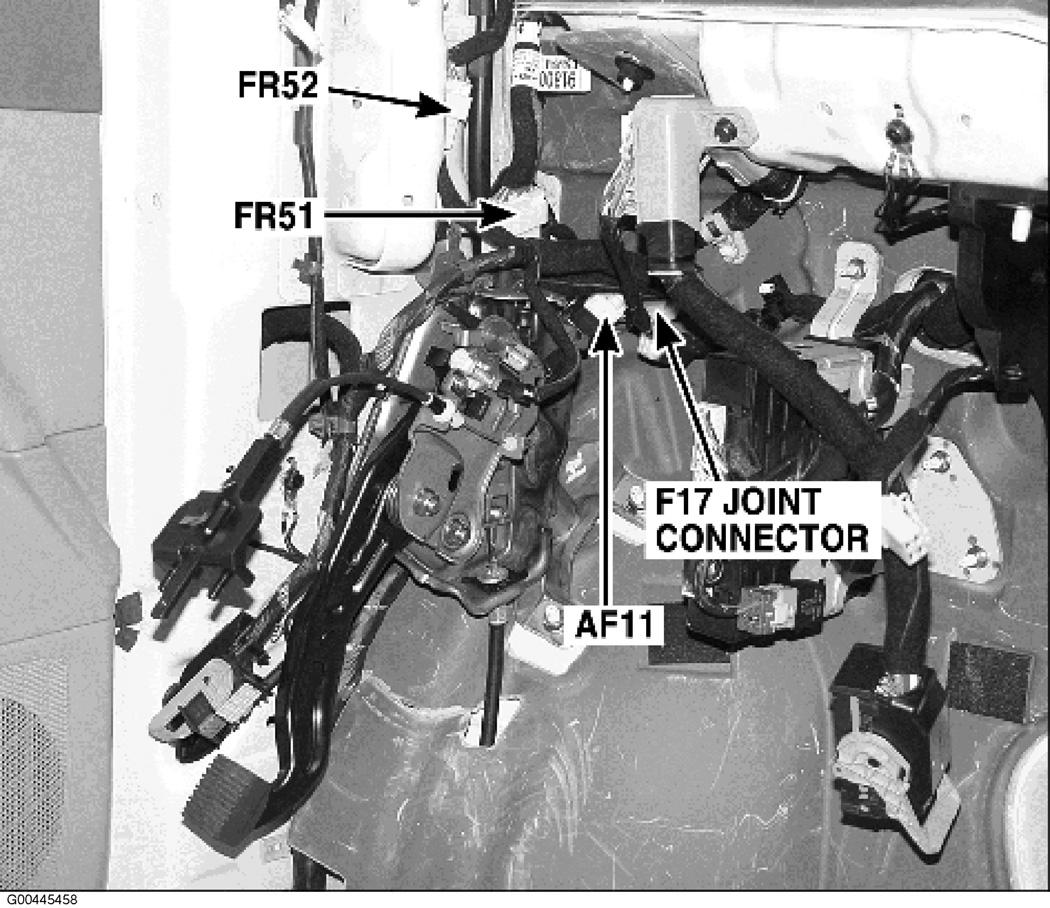

Fig 26: Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.

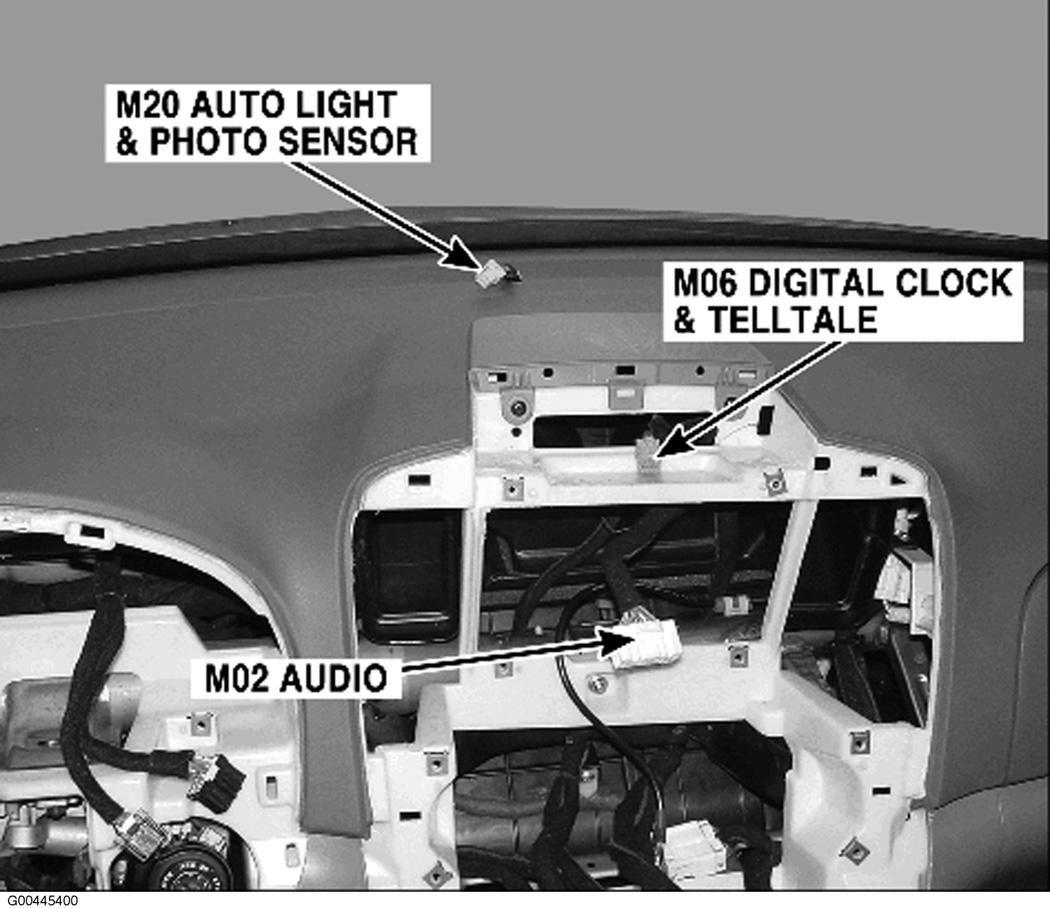

Fig 27: Center Of Dash
Courtesy of HYUNDAI MOTOR CO.

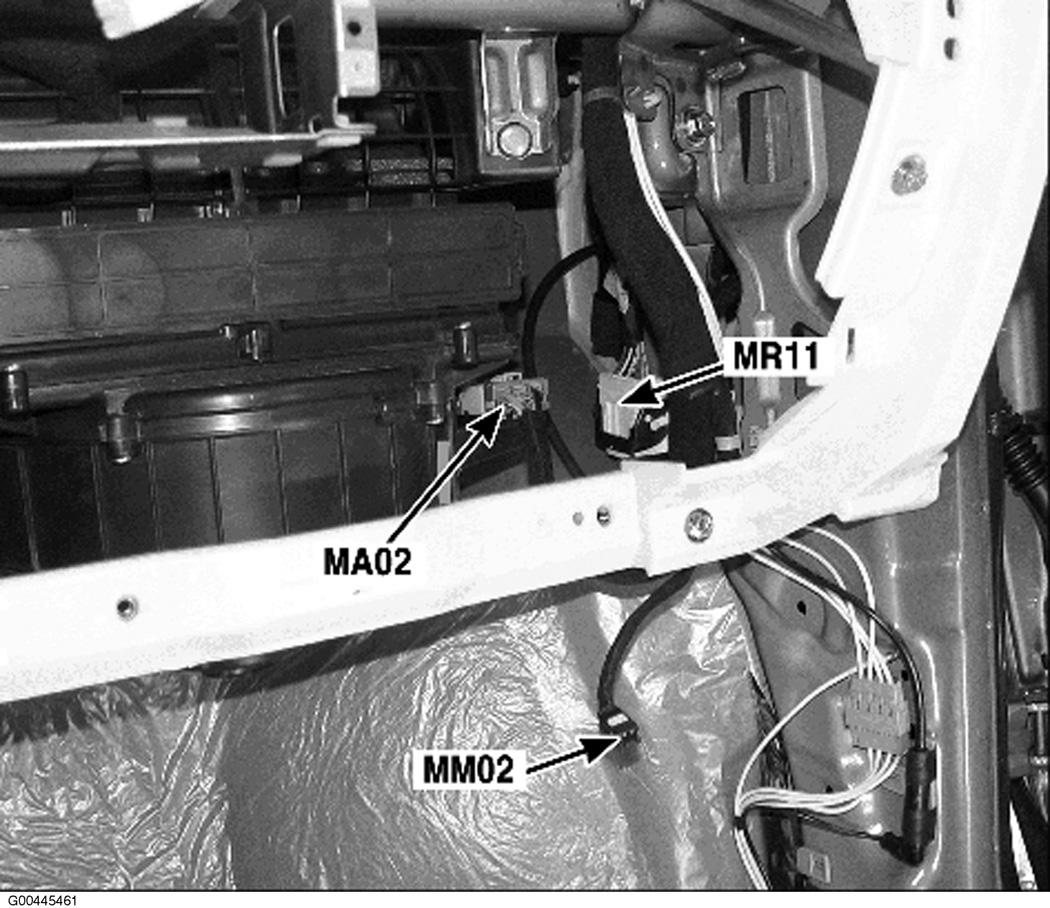

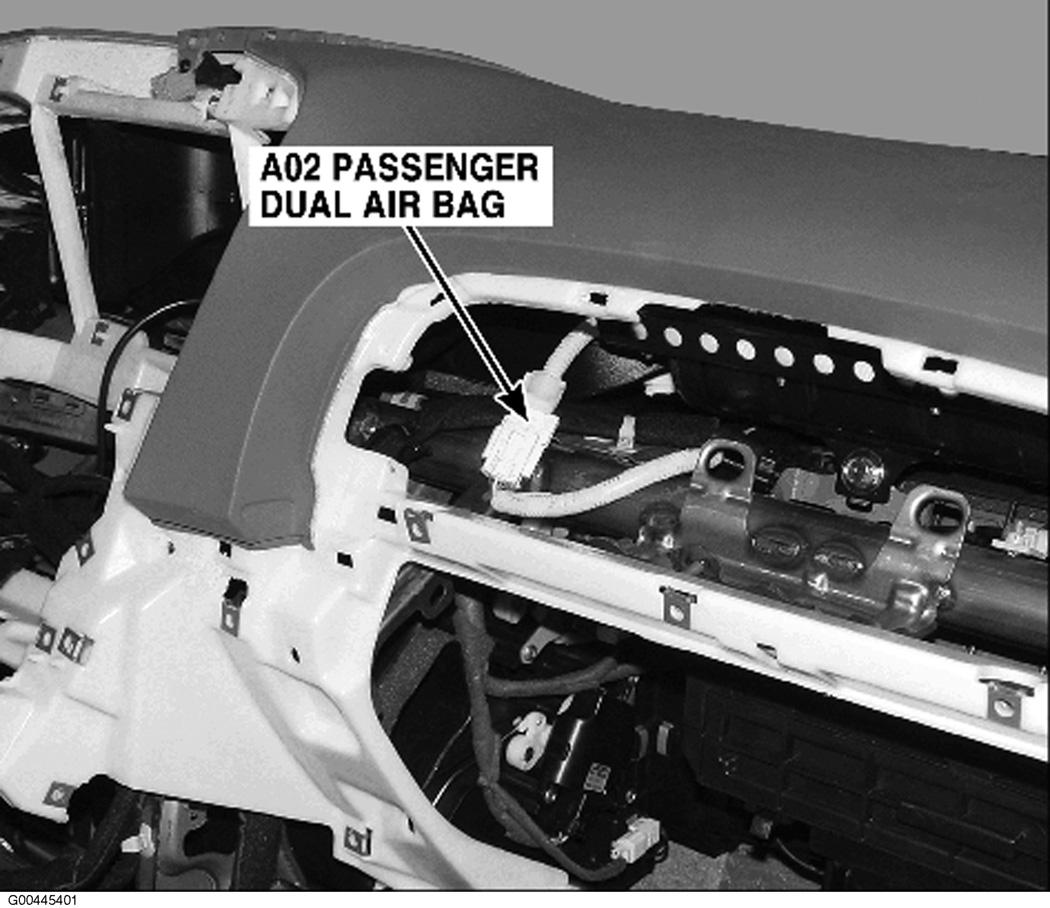

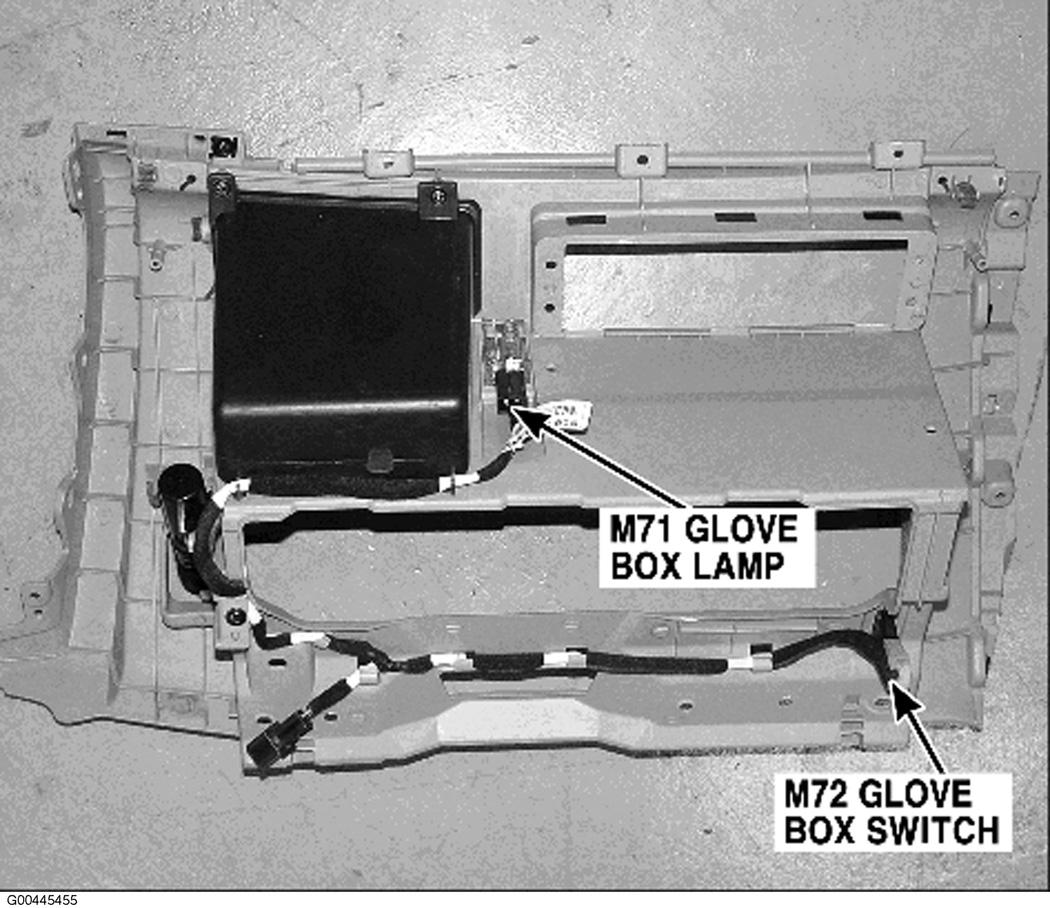

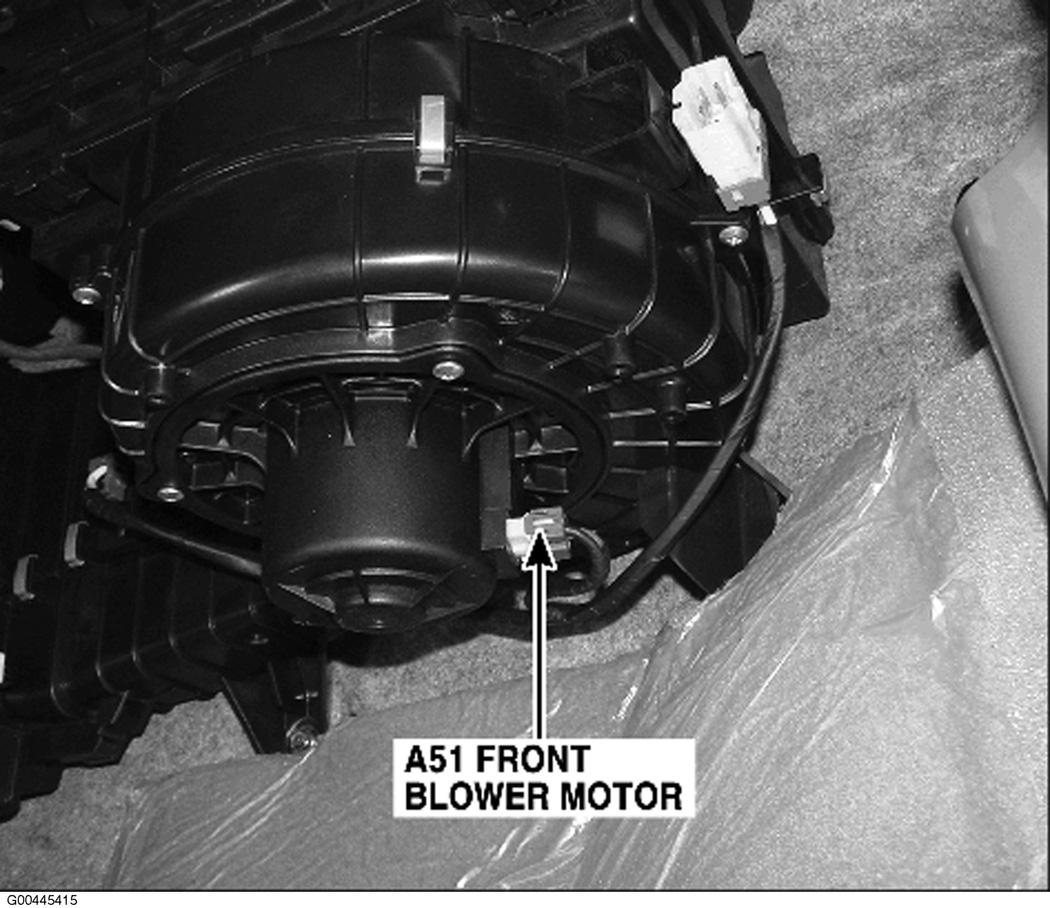

Fig 28: Right Side Of Dash
Courtesy of HYUNDAI MOTOR CO.

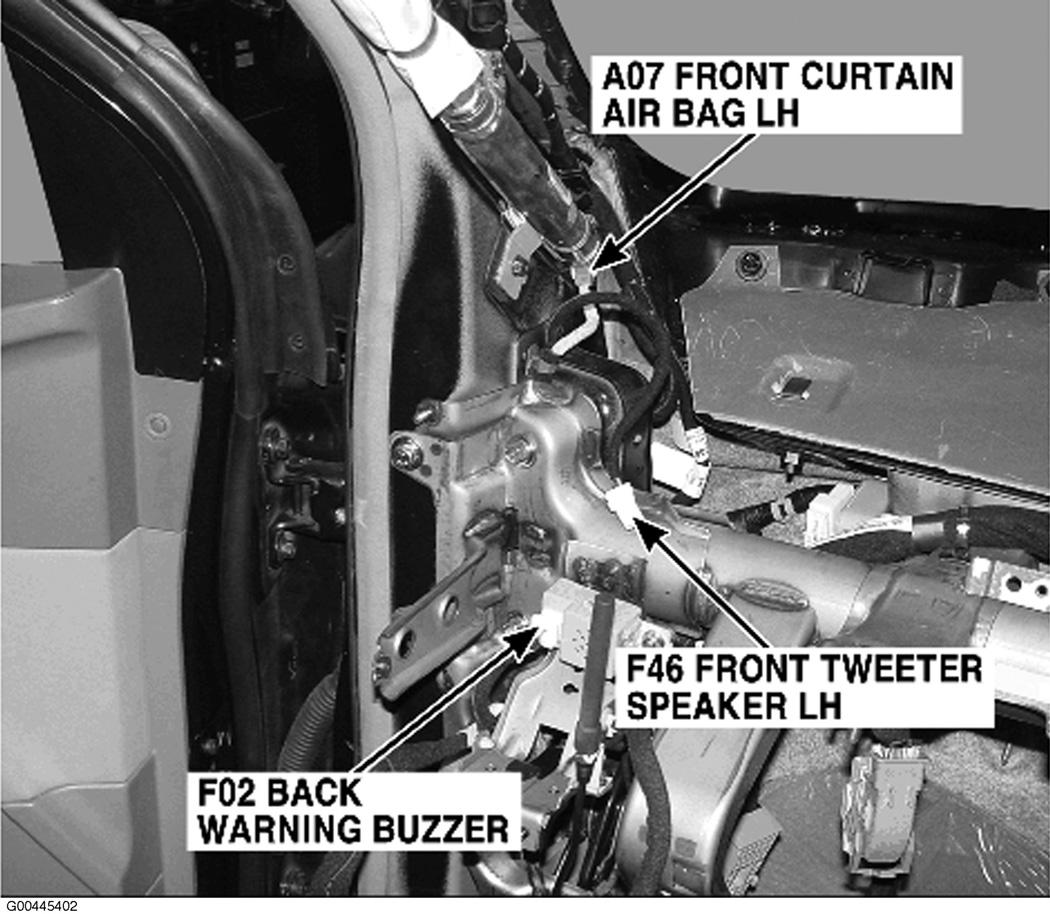

Fig 29: Left "A" Pillar
Courtesy of HYUNDAI MOTOR CO.

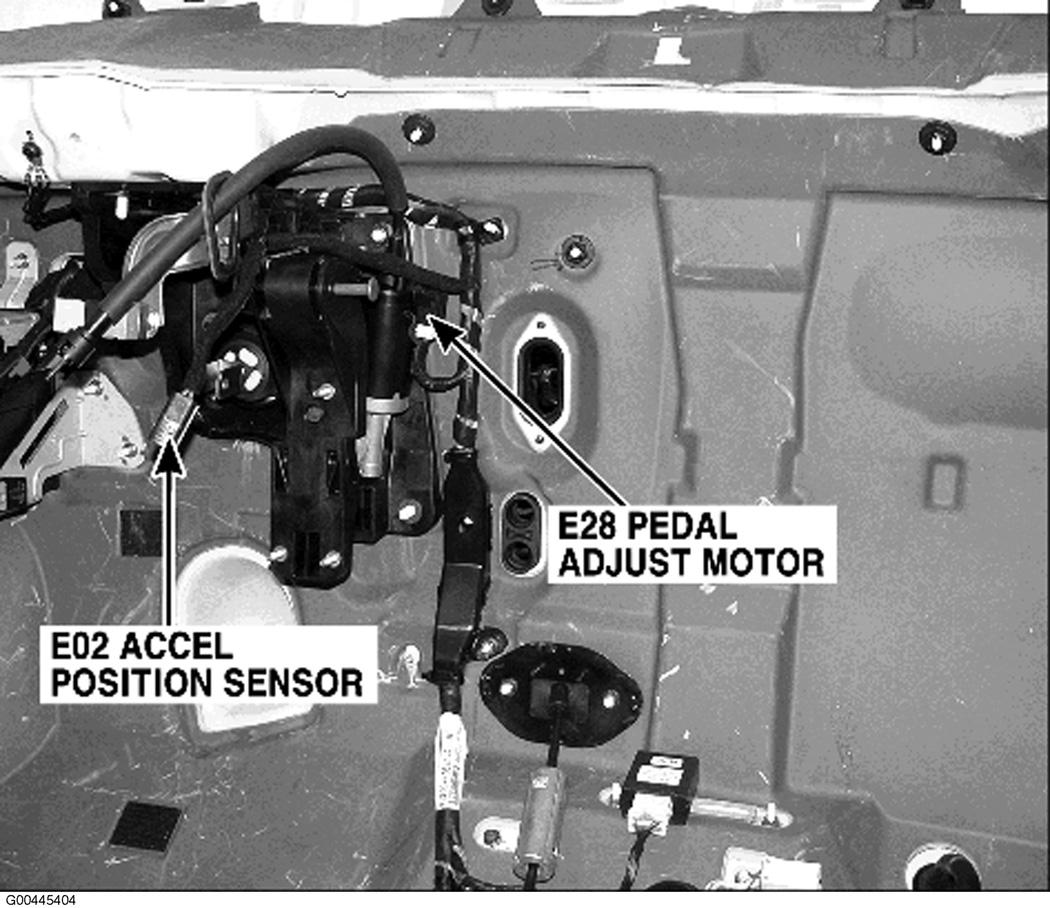

Fig 30: Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 31: Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 32: Center Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 33: Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 34: Center Of Dash
Courtesy of HYUNDAI MOTOR CO.

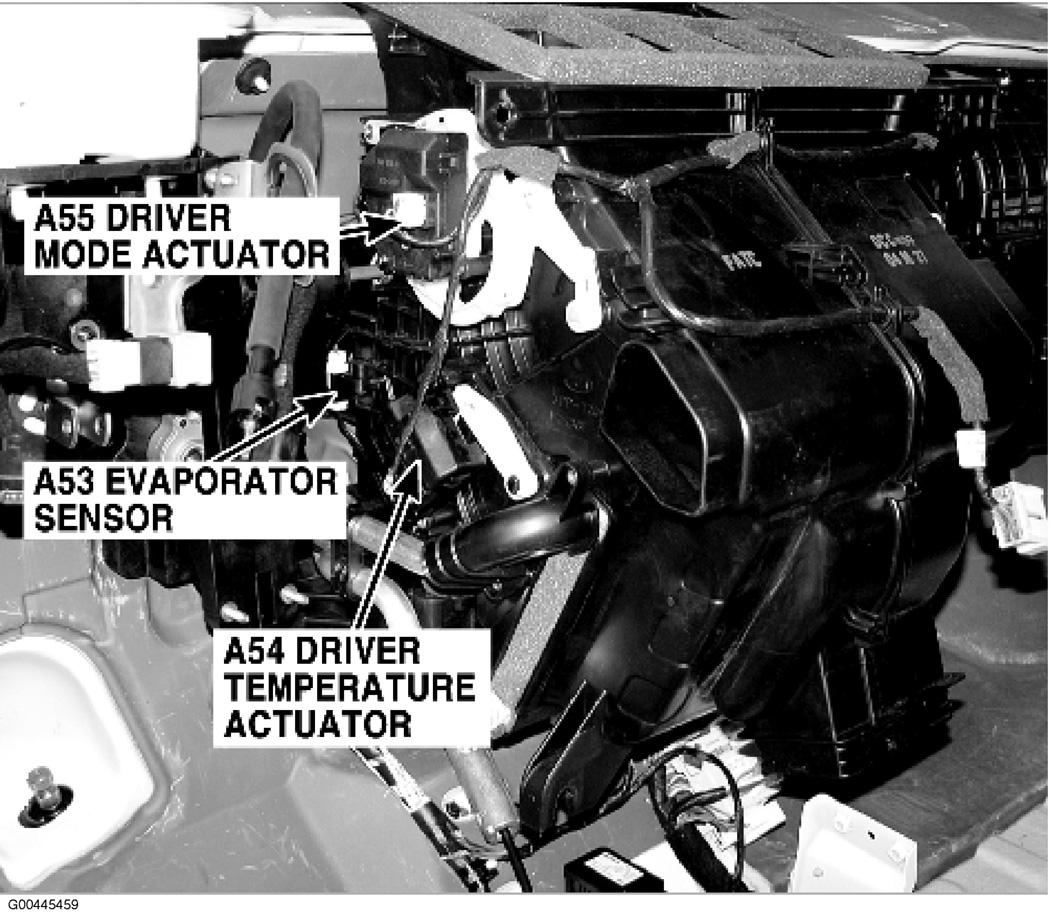

Fig 35: Left Center Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 36: Left Center Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 37: Center Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 38: Center Of Dash
Courtesy of HYUNDAI MOTOR CO.

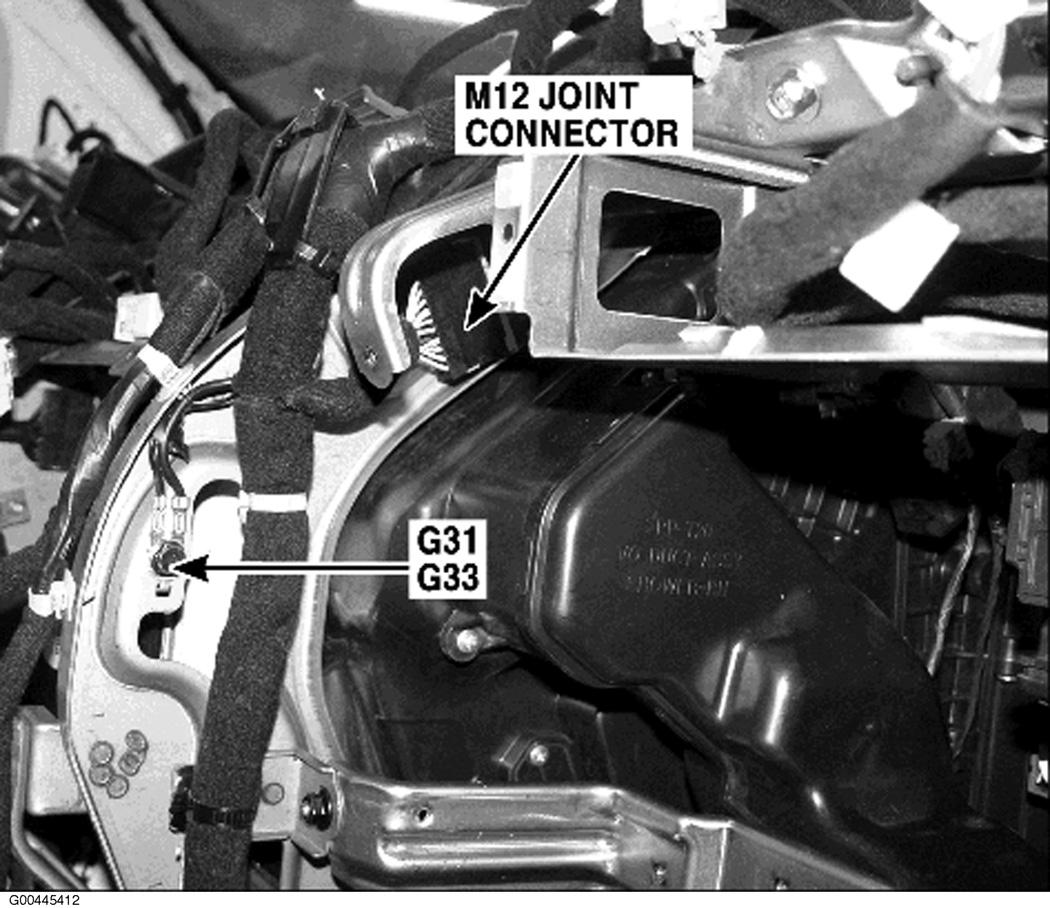

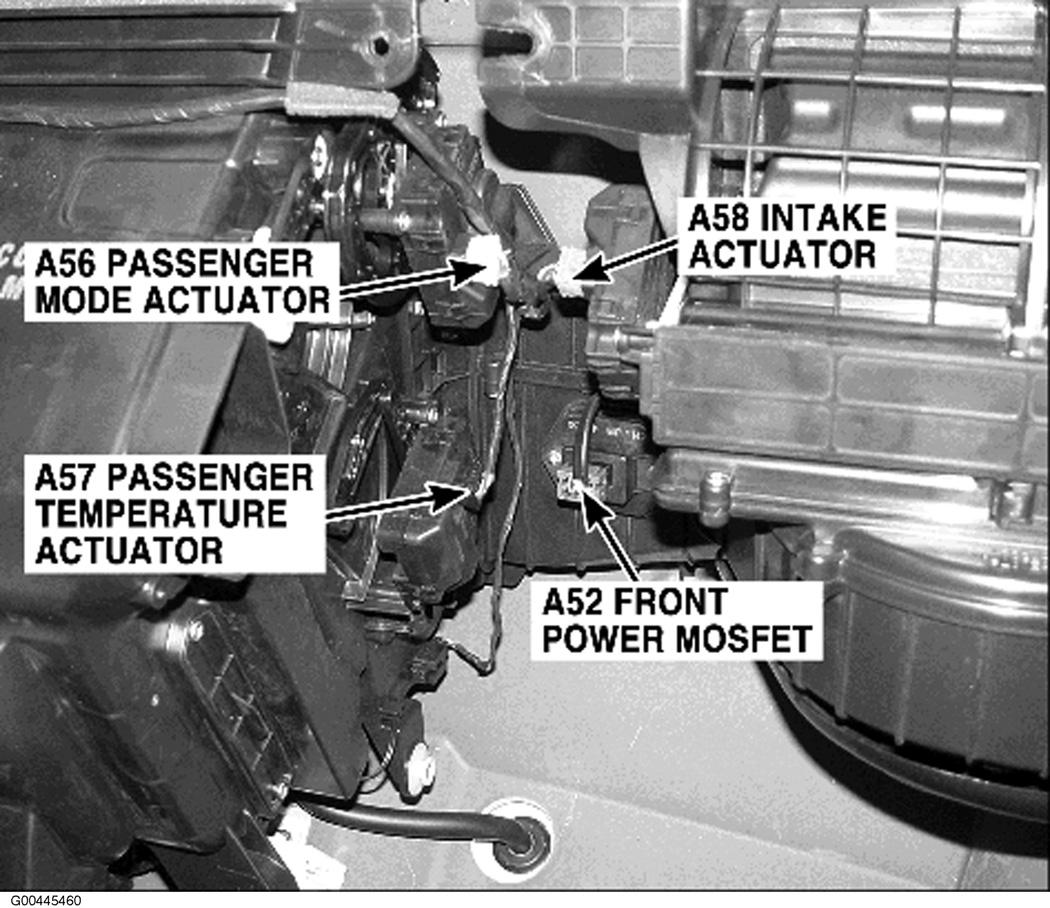

Fig 39: Right Center Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 40: Right Center Of Dash
Courtesy of HYUNDAI MOTOR CO.

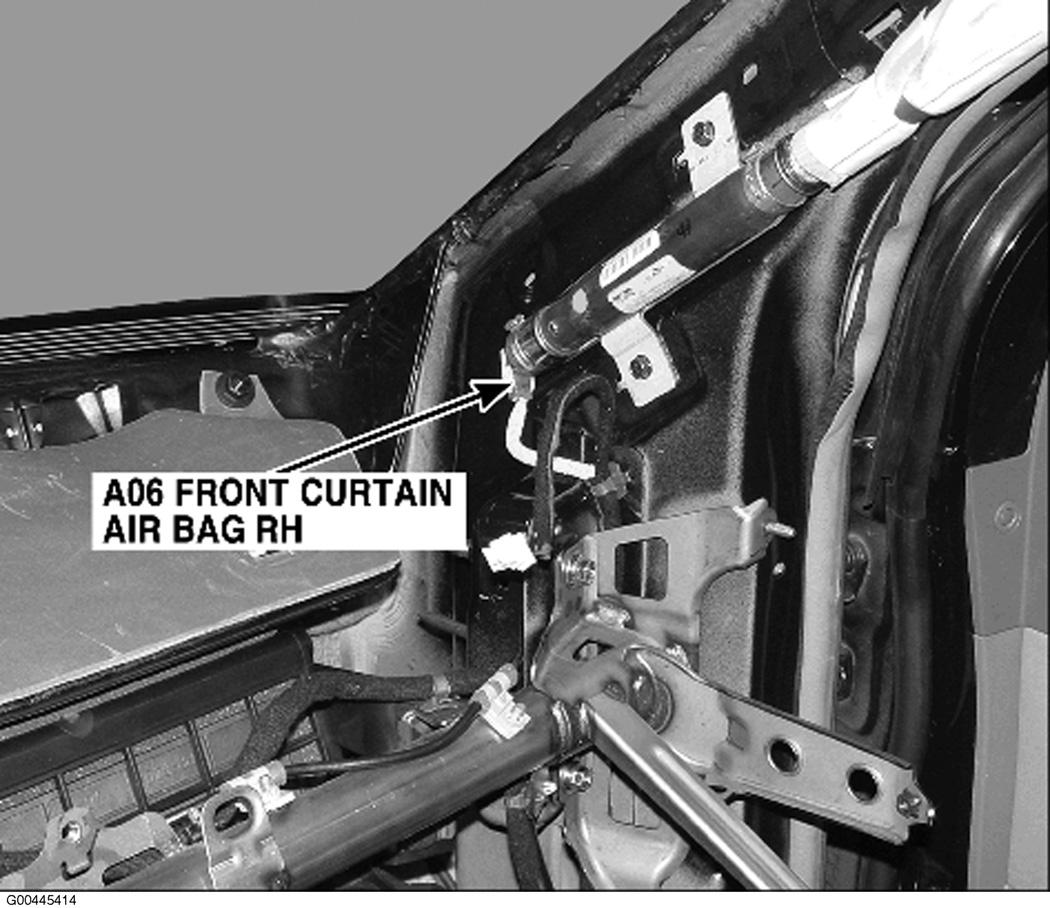

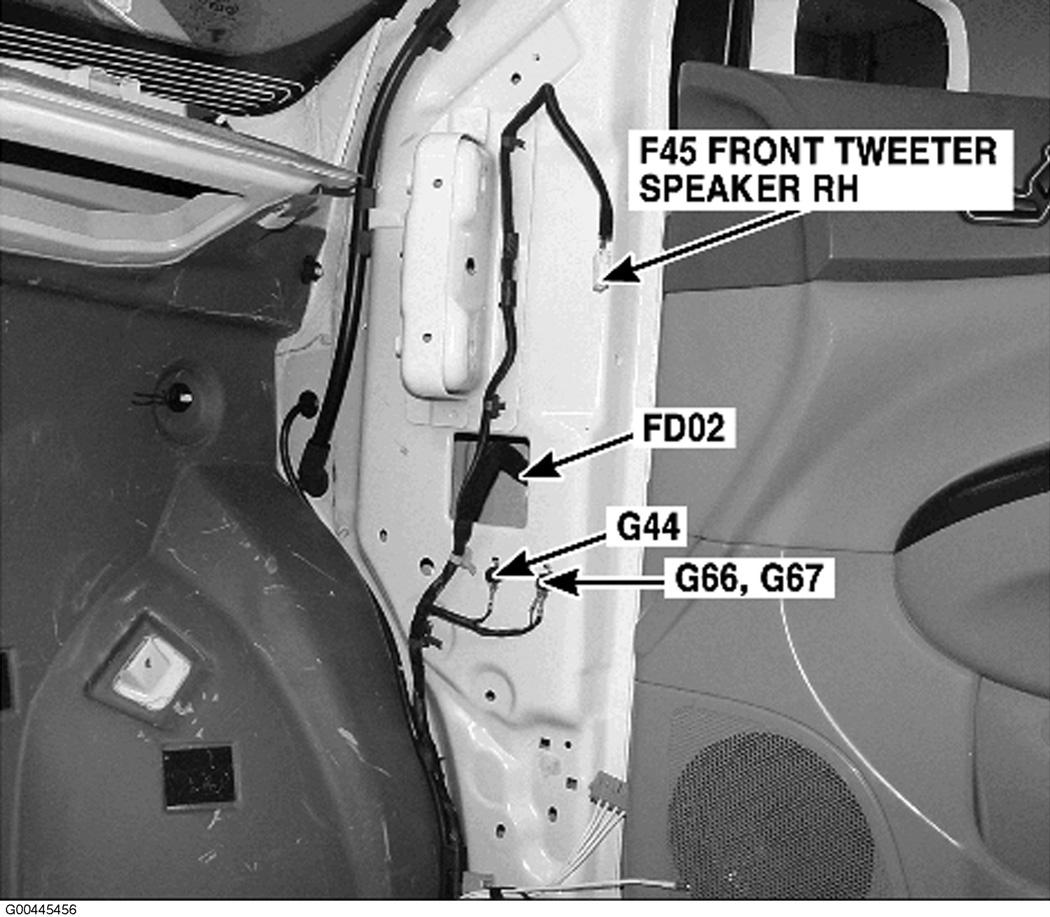

Fig 41: Right "A" Pillar
Courtesy of HYUNDAI MOTOR CO.
Fig 42: Right Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 43: Center Of Dash
Courtesy of HYUNDAI MOTOR CO.

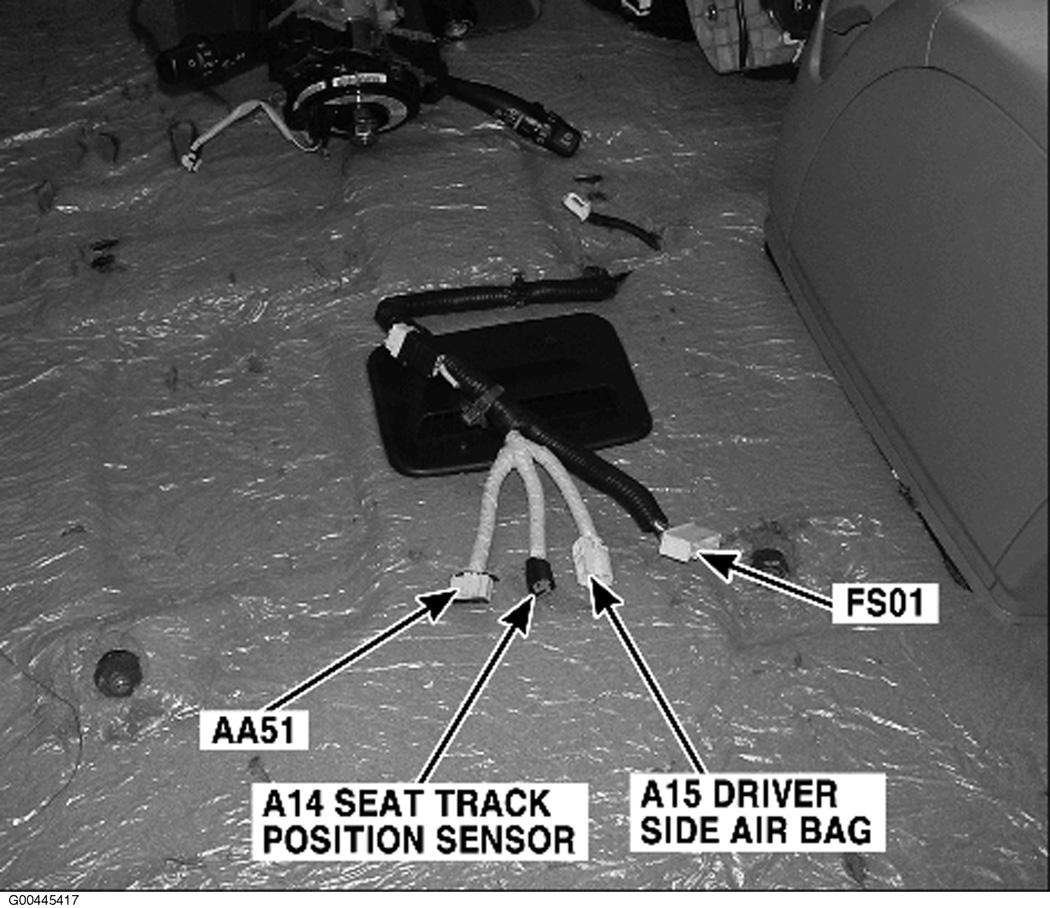

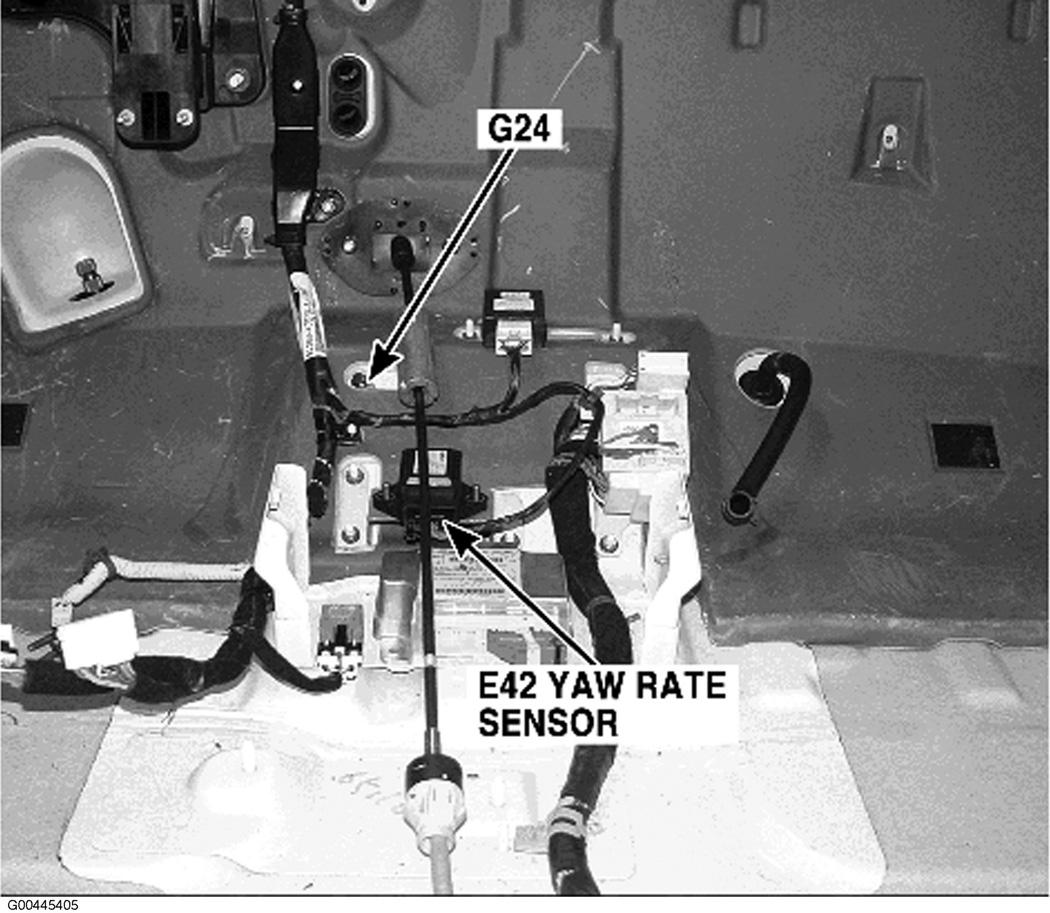

Fig 44: Under Driver's Seat
Courtesy of HYUNDAI MOTOR CO.

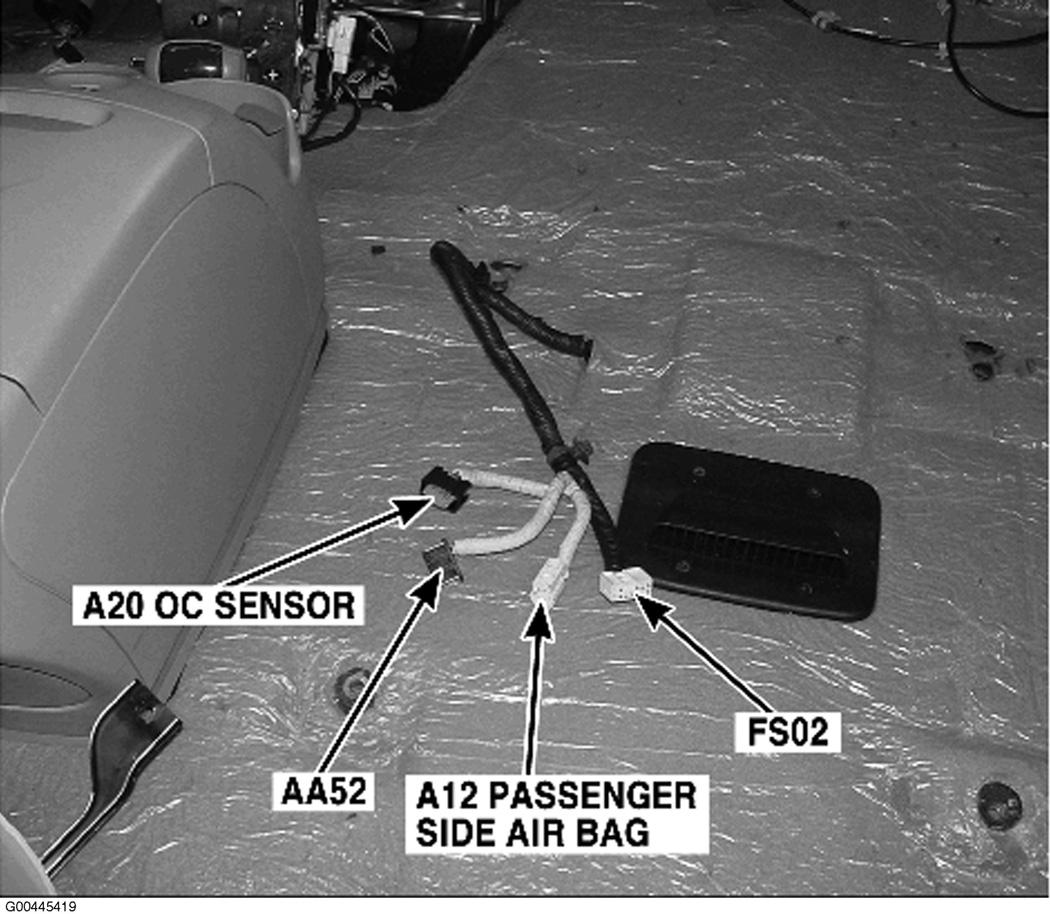

Fig 45: Under Front Passenger's Seat
Courtesy of HYUNDAI MOTOR CO.

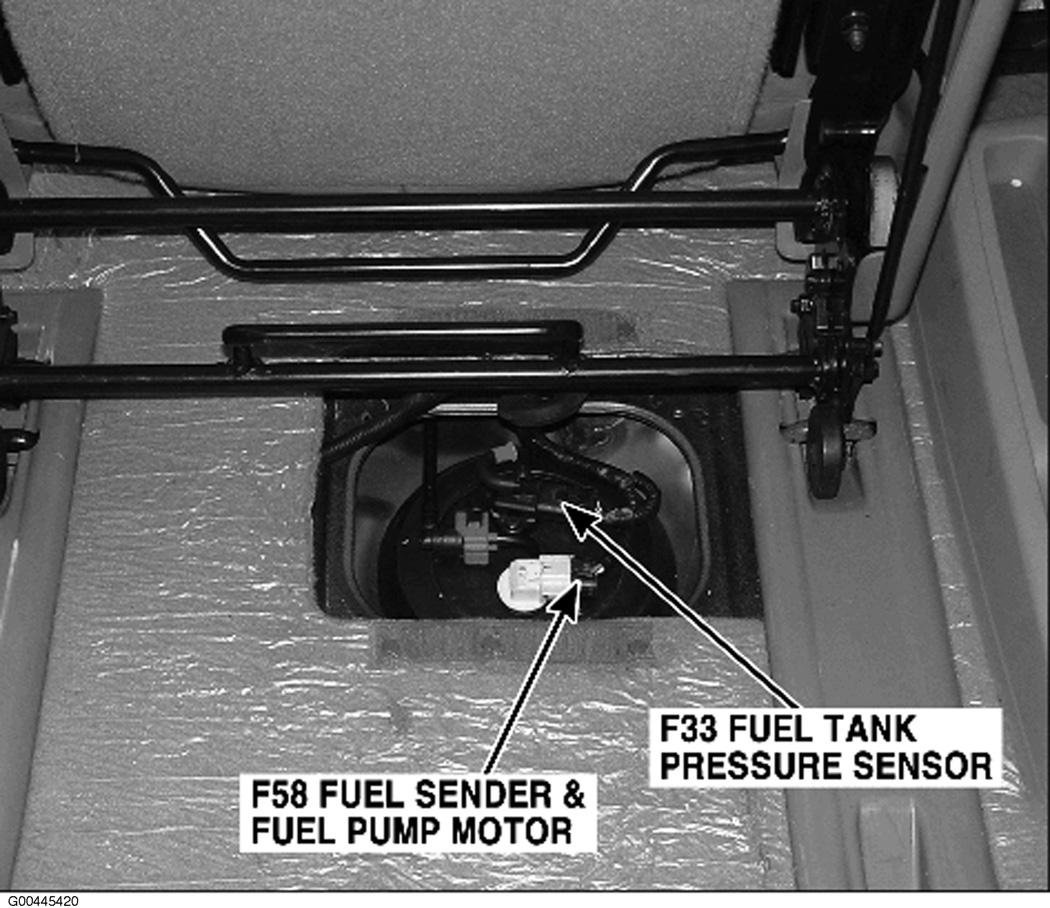

Fig 46: Under Left Rear Seat
Courtesy of HYUNDAI MOTOR CO.

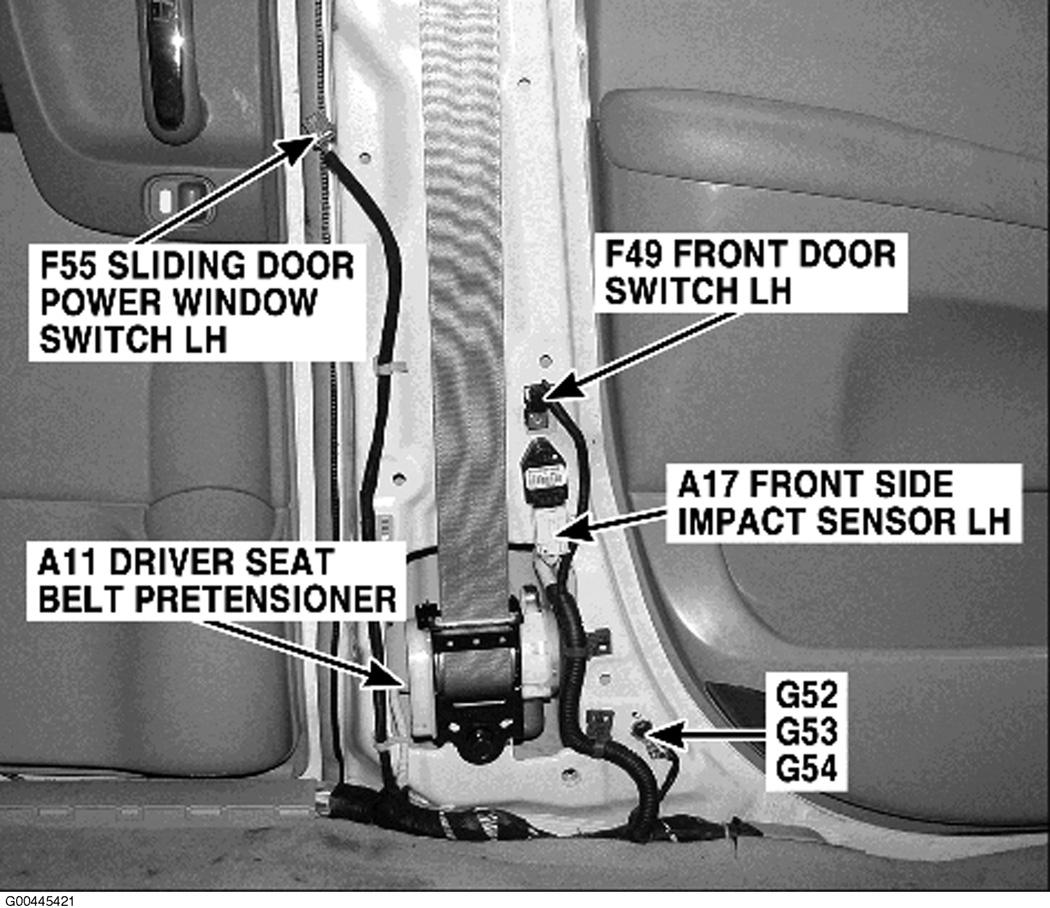

Fig 47: Left "B" Pillar
Courtesy of HYUNDAI MOTOR CO.

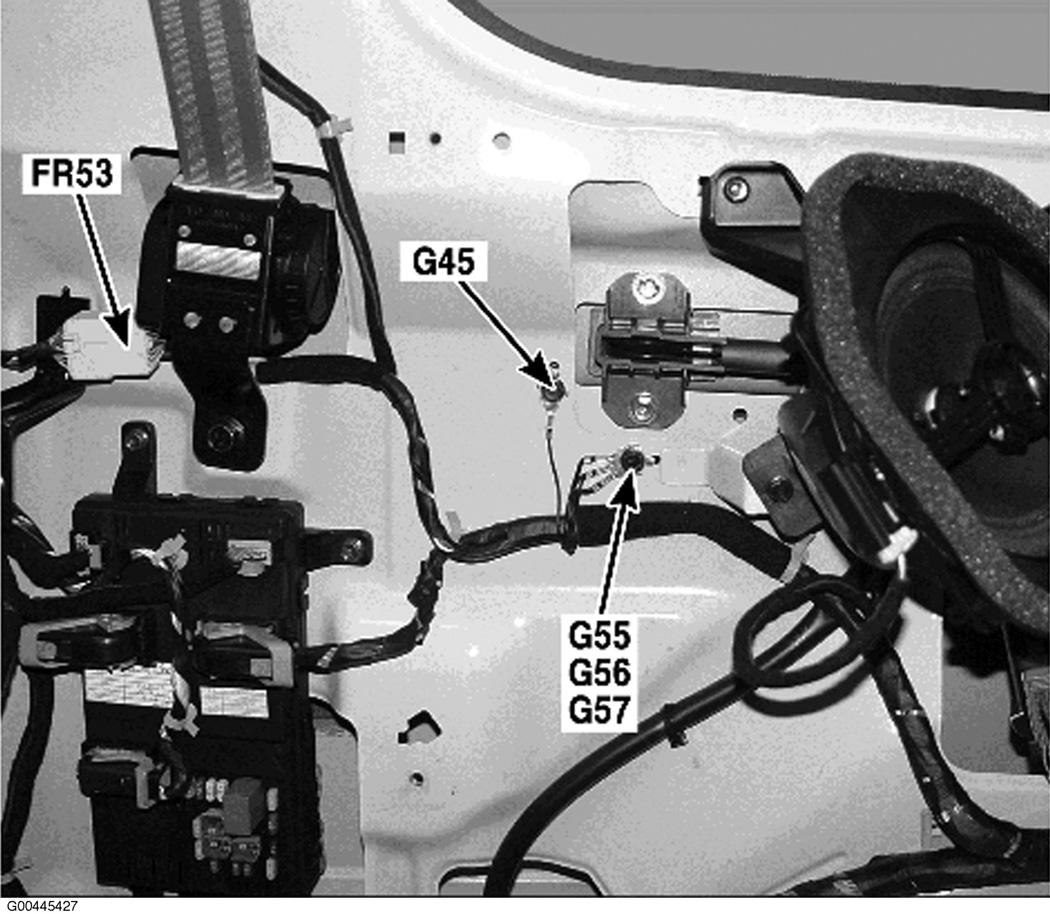

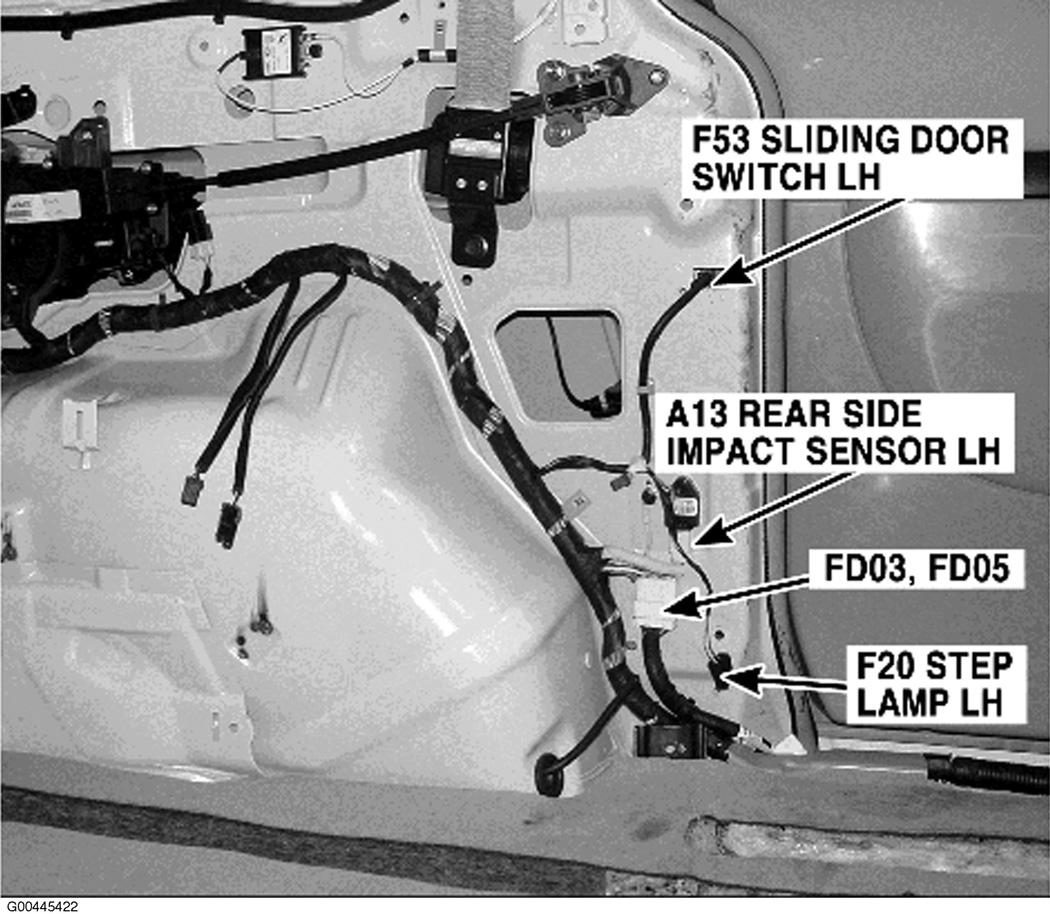

Fig 48: Left "C" Pillar & Wheelwell
Courtesy of HYUNDAI MOTOR CO.
Fig 49: Left "C" Pillar & Wheelwell
Courtesy of HYUNDAI MOTOR CO.

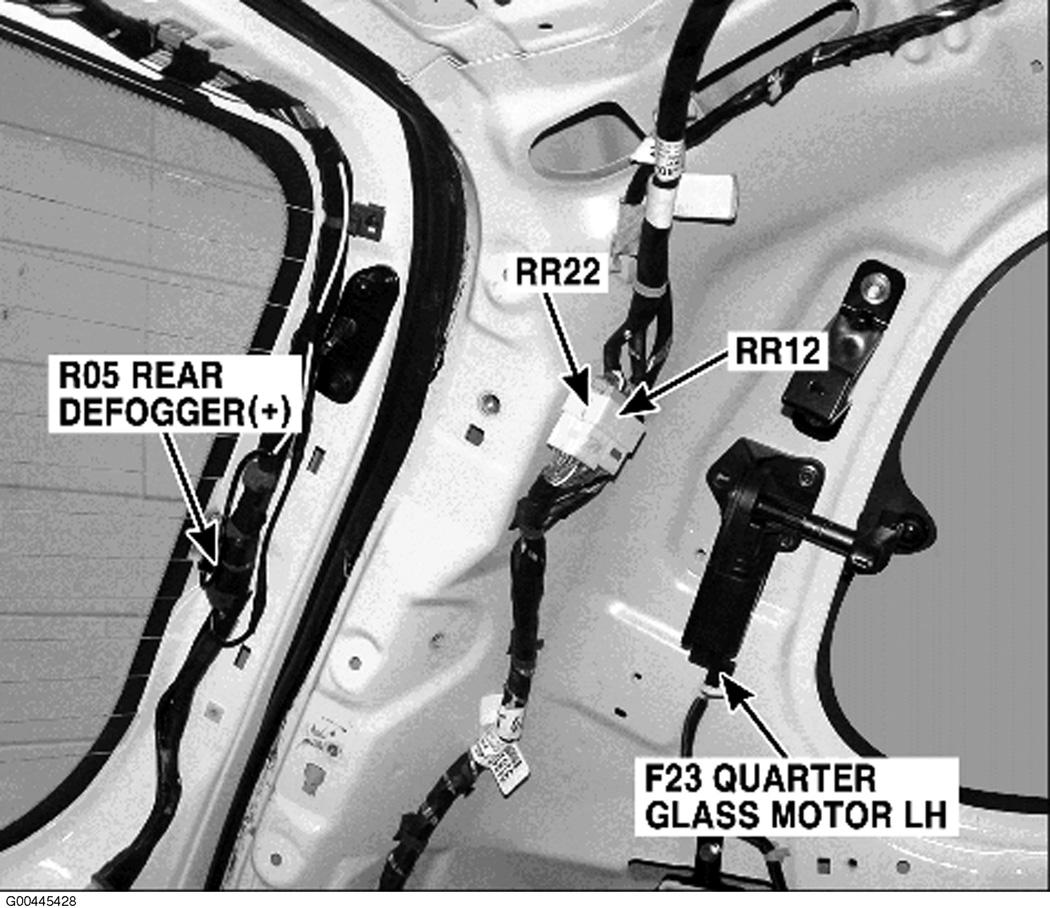

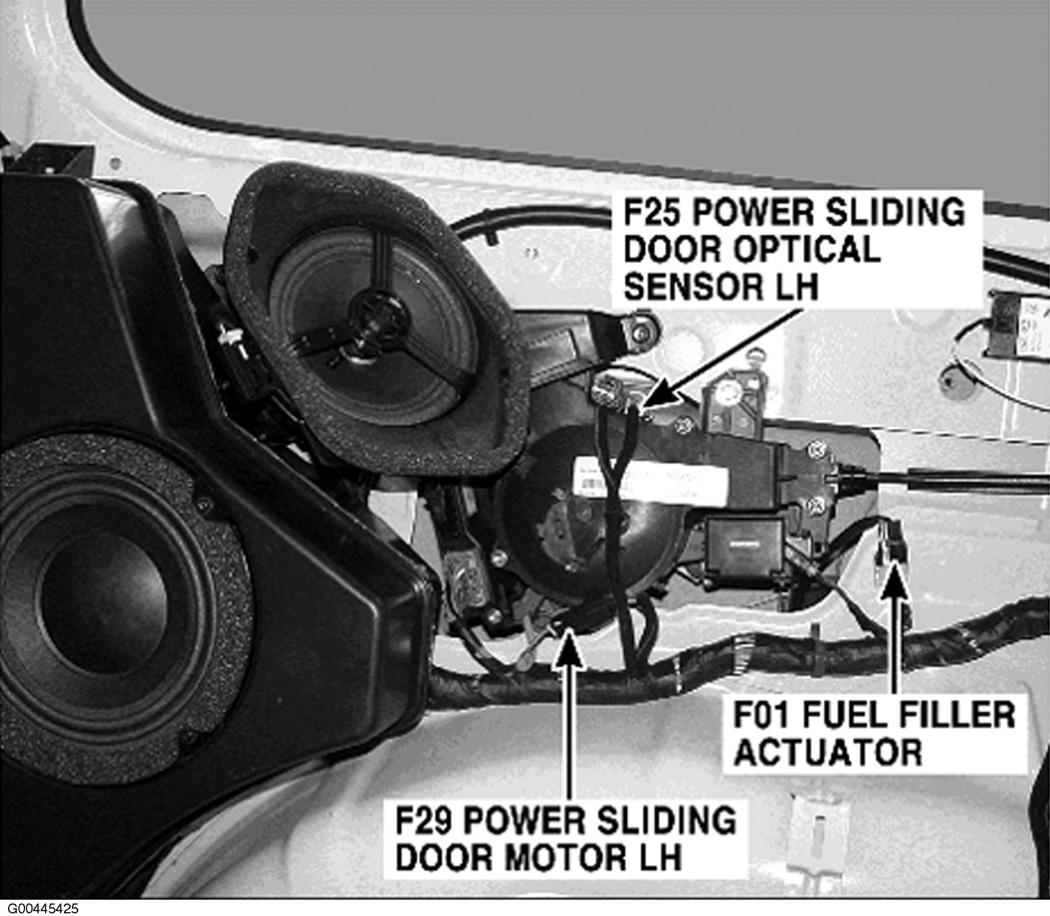

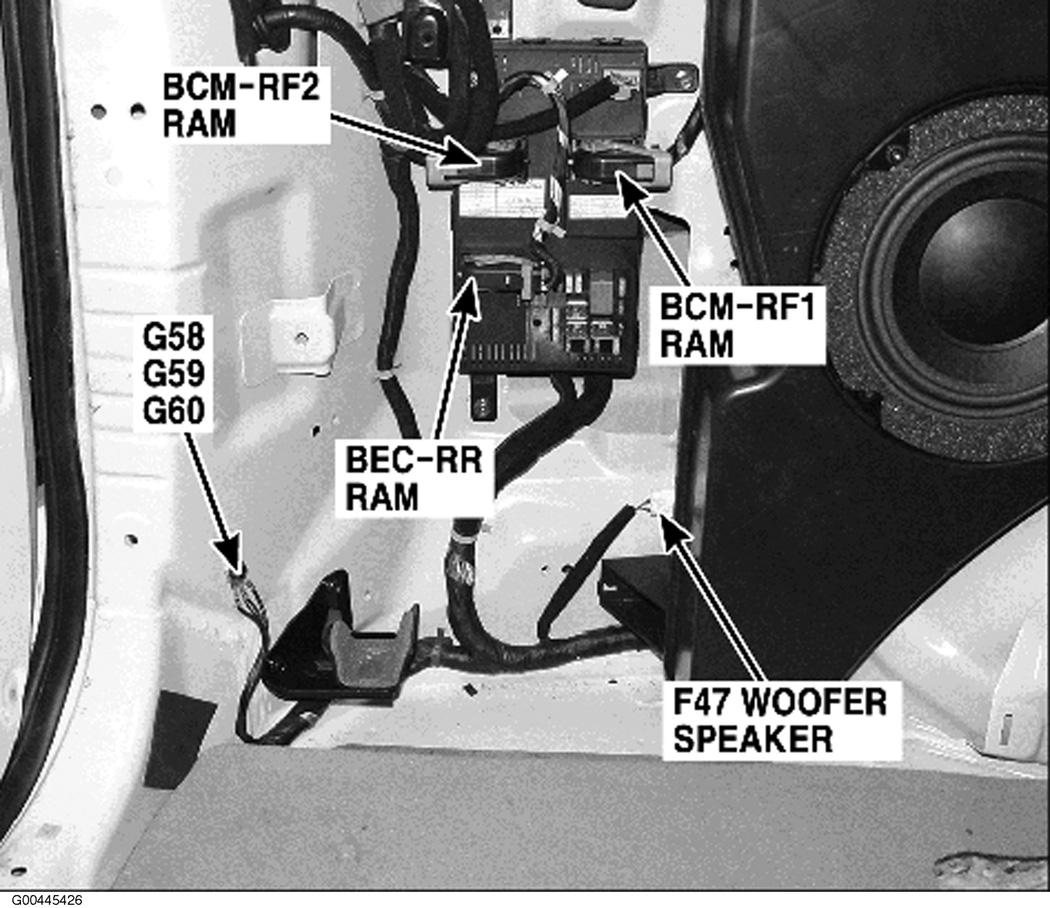

Fig 50: Left Rear Quarterpanel
Courtesy of HYUNDAI MOTOR CO.

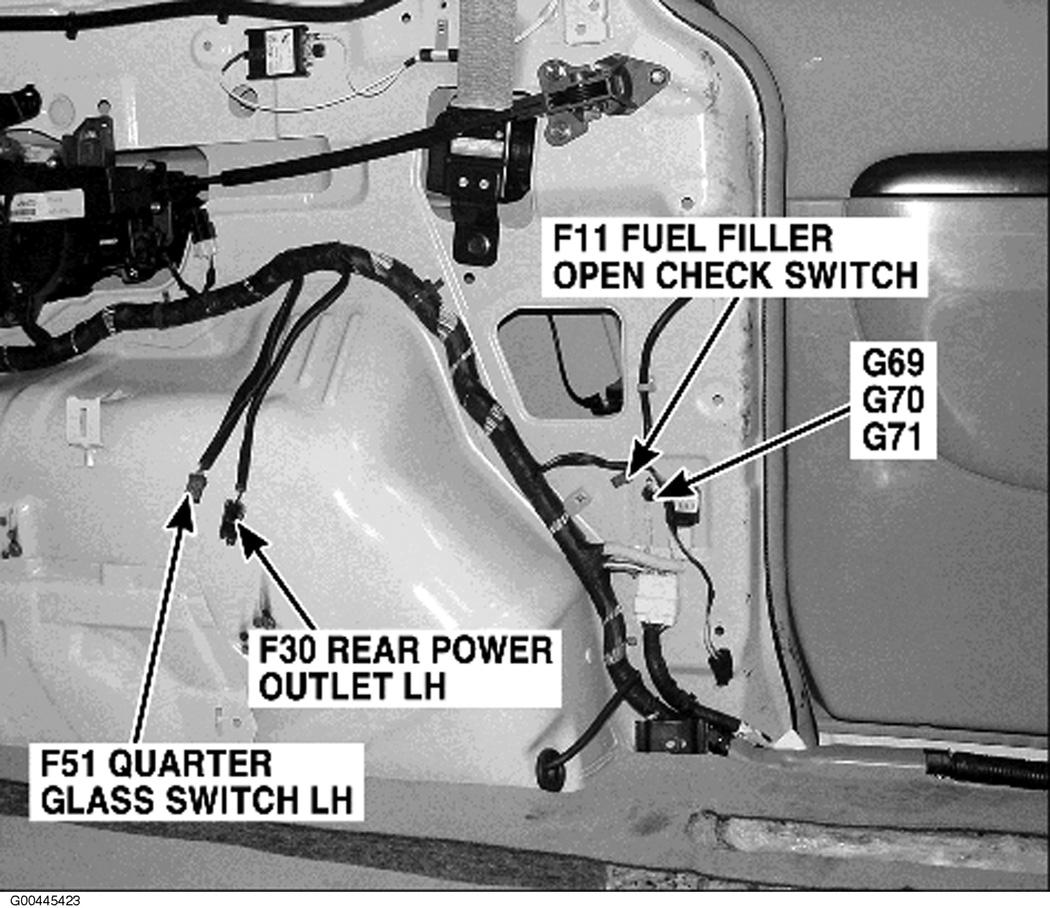

Fig 51: Left Rear Quarterpanel
Courtesy of HYUNDAI MOTOR CO.
Fig 52: Left Rear Of Cargo Area
Courtesy of HYUNDAI MOTOR CO.
Fig 53: Left Rear Quarterpanel
Courtesy of HYUNDAI MOTOR CO.
Fig 54: Left "D" Pillar
Courtesy of HYUNDAI MOTOR CO.
Fig 55: Left "D" Pillar
Courtesy of HYUNDAI MOTOR CO.
Fig 56: Center Of Roof
Courtesy of HYUNDAI MOTOR CO.

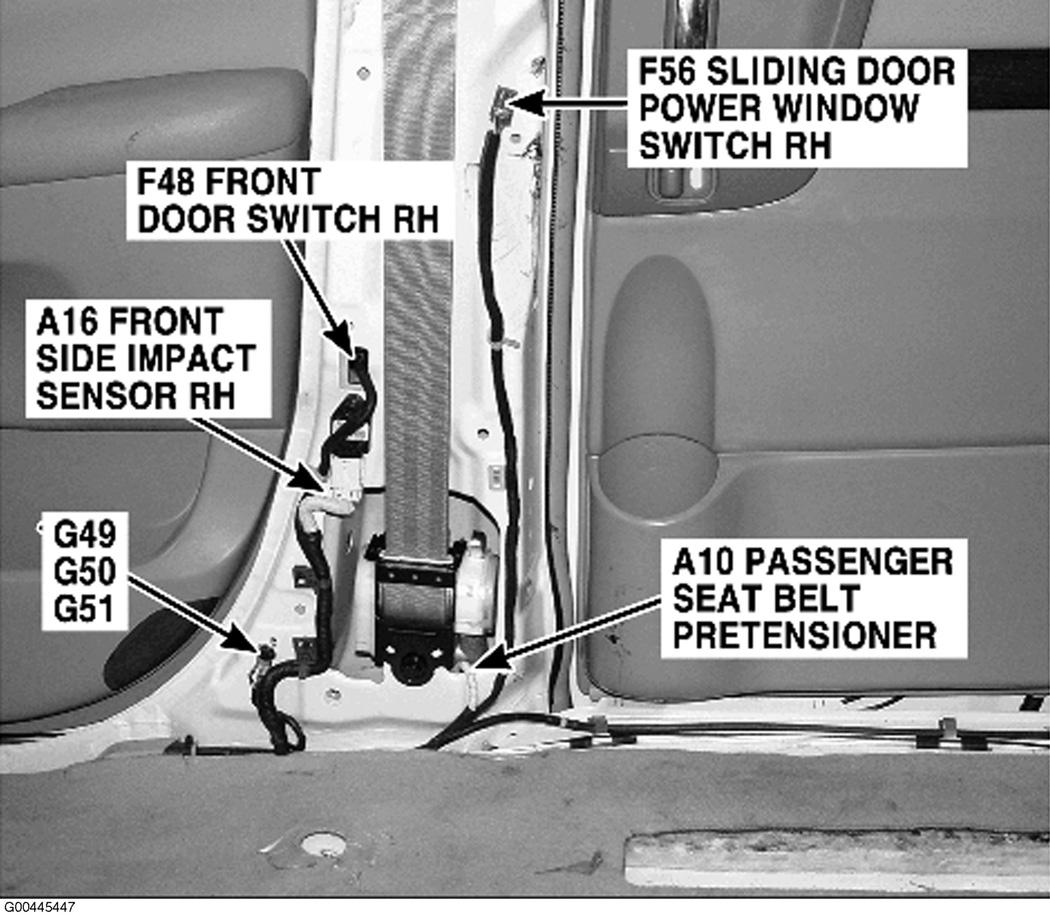

Fig 57: Right "B" Pillar
Courtesy of HYUNDAI MOTOR CO.

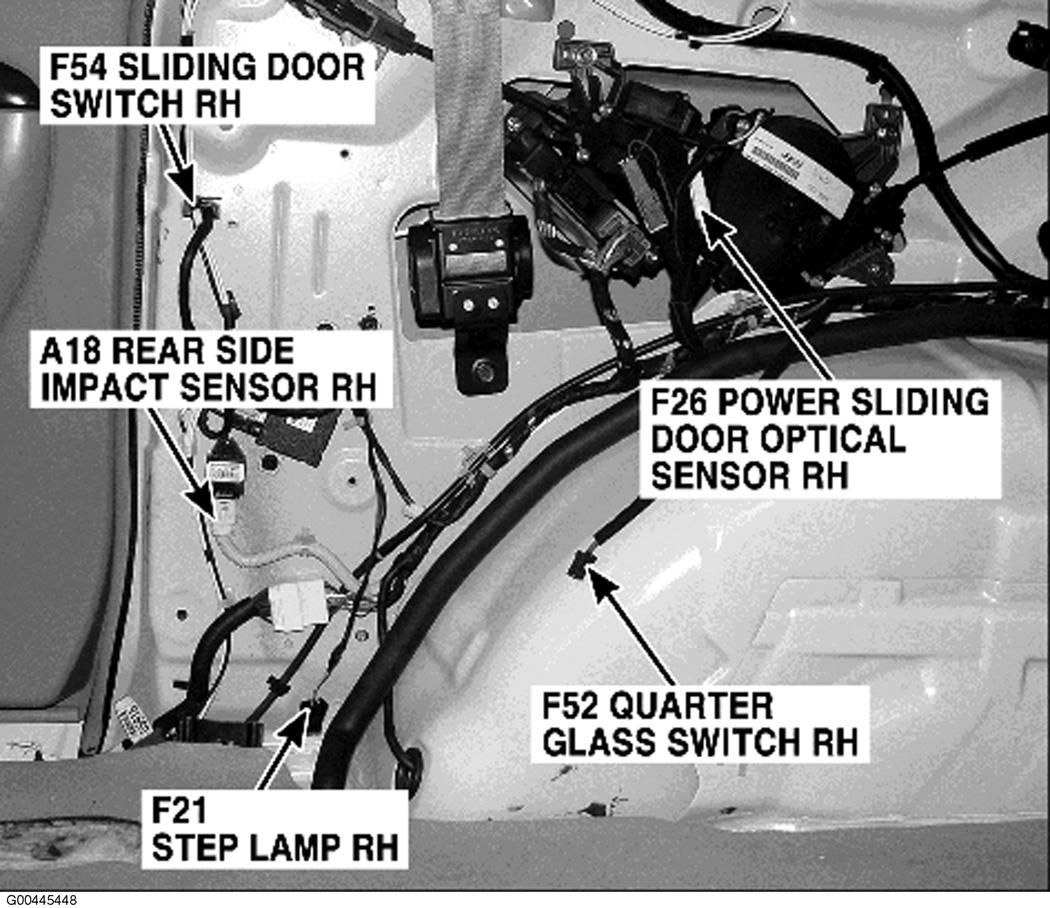

Fig 58: Right "C" Pillar & Wheelwell
Courtesy of HYUNDAI MOTOR CO.
Fig 59: Right "C" Pillar & Wheelwell
Courtesy of HYUNDAI MOTOR CO.

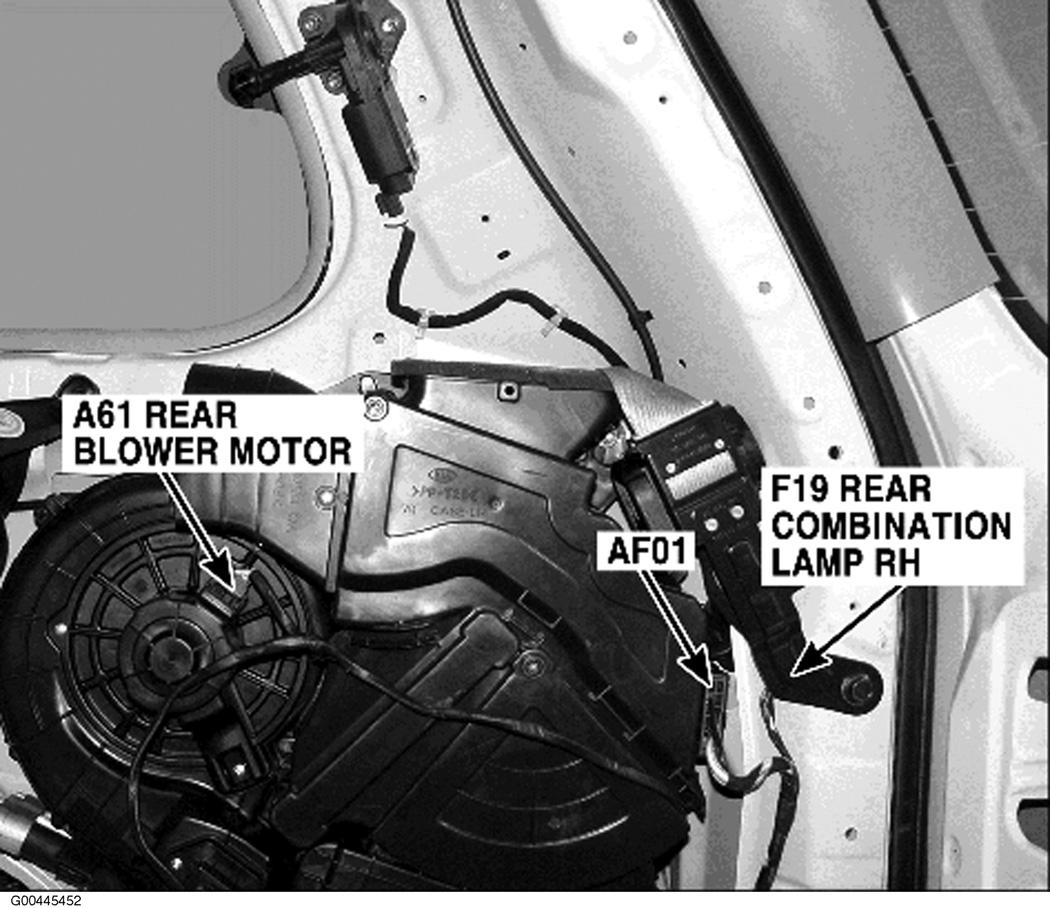

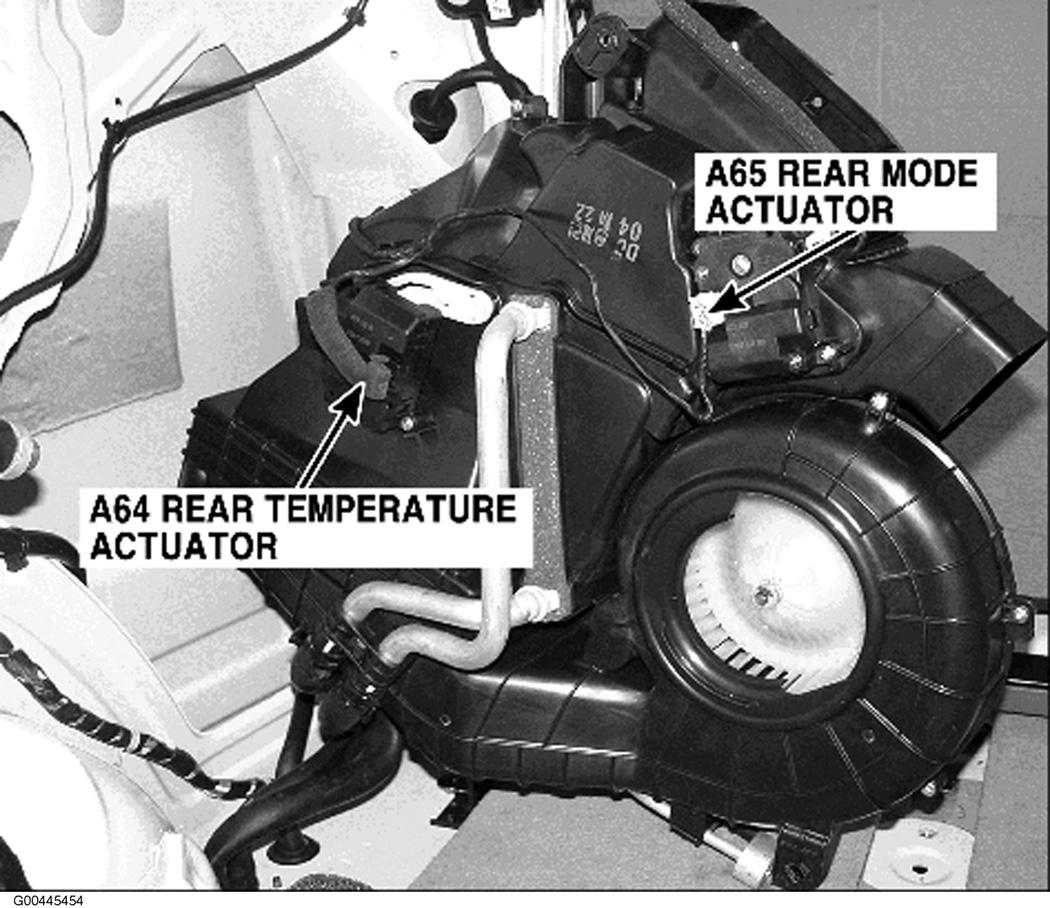

Fig 60: Right Rear Quarterpanel
Courtesy of HYUNDAI MOTOR CO.

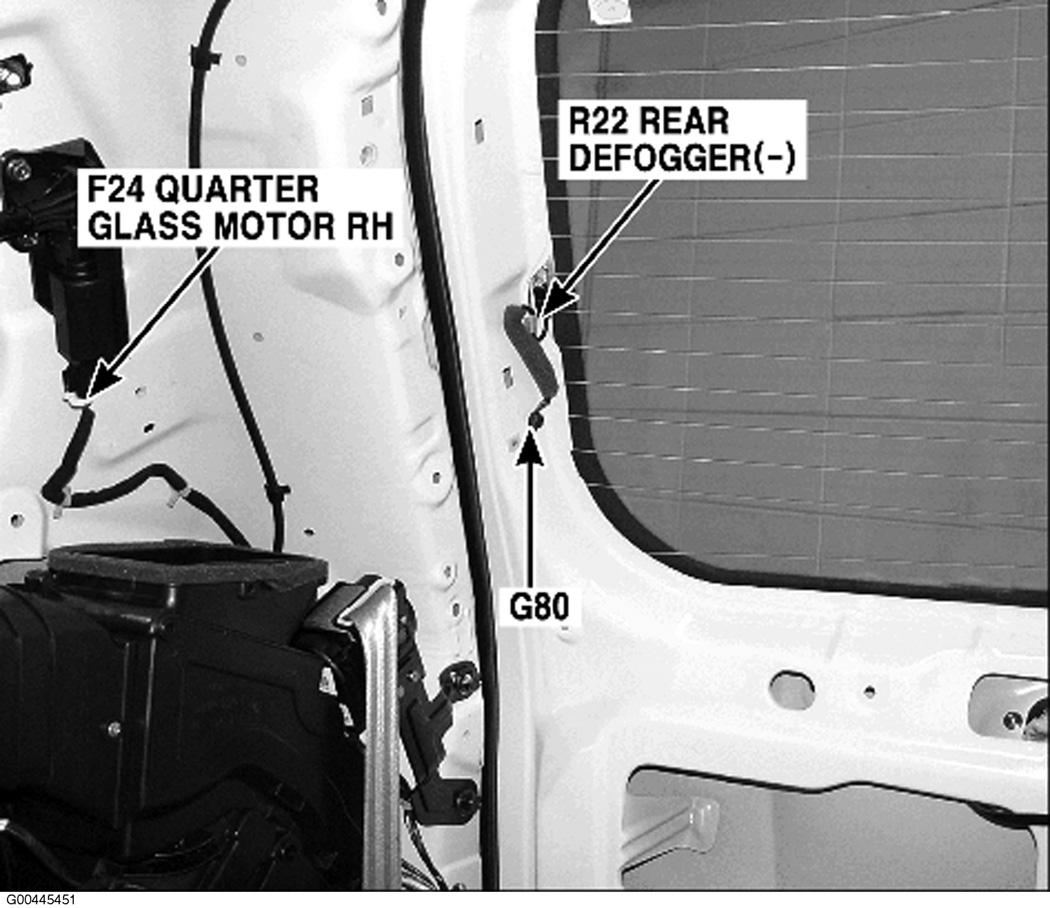

Fig 61: Right "D" Pillar
Courtesy of HYUNDAI MOTOR CO.
Fig 62: Right "D" Pillar
Courtesy of HYUNDAI MOTOR CO.

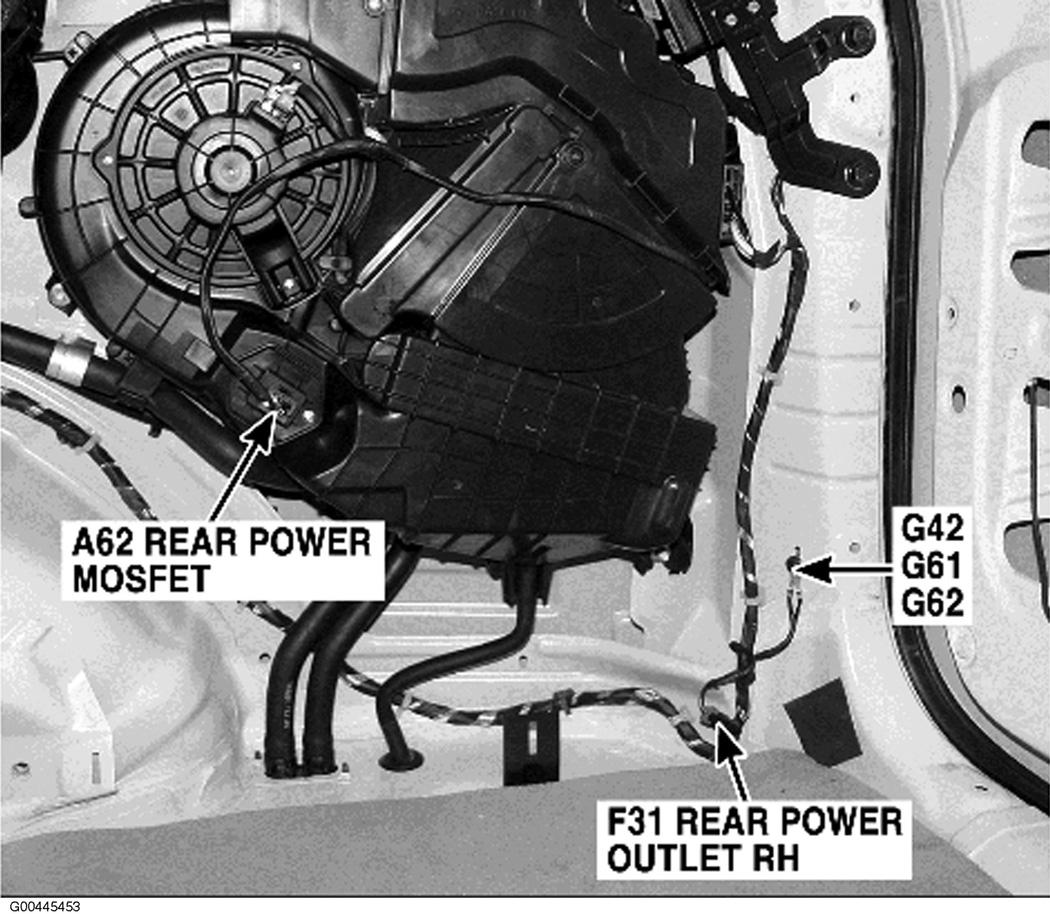

Fig 63: Right Rear Quarterpanel
Courtesy of HYUNDAI MOTOR CO.
Fig 64: Right Rear Quarterpanel
Courtesy of HYUNDAI MOTOR CO.
Fig 65: Right Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 66: Right "A" Pillar
Courtesy of HYUNDAI MOTOR CO.

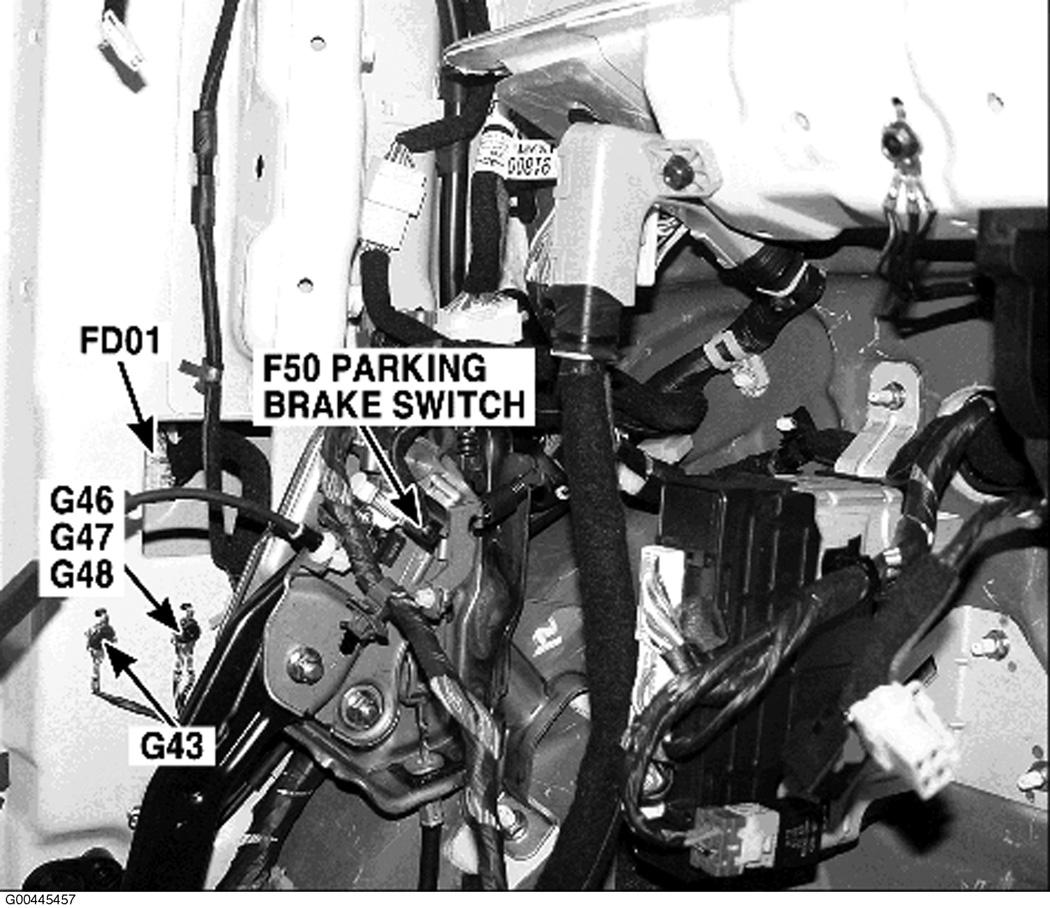

Fig 67: Left Kick Panel
Courtesy of HYUNDAI MOTOR CO.
Fig 68: Left Kick Panel
Courtesy of HYUNDAI MOTOR CO.
Fig 69: Center Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 70: Right Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 71: Right End Of Dash
Courtesy of HYUNDAI MOTOR CO.

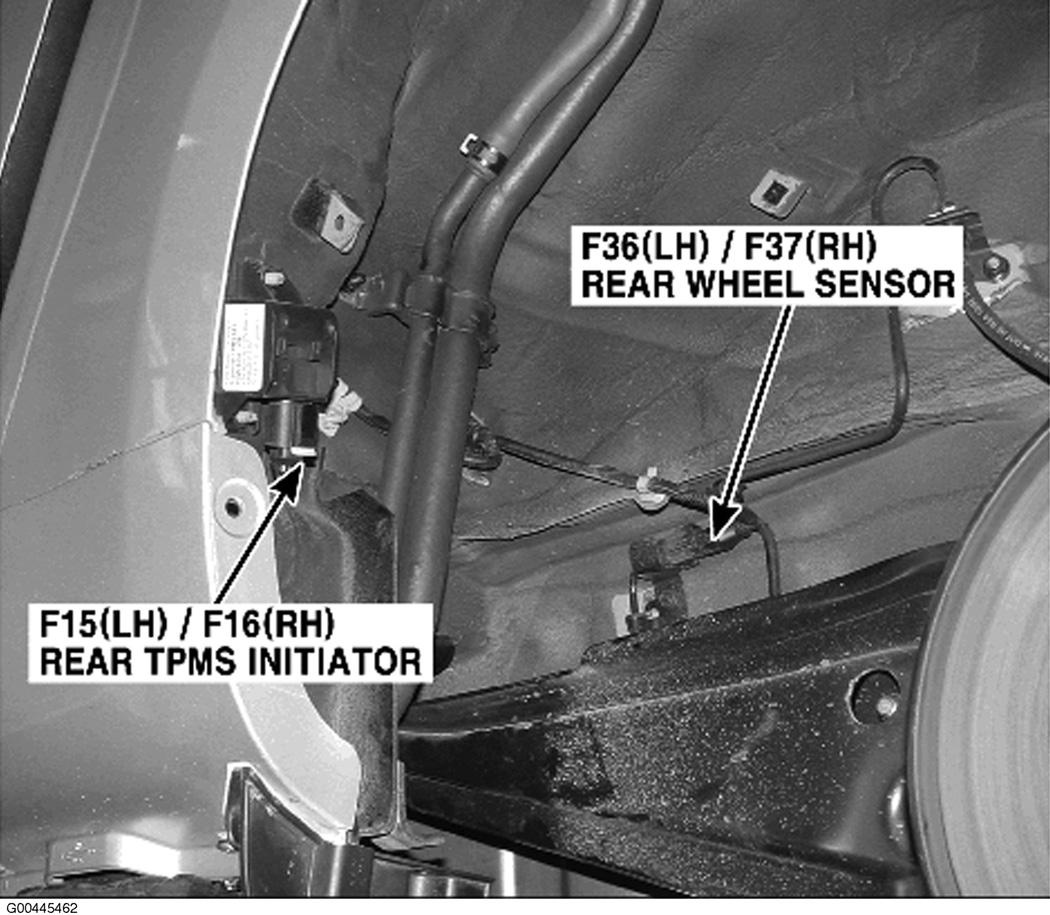

Fig 72: Rear Wheelwell (Left Shown)
Courtesy of HYUNDAI MOTOR CO.

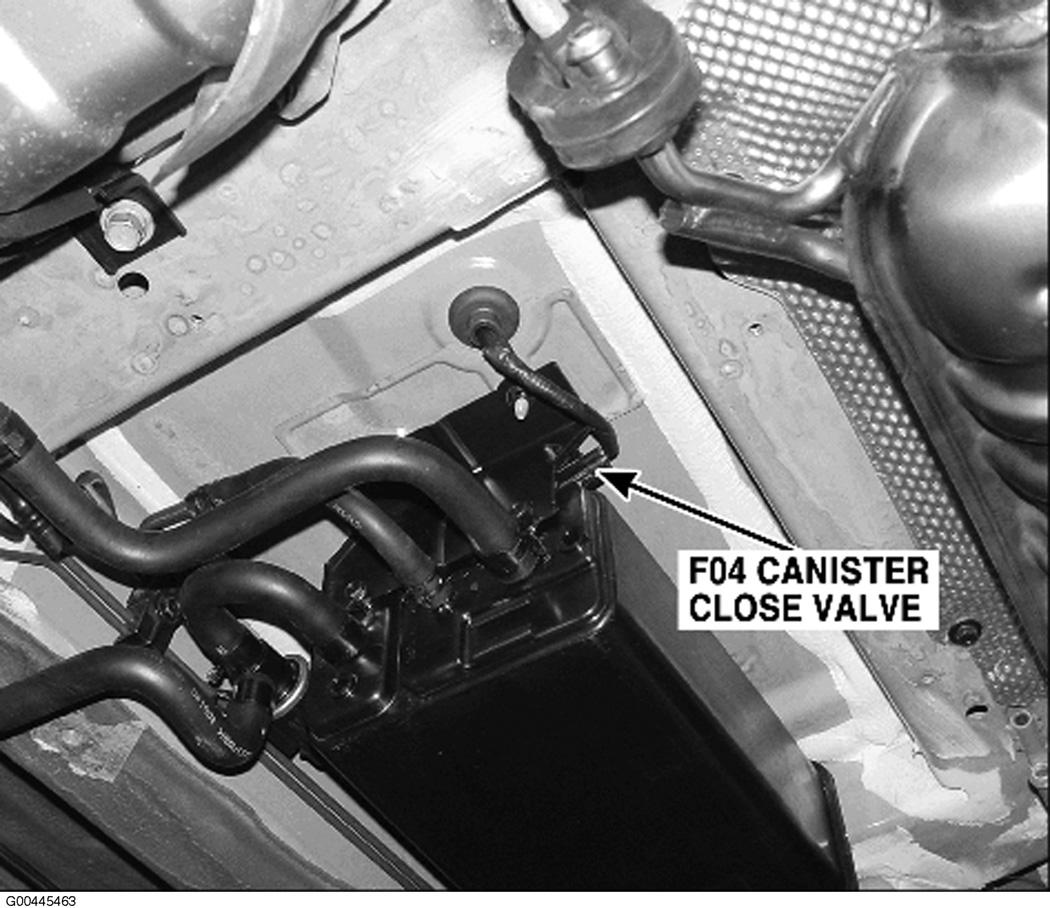

Fig 73: Rear Underside Of Vehicle
Courtesy of HYUNDAI MOTOR CO.

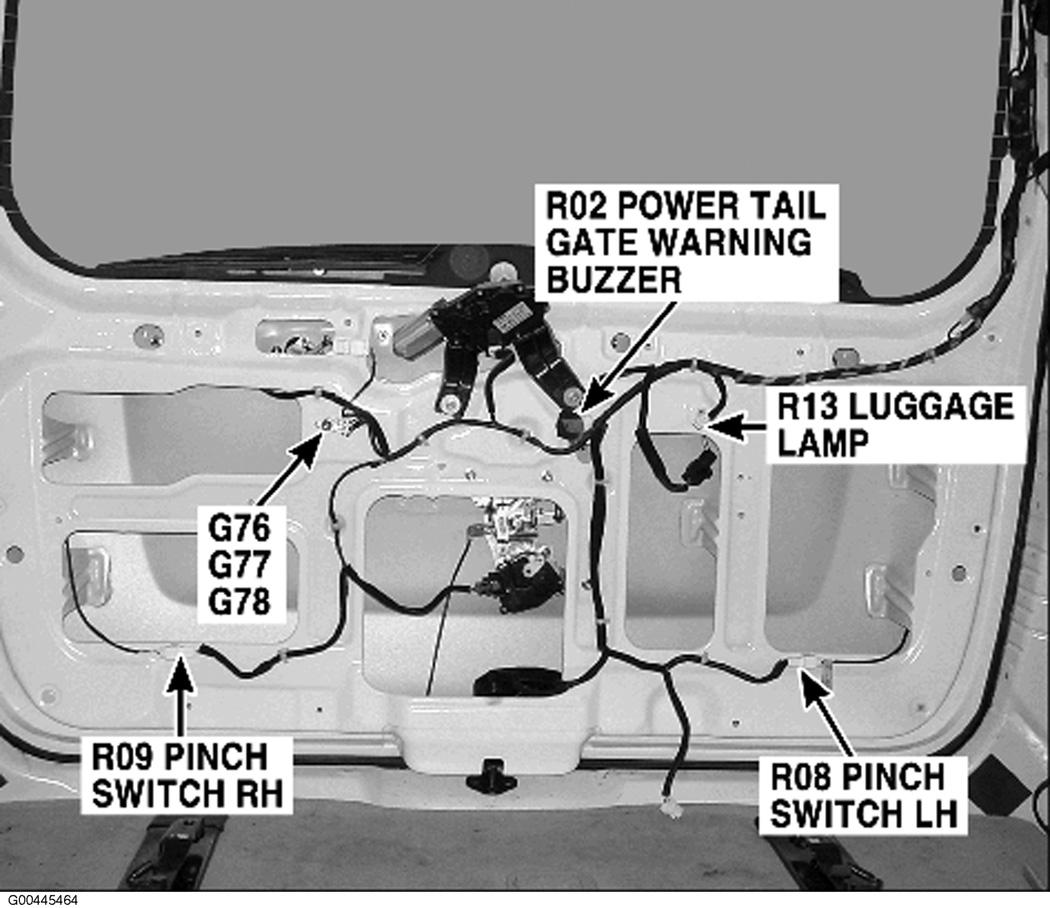

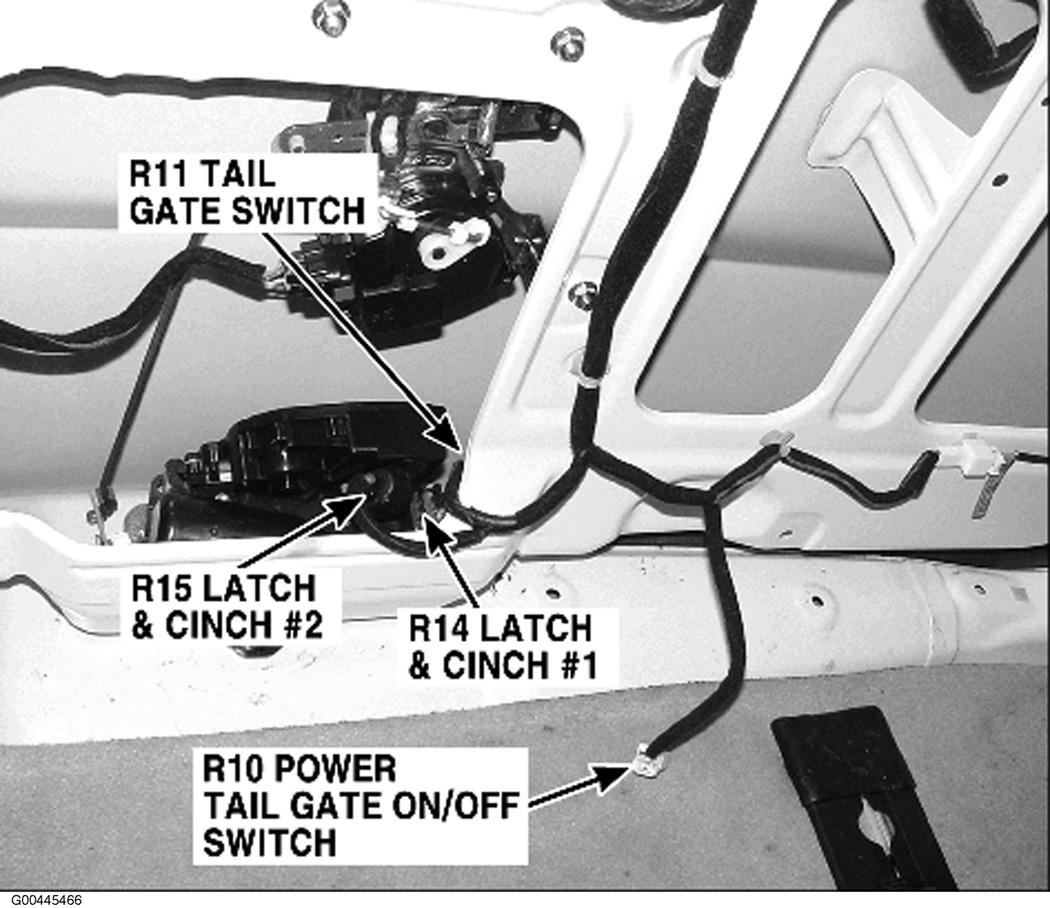

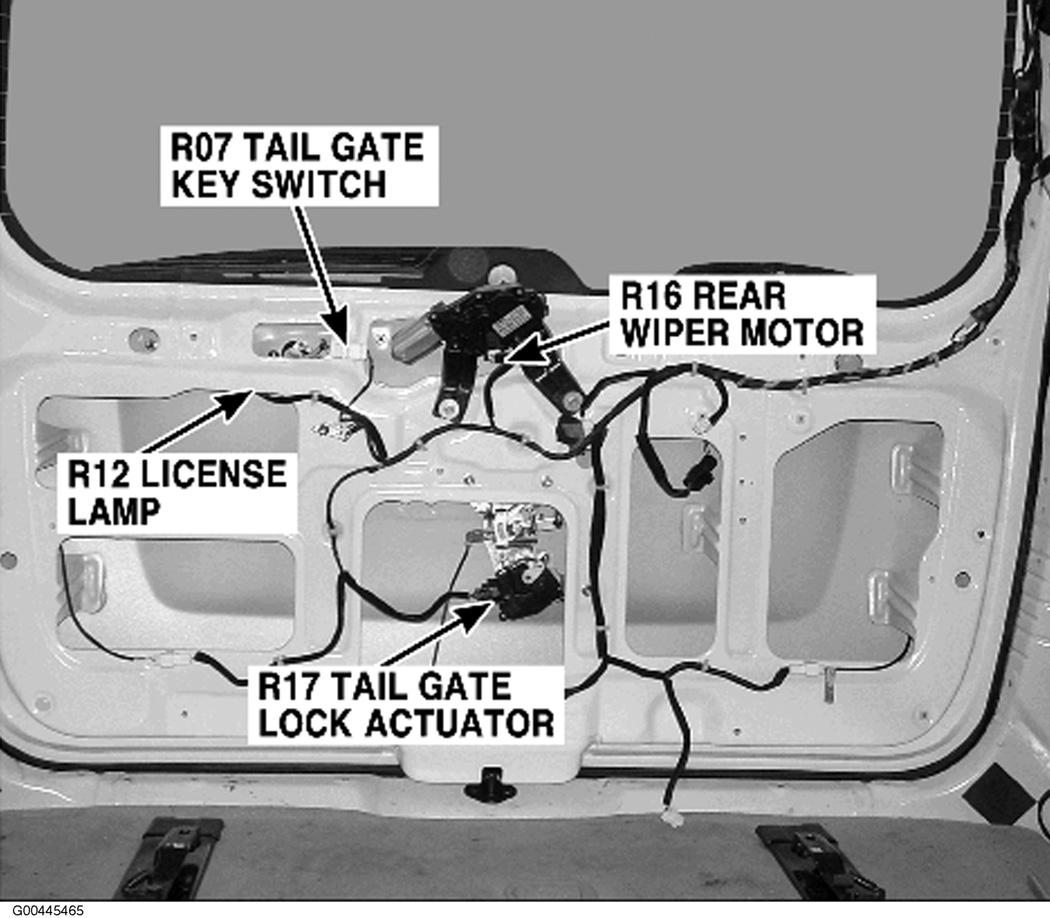

Fig 74: Tailgate
Courtesy of HYUNDAI MOTOR CO.
Fig 75: Tailgate
Courtesy of HYUNDAI MOTOR CO.
Fig 76: Tailgate
Courtesy of HYUNDAI MOTOR CO.

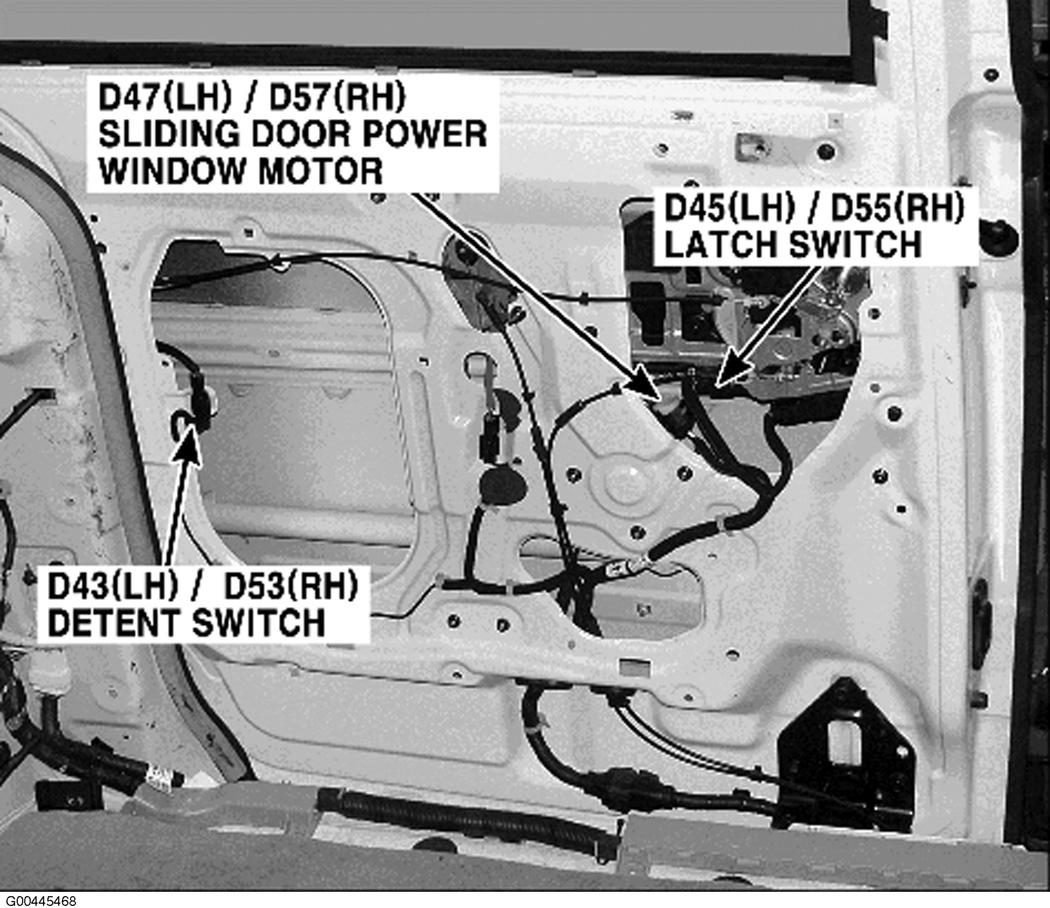

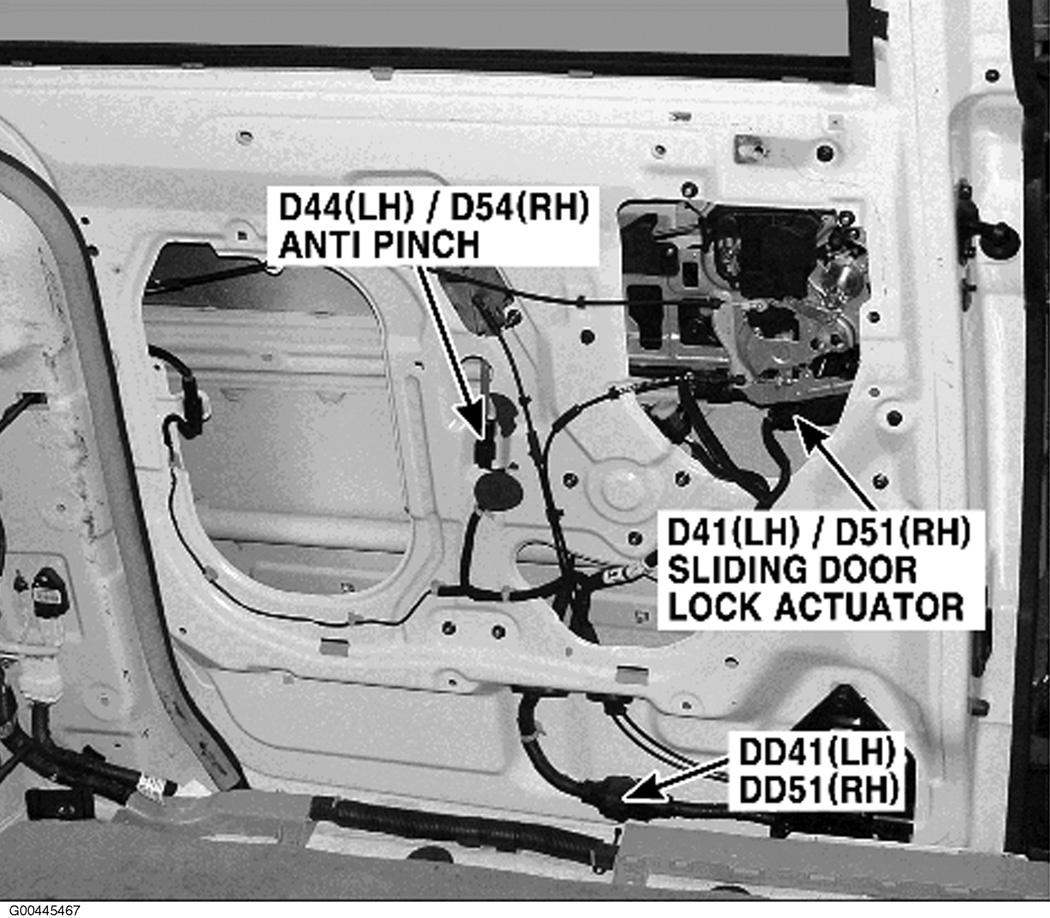

Fig 77: Sliding Doors (Left Shown)
Courtesy of HYUNDAI MOTOR CO.
Fig 78: Sliding Doors (Left Shown)
Courtesy of HYUNDAI MOTOR CO.

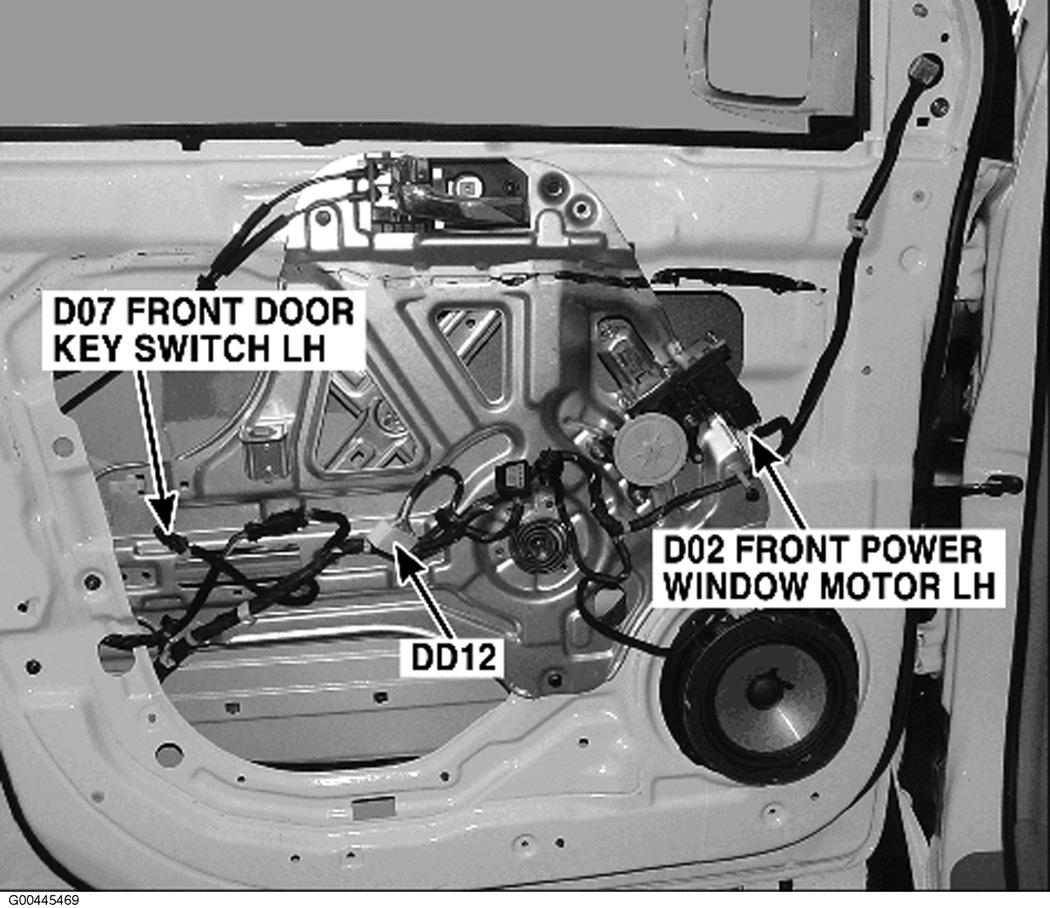

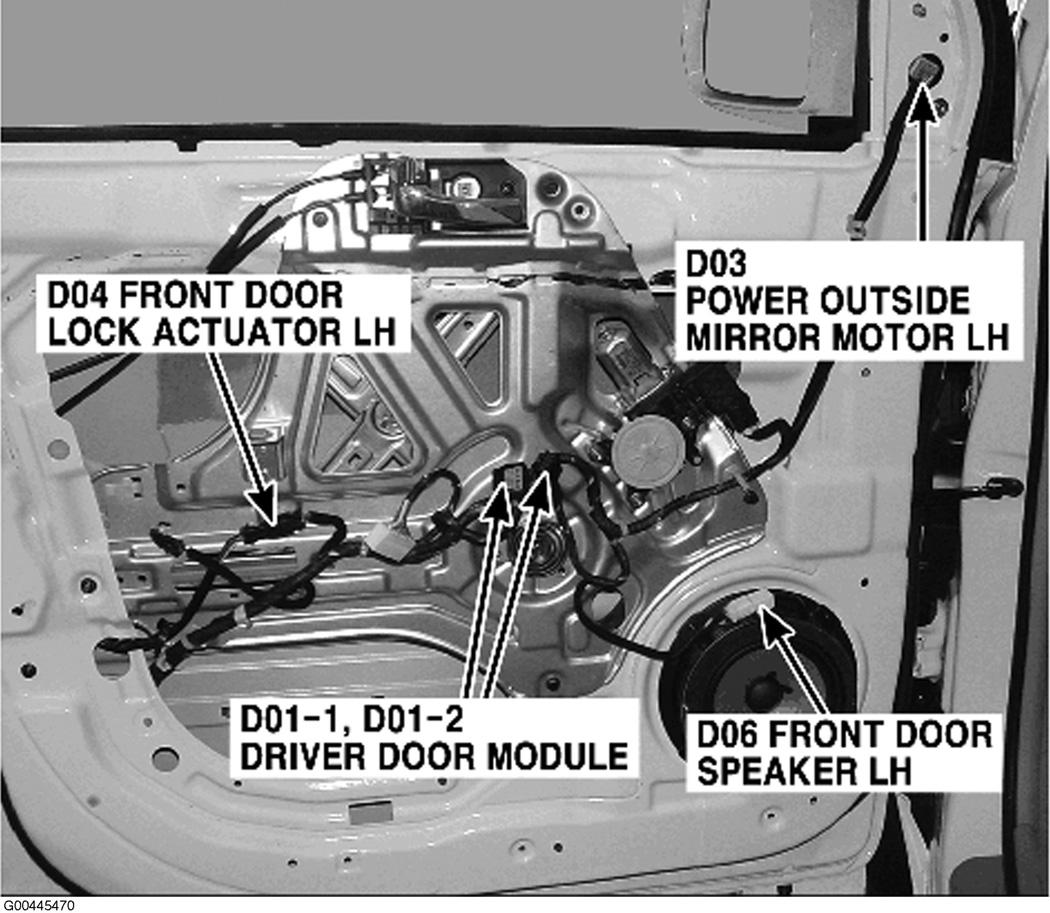

Fig 79: Driver's Door
Courtesy of HYUNDAI MOTOR CO.
Fig 80: Driver's Door
Courtesy of HYUNDAI MOTOR CO.

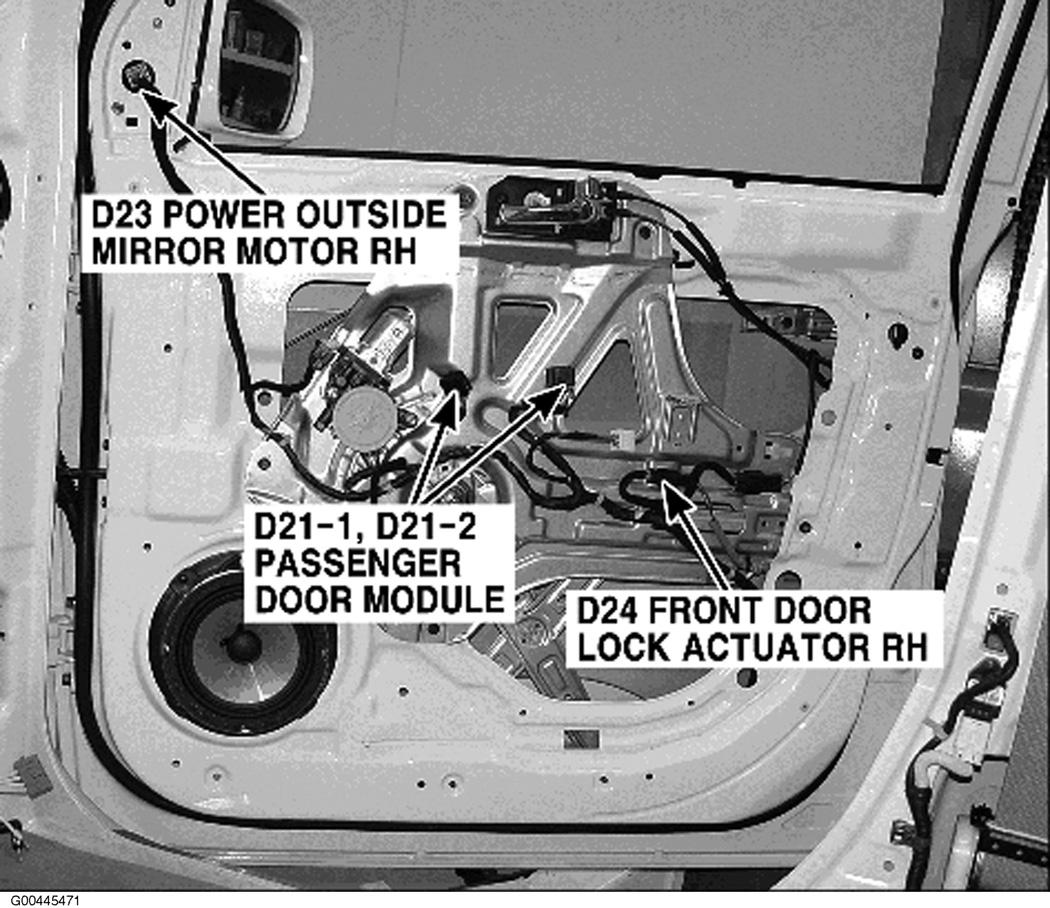

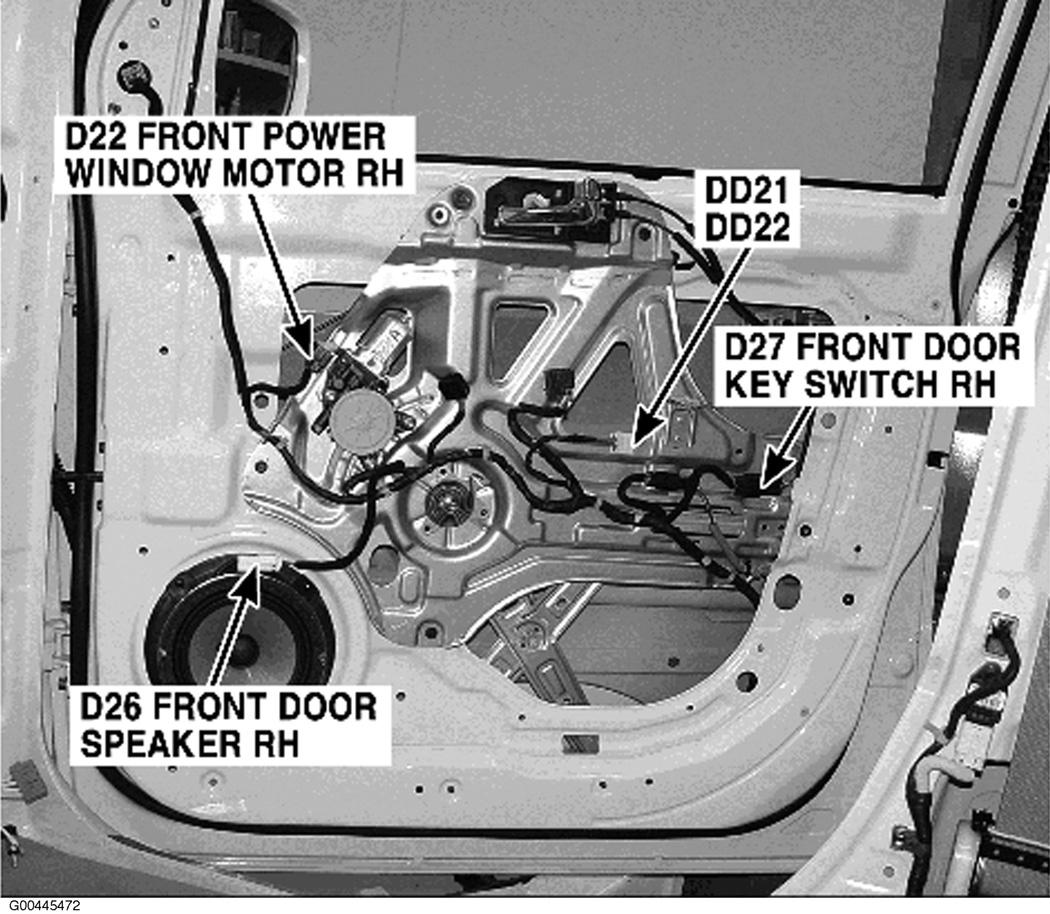

Fig 81: Front Passenger's Door
Courtesy of HYUNDAI MOTOR CO.
Fig 82: Front Passenger's Door
Courtesy of HYUNDAI MOTOR CO.

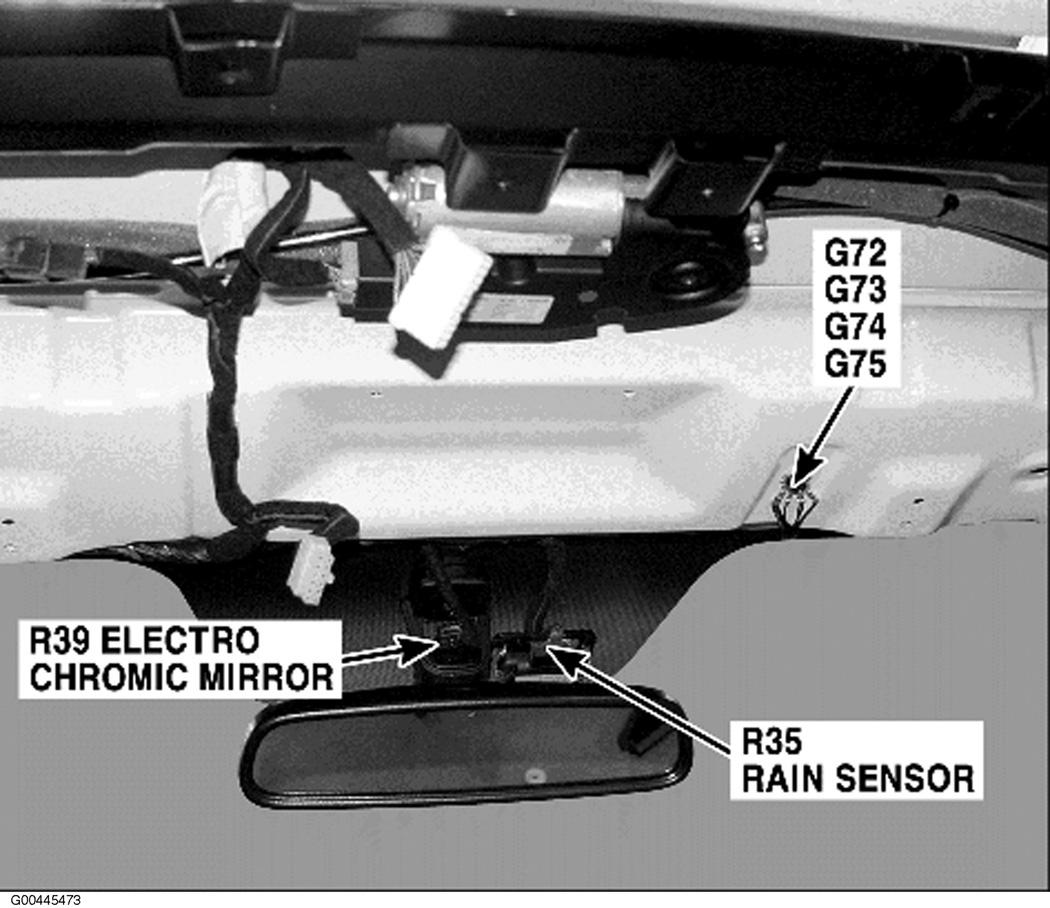

Fig 83: Front Center Of Roof
Courtesy of HYUNDAI MOTOR CO.
Fig 84: Front Center Of Roof
Courtesy of HYUNDAI MOTOR CO.

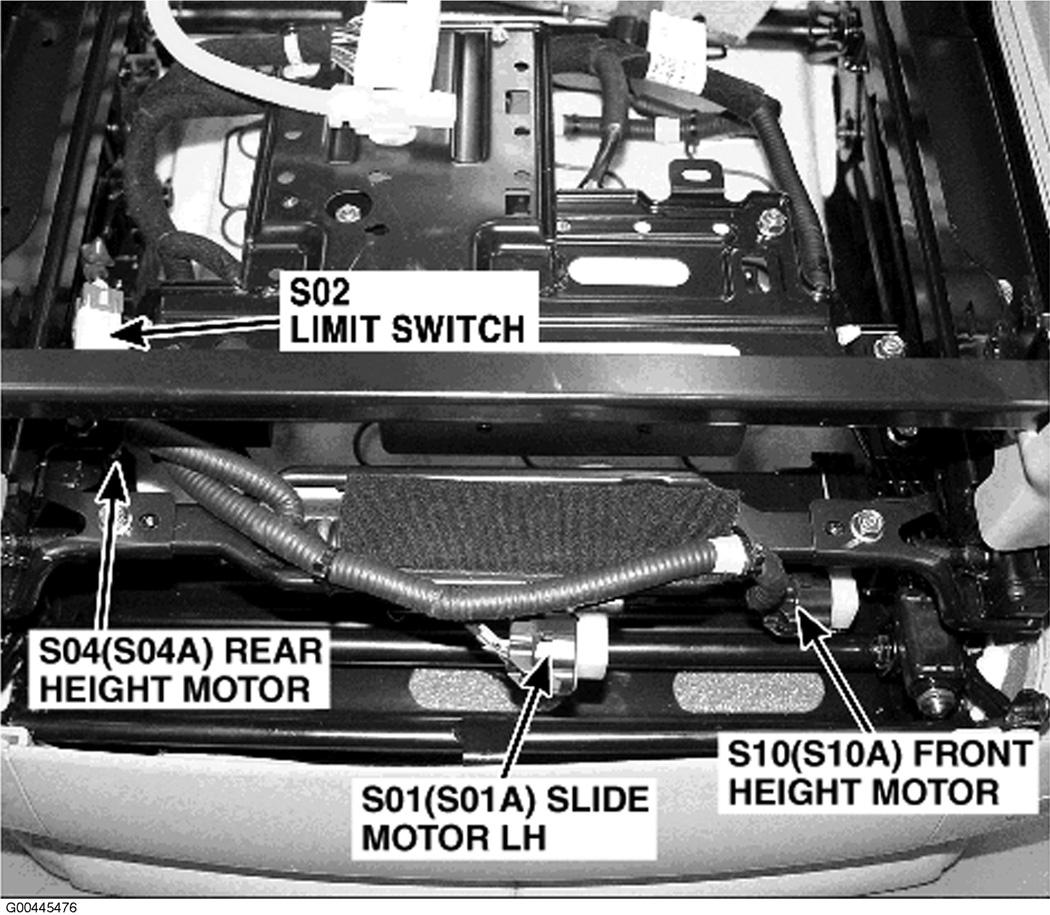

Fig 85: Driver's Seat
Courtesy of HYUNDAI MOTOR CO.
Fig 86: Driver's Seat
Courtesy of HYUNDAI MOTOR CO.

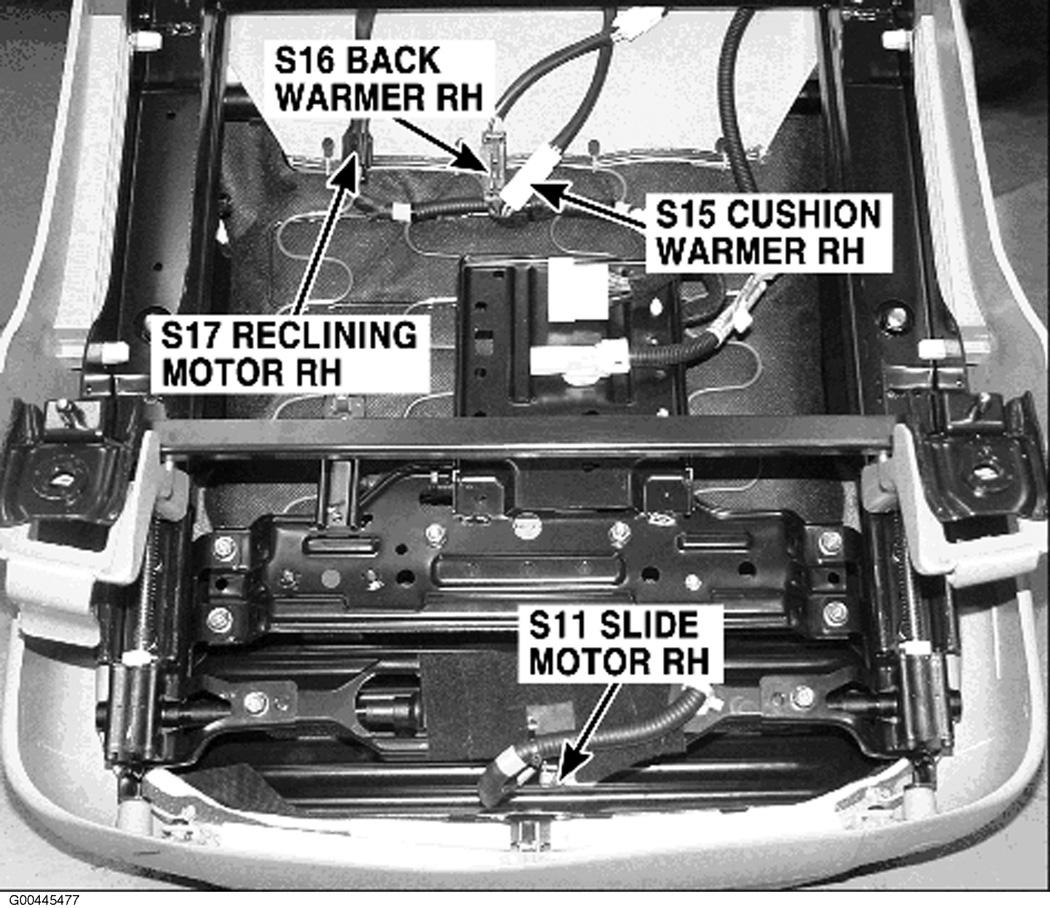

Fig 87: Front Passenger's Seat
Courtesy of HYUNDAI MOTOR CO.
Fig 88: Front Passenger's Seat
Courtesy of HYUNDAI MOTOR CO.
Fig 89: FAM (Front Area Module)
Courtesy of HYUNDAI MOTOR CO.
Fig 90: Location Of Circuit Protection Devices
Courtesy of HYUNDAI MOTOR CO.

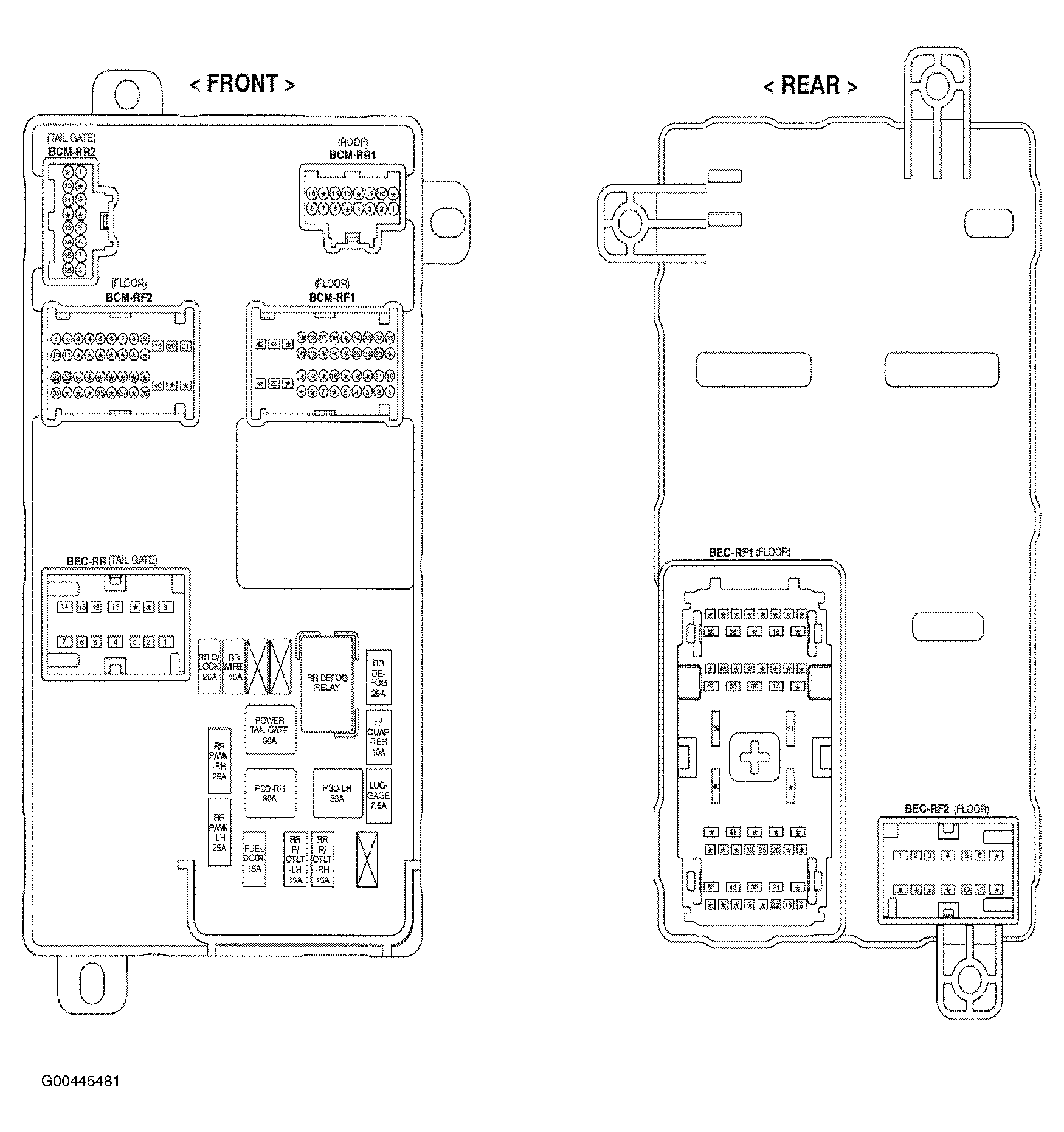

Fig 91: RAM (Rear Area Module)
Courtesy of HYUNDAI MOTOR CO.
