Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

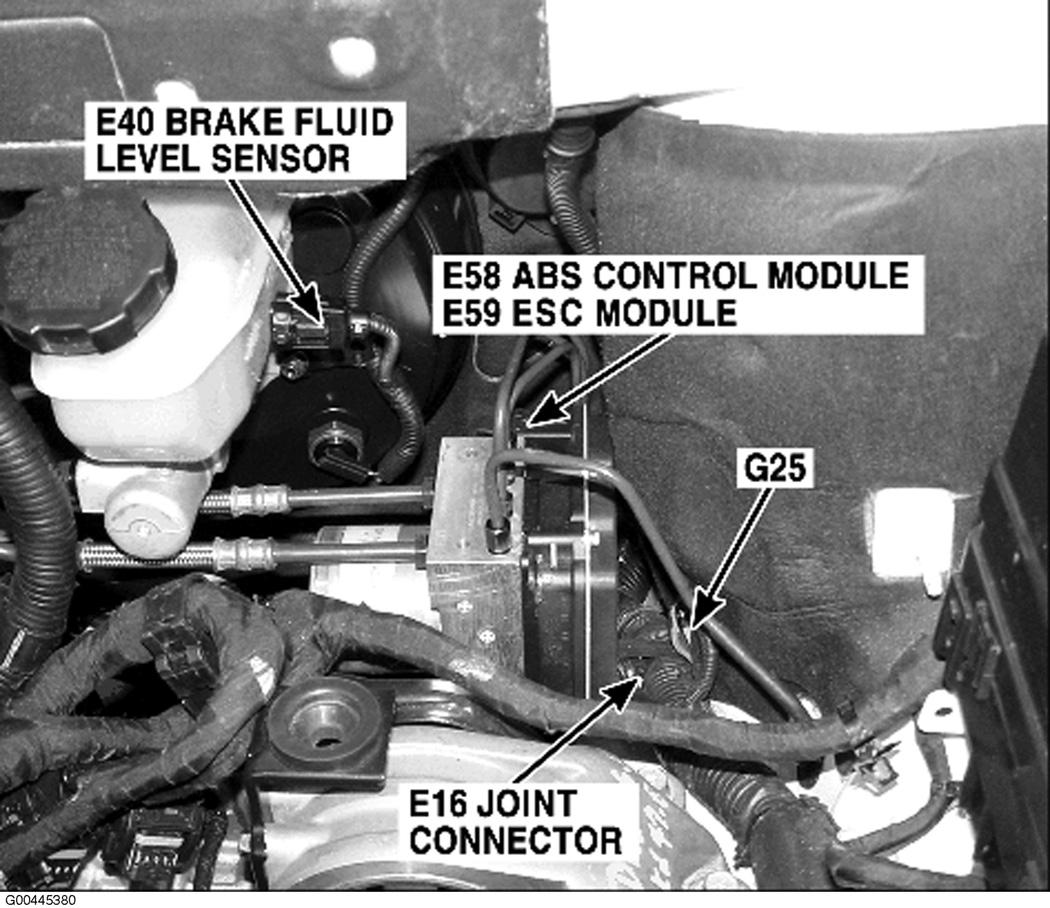

| ABS Control Module | At left rear of engine compartment. See Figure. |

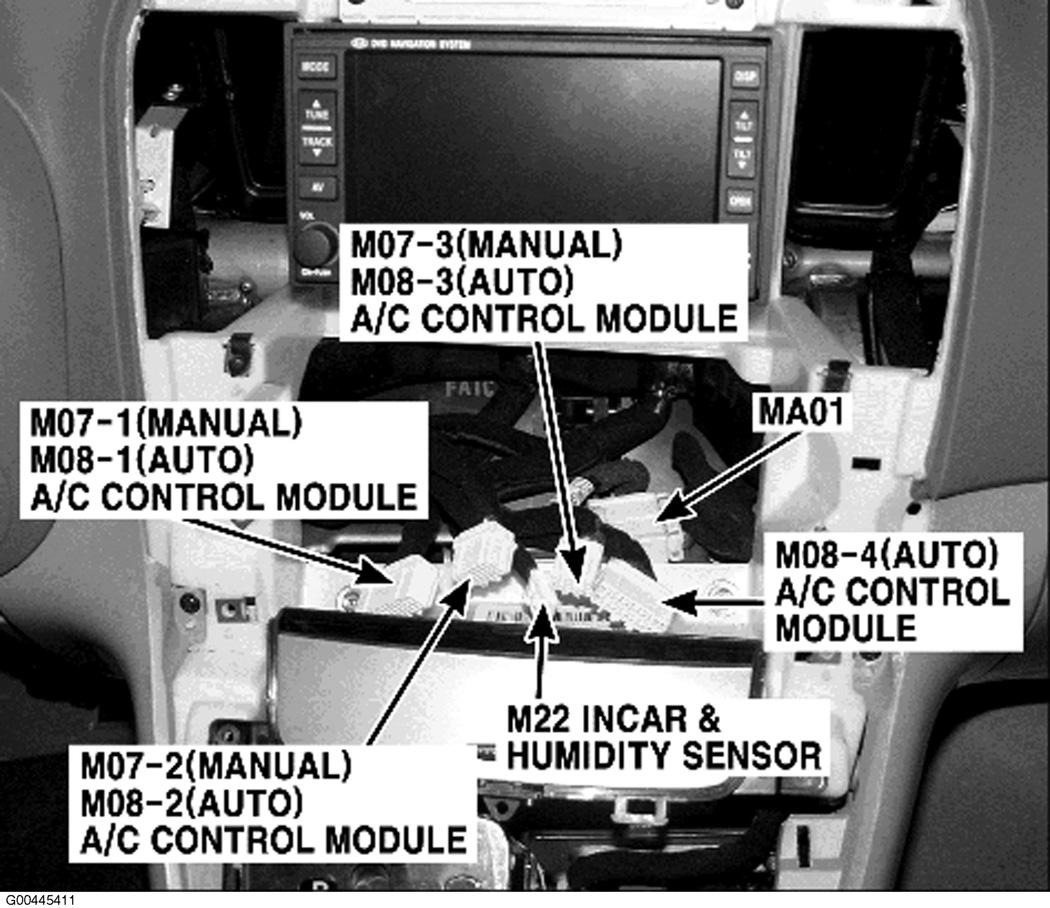

| A/C Control Module (Auto/Manual) | Center of dash, behind A/C control panel. See Figure. |

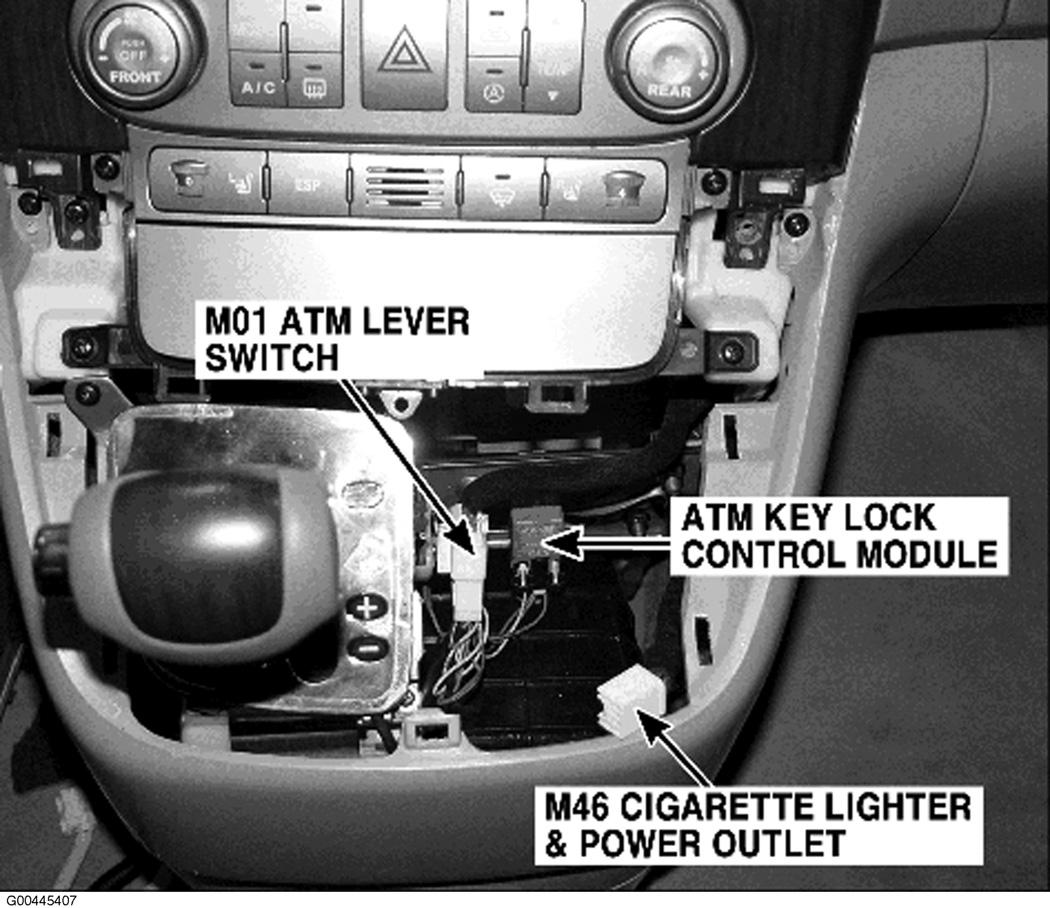

| ATM Key Lock Control Module | Behind center of dash. See Figure. |

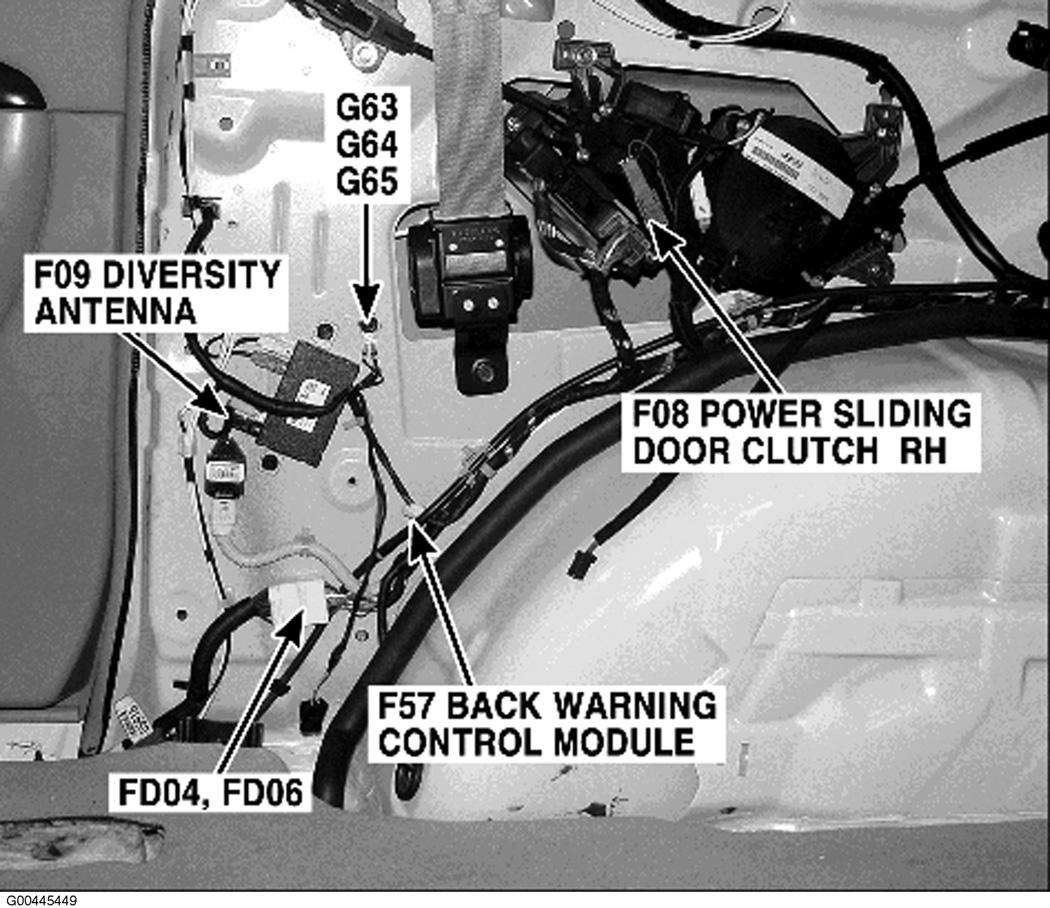

| Back Warning Control Module | Near base of right "C" pillar. See Figure. |

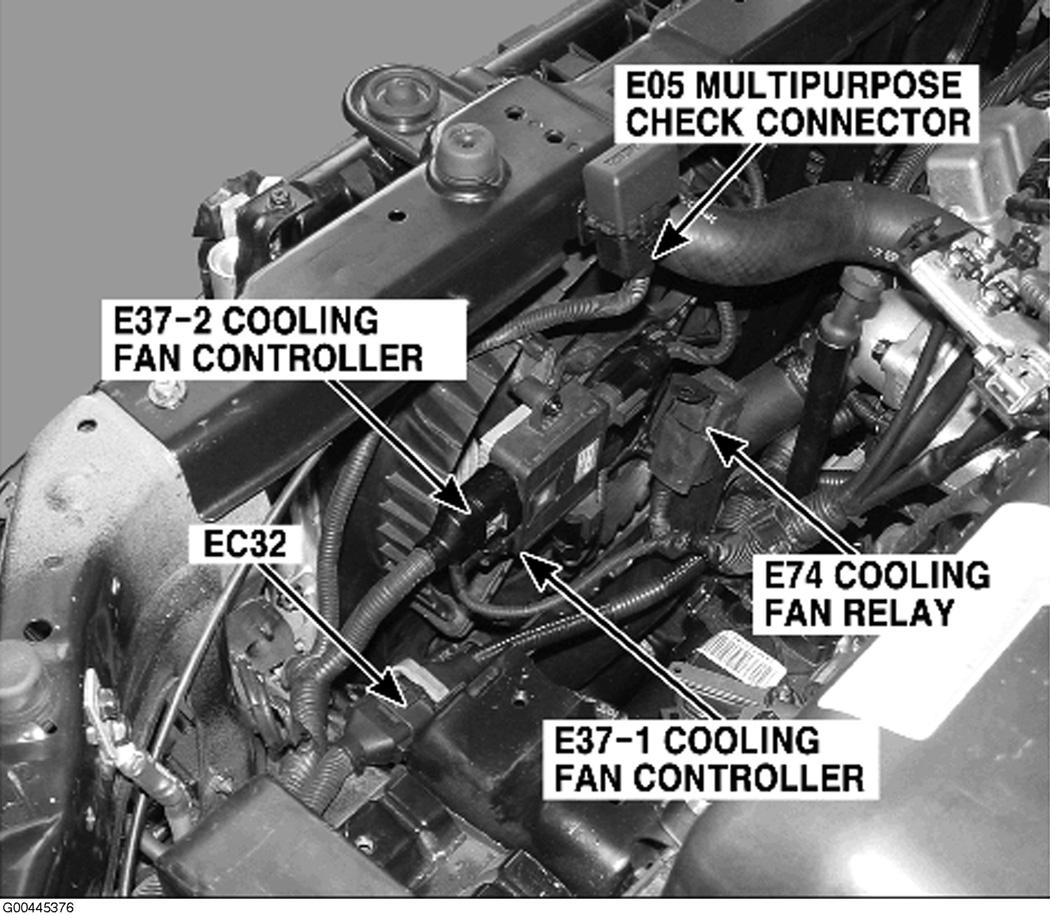

| Cooling Fan Controller | Mounted on rear of cooling fan assembly. See Figure. |

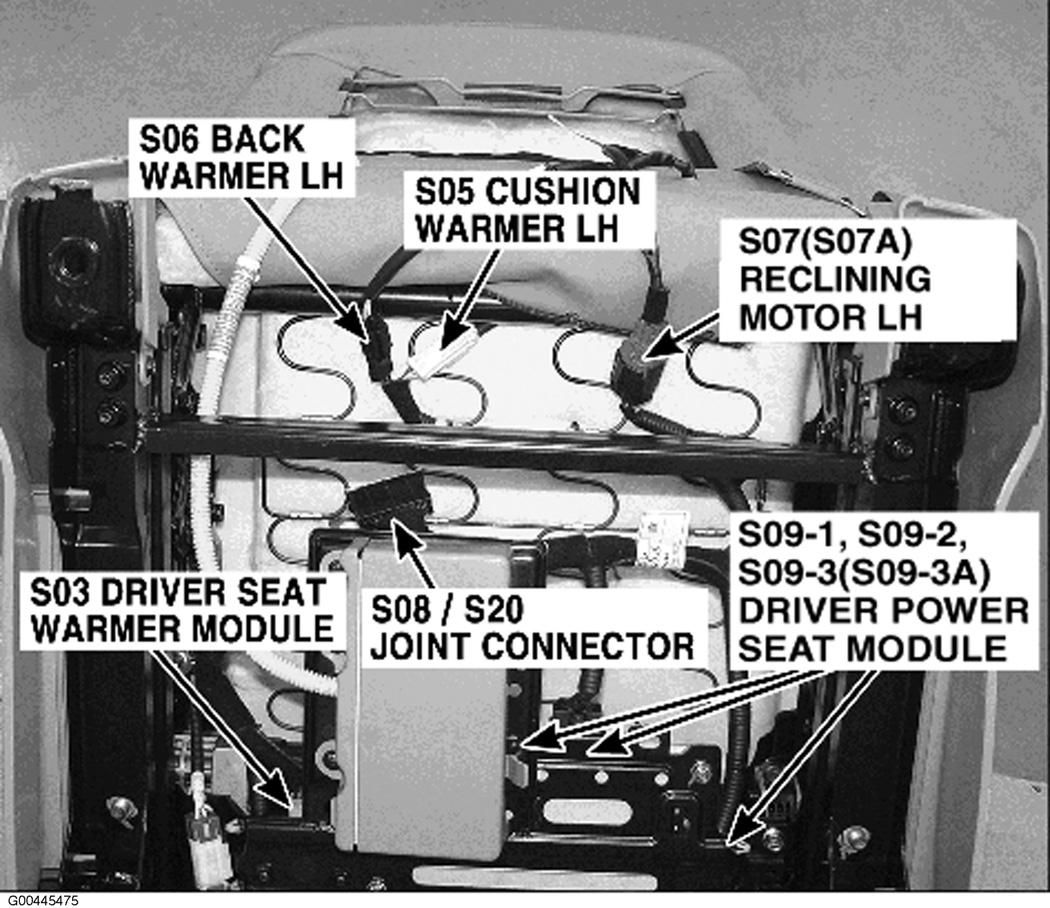

| Driver Power Seat Module | In driver's seat. See Figure. |
| Driver Seat Warmer Module | In driver's seat. See Figure. |
| ESC Module | At left rear of engine compartment. See Figure. |

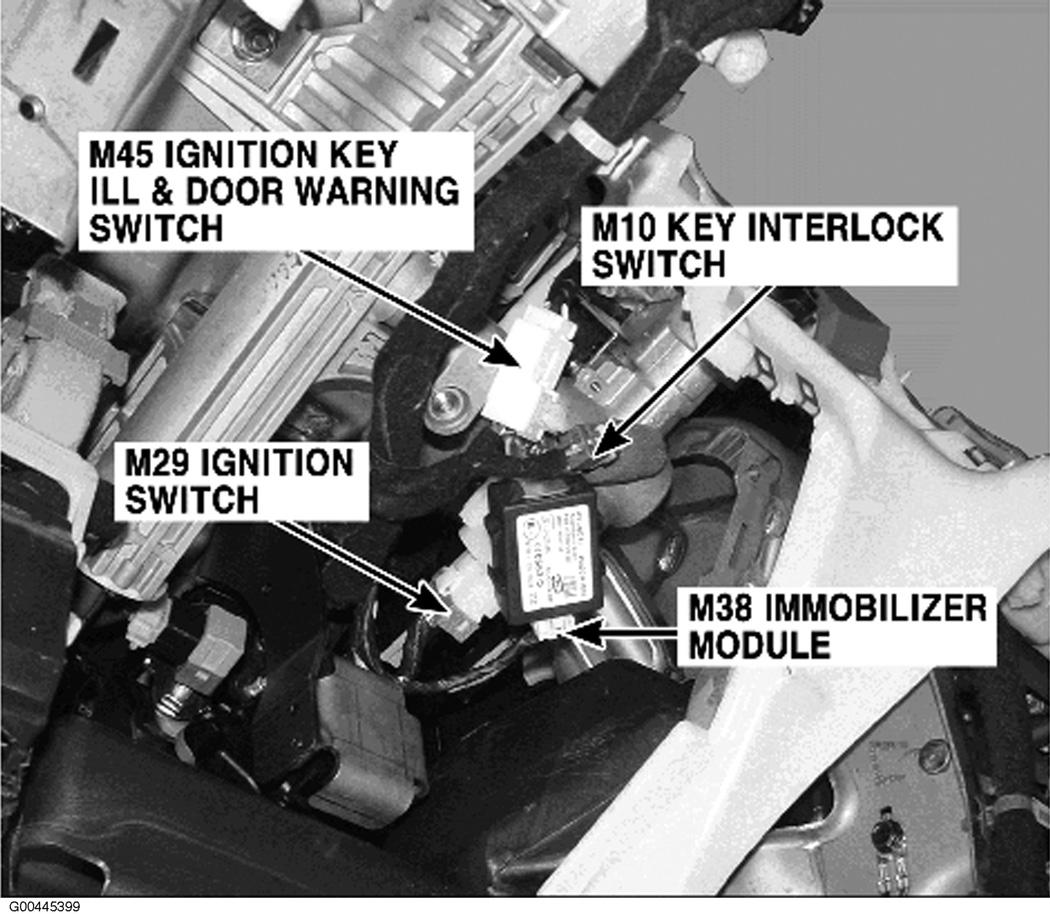

| Immobilizer Module | Under left side of dash. See Figure. |

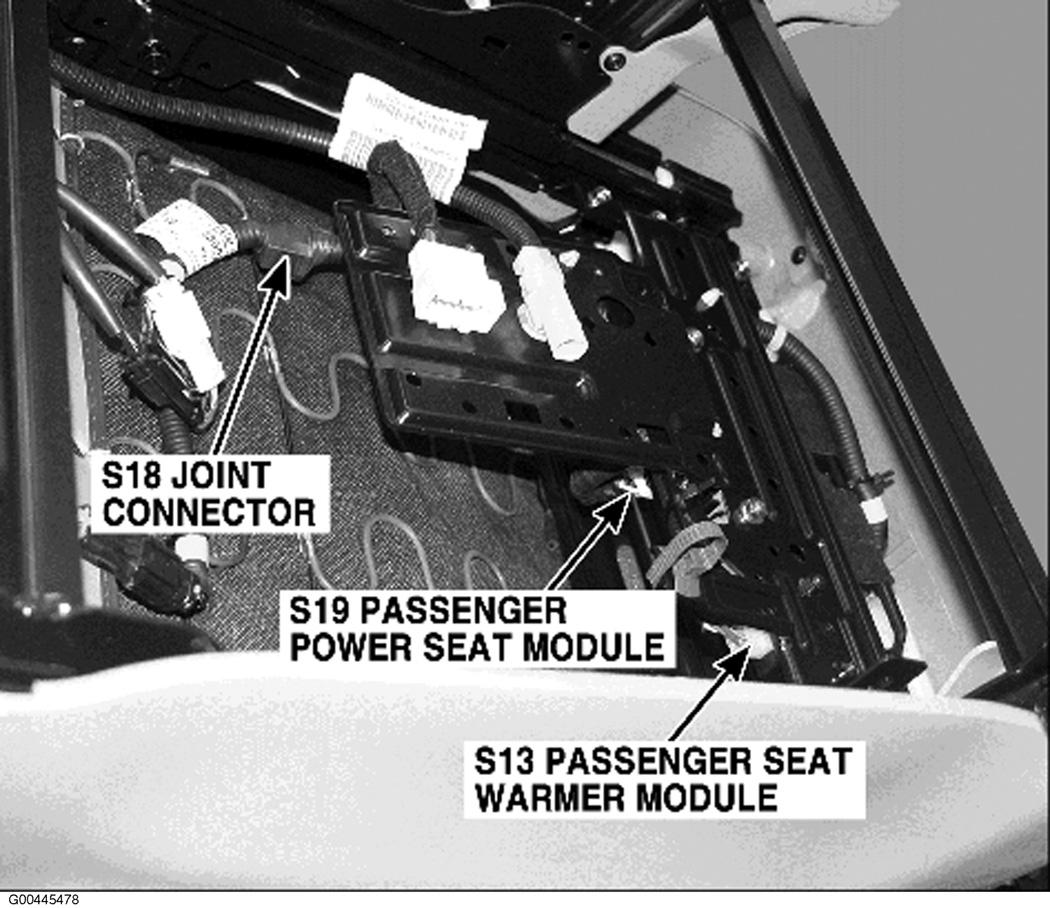

| Passenger Power Seat Module | In front passenger's seat. See Figure. |
| Passenger Seat Warmer Module | In front passenger's seat. See Figure. |

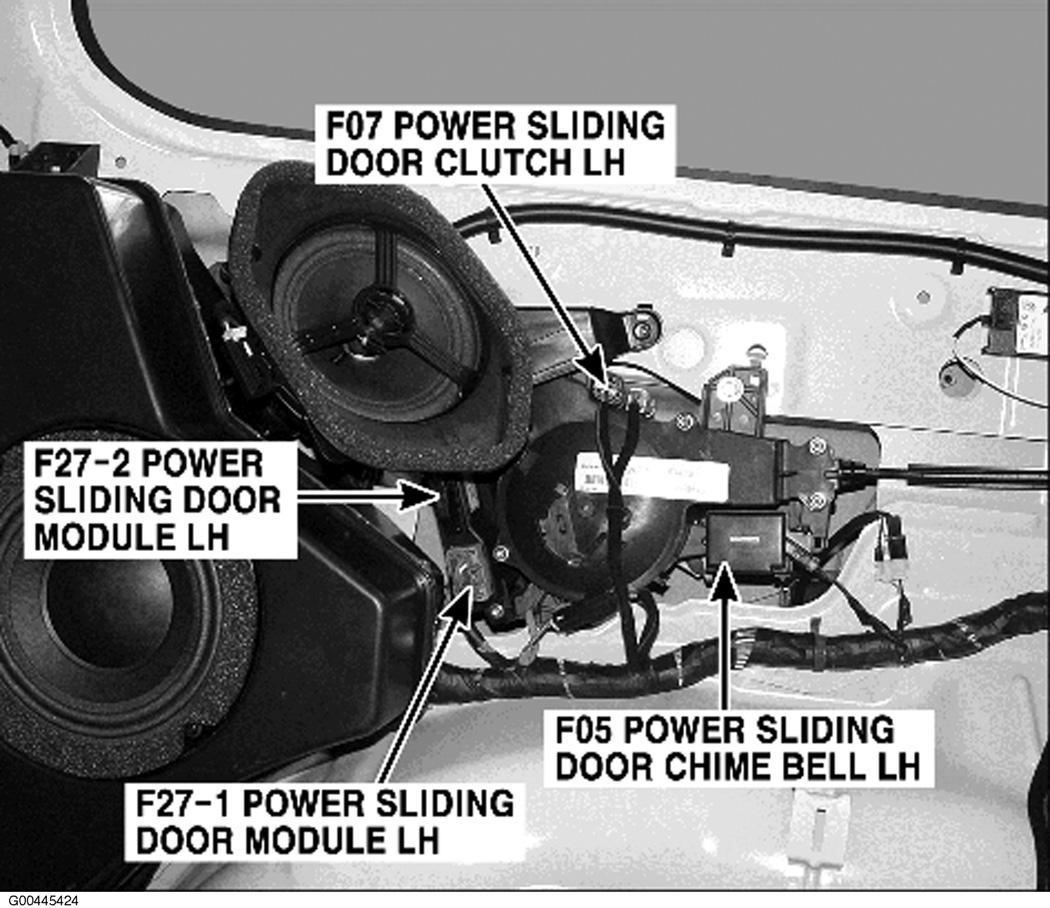

| Power Sliding Door Module LH | Behind left rear quarterpanel. See Figure. |

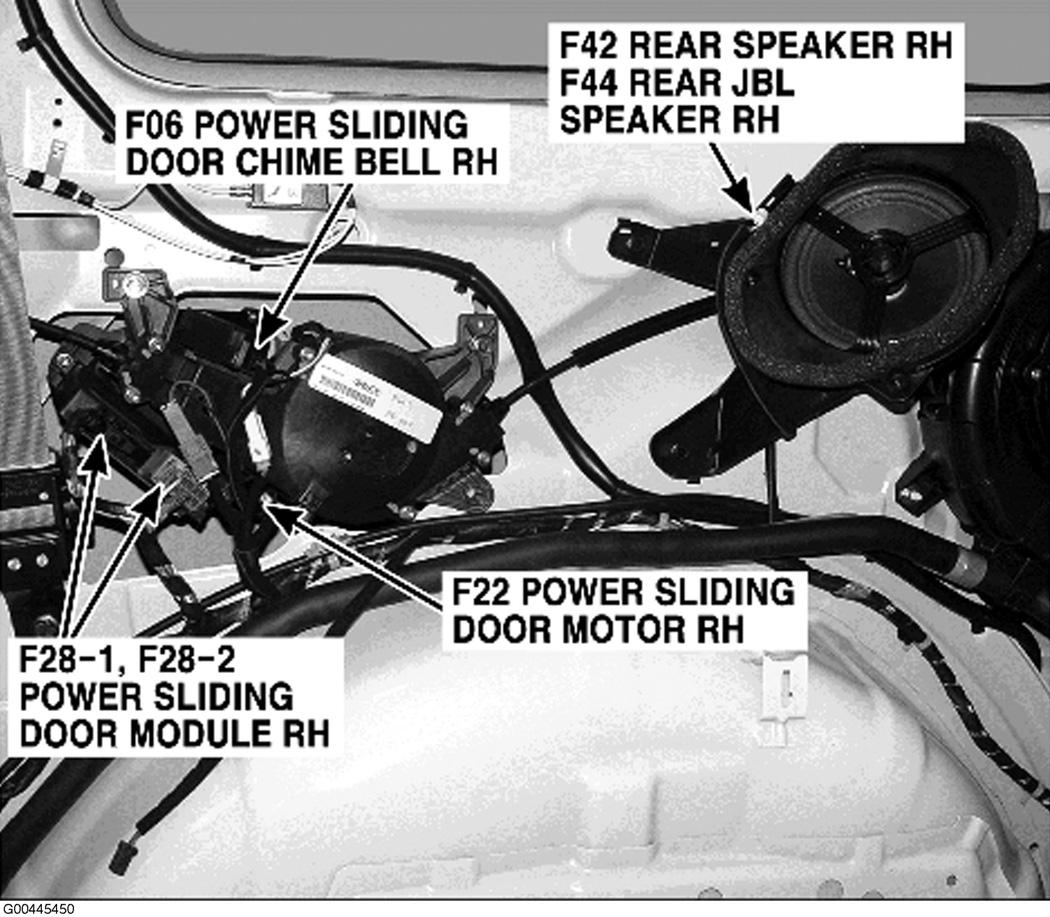

| Power Sliding Door Module RH | Behind right rear quarterpanel. See Figure. |

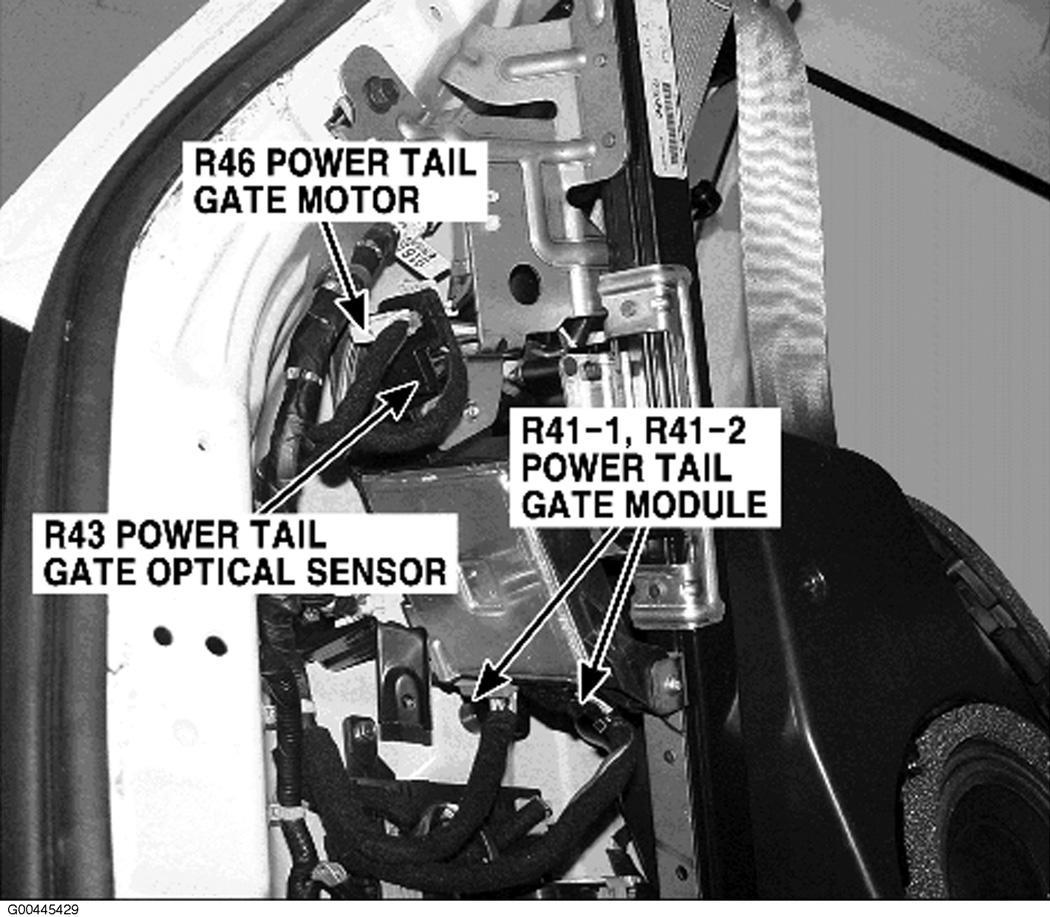

| Power Tail Gate Module | Left "D" pillar. See Figure. |

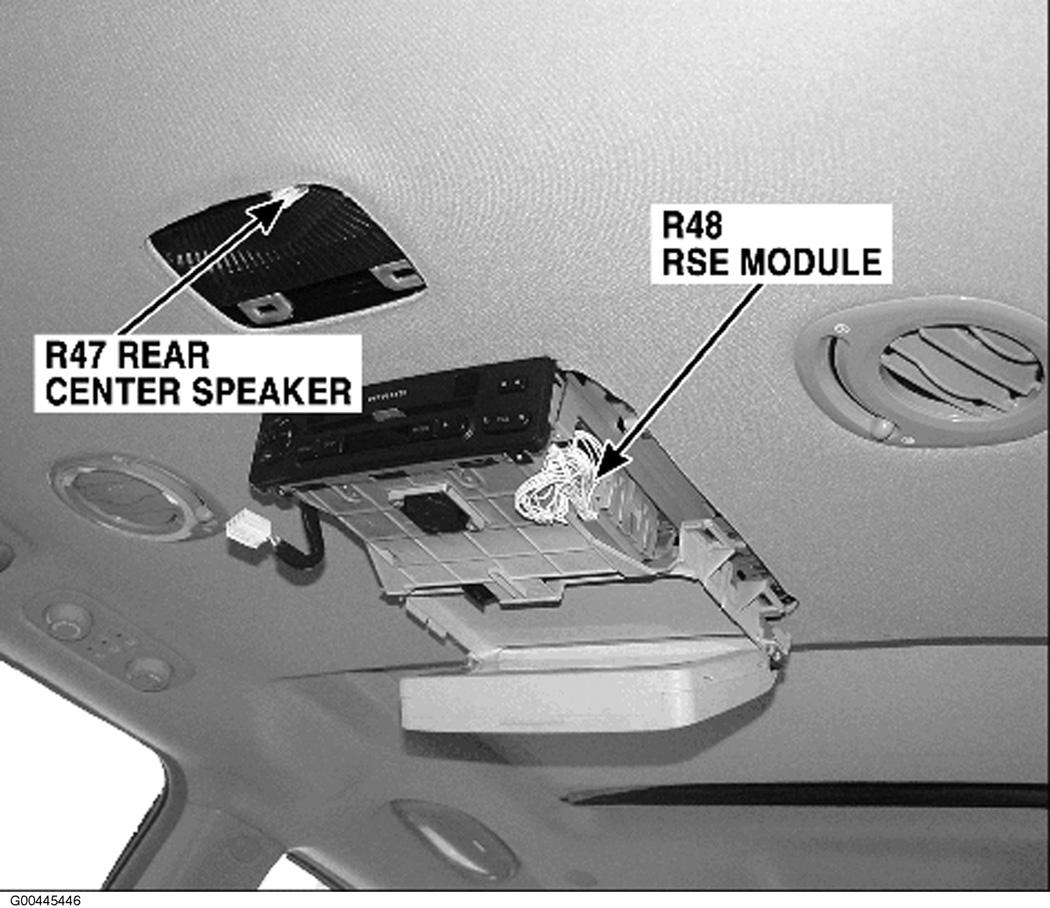

| RSE Module | Under rear roof console. See Figure. |

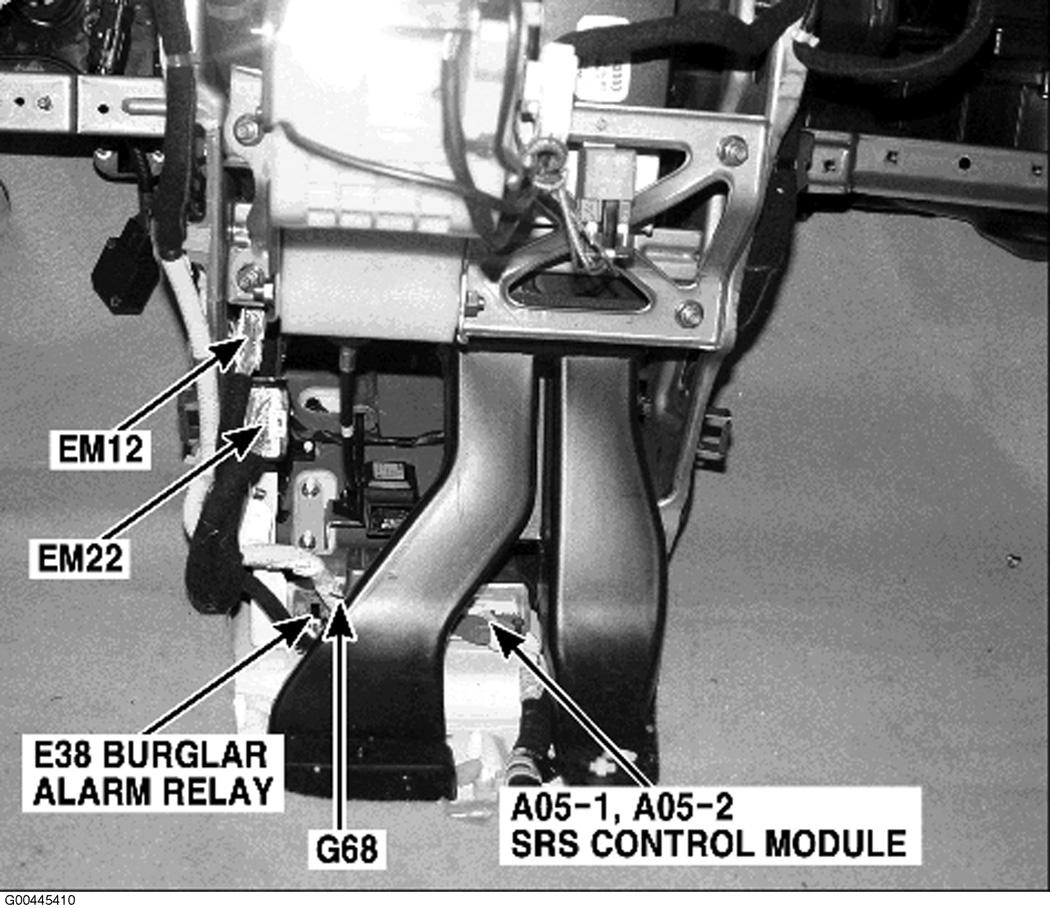

| SRS Control Module | Under center of dash. See Figure. |

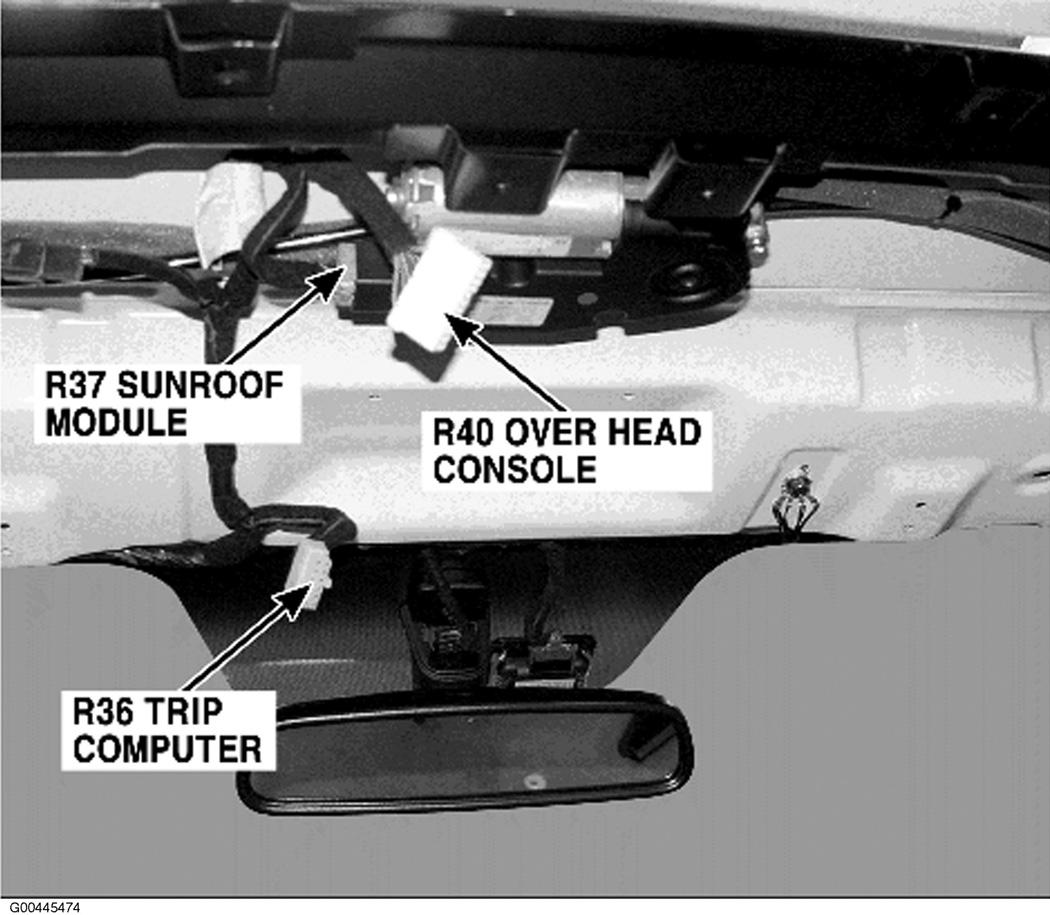

| Sunroof Module | At front center of roof, in sun roof unit. See Figure. |

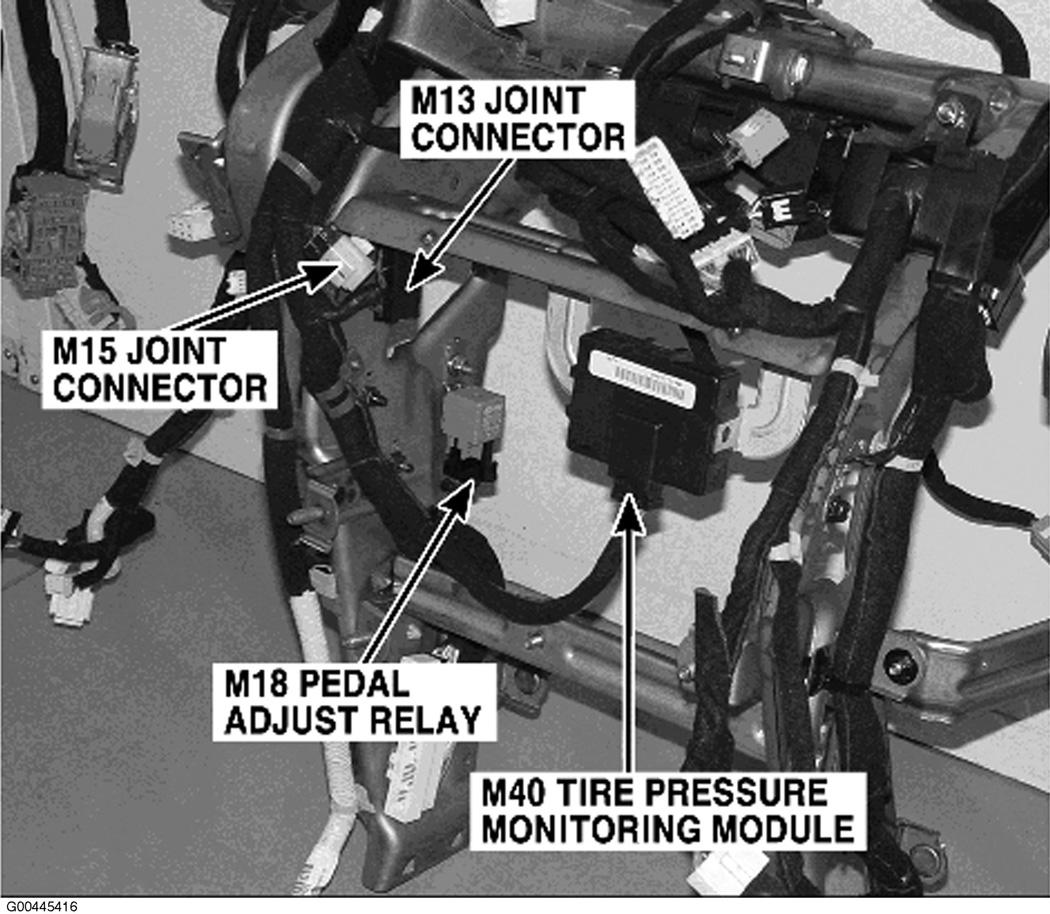

| Tire Pressure Monitoring Module | Behind center of dash. See Figure. |
