Battery Test Procedure

Connect the tester to the battery.
- Red clamp to battery positive (+) terminal.
- Black clamp to battery negative (-) terminal.

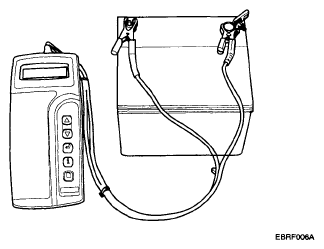

Fig 1: Connecting Tester To Battery
Courtesy of HYUNDAI MOTOR CO.

CAUTION: Connect clamps securely. If "CHECK CONNECTION" message is displayed on the screen, reconnect clamps securely.
The tester will ask if the battery is connected "IN A VEHICLE" or "OUT OF A VEHICLE". Make your selection by pressing the arrow buttons; then press ENTER.

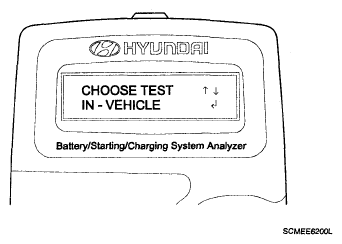

Fig 2: Battery Tester Screen Display - IN-VEHICLE
Courtesy of HYUNDAI MOTOR CO.
Choose either CCA or CCP and press the ENTER button.

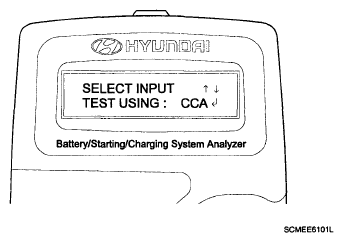

Fig 3: Battery Tester Screen Display - CCA
Courtesy of HYUNDAI MOTOR CO.
NOTE:
- CCA : Cold cranking amps, is an SAE specification for cranking batteries at -18°C (0°F).
- CCP: Cold cranking amps, is an SAE specification for Korean manufacturer's for cranking batteries at -18°C (0°F).
Set the CCA value displayed on the screen to the CCA value marked on the battery label by pressing up and down buttons and press ENTER.

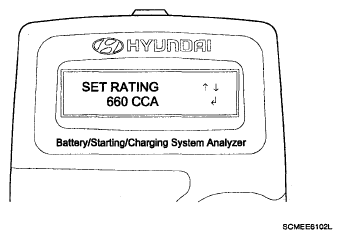

Fig 4: Battery Tester Screen Display - 660 CCA
Courtesy of HYUNDAI MOTOR CO.

NOTE: The battery ratings (CCA) displayed on the tester must be identical to the ratings marked on battery label.
The tester (Micro570) displays battery test results including voltage and battery ratings.
A relevant action must be given according to the test results by referring to the battery test results as shown in the table below.

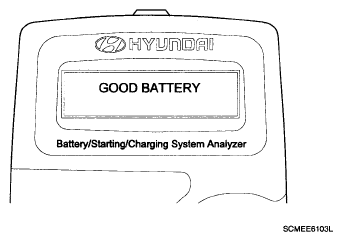

Fig 5: Battery Tester Screen Display - GOOD BATTERY
Courtesy of HYUNDAI MOTOR CO.

NOTE: The battery ratings (CCA) displayed on the tester must be identical to the ratings marked on battery label.
To conduct starter test, press ENTER.
