Rear Control Panel

REAR CONTROL PANEL

REPLACEMENT

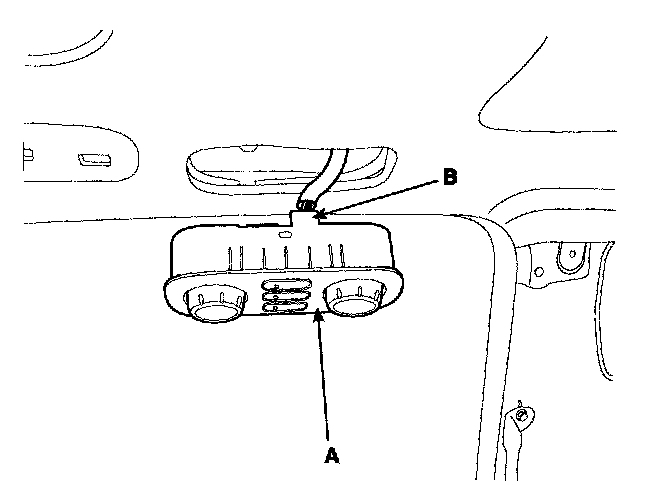

1. Remove the rear control panel(A) and then disconnect the rear control panel connector (B).
2. Installation is the reverse order of removal.
