Starter Test Procedure

STARTER TEST PROCEDURE

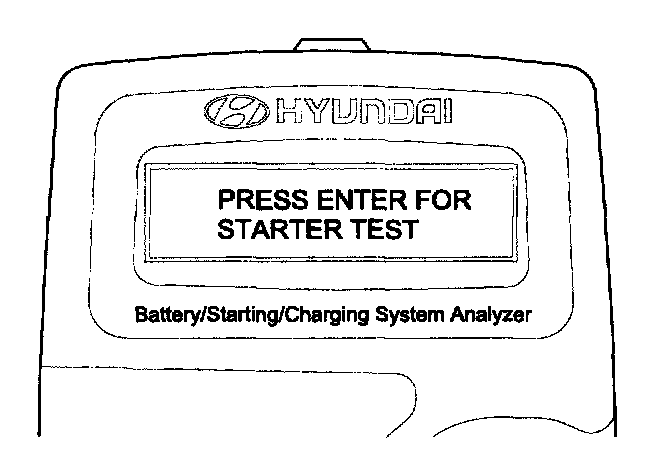

1. After the battery test, press ENTER immediately for the starter test.




2. After pressing ENTER key, start the engine.

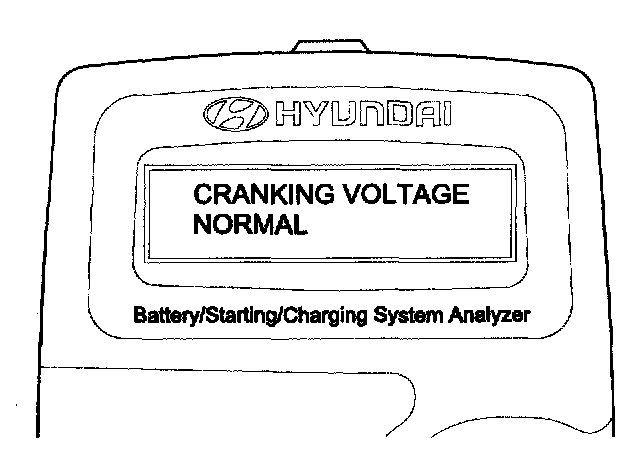

3. Cranking voltage and starter test results will be displayed on the screen.
Take a relevant action according to the test results by referring to the starter test results as given.

4. To continue charging system test, press ENTER.

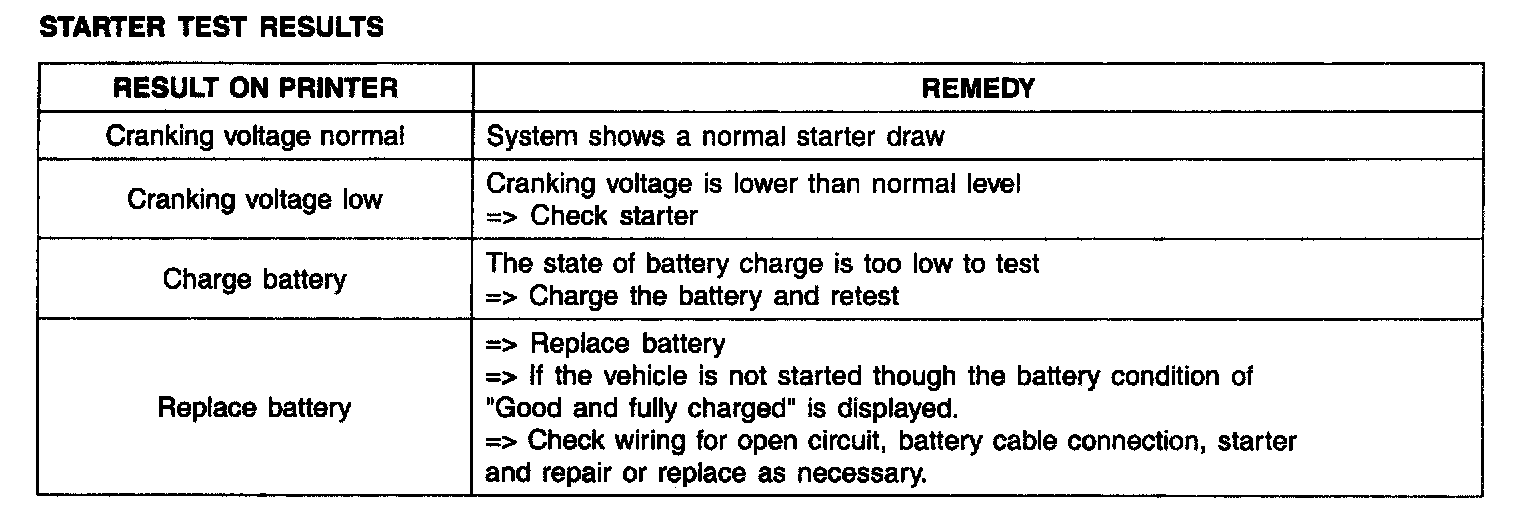

Starter Test Results:

STARTER TEST RESULTS
