Charging System: Alternator: Component

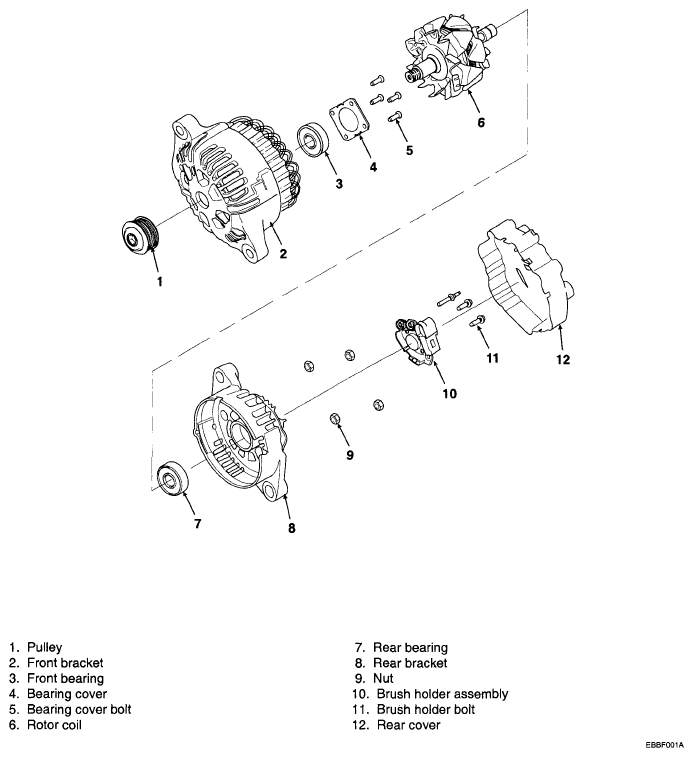

Fig 1: Exploded View Of Alternator
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
