Circuit Diagram Of Starting System

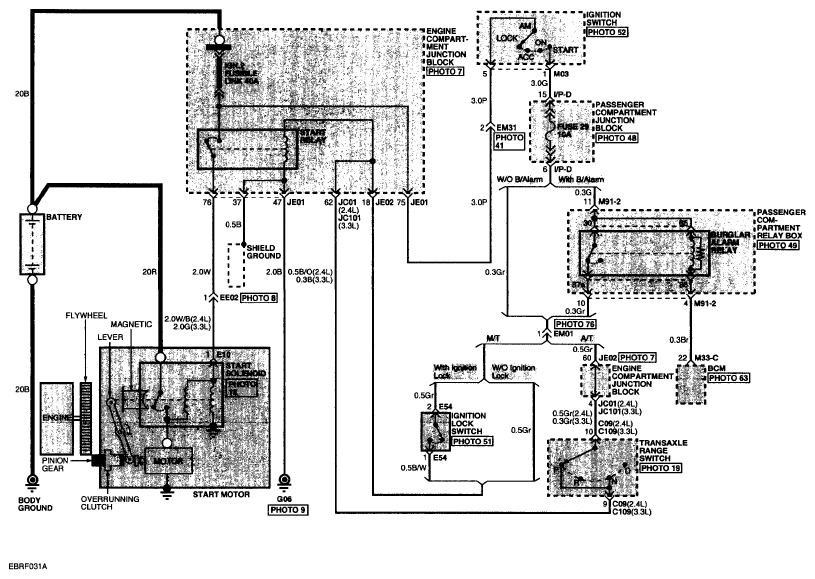

Fig 1: Circuit Diagram Of Starting System
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
