Engine Controls

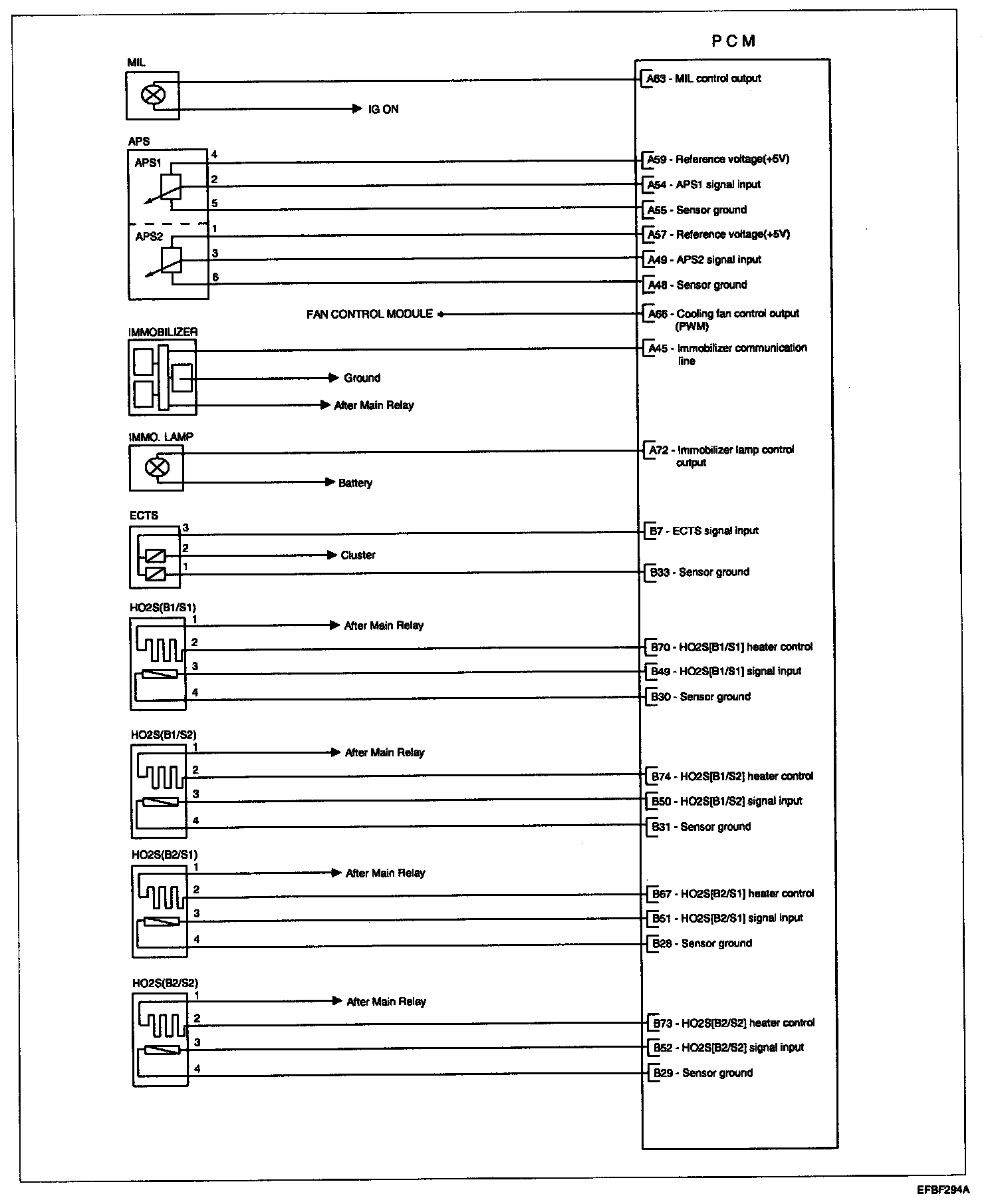

Circuit Diagram (Part 1):

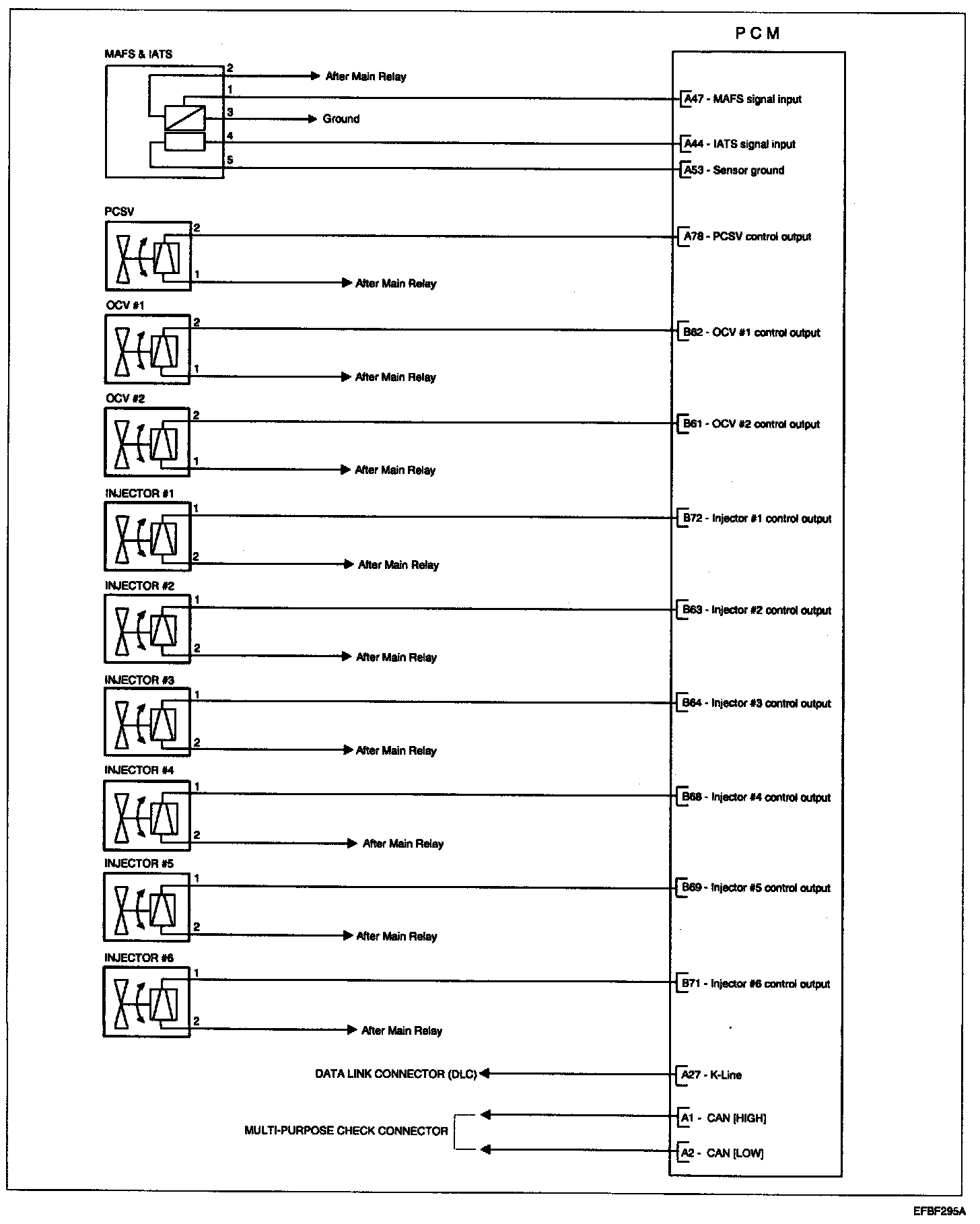

Circuit Diagram (Part 2):

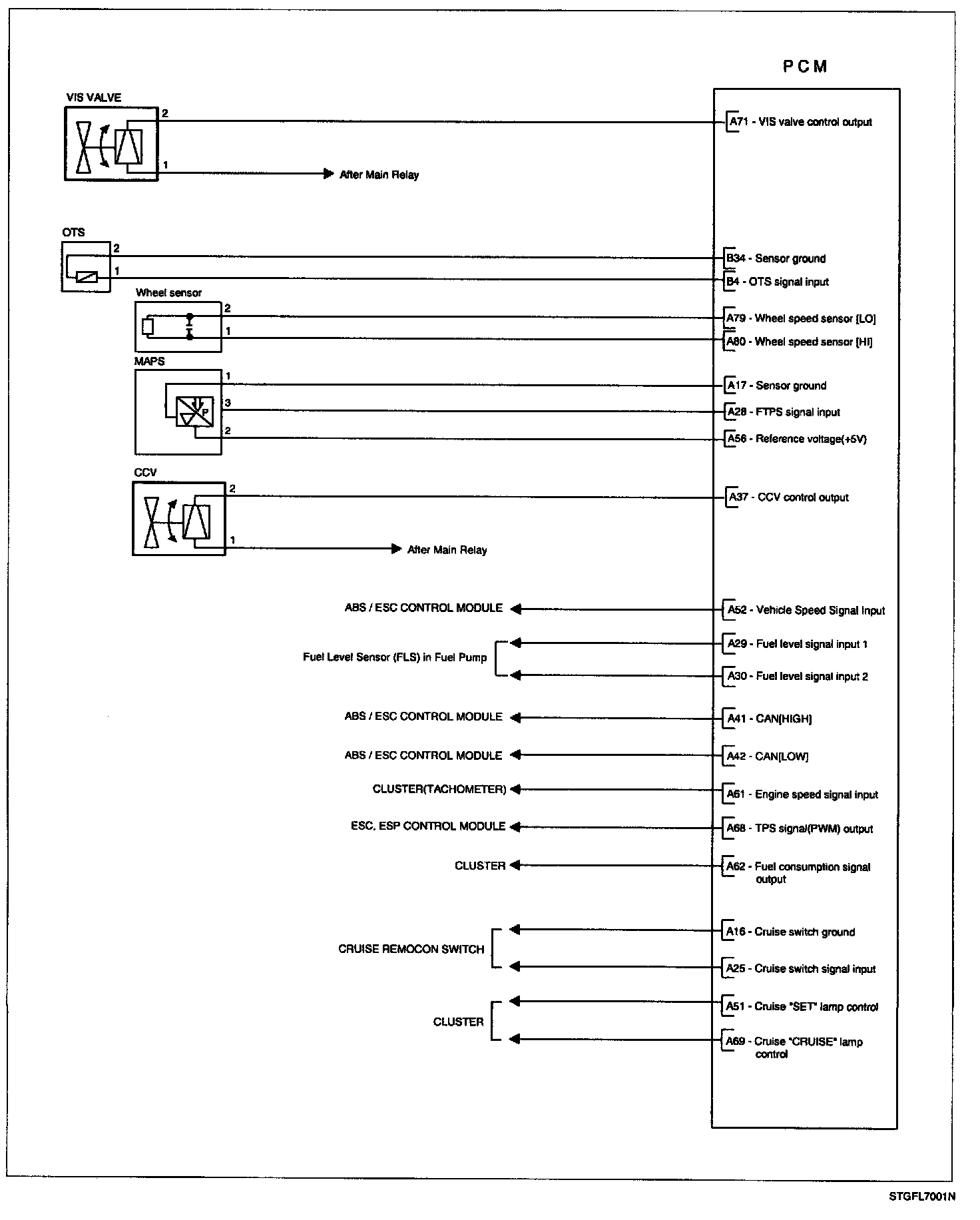

Circuit Diagram (Part 3):

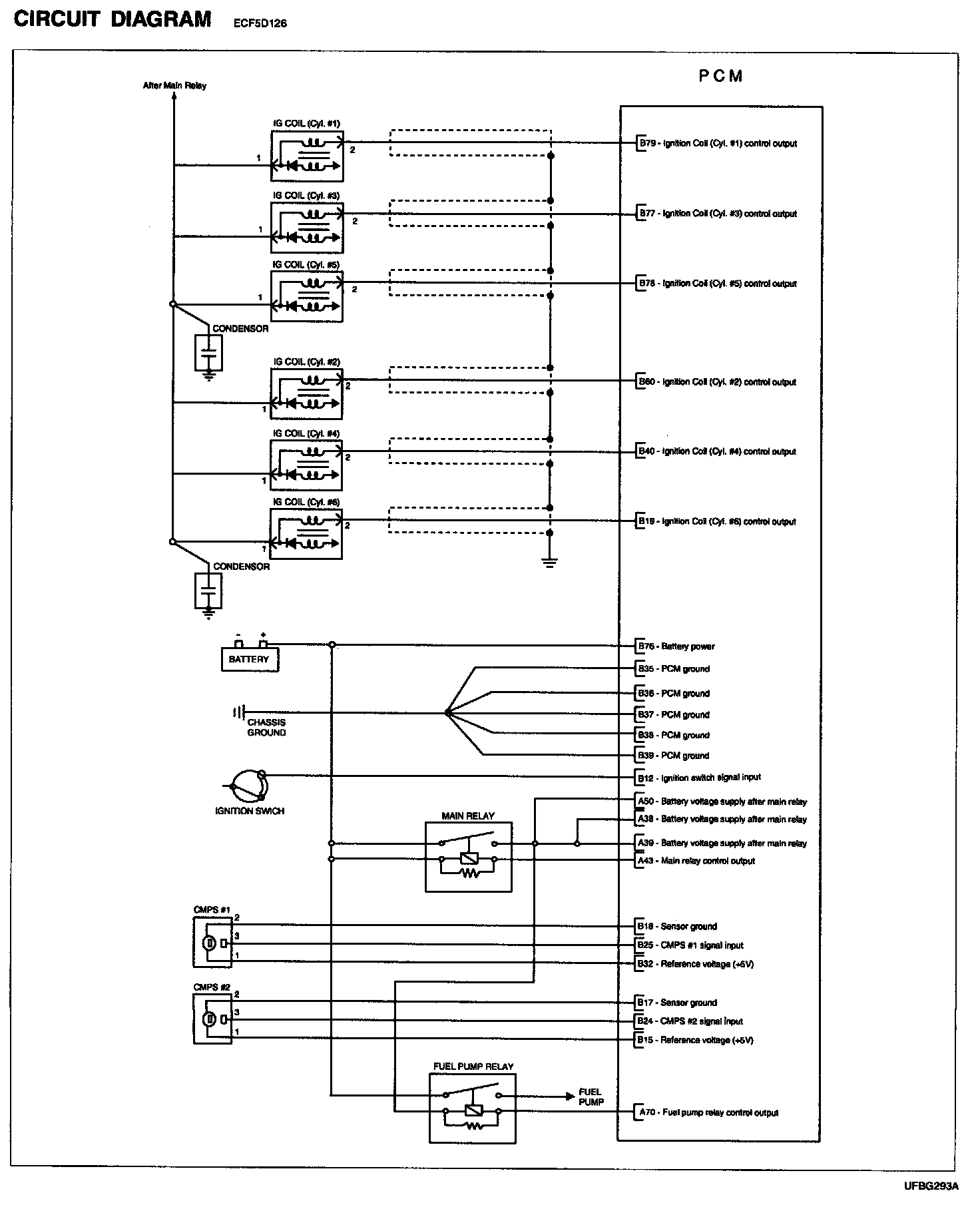

Circuit Diagram (Part 4):

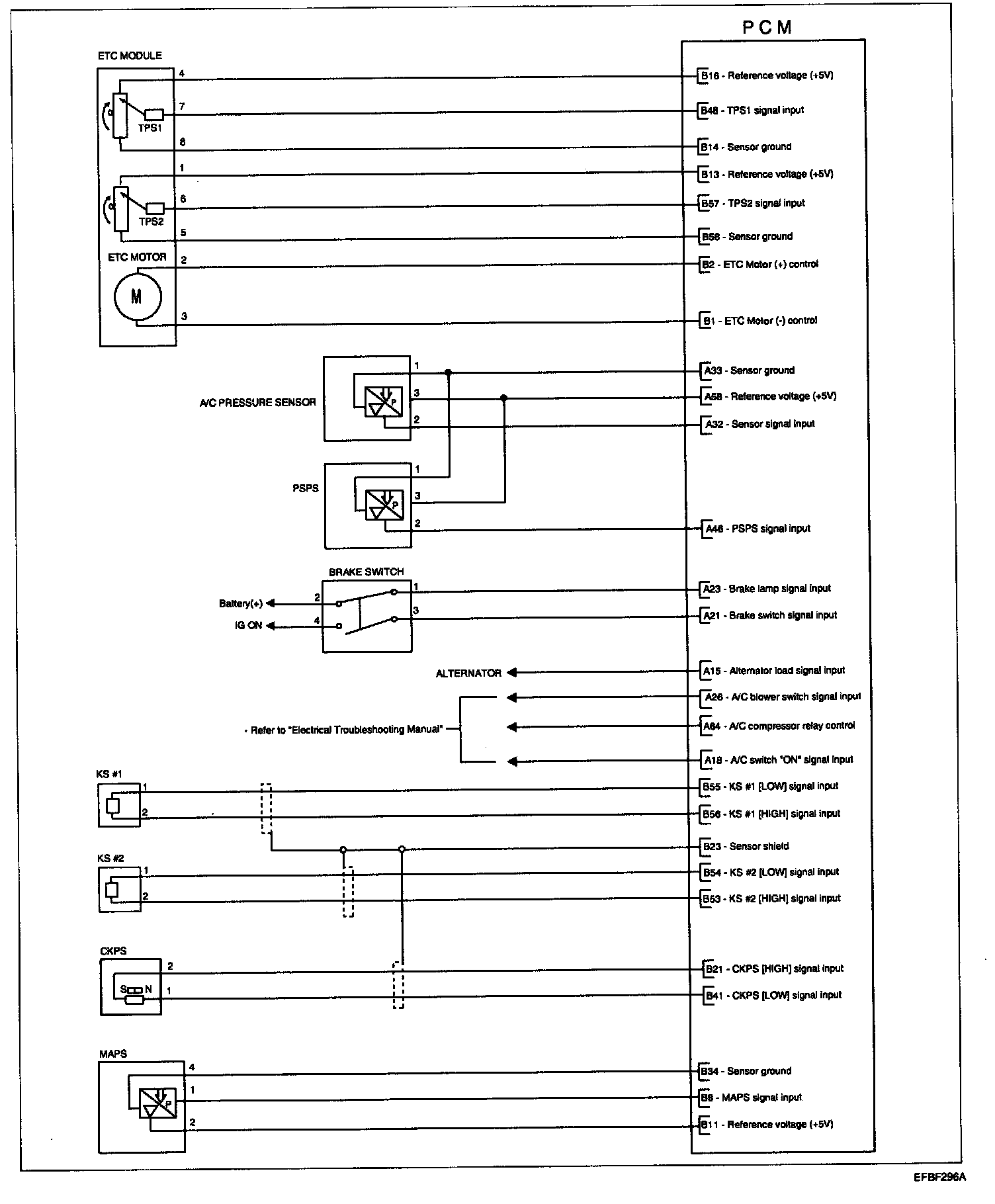

Circuit Diagram (Part 5):
