Relay Box (Passenger Compartment) RAM

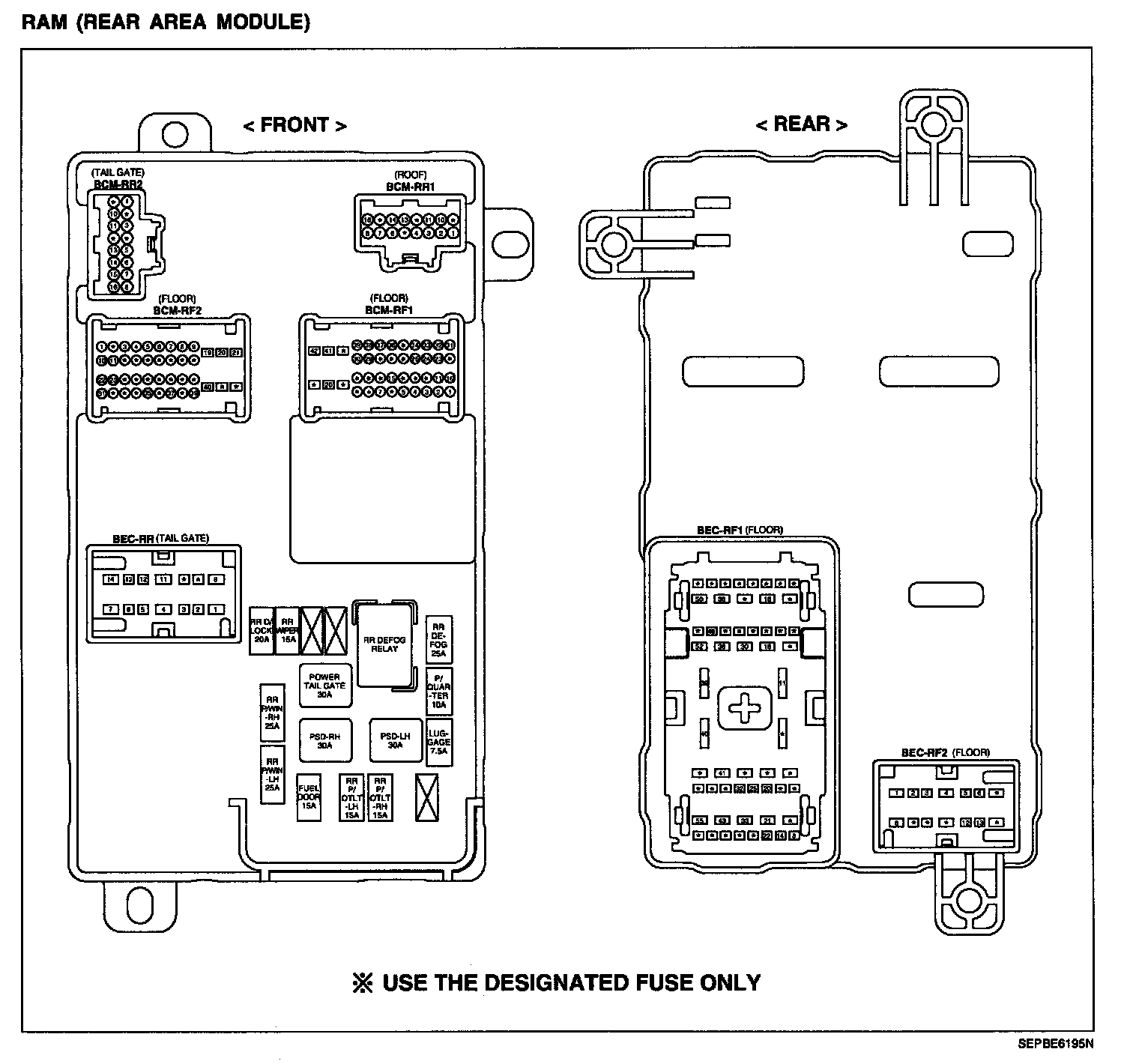

Relay Box (Passenger Compartment) (RAM) (Rear Area Module) - Components:

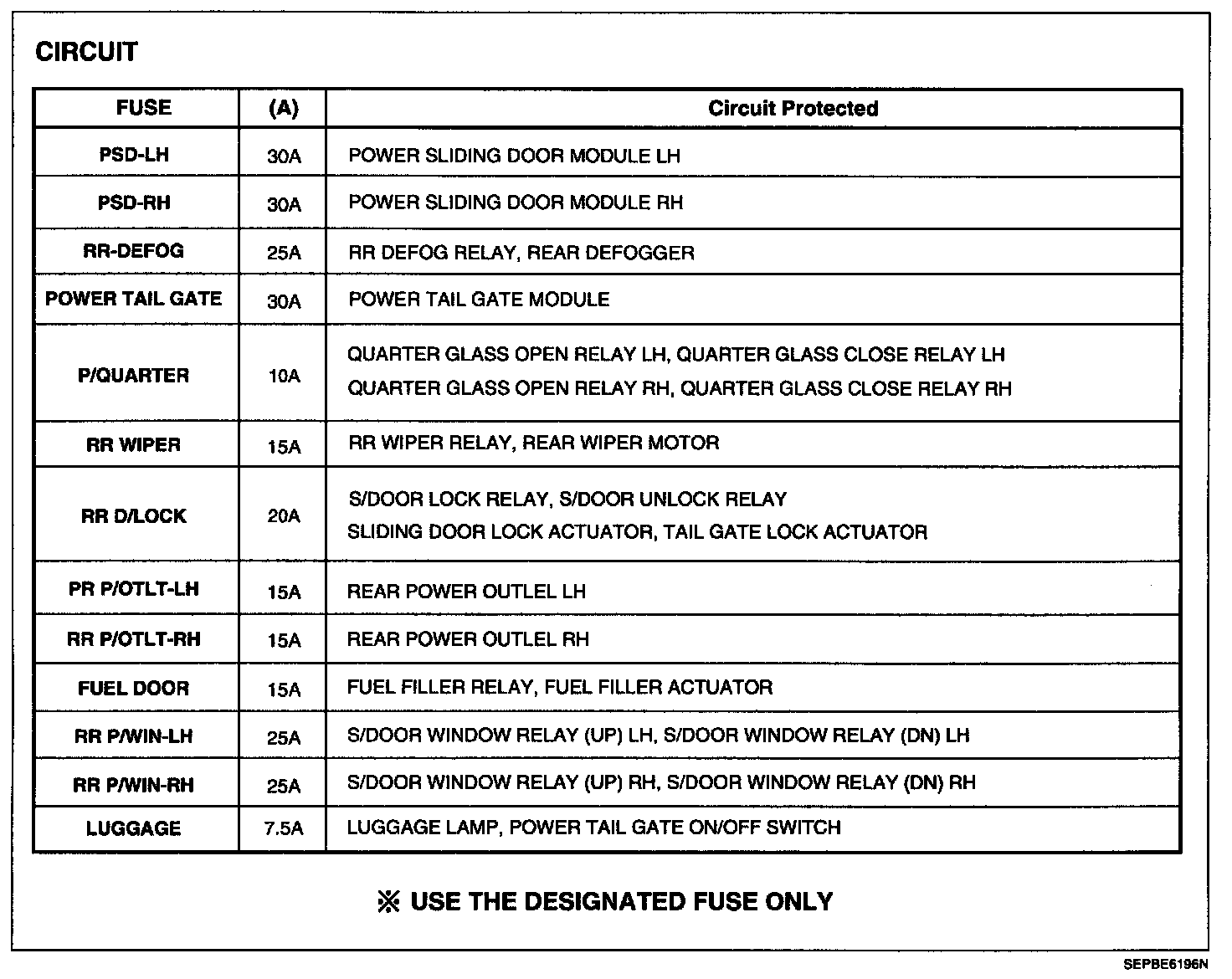

Relay Box (Passenger Compartment) (RAM) (Rear Area Module) - Components:
