Connector Views

Powertrain Control Module (PCM)

PCM HARNESS CONNECTOR

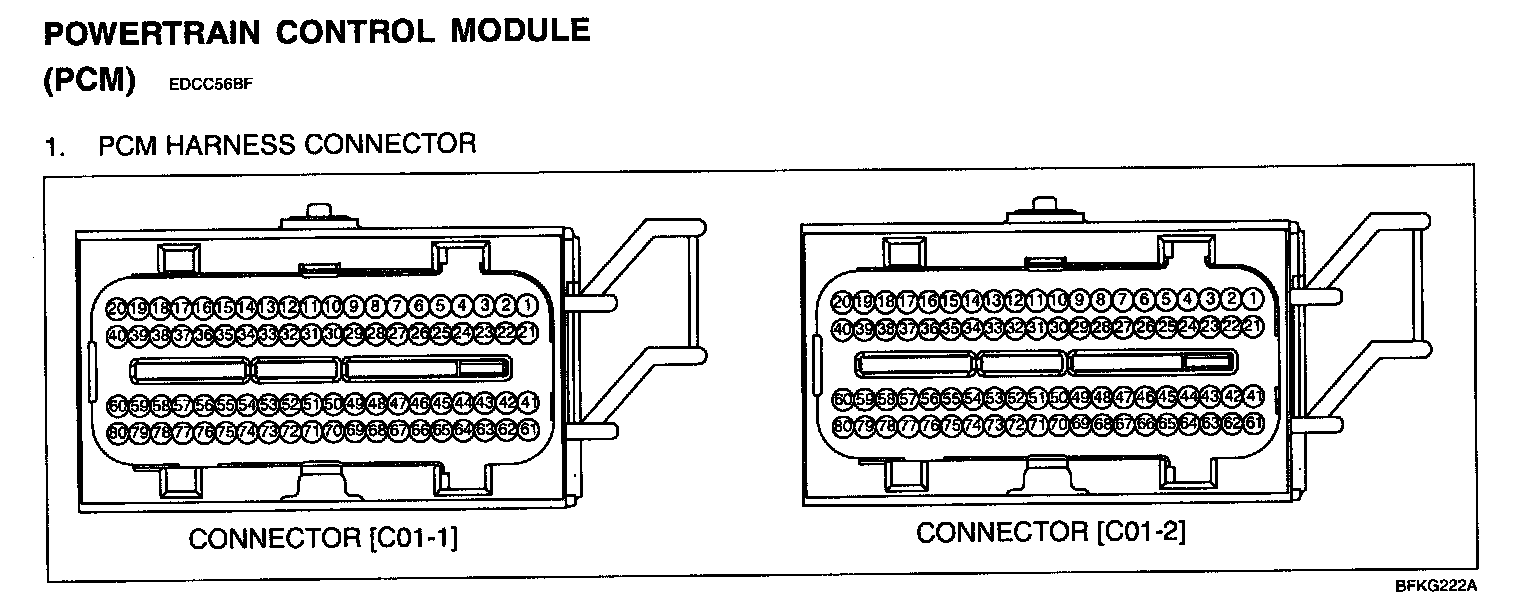

Powertrain Control Module (PCM) Harness Connector:

PCM TERMINAL FUNCTION- CONNECTOR [C01 -1]

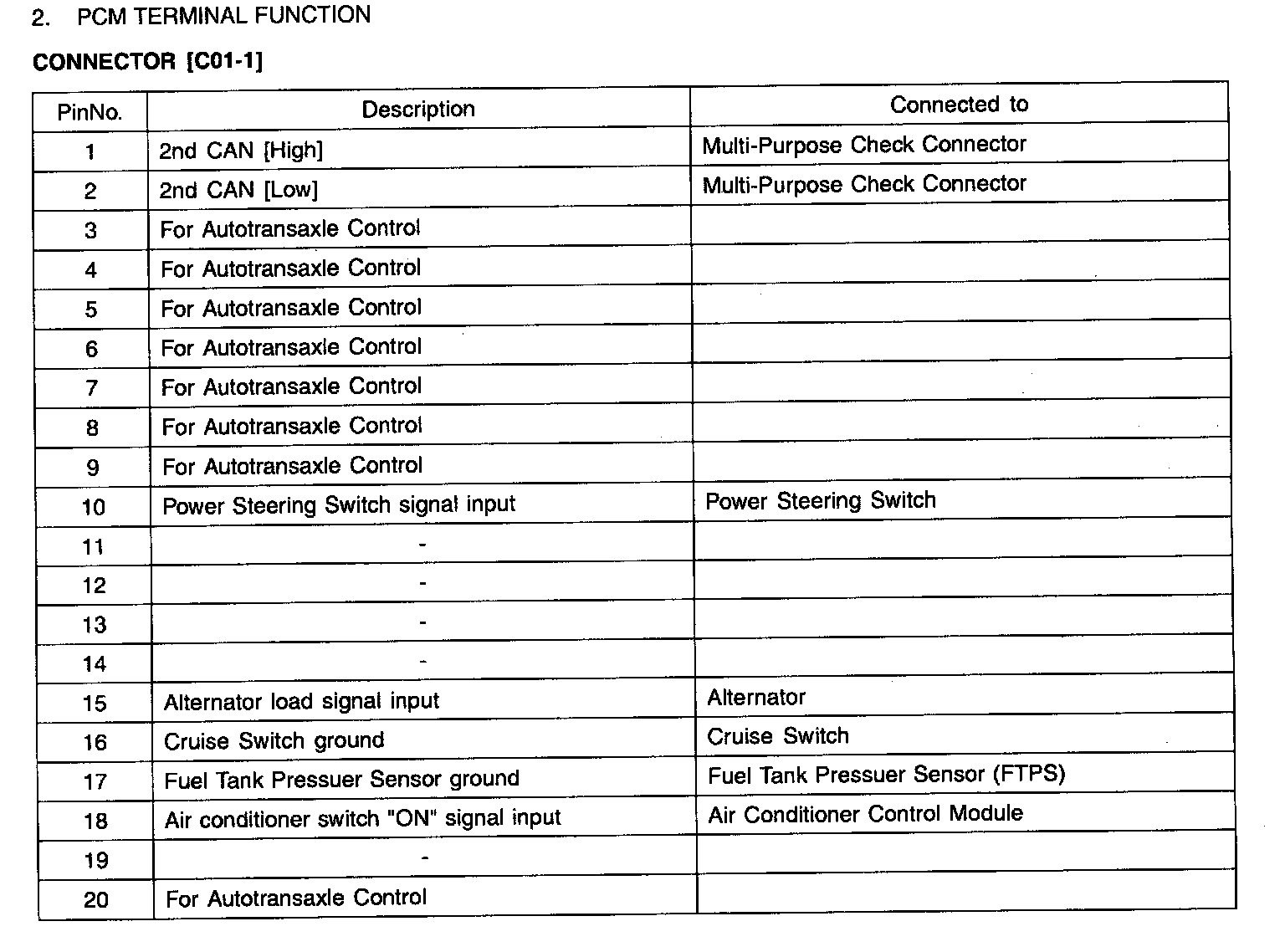

Powertrain Control Module (PCM) Terminal Function - CONNECTOR [C01-1] Part 1:

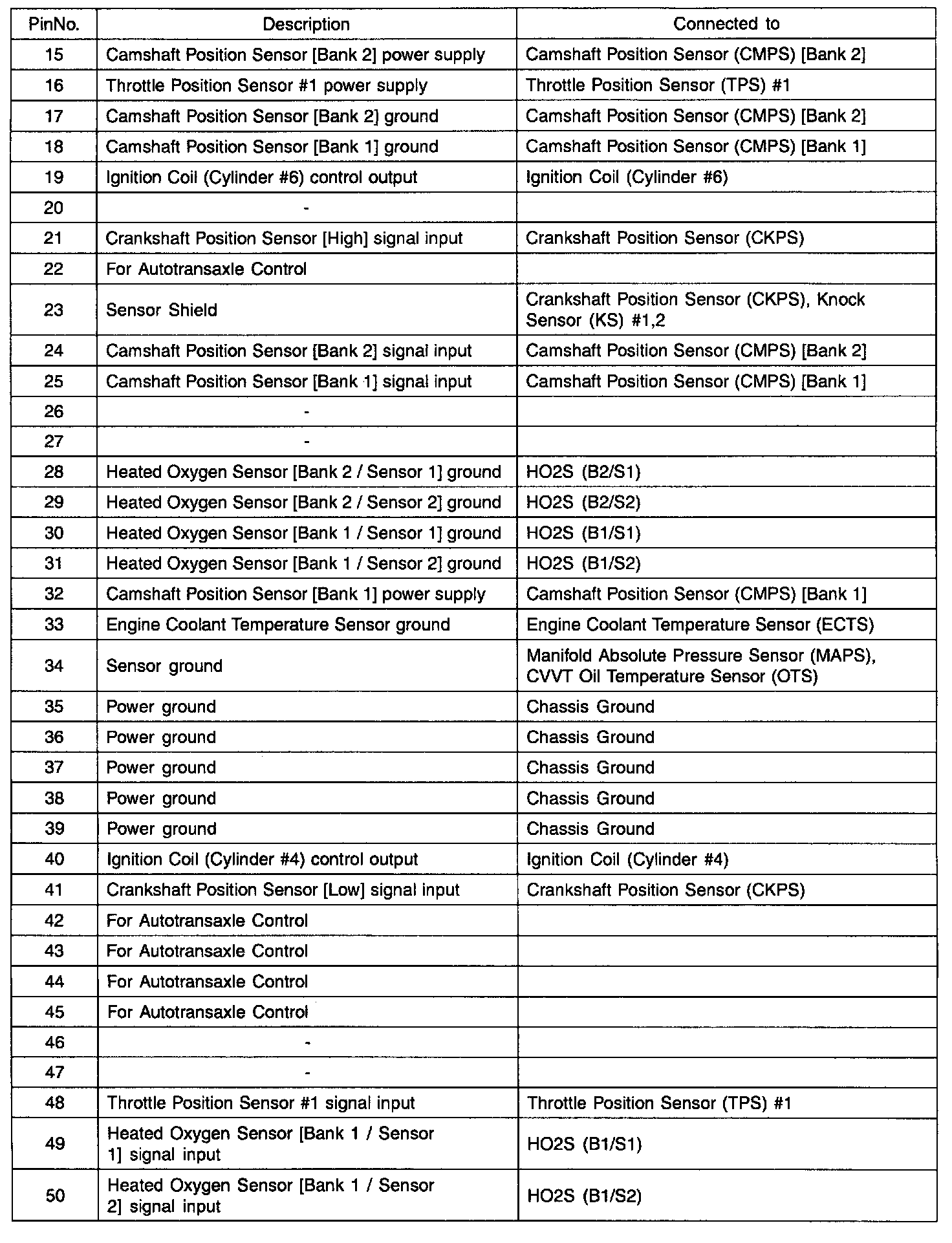

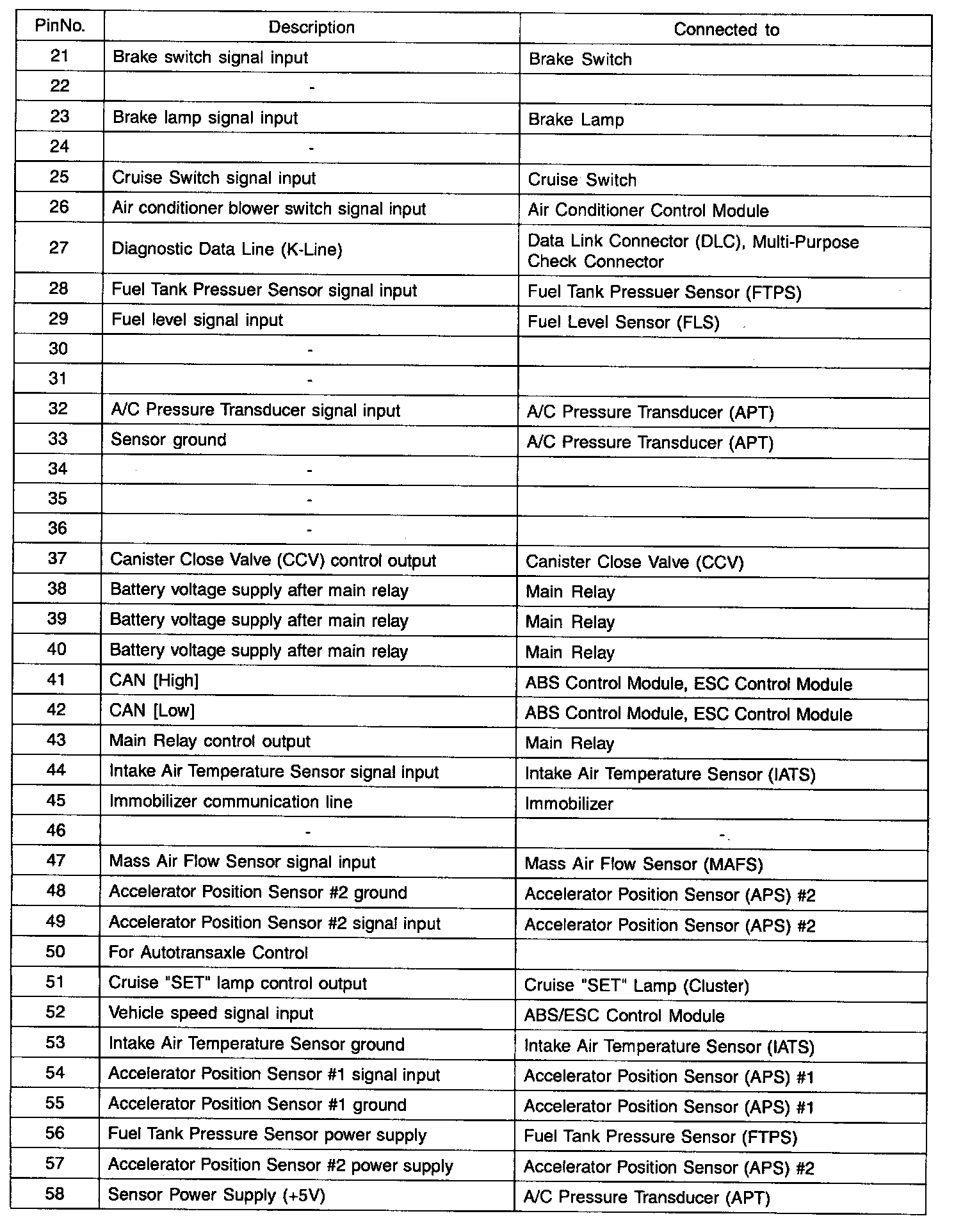

Powertrain Control Module (PCM) Terminal Function - CONNECTOR [C01-1] Part 2:

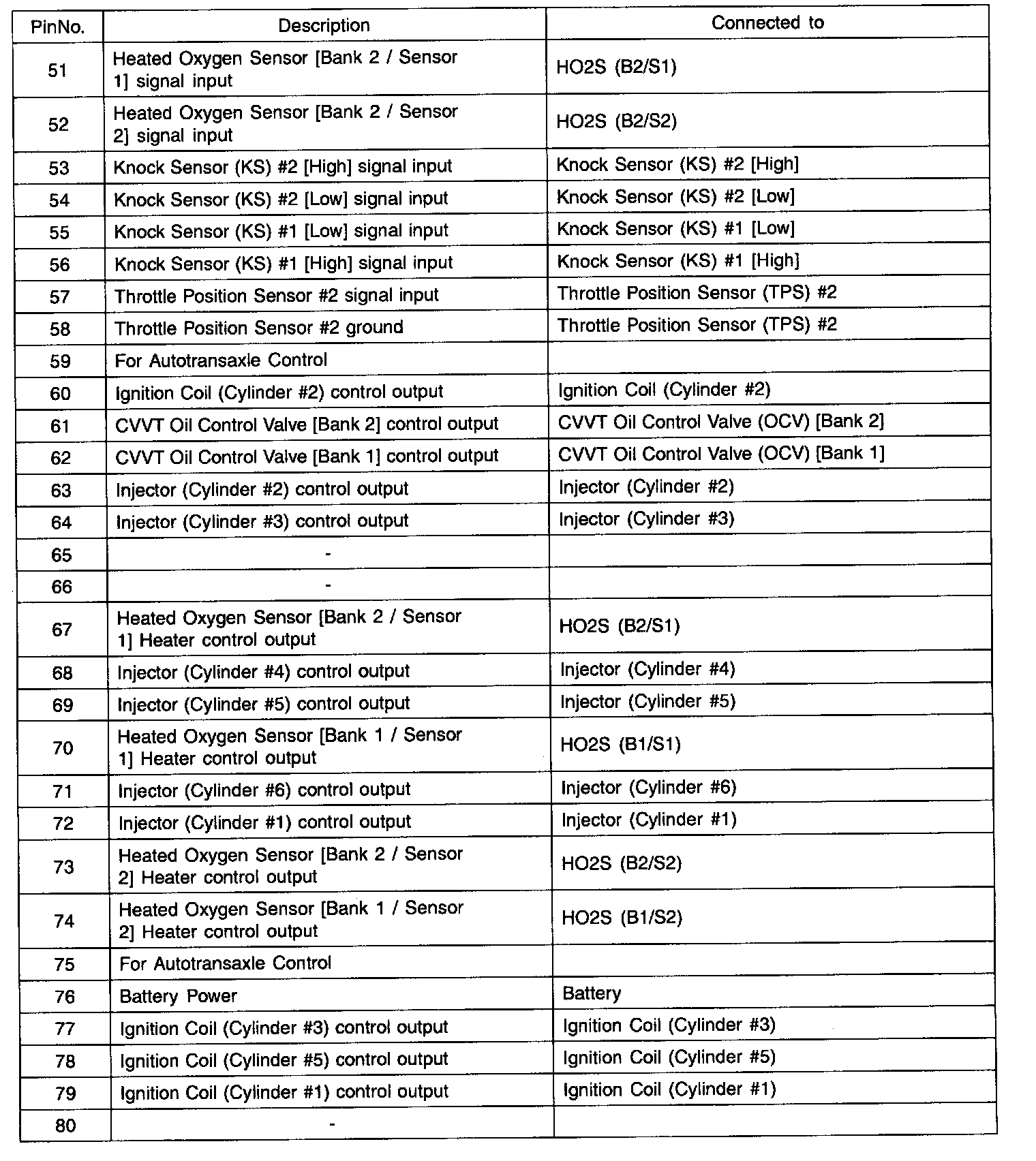

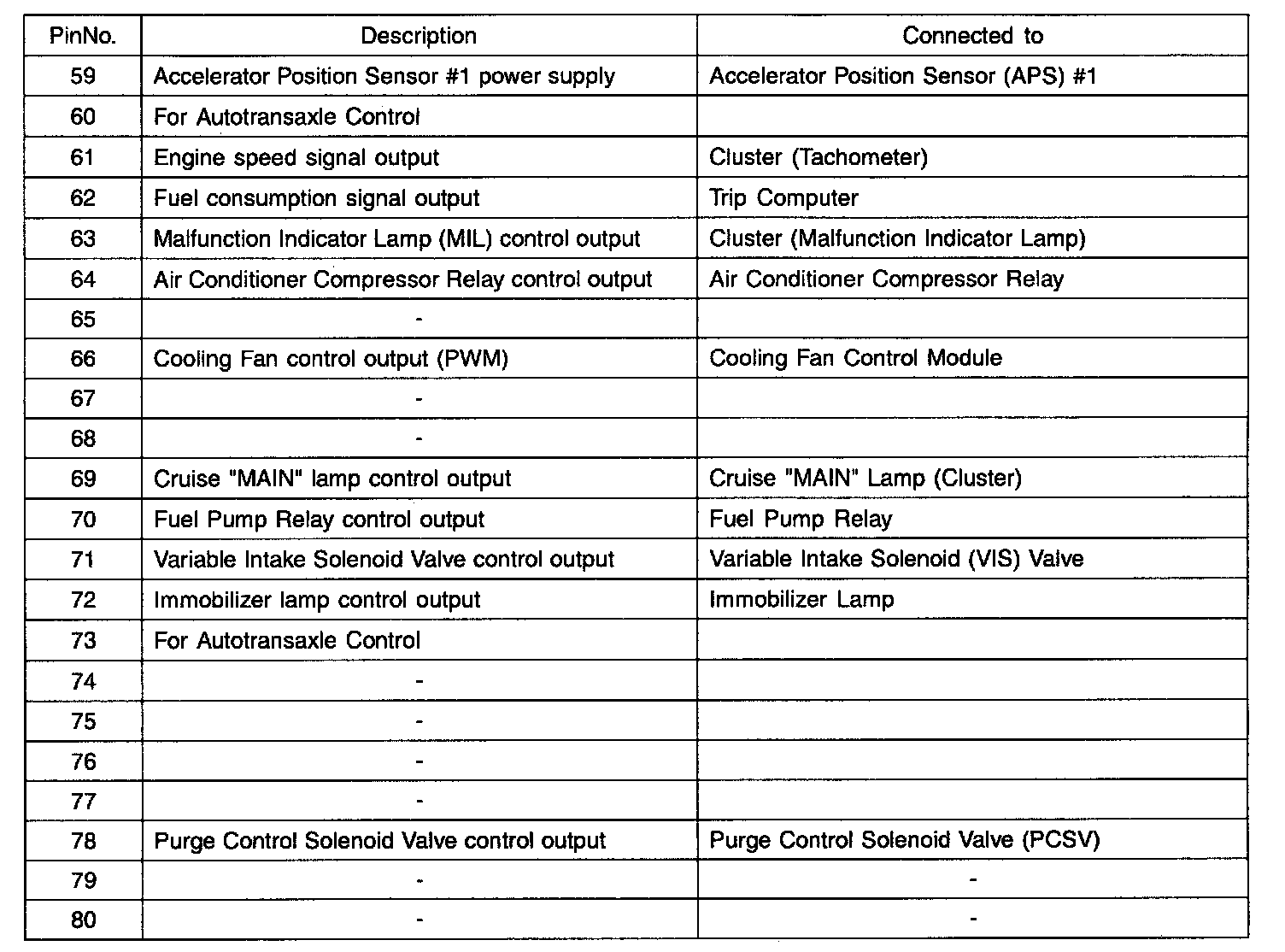

Powertrain Control Module (PCM) Terminal Function - CONNECTOR [C01-1] Part 3:

PCM TERMINAL FUNCTION- CONNECTOR [C01 -2]

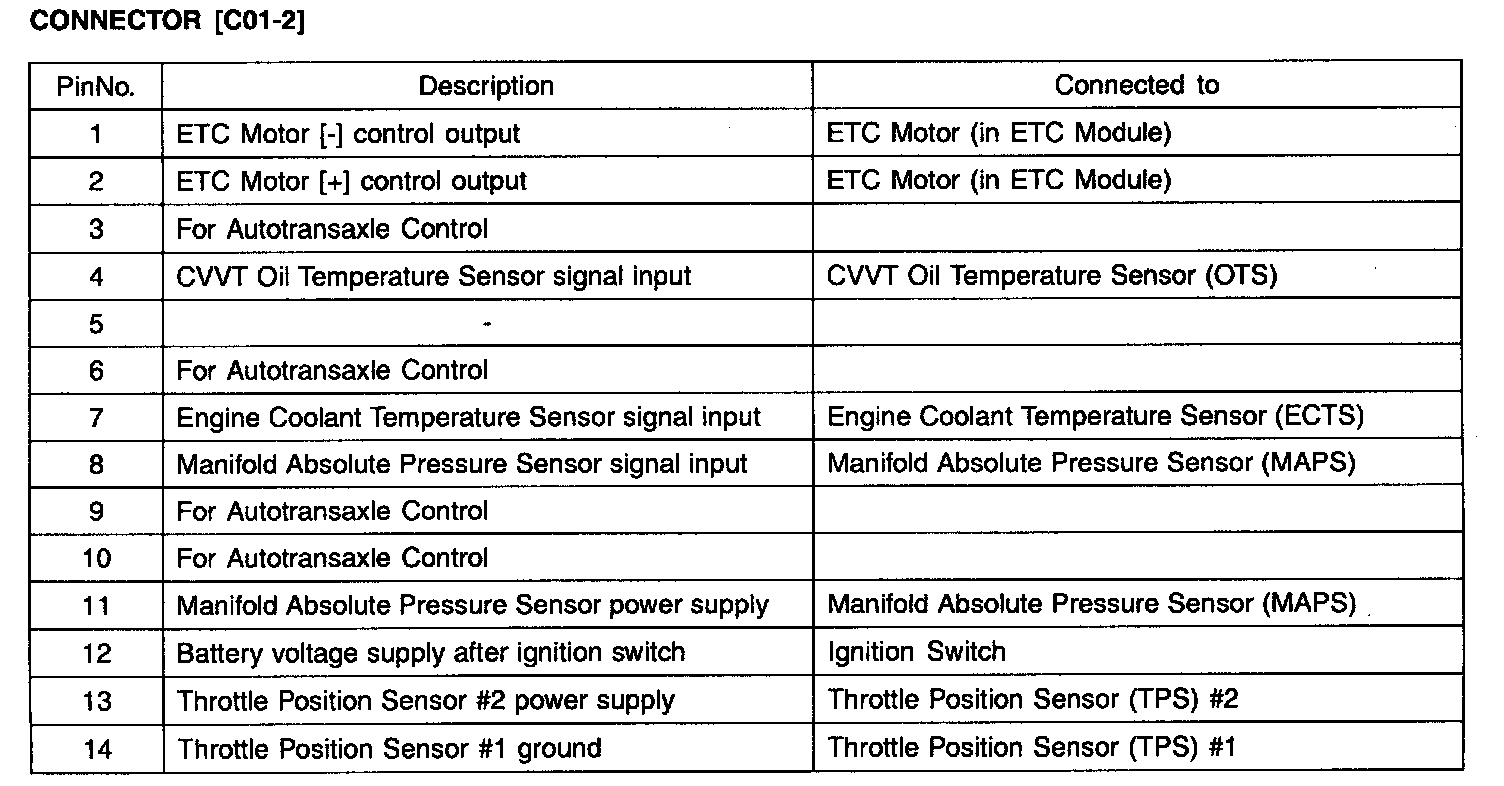

Powertrain Control Module (PCM) Terminal Function - CONNECTOR [C01-2] Part 1:

Powertrain Control Module (PCM) Terminal Function - CONNECTOR [C01-2] Part 2:

Powertrain Control Module (PCM) Terminal Function - CONNECTOR [C01-2] Part 3:

PCM TERMINAL INPUT/OUTPUT SIGNAL- CONNECTOR [C01 -1]

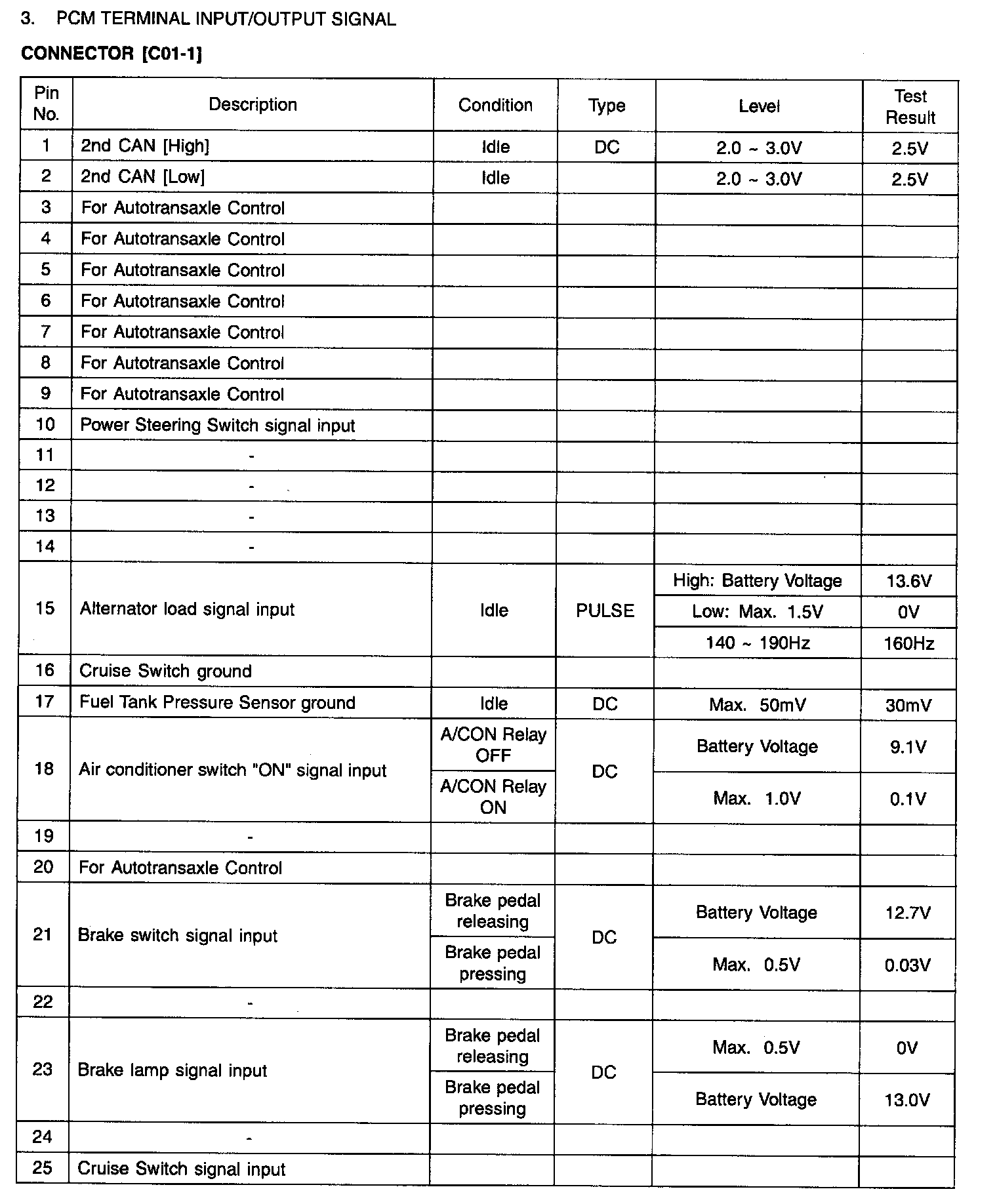

Powertrain Control Module (PCM) Terminal Input/Output Signal - Connector [C01-1] Part 1:

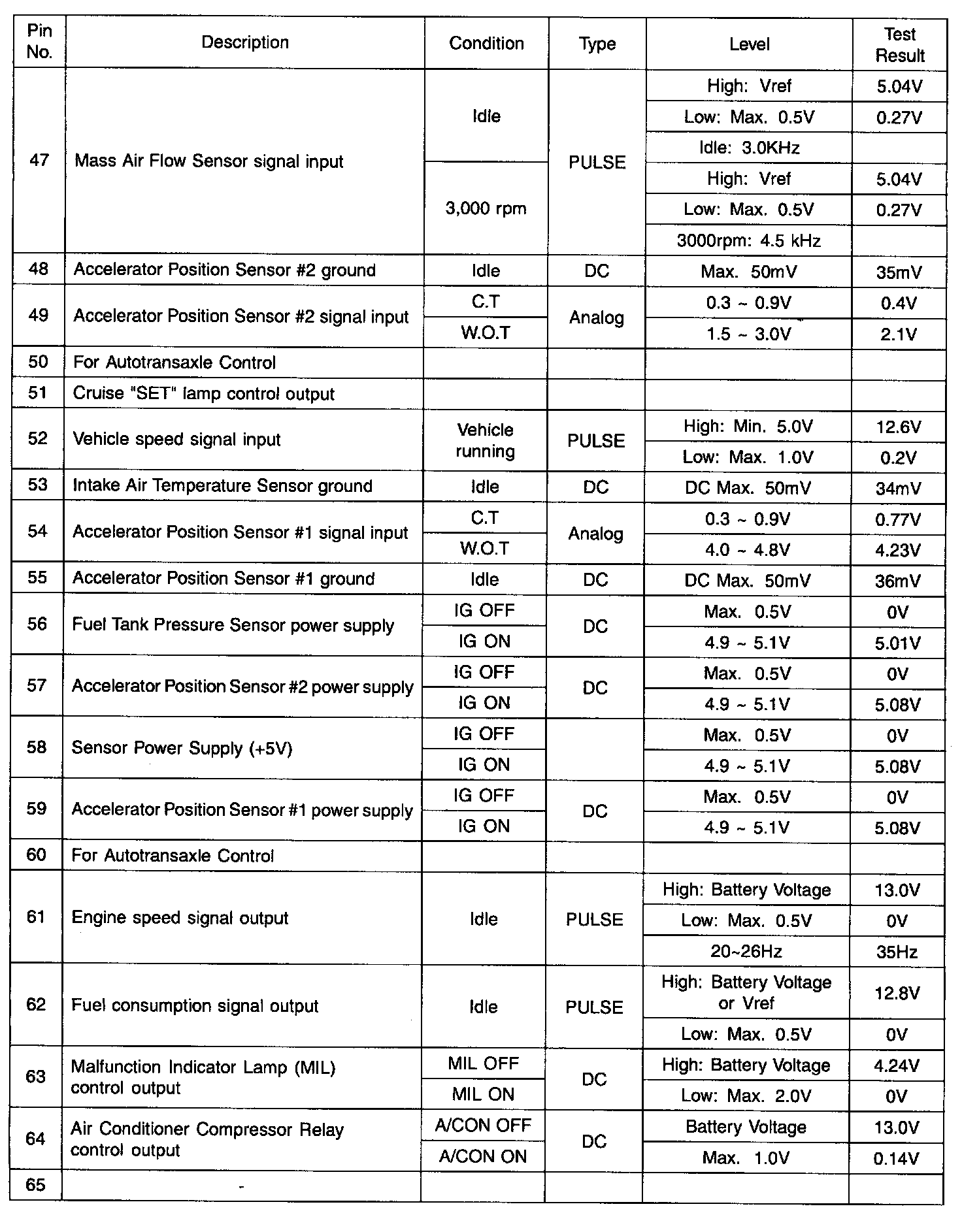

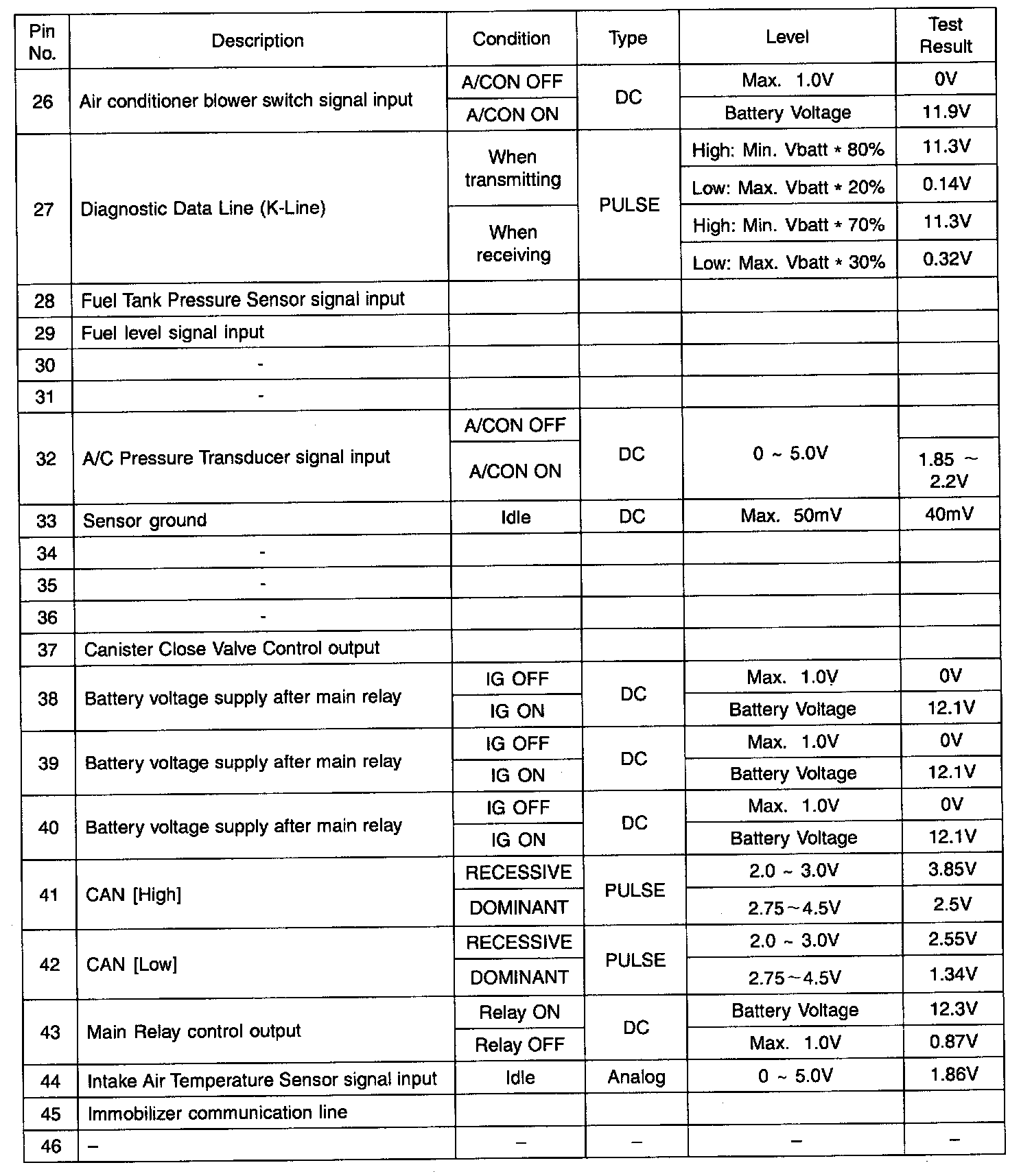

Powertrain Control Module (PCM) Terminal Input/Output Signal - Connector [C01-1] Part 2:

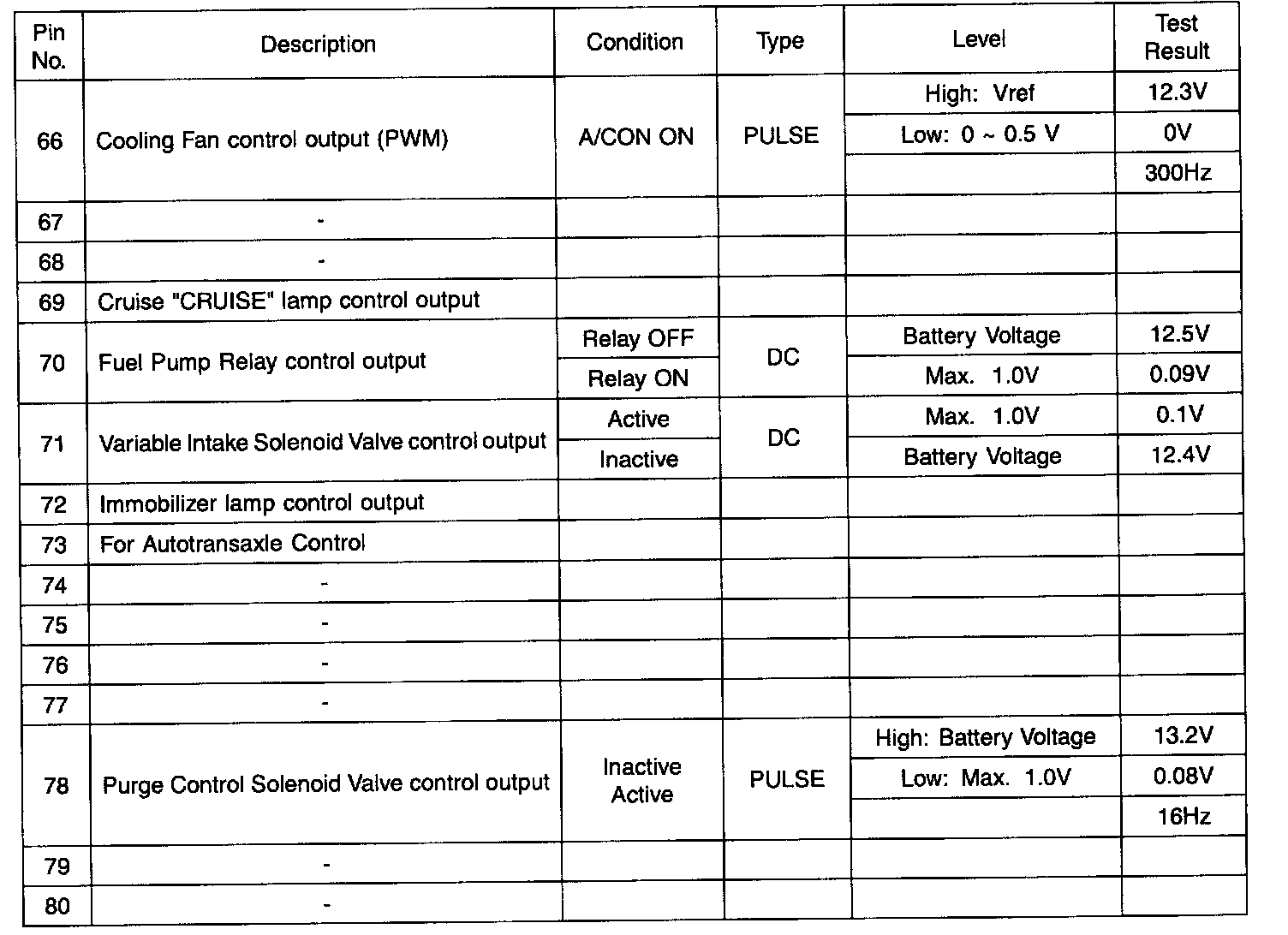

Powertrain Control Module (PCM) Terminal Input/Output Signal - Connector [C01-1] Part 3:

Powertrain Control Module (PCM) Terminal Input/Output Signal - Connector [C01-1] Part 4:

PCM TERMINAL INPUT/OUTPUT SIGNAL - CONNECTOR [C01 -2]

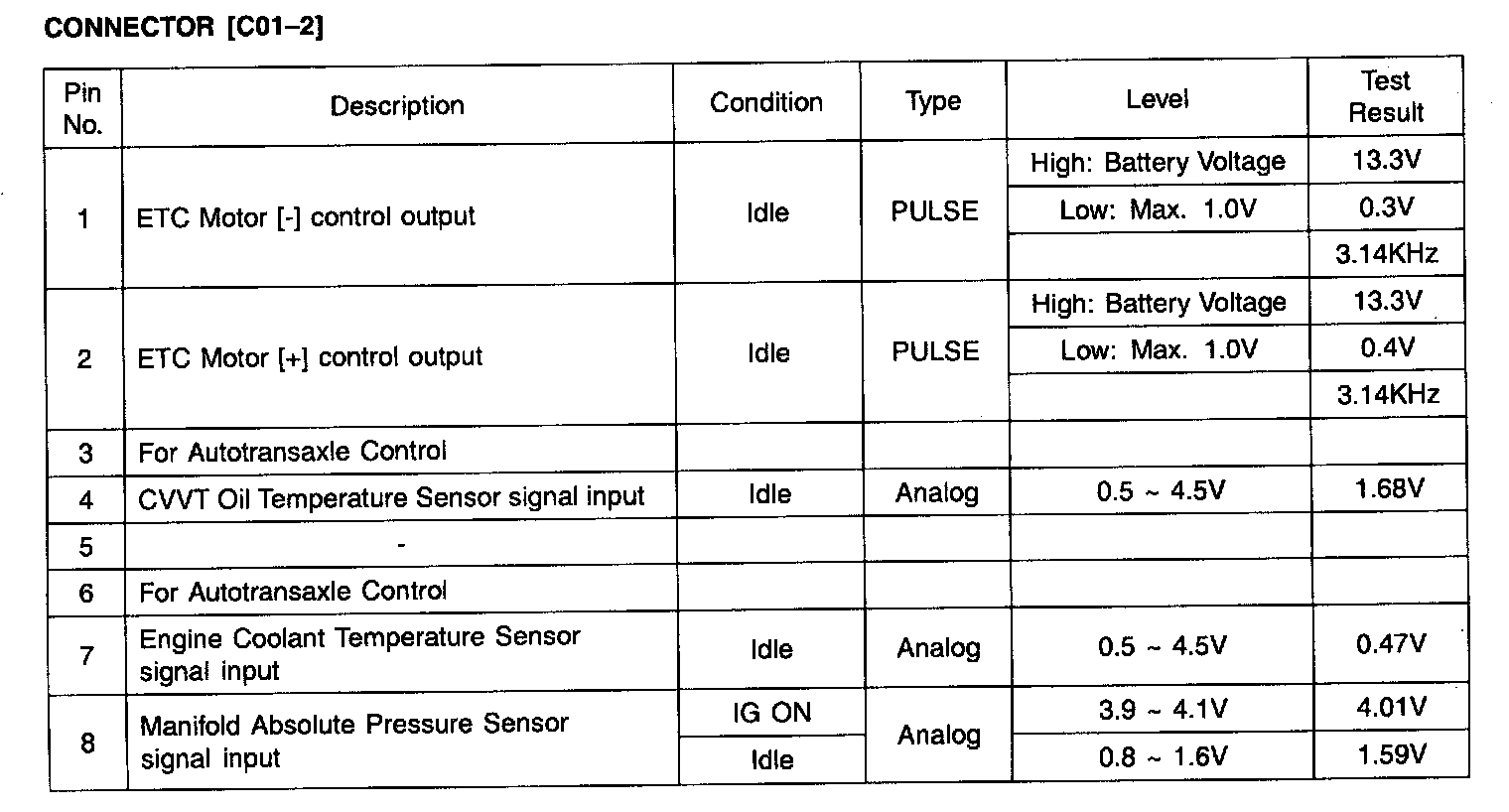

Powertrain Control Module (PCM) Terminal Input/Output Signal - Connector [C01-2] Part 1:

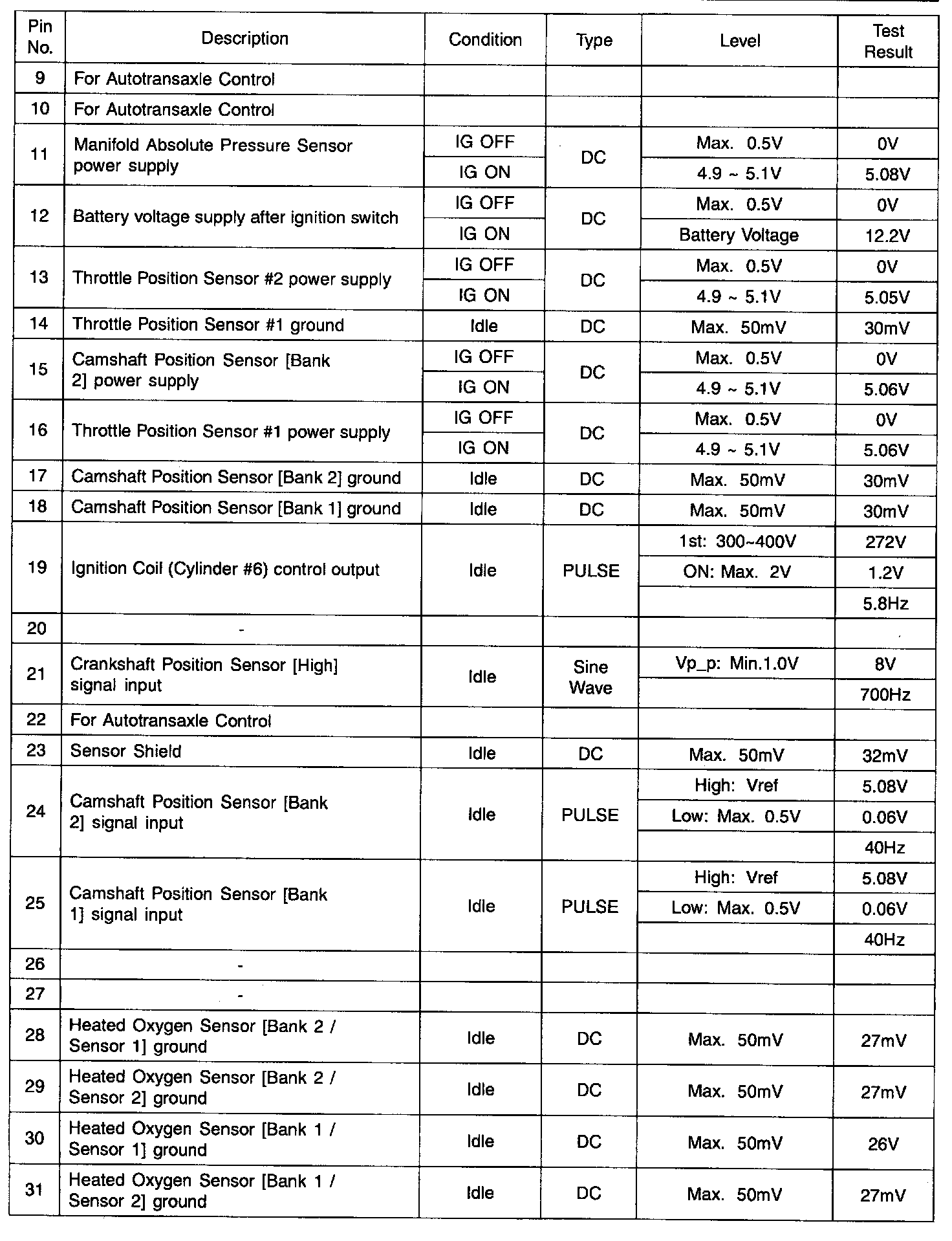

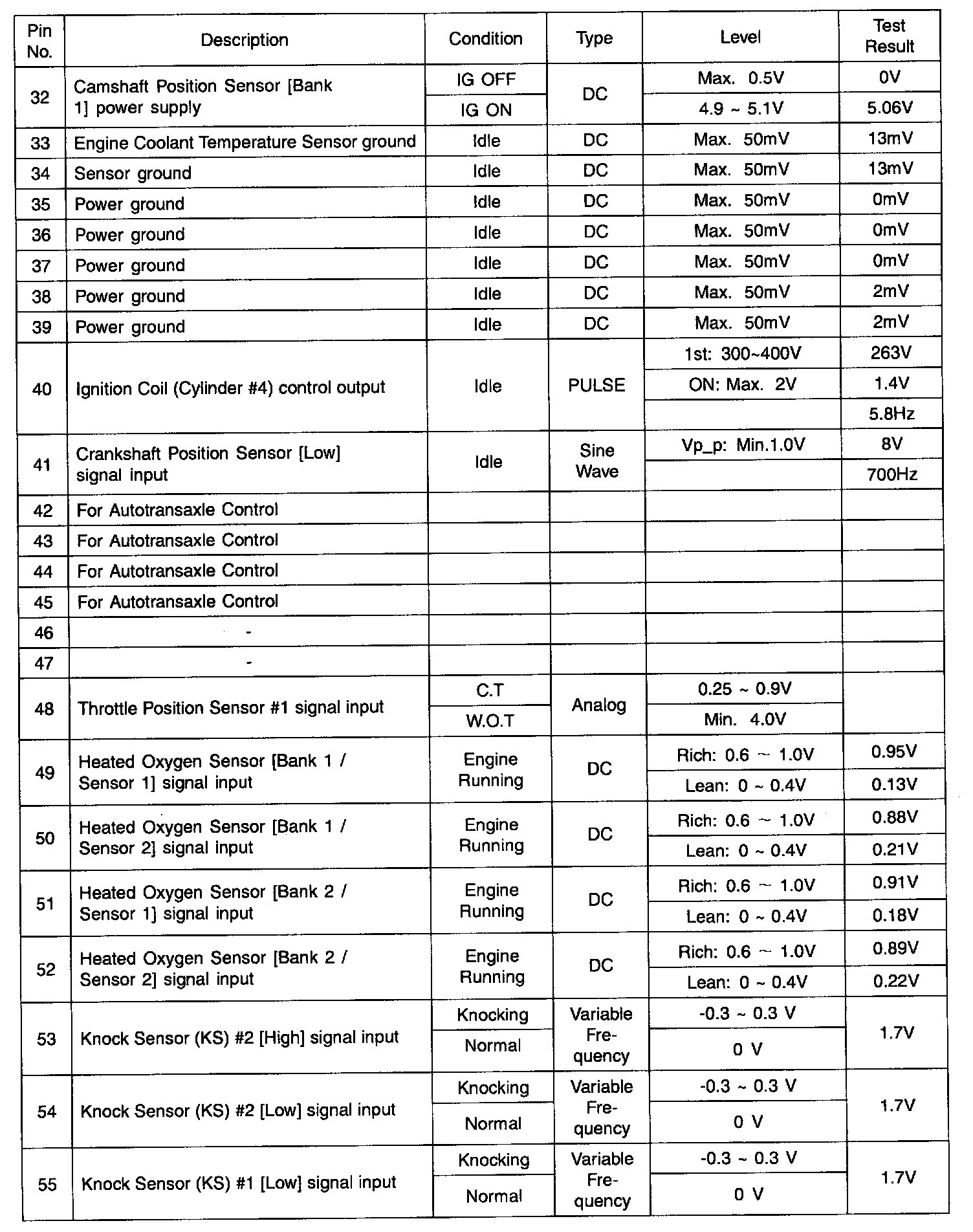

Powertrain Control Module (PCM) Terminal Input/Output Signal - Connector [C01-2] Part 2:

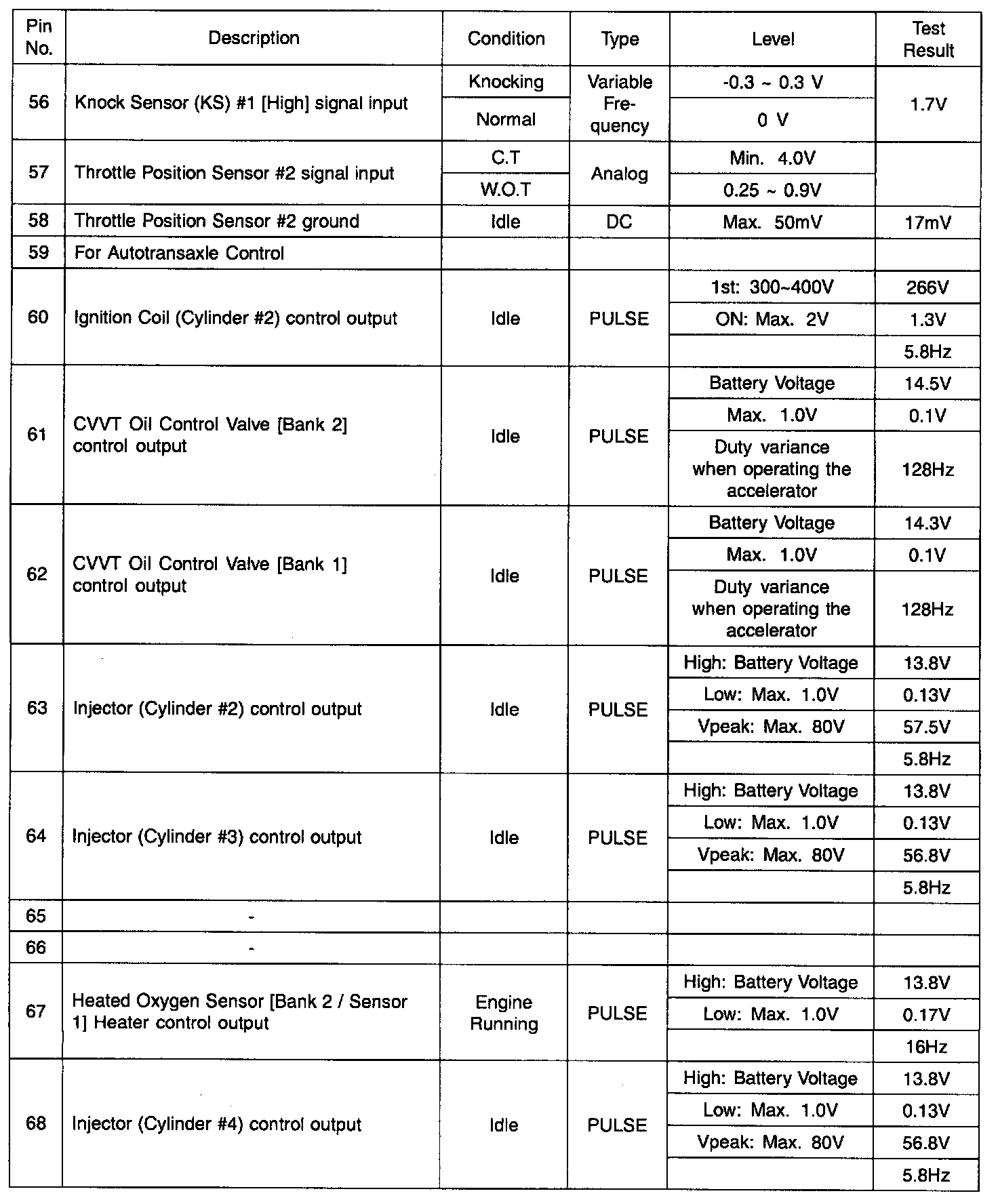

Powertrain Control Module (PCM) Terminal Input/Output Signal - Connector [C01-2] Part 3:

Powertrain Control Module (PCM) Terminal Input/Output Signal - Connector [C01-2] Part 4:

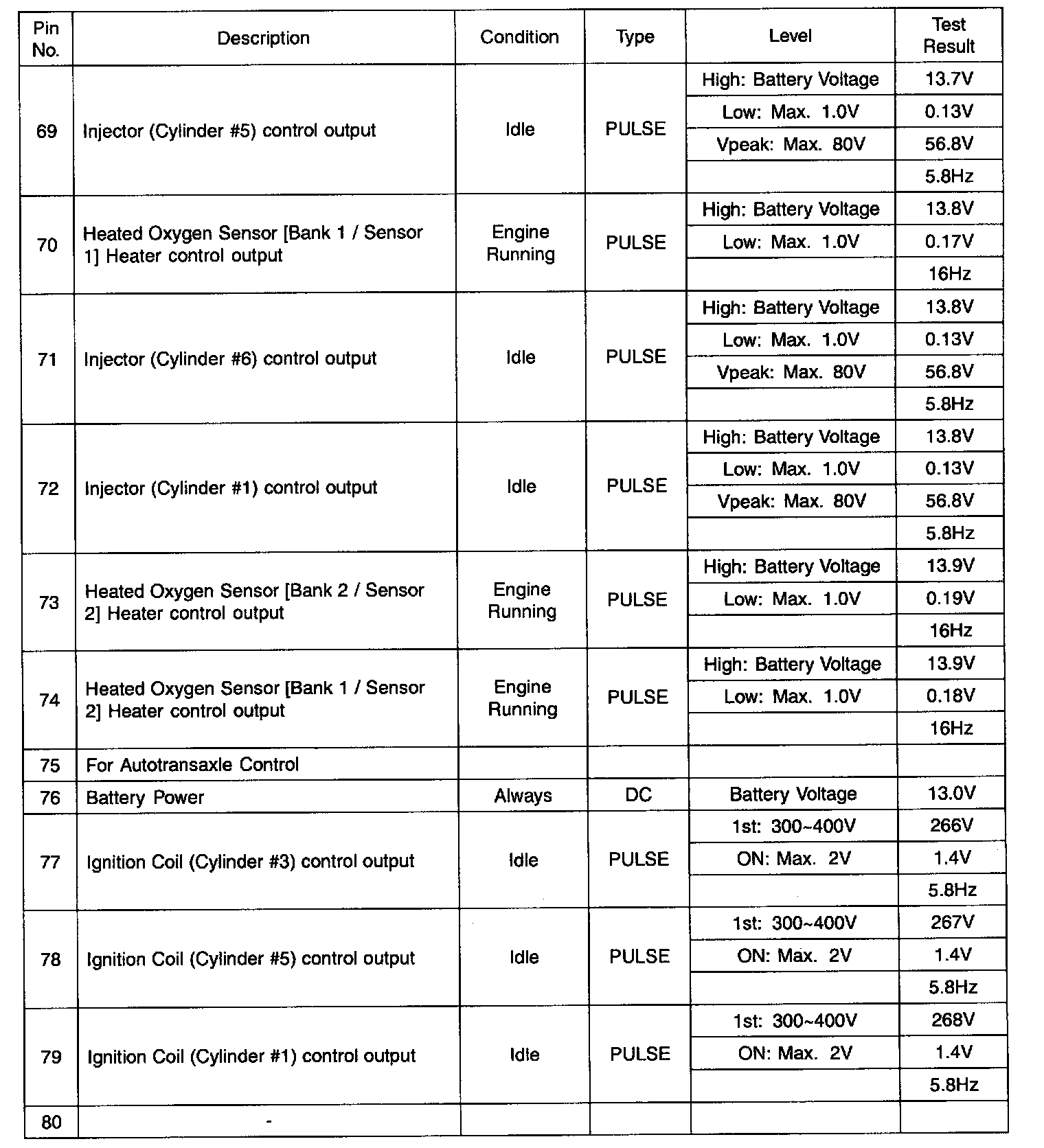

Powertrain Control Module (PCM) Terminal Input/Output Signal - Connector [C01-2] Part 5:
