Inspect Spark Test: Notes

  1. Remove the spark plug cable.
  2. Using a spark plug socket, remove the spark plug.
  3. Remove the ignition coil.
  4. Install the spark plugs to each spark plug cable.
  5. Ground the spark plugs.
  6. Check is spark occurs while engine is being cranked.
    NOTE: To prevent gasoline from being injected from injectors during this test, crank the engine for no more then 5-10 seconds at time.

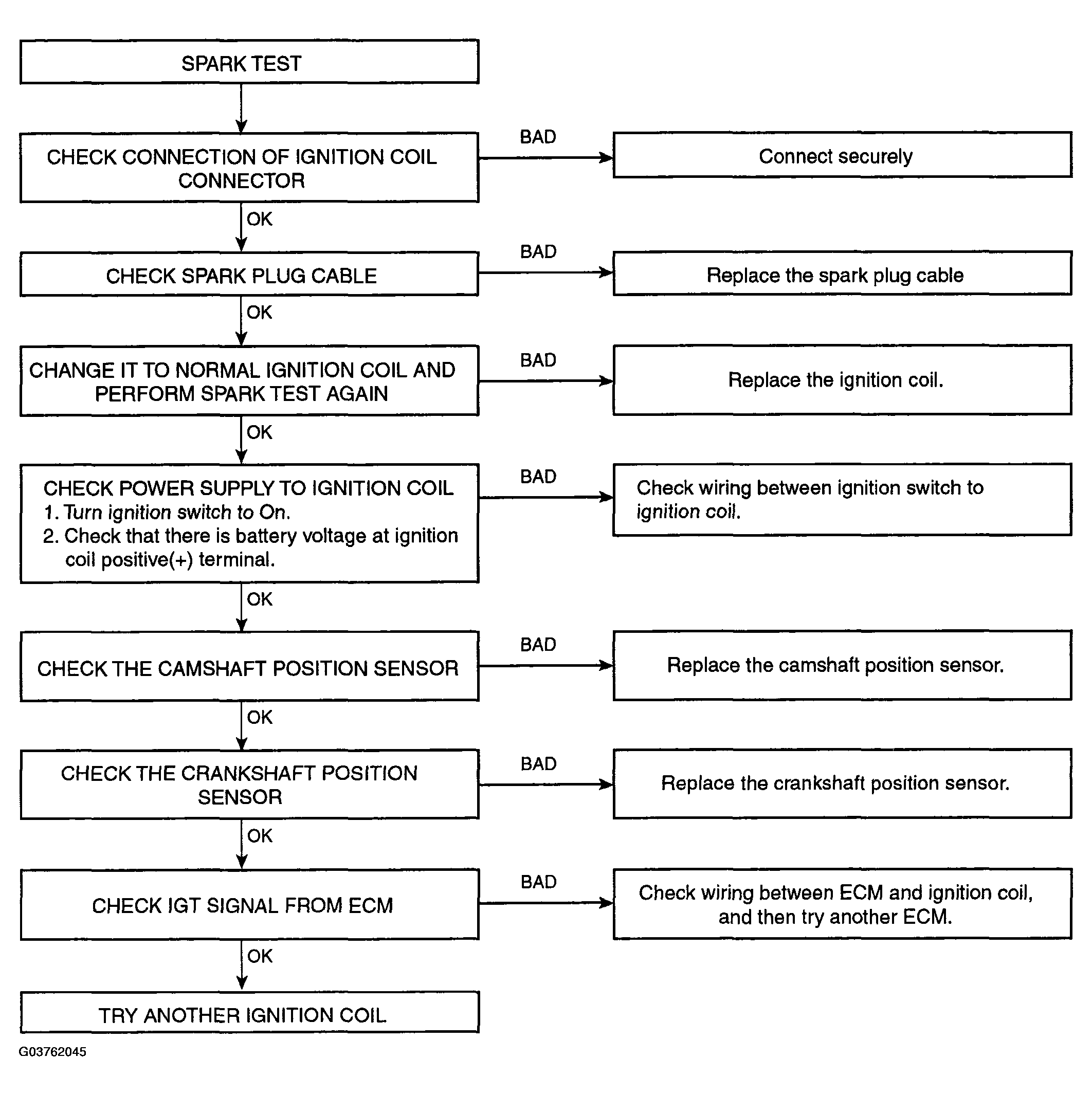

    Fig 1: Spark Test Flow Chart
    G03762045Courtesy of HYUNDAI MOTOR CO.
  7. Using a spark plug socket, install the spark plugs.
  8. Install the spark plug cable and ignition coil.
