Front Power Window Motor

  1. Remove (-) negative battery terminal.
  2. Remove the front door trim panel. (Refer to the FRONT DOOR TRIM REPLACEMENT )
  3. Disconnect the connector (6P) from the motor.

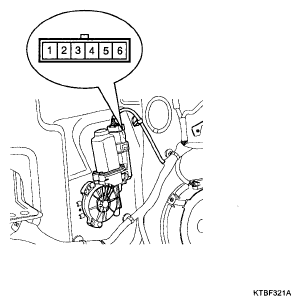

    Fig 1: Identifying Front Power Window Motor Connector
    G04881491Courtesy of HYUNDAI MOTOR CO.
  4. Connect the motor terminals directly to battery voltage (12V) and check that the motor operates smoothly. Next, reverse the polarity and check that the motor operates smoothly in the reverse direction. If the operation is abnormal, replace the motor.

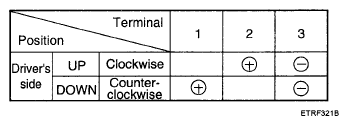

    Fig 2: Front Power Window Motor Voltage Operational Chart
    G04881492Courtesy of HYUNDAI MOTOR CO.
