Sub Fuel Sender: Removal

  1. Preparation
    1. Remove the Service Cover (A) in the trunk.

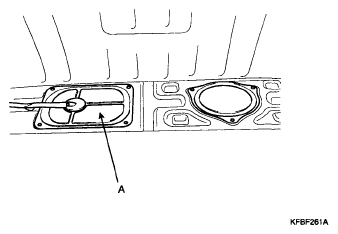

      Fig 1: Identifying Service Cover
      G04880050Courtesy of HYUNDAI MOTOR CO.
    2. Disconnect the Fuel Pump Connector (A).

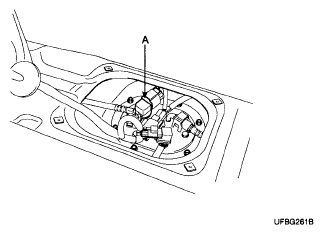

      Fig 2: Identifying Fuel Pump Connector
      G04880051Courtesy of HYUNDAI MOTOR CO.
    3. Start the engine and wait until fuel in fuel line is exhausted.
    4. After the engine stalls, turn the ignition switch OFF.
  2. Remove the Service Cover (A) in the tank.

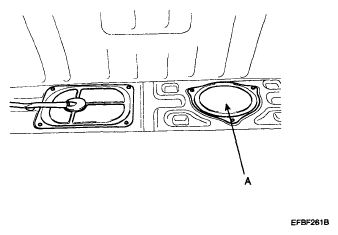

    Fig 3: Identifying Service Cover
    G04880061Courtesy of HYUNDAI MOTOR CO.
  3. Disconnect Sub Fuel Sender Connector (A) and Suction Tube Quick-Connector (B).

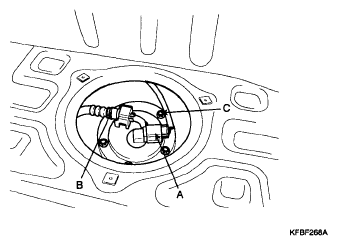

    Fig 4: Identifying Sub Fuel Sender Connector And Suction Tube Quick-Connector
    G04880062Courtesy of HYUNDAI MOTOR CO.
  4. Unfasten the Sub Fuel Sender mounting bolts (C) and remove the Sub Fuel Sender.

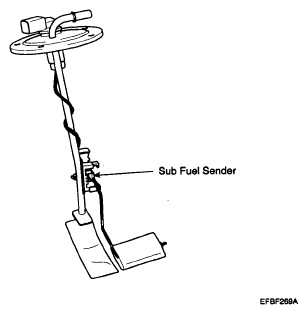

    Fig 5: Identifying Sub Fuel Sender
    G04880063Courtesy of HYUNDAI MOTOR CO.
