Engine Control/Fuel System (G6DB/G6DA - GSL 3.3/3.8)
>>
Gasoline Engine Control System
>>
Camshaft Position Sensor (CMPS)
>>
Waveform
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Camshaft Position Sensor (CMPS): Waveform

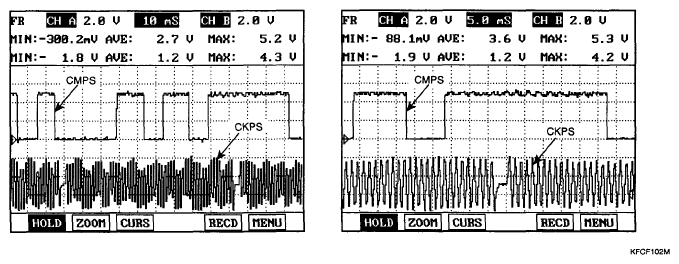

Fig 1: Identifying Signal Waveform
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
