Throttle Position Sensor





Specification

Sensor

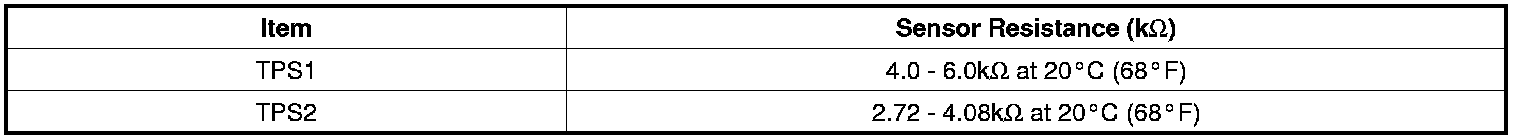

Throttle Position Sensor (TPS)
- Type: Variable resistor type

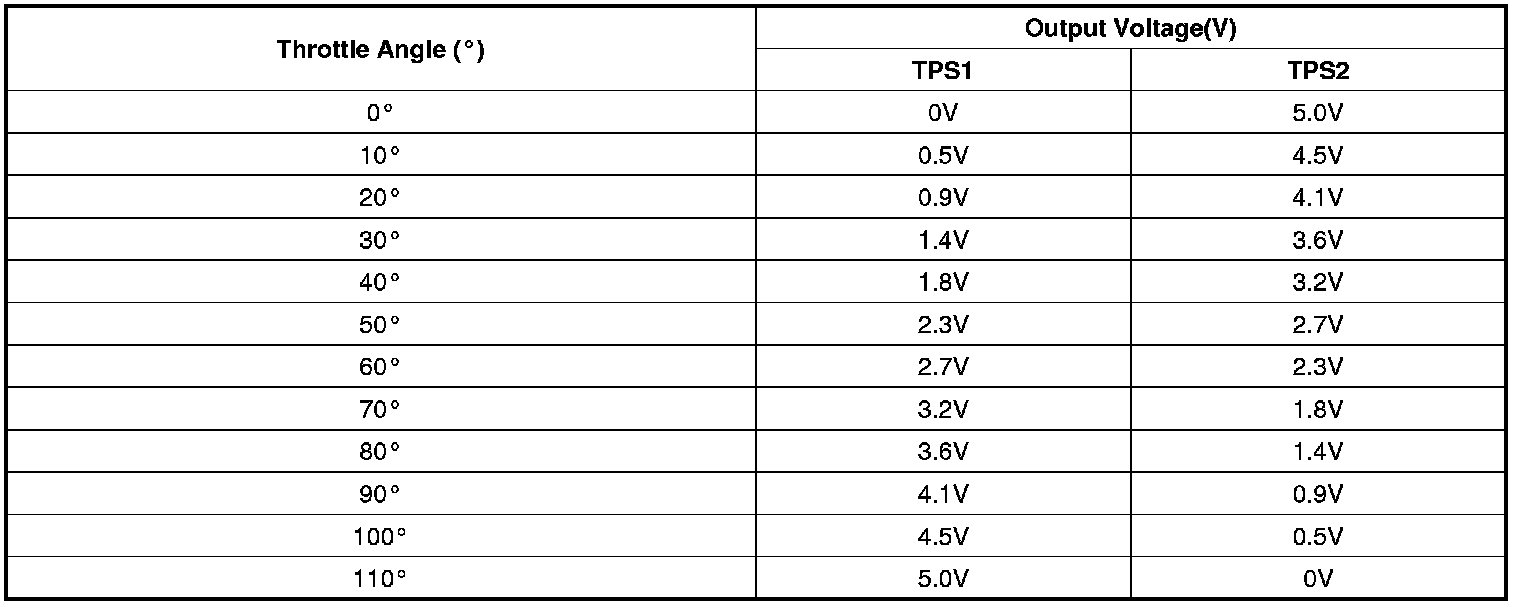

- Specification (When reference voltage = 5.0V)
