Connecting Rod Bearing

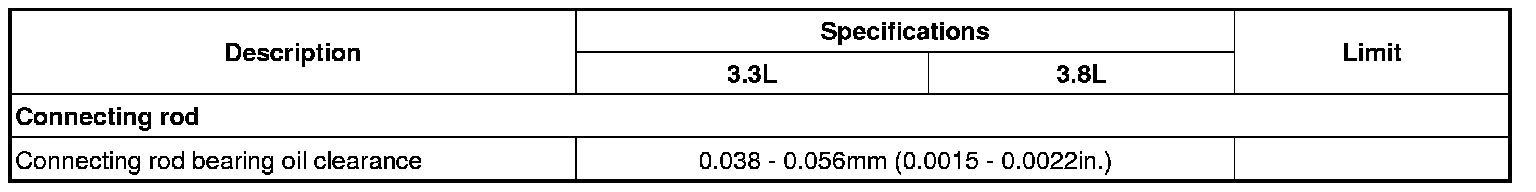

Connecting Rod Bearing Oil Clearence






Connecting Rod Bearing Cap

Reinstall the bearing half and cap, and torque the bolts.
Tightening torque 19.6 Nm (2.0 kgf.m, 14.46 lb-ft) + 90°

Reinstall the bearings and caps, then torque the bolts.

Tightening torque
49.00 Nm(5.0 kgf.m, 36.16 lb-ft) + 90°
19.60 Nm(2.0 kgf.m, 14.46 lb-ft)+ 120°
29.40 - 31.36 Nm(3.0 - 3.2 kgf.m, 21.70 - 23.14 lb-ft)
