Programming and Relearning

Sensor Initiating Procedure

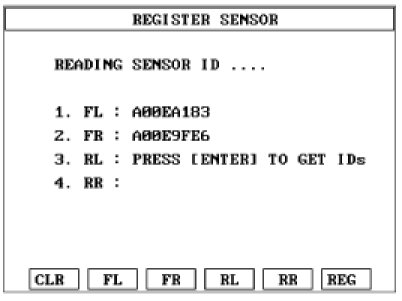

1. Read the four sensor's ids starting with sensor 1 (1 normally front left, 2 front right, 3 rear left, 4 rear right).

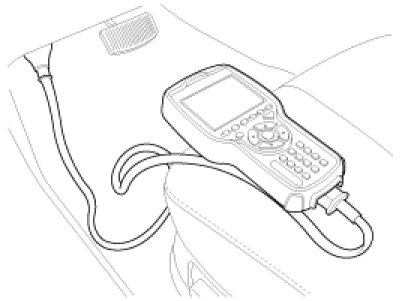

2. Connect 'TPMS exciter' to the diagnostic connector.

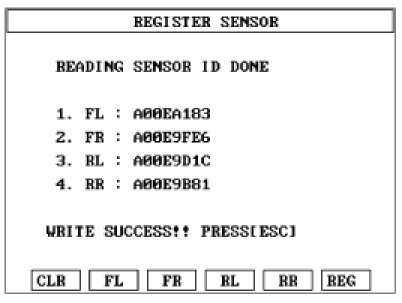

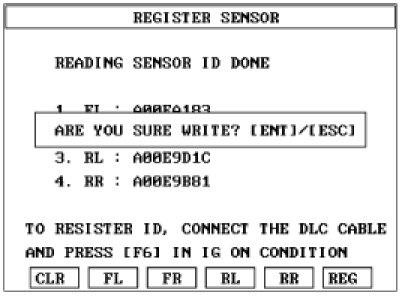

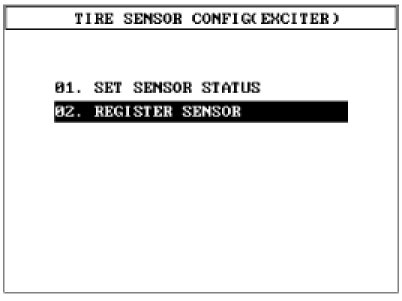

3. Register the four sensor's ids to the receiver.








4. Disconnect diagnostic link.
5. Cycle Ignition, wait 4 minutes and check that Normal Receiver State is now indicated.
