Throttle Position Sensor





Specification

Sensor
Throttle Position Sensor (TPS)
- Type: Variable resistor type

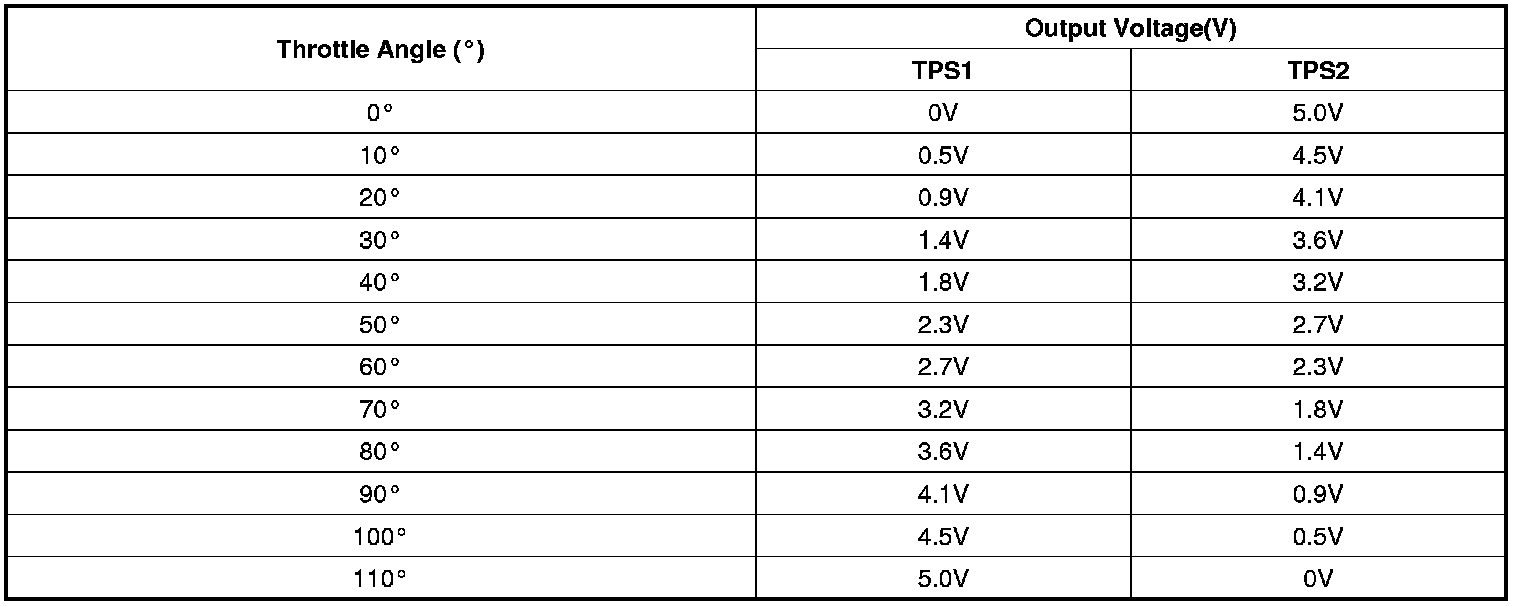

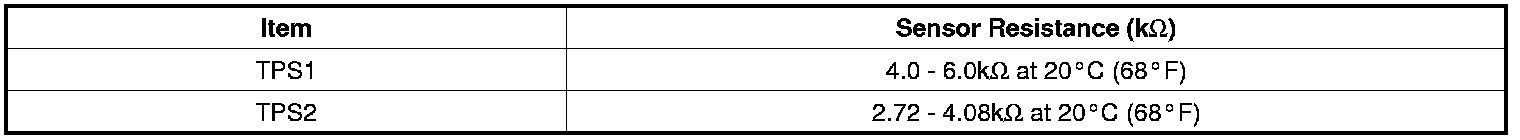

- Specification (When reference voltage = 5.0V)
