Main Bearing

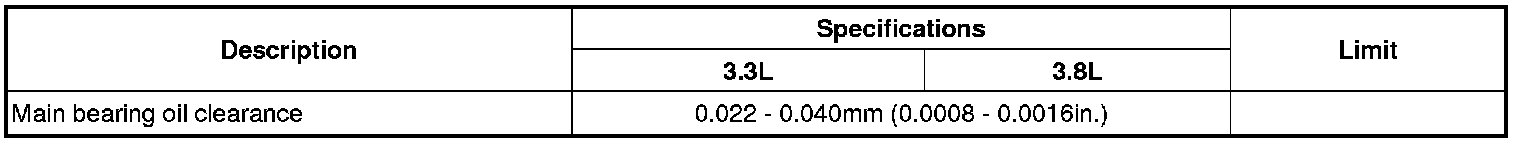

Main Bearing Oil Clearance





Main Bearing Cap

Install main bearing cap bolts.
Install and uniformly tighten the bearing cap bolts, in several passes, in the sequence shown.

Tightening torque
Main bearing cap bolt
49.00Nm(5.0 kgf.m, 36.16lb-ft) + 90° (1 - 8)
19.60 Nm(2.0 kgf.m, 14.46lb-ft)+ 120° (9 - 16)
29.40 - 31.36Nm (3.0 - 3.2 kgf.m, 21.70 - 23.14lb-ft) (17 - 22)

NOTE:
- Always use new main bearing cap bolts.
- If any of the bearing cap bolts are broken or deformed, replace it.




Use SST( 09221-4A000 ), install main bearing cap bolts.





Main Bearing Size Codes

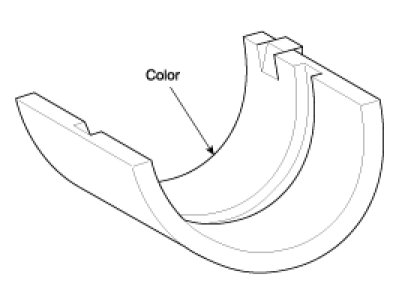

Place Of Identification Mark (Crankshaft Bearing)

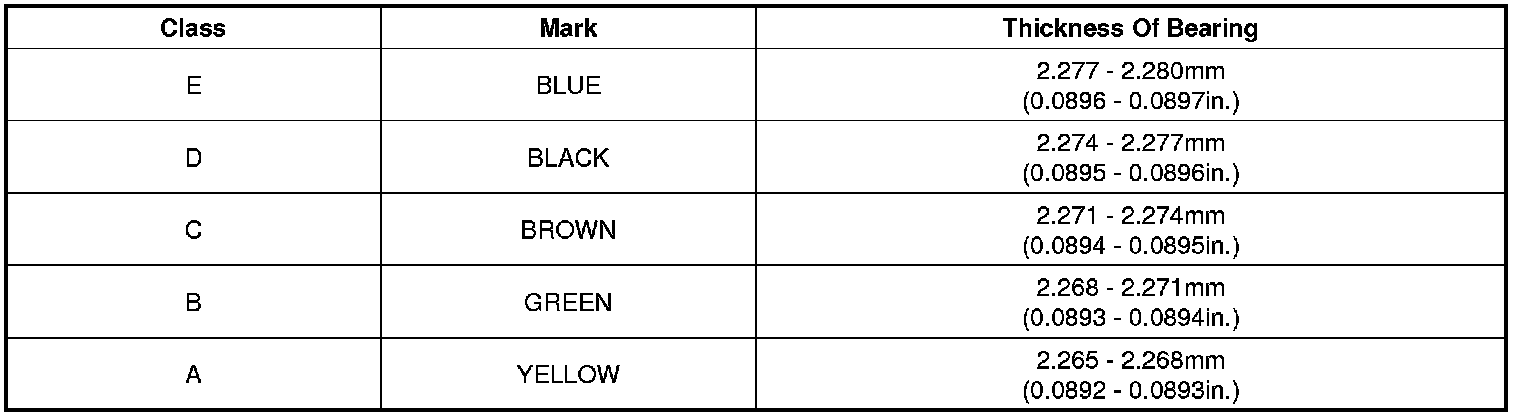

Discrimination Of Crankshaft Bearing
