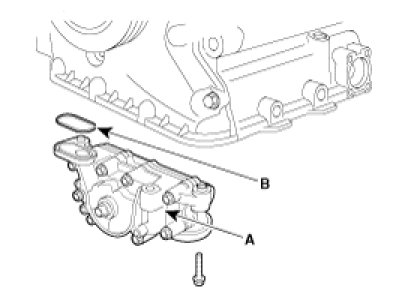

Oil Pump
Oil Pump
Tightening torque
20.6 - 22.6 Nm (2.1 - 2.3 kgf.m, 15.2 - 16.6 lb-ft)
NOTE:
Always use a new O-ring(B).
