Fuel Tank Removal: Notes

Preparation
1. Remove the 2nd seat (s) (Refer to "REAR SEAT " in this SERVICE INFORMATION).
2. Remove the Service Cover (A).

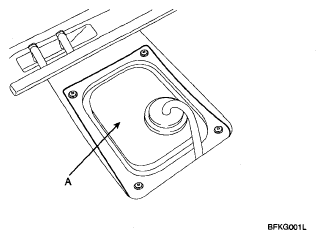

  Fig 1: Identifying Service Cover
  Courtesy of HYUNDAI MOTOR CO.
3. Disconnect the Fuel Pump Connector (A).

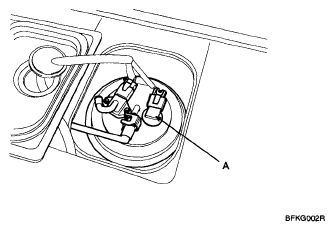

  Fig 2: Identifying Fuel Pump Connector
  Courtesy of HYUNDAI MOTOR CO.
4. Start the engine and wait until fuel in fuel line is exhausted.
5. After the engine stalls, turn the ignition switch OFF.
Disconnect the fuel pump connector (A) and the fuel tank pressure sensor connector (B).

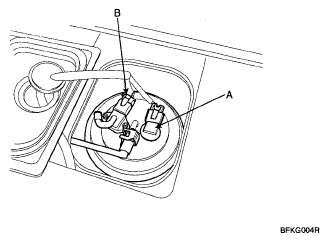

Fig 3: Identifying Fuel Pump Connector And Fuel Tank Pressure Sensor Connector
Courtesy of HYUNDAI MOTOR CO.
Lift the vehicle and support in with a jack.

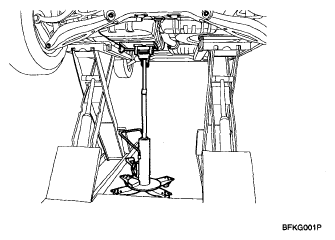

Fig 4: Lifting Vehicle And Support With Jack
Courtesy of HYUNDAI MOTOR CO.
Disconnect the fuel filler hose (A) and the leveling hose (B).

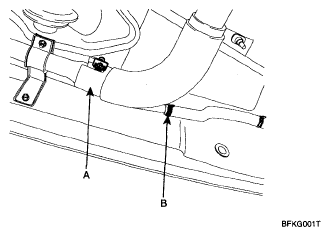

Fig 5: Identifying Fuel Filler Hose And Leveling Hose
Courtesy of HYUNDAI MOTOR CO.

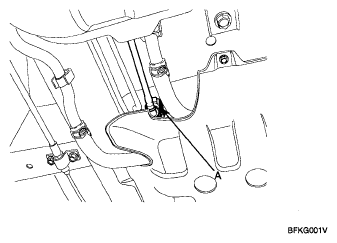

Disconnect the fuel feed quick connector (A) near canister.

Fig 6: Identifying Fuel Feed Quick Connector
Courtesy of HYUNDAI MOTOR CO.

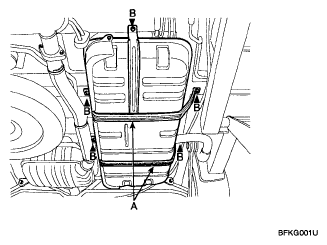

Remove the fuel tank band (A) by unscrewing the mounting bolts (B) and remove the fuel tank from the vehicle.

Fig 7: Identifying Fuel Tank Band And Mounting Bolts
Courtesy of HYUNDAI MOTOR CO.
