Manifold Absolute Pressure Sensor (Maps): Description: Specification

OUTPUT VOLTAGE CHART

Pressure (kPa)	Output Voltage (V)
20.0kPa	0.79V
46.66kPa	1.84V
101.32kPa	4.00V

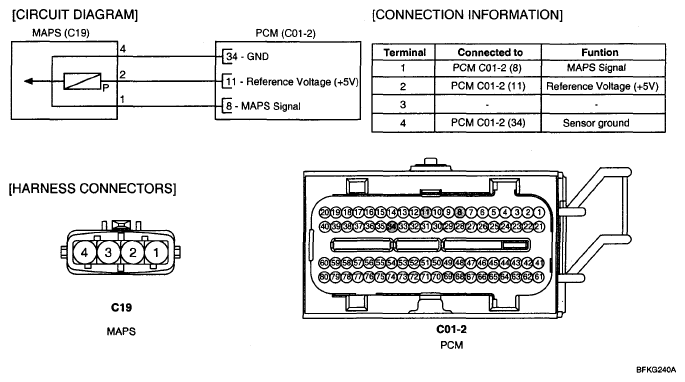

Fig 1: Manifold Absolute Pressure Sensor (MAPS) - Schematic Diagram

Courtesy of HYUNDAI MOTOR CO.
