Scan Tool Testing and Procedures

Trouble Diagnostics When Using Diagnosis Tool

1. The diagnosis tool supports quick diagnosis of supported body electrical systems through input/output monitoring. and actuation testing.

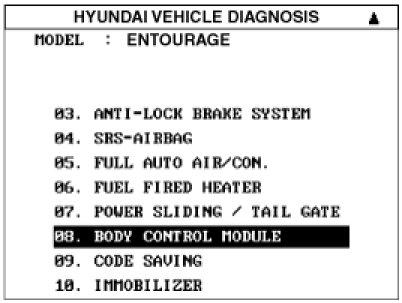

2. To diagnose the BCM function, select the menu of model and body control module.

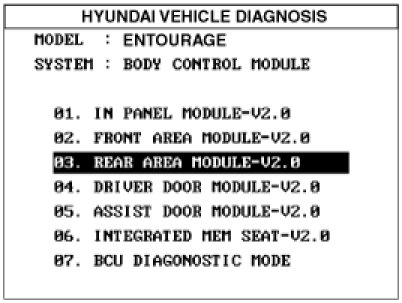

3. Select the module menu to diagnose.

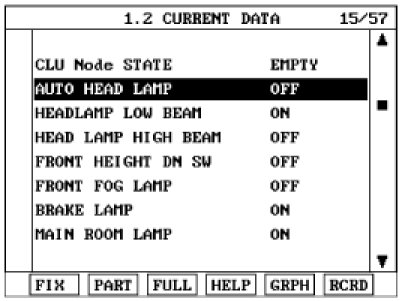

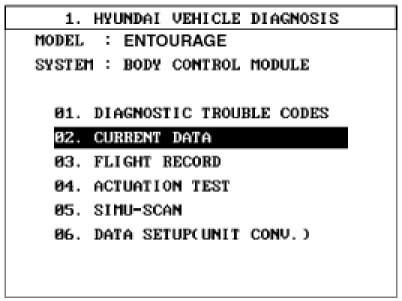

4. The CURRENT DATA function is used to monitor input/output conditions.

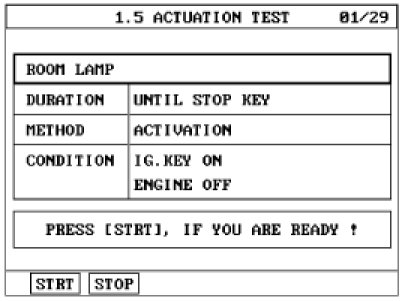

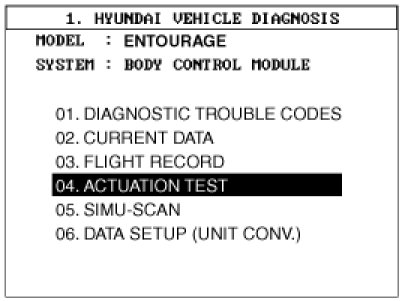

5. Use the ACTUATION TEST mode to force output devices to operate for testing purposes.








6. Use the "DIAGNOSTIC TROUBLE CODES" mode.
