IMS (Integrated Memory System) module

Replacement

1. Remove the negative (-) battery terminal.
2. Remove the seats in the car.

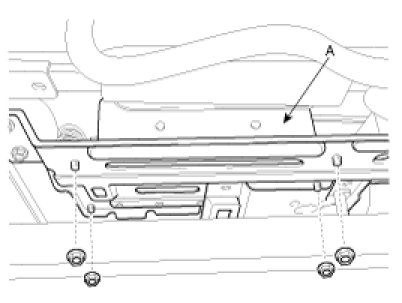

3. Remove the IMS module (A) after loosening 4 nuts and 3 connectors in the bottom of seat.




4. Installation is the reverse of removal.
