Repair Procedures





Replacement

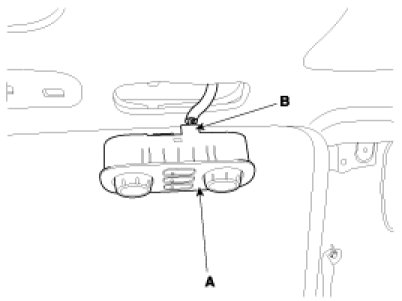

1. Remove the rear control panel(A) and then disconnect the rear control panel connector(B).




2. Installation is the reverse order of removal.
