Repair Procedures

Replacement

1. Disconnect the negative (-) battery terminal.
2. Remove the center facia lower panel.

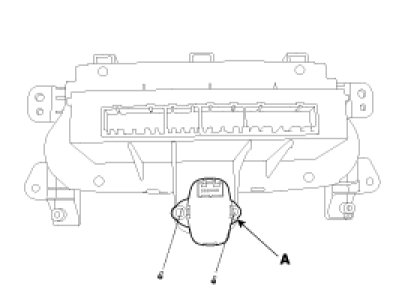

3. Disconnect the humidity sensor connector (A).
4. Loosen 2 screws and then remove the humidity sensor (B).




5. Installation is the reverse order of removal.
