FAM (Front Area Module)

Replacement

FAM (Front Area Module)
1. Disconnect the negative (-) battery terminal.
2. Remove the FAM cover from the engine room.

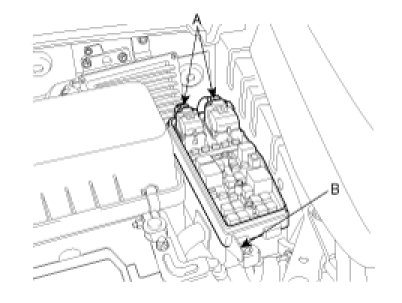

3. Remove the 2 FAM connectors(A) and battery terminal nut(B).

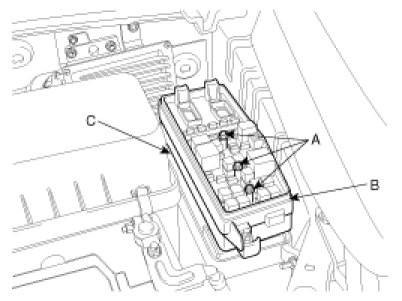

4. Remove the IPM(B) from the splash shield(C) after loosening the 3 IPM mounting bolts(A) and the IPM mounting clip.




5. Disconnect the connector from the splash shield.
6. Installation is the reverse of removal.
