General Spcecifications

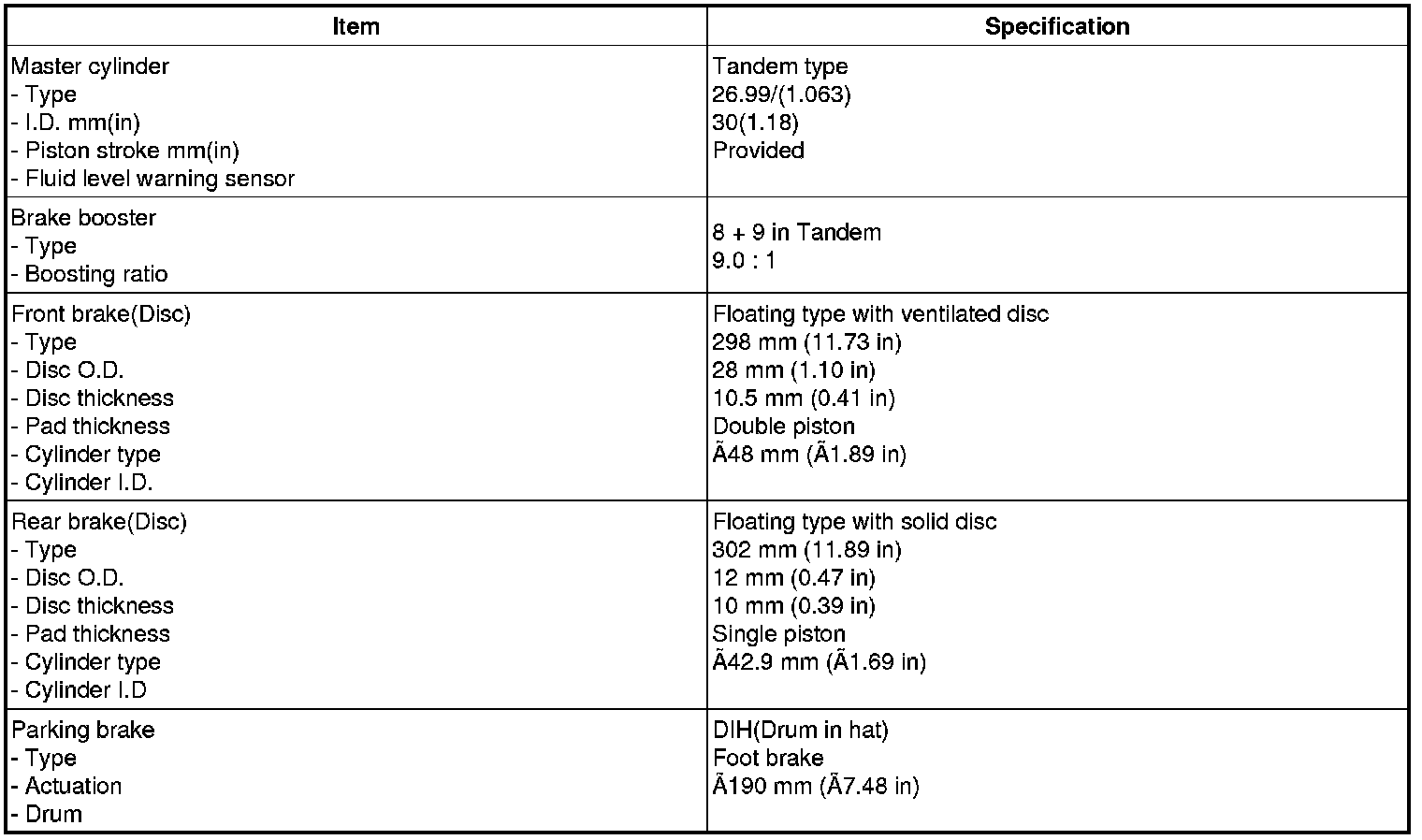

Specifications





O.D : Outer Diameter
I.D : Inner Diameter

NOTE:
ABS : Anti-lock Brake System
ESC : Electronic Stability Control

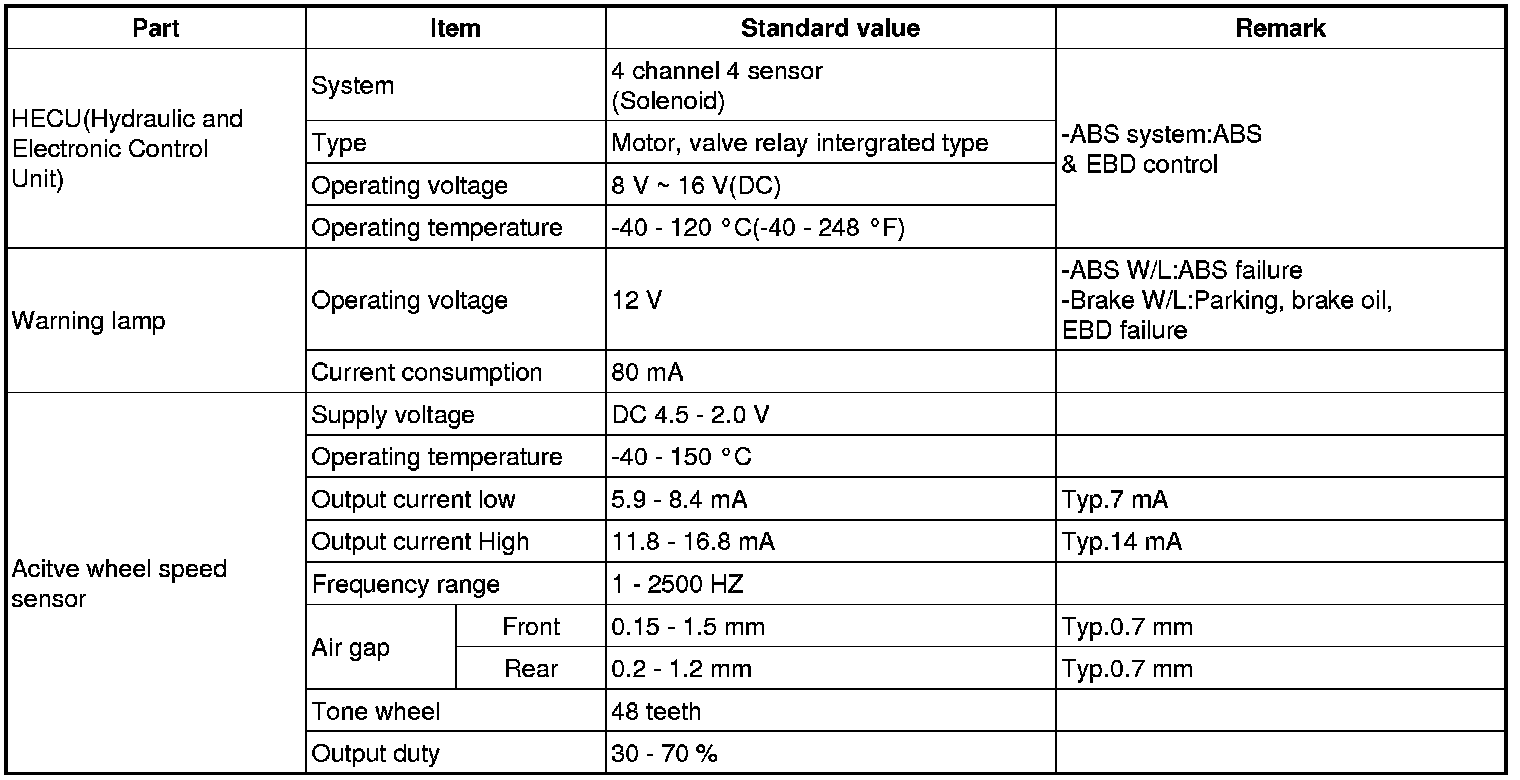

Specification (ABS)

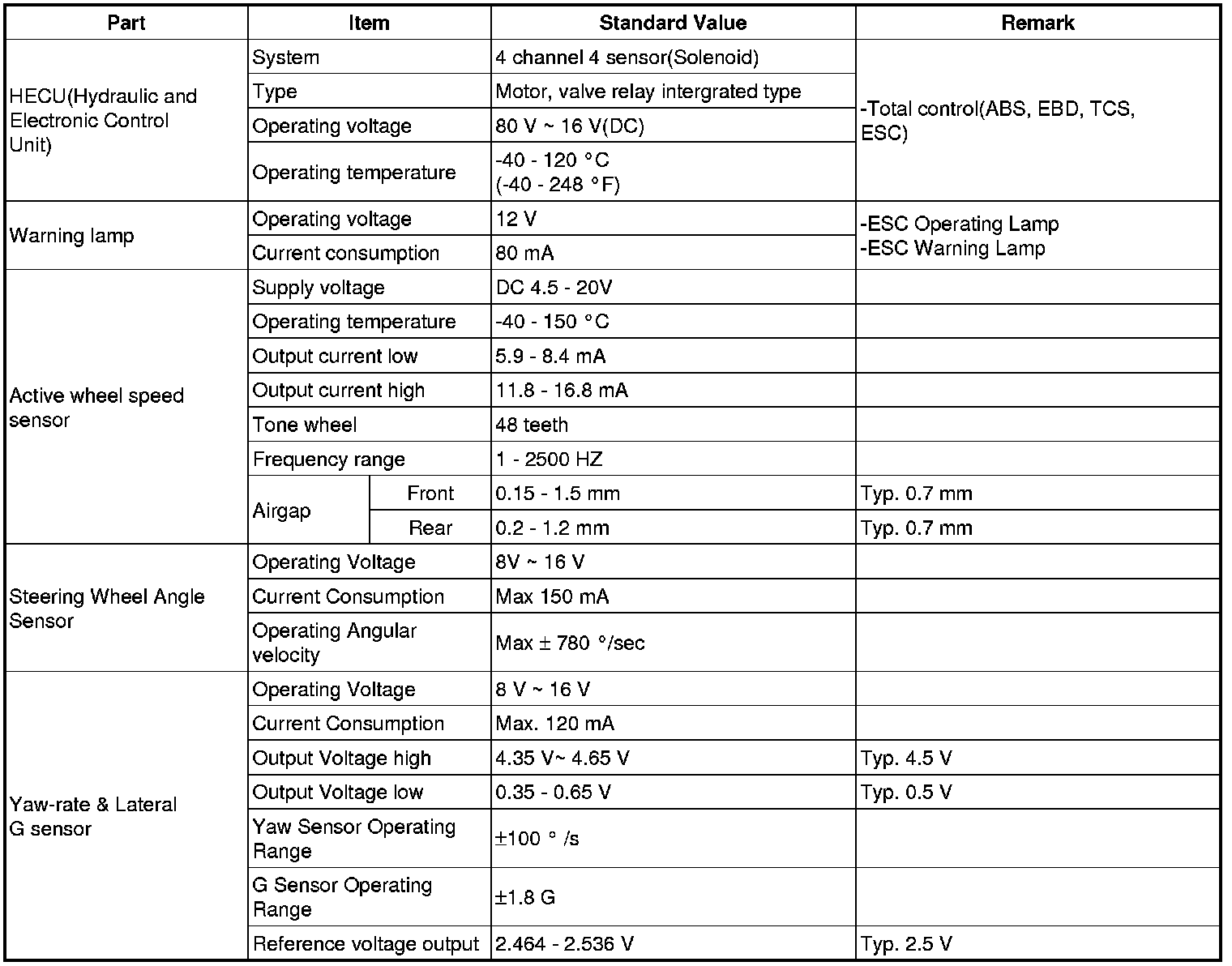

Specification(ESC)

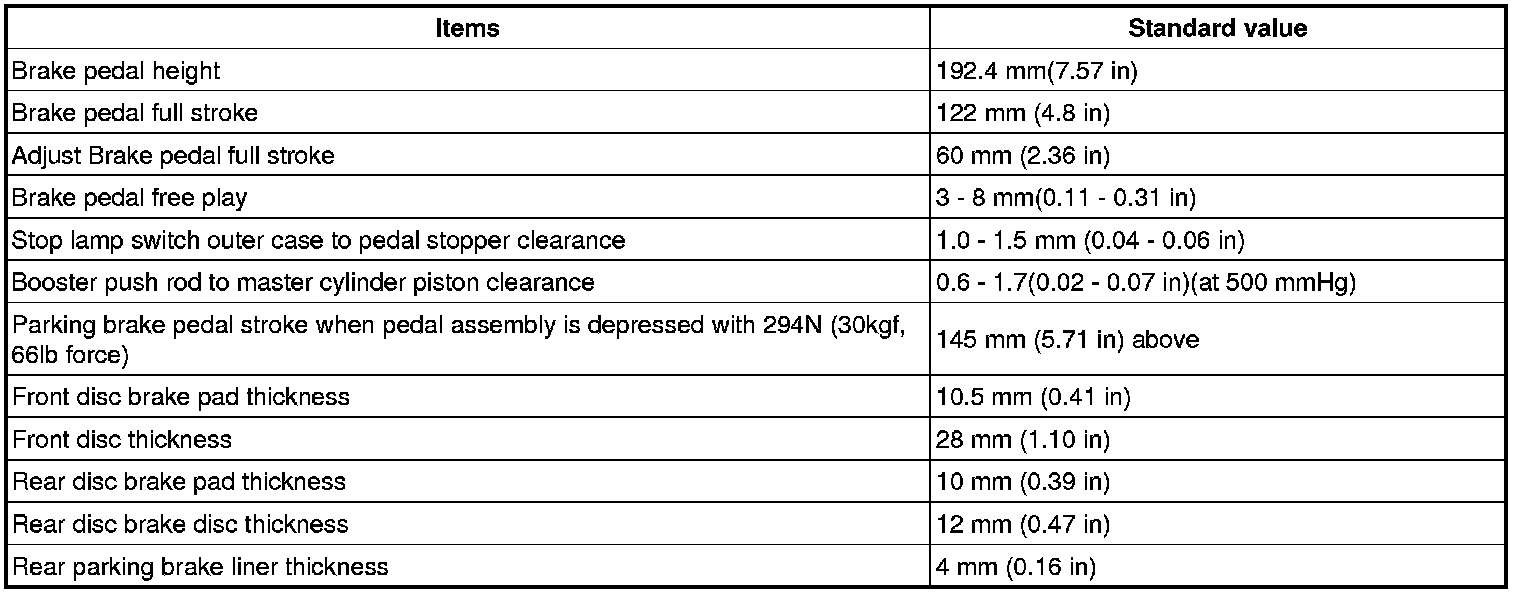

Service Standard

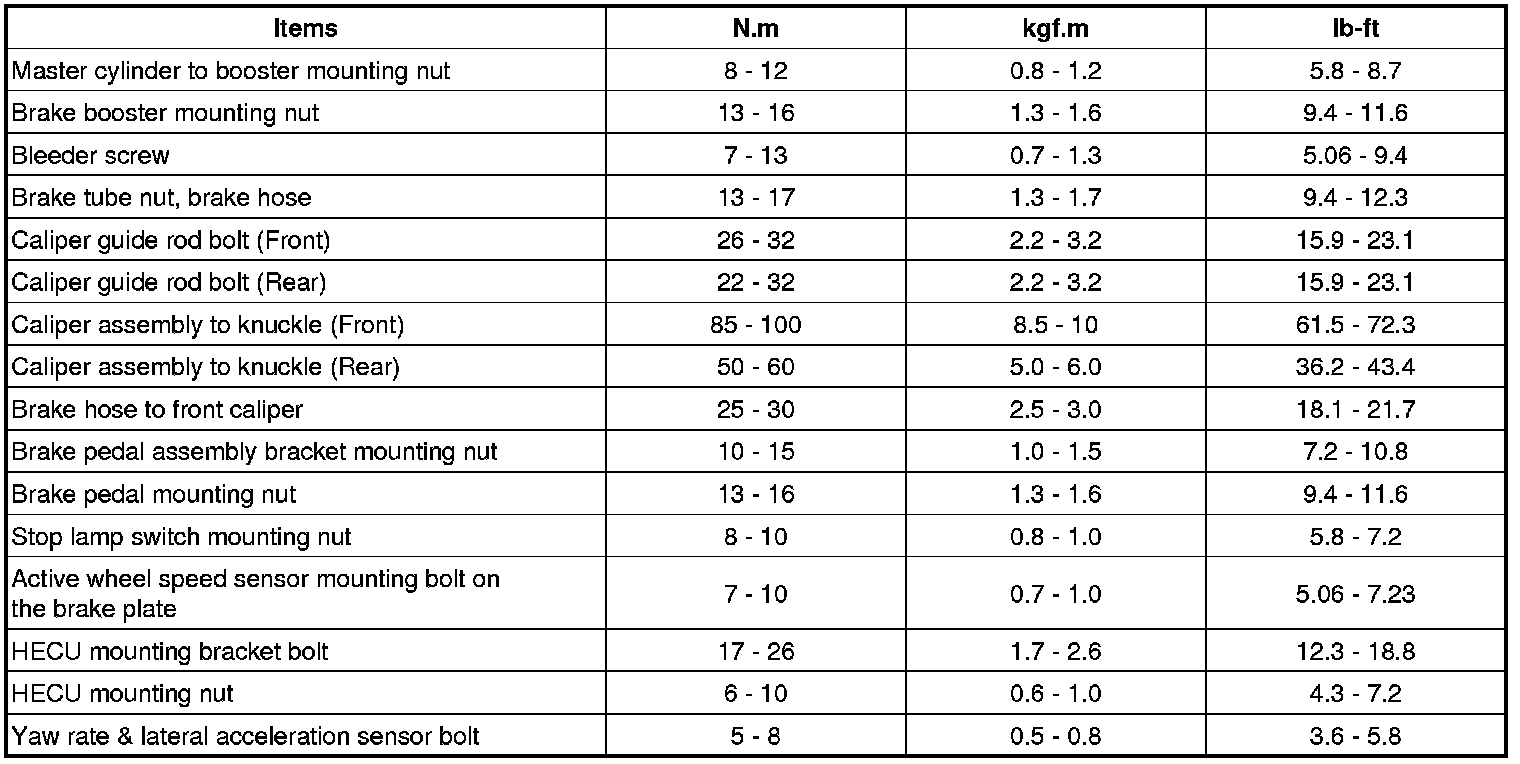

Tightening Torques
