Home >> Hyundai >> 2009 >> Entourage V6-3.8L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Timing Components >> System Specifications >> Timing Chain Cover

April 5, 2026: LEMON Manuals is launched! Read the announcement.

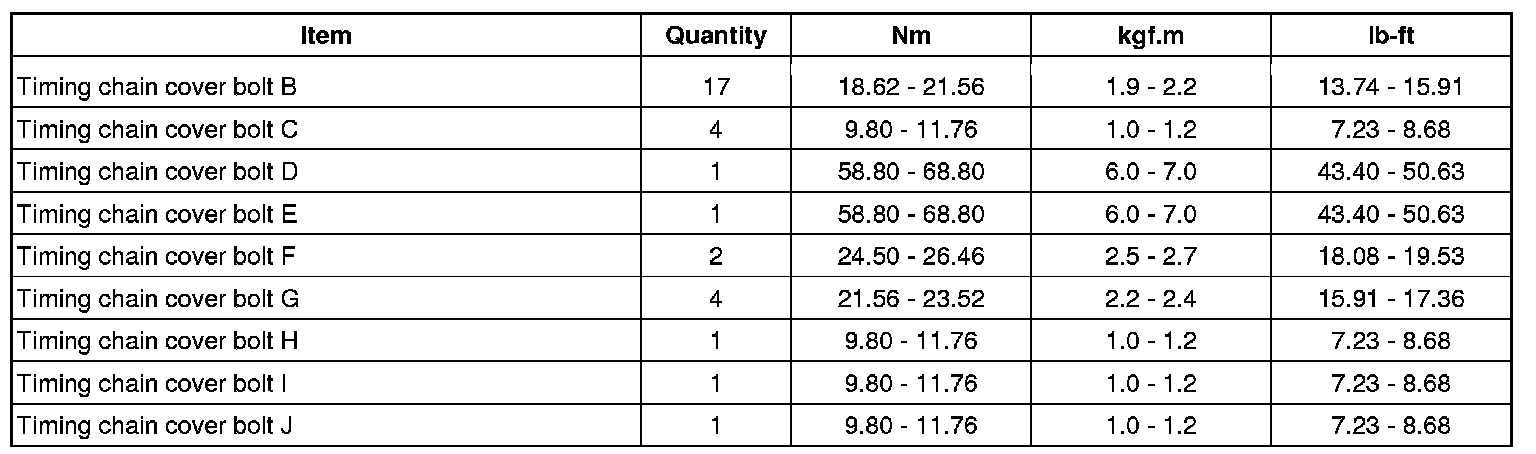

Timing Chain Cover

Timing Chain Cover
