Adjusting And Install Procedure For Key Inter Lock Cable

Install key inter lock cable in position according to Fig 1.
After assembling C/PAD module and inserting the key into the lock cylinder, insert the lock cylinder into the lock body through the C/PAD key hole with "ACC" condition.
After assembling key inter lock cable and lock body assembly, fix the key inter lock cable with set screw.
Change the key "LOCK" state and check the AT lever is located at "P" position. At this time, slightly push the KEY LOCK CAM to direction "Q"
After setting the key inter lock cable, fix the cable with nut. At this moment, the key inter lock cable shall not be pulled the direction "Q".

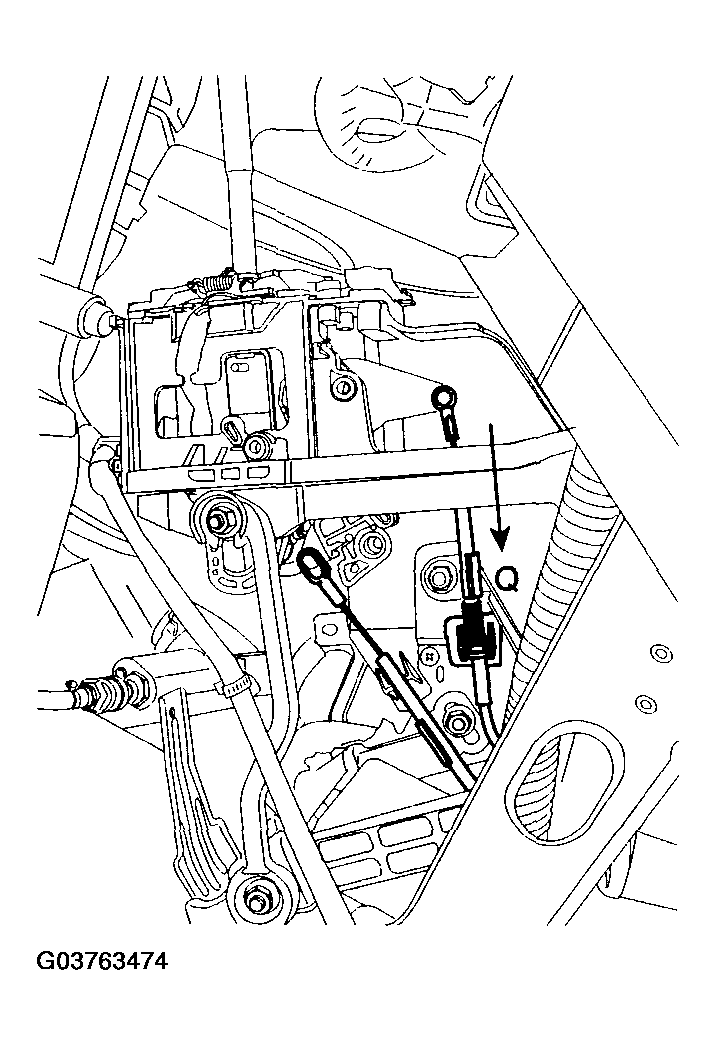

Fig 1: View Of Key Inter Lock Cable
Courtesy of HYUNDAI MOTOR CO.
