Shift Lever: Installation

  1. Install the fascia bracket assembly.
  2. In case of 4WD vehicle, connect the 4WD ECM connector (A).

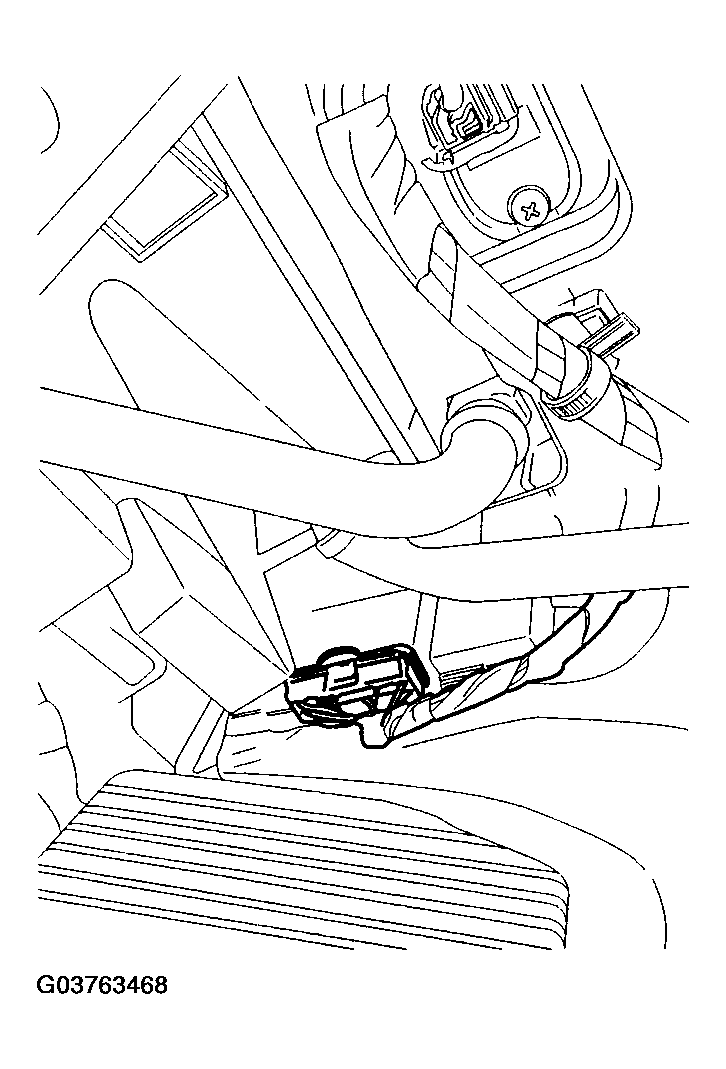

    Fig 1: Locating 4WD ECM Connector
    G03763468Courtesy of HYUNDAI MOTOR CO.
  3. Connect the cable interlinked to lever assembly.
  4. Install the lever assembly (B) to the fascia bracket assembly (A).

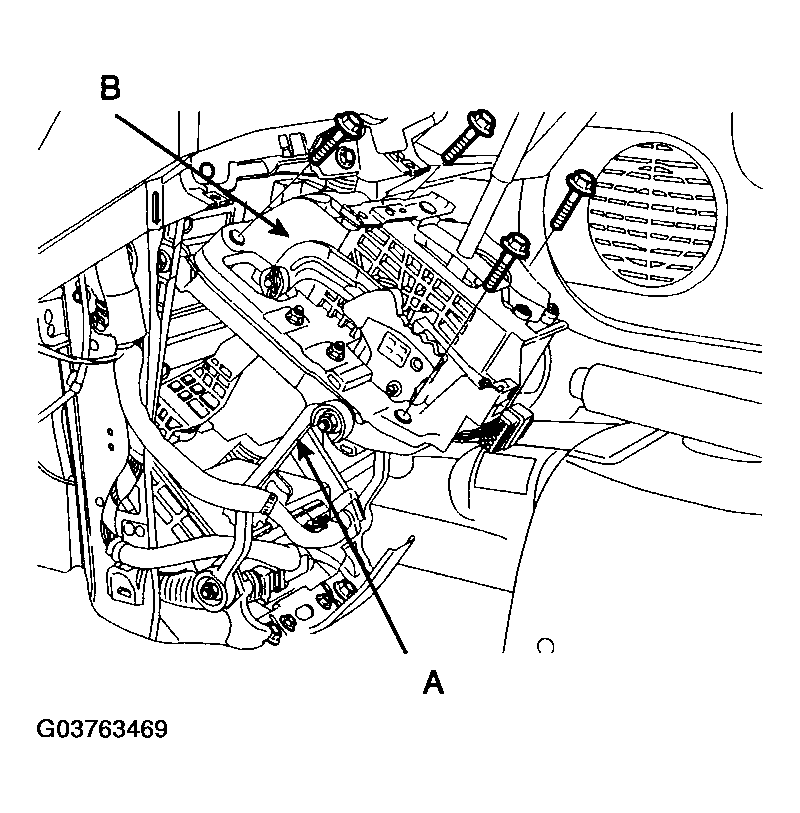

    Fig 2: Identifying Lever Assembly At Fascia Bracket Assembly
    G03763469Courtesy of HYUNDAI MOTOR CO.
  5. Install the console cover (B) fixing the shift lever connector (A) on it.
  6. Install the lever cover (B) completely connecting the terminals.

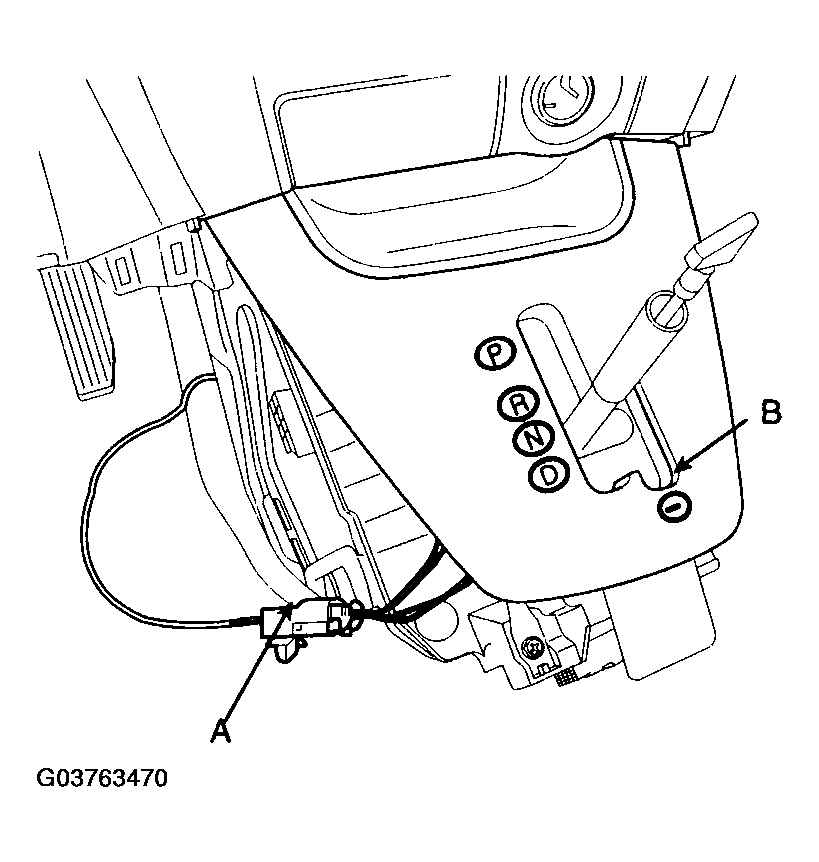

    Fig 3: View Of Lever Cover And Connector
    G03763470Courtesy of HYUNDAI MOTOR CO.
  7. Install the shift lever knob (A).

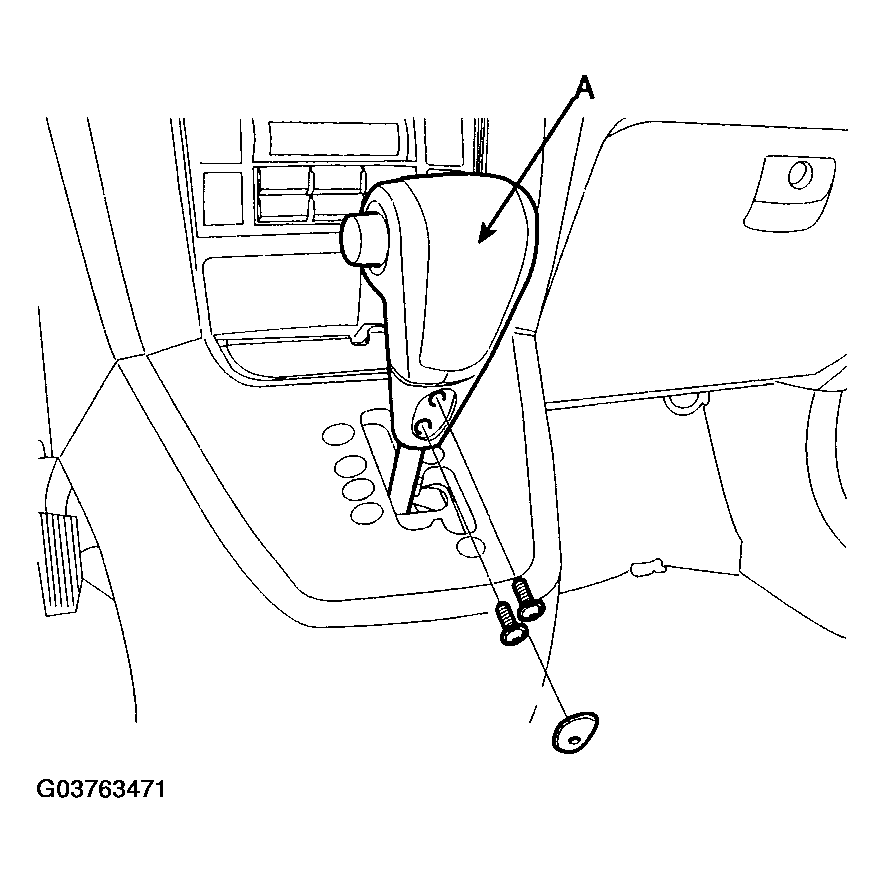

    Fig 4: View Of Shift Lever Knob
    G03763471Courtesy of HYUNDAI MOTOR CO.
