Shift Lever: Removal

  1. Remove the shift lever knob (A).

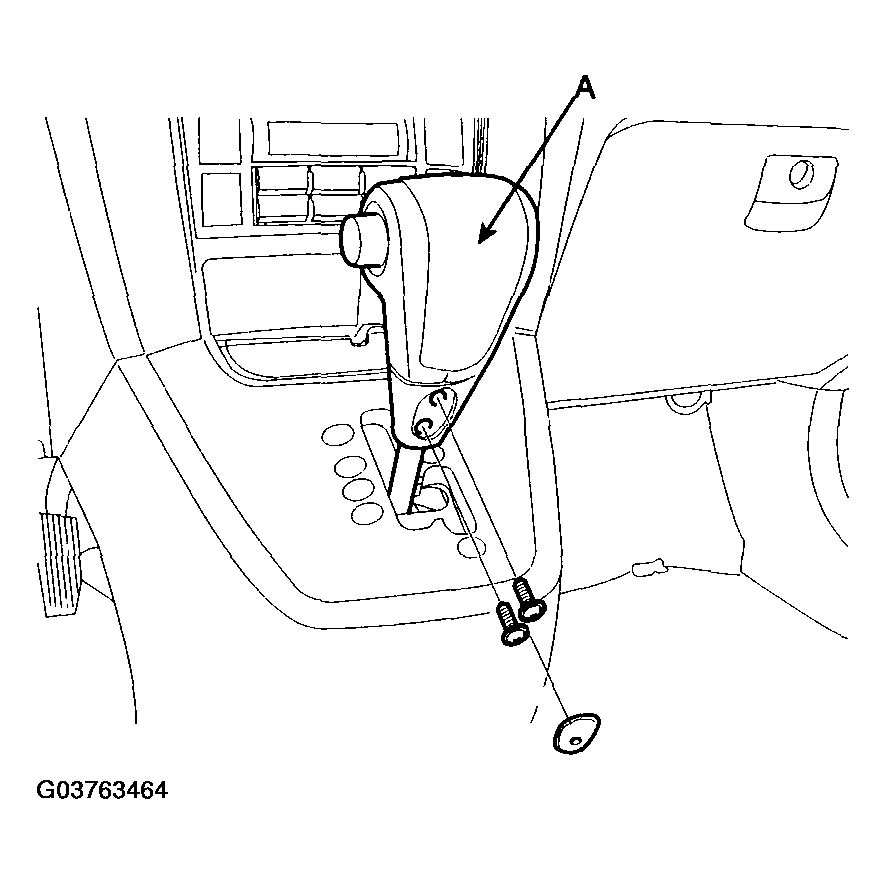

    Fig 1: View Of Shift Lever Knob
    G03763464Courtesy of HYUNDAI MOTOR CO.
  2. Remove the console cover (B), disconnecting the shift lever connector (A).

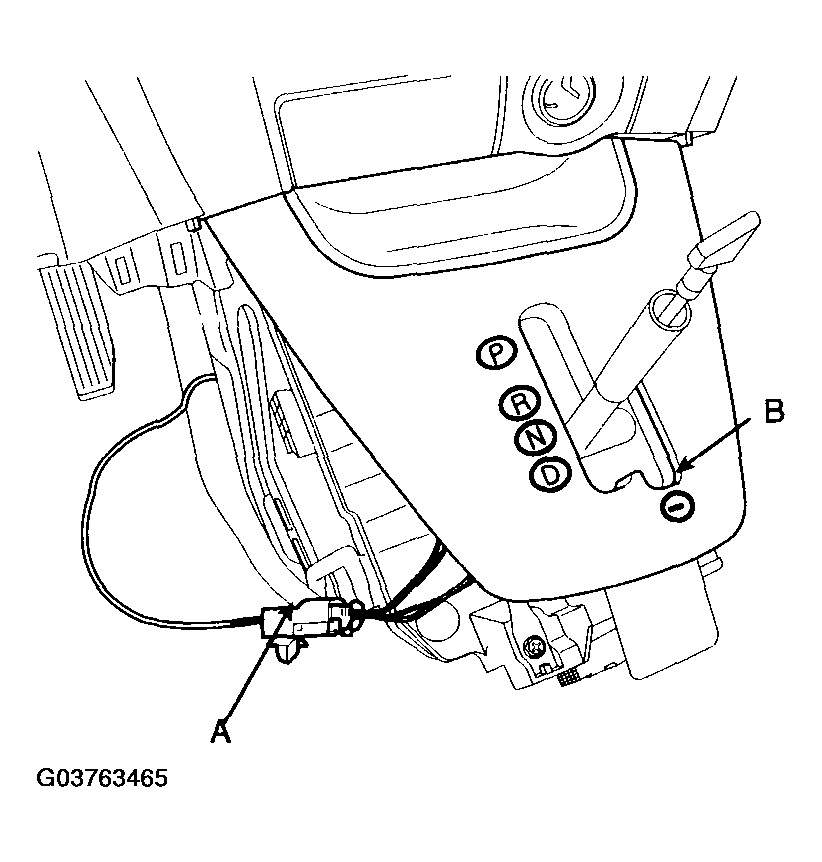

    Fig 2: Identifying Console Cover And Shift Lever Connector
    G03763465Courtesy of HYUNDAI MOTOR CO.
  3. Separate the lever assembly (B) from the fascia bracket assembly (A).

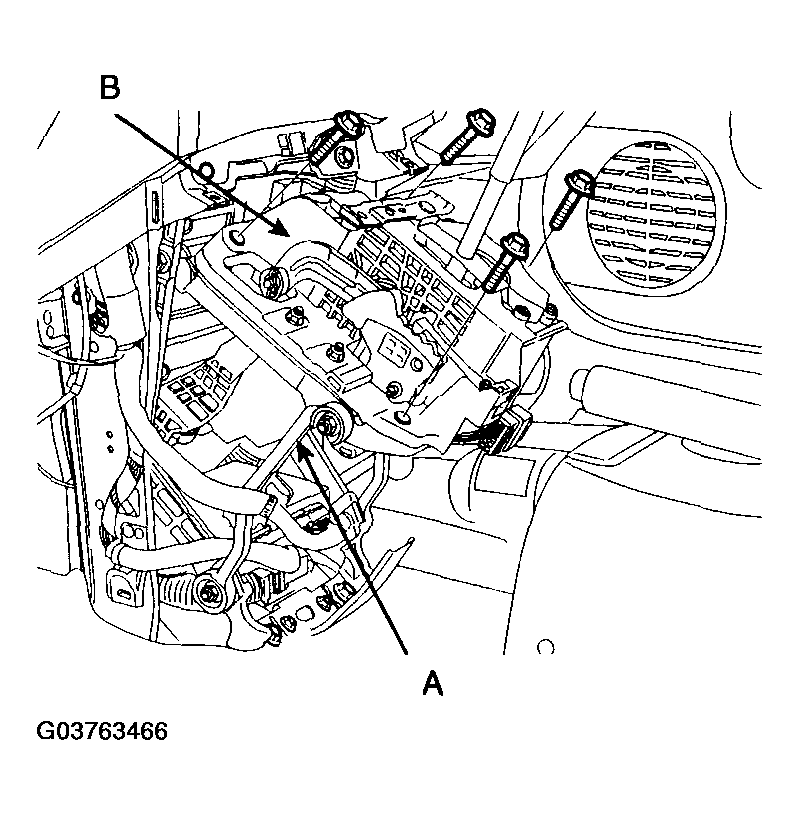

    Fig 3: View Of Lever Assembly And Fascia Bracket Assembly
    G03763466Courtesy of HYUNDAI MOTOR CO.
  4. Disconnect the cable interlinked to lever assembly.
  5. In case of 4WD vehicle, disconnect the 4WD ECM connector (A).

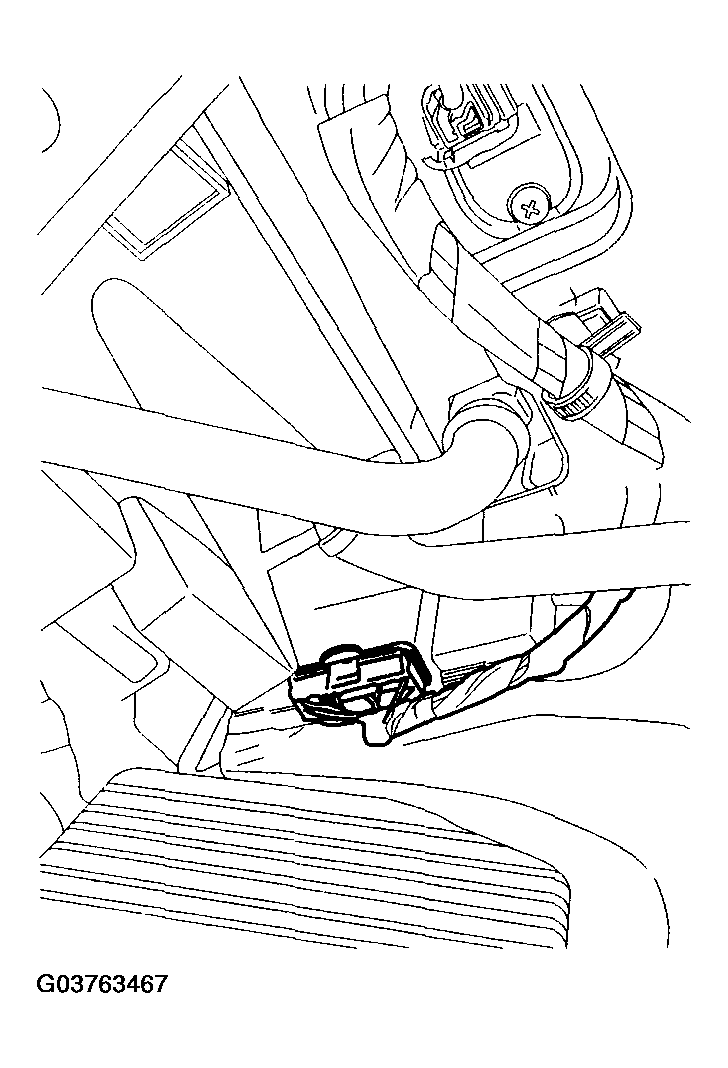

    Fig 4: Locating 4WD ECM Connector
    G03763467Courtesy of HYUNDAI MOTOR CO.
  6. Remove the fascia bracket assembly.
