Front Power Window Motor

  1. Remove (-) negative battery terminal.
  2. Remove the front door trim panel. (Refer to the FRONT DOOR )
  3. Disconnect the connector (6P) from the motor.
    Fig 1: Identifying Front Power Window Motor Connector Terminals
    G06805506Courtesy of HYUNDAI MOTOR CO.
  4. Connect the motor terminals directly to battery voltage (12V) and check that the motor operates smoothly. Next, reverse the polarity and check that the motor operates smoothly in the reverse direction. If the operation is abnormal, replace the motor.

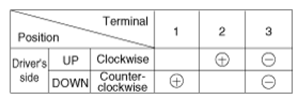

    Fig 2: Front Power Window Motor Operation Chart
    G06805507Courtesy of HYUNDAI MOTOR CO.
