Circuit Diagram

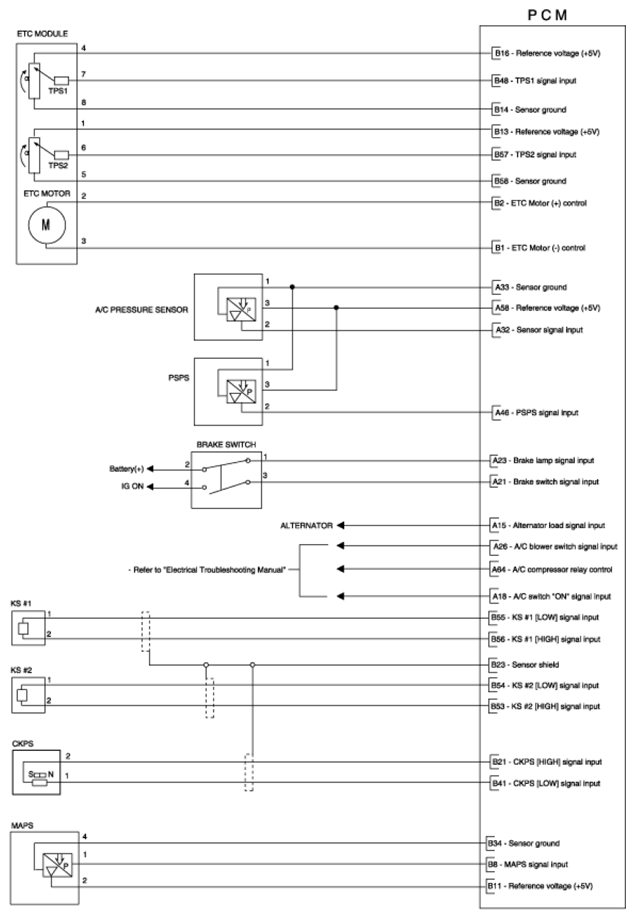

Fig 1: Powertrain Control Module Circuit Diagram (1 Of 5)

Courtesy of HYUNDAI MOTOR CO.

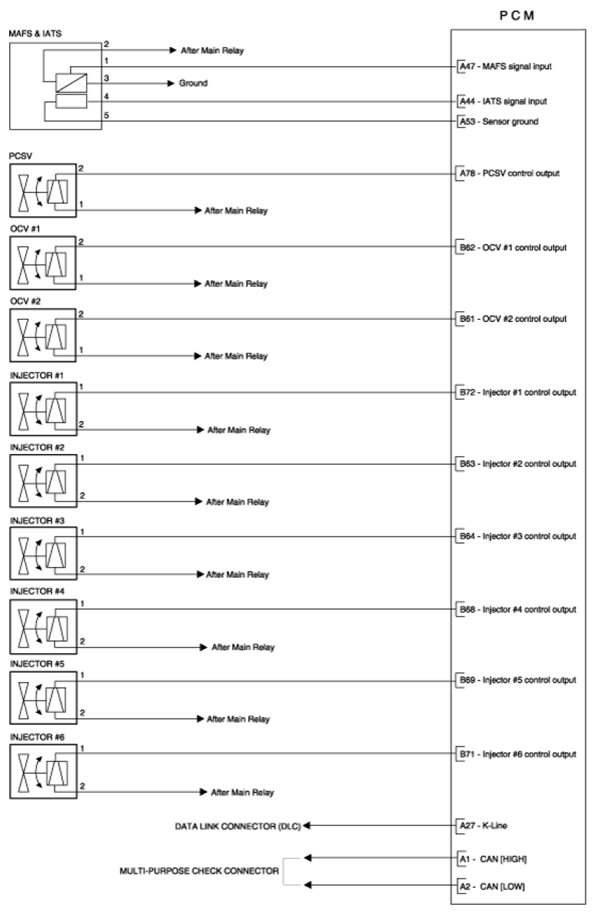

Fig 2: Powertrain Control Module Circuit Diagram (2 Of 5)

Courtesy of HYUNDAI MOTOR CO.

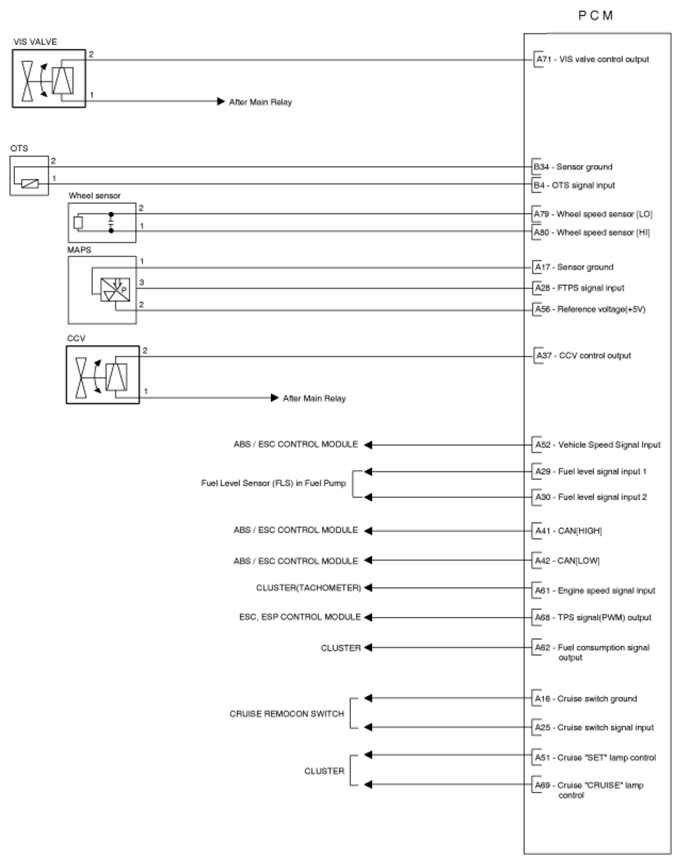

Fig 3: Powertrain Control Module Circuit Diagram (3 Of 5)

Courtesy of HYUNDAI MOTOR CO.

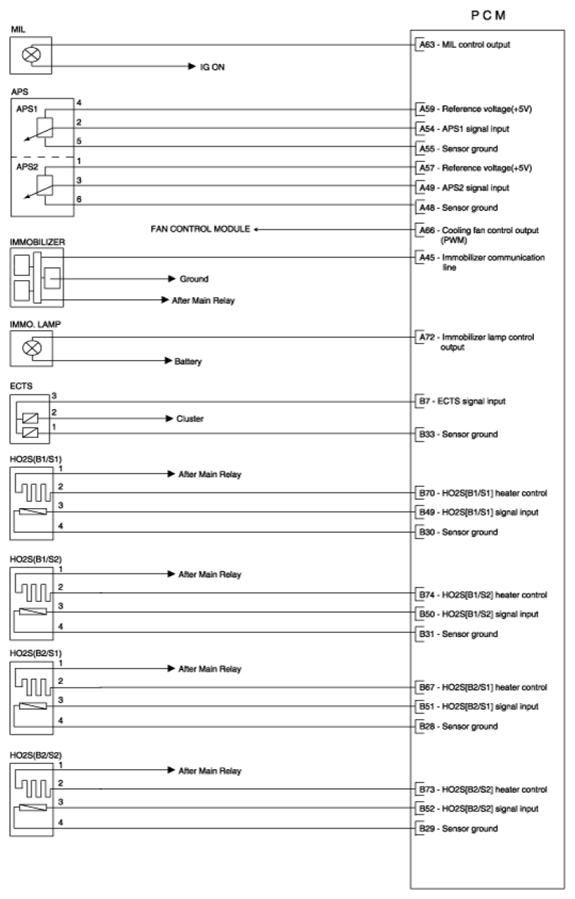

Fig 4: Powertrain Control Module Circuit Diagram (4 Of 5)

Courtesy of HYUNDAI MOTOR CO.

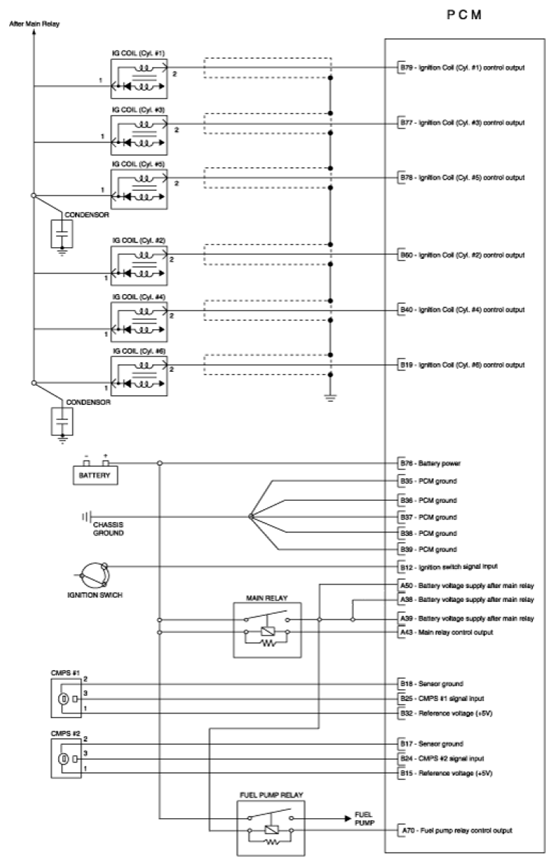

Fig 5: Powertrain Control Module Circuit Diagram (5 Of 5)

Courtesy of HYUNDAI MOTOR CO.
