Components (1)

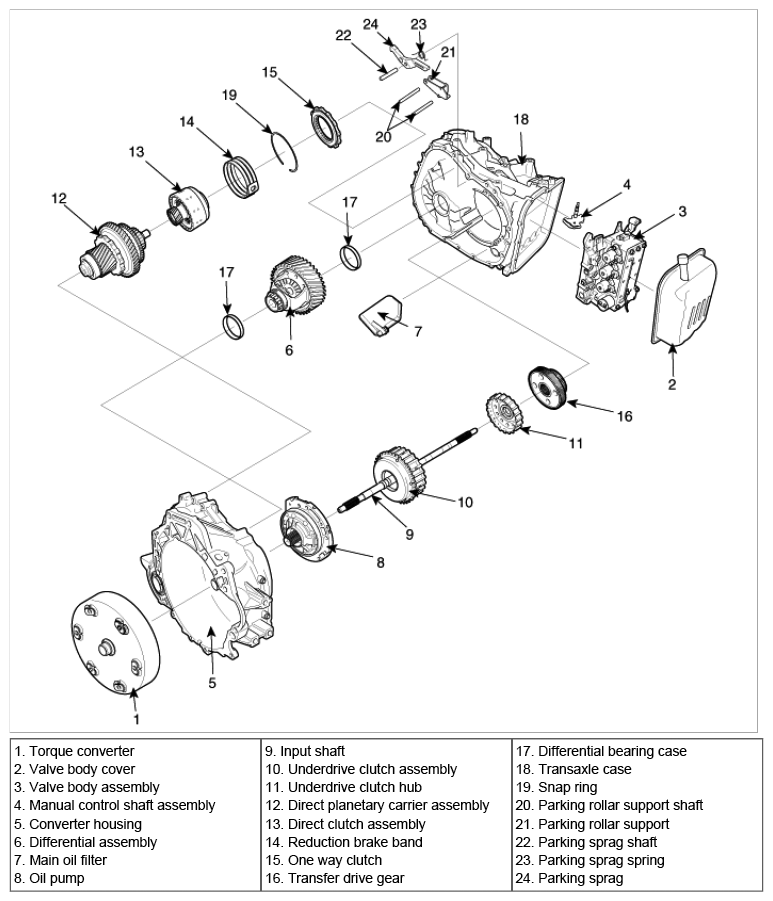

Fig 1: Identifying Automatic Transaxle Components Location (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
