Components and Components Location (A5HF1): Components

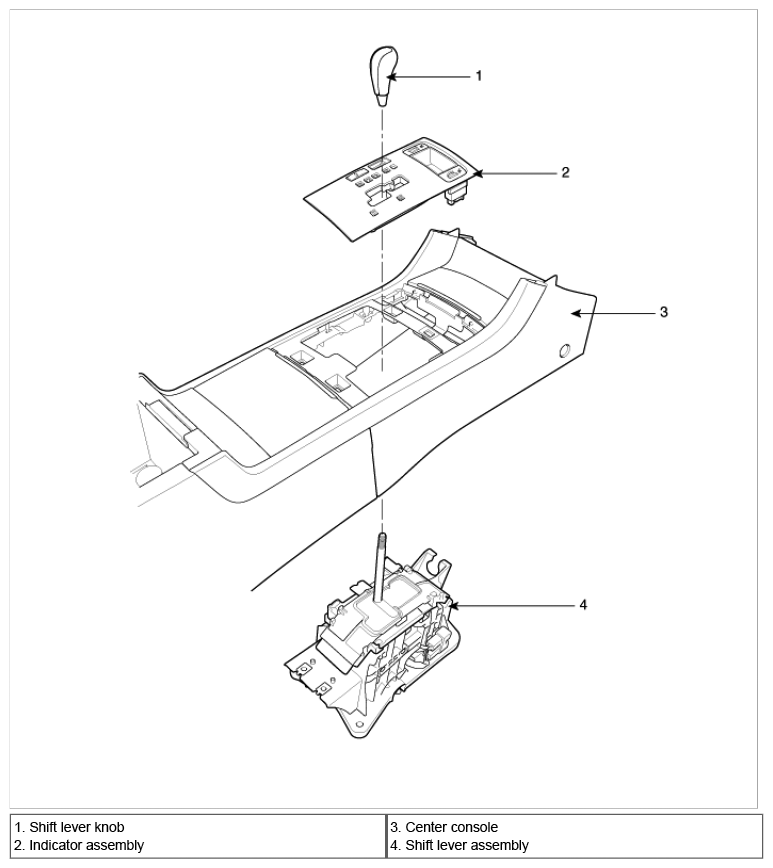

Fig 1: Identifying Automatic Transaxle Control System Components
G06805169Courtesy of HYUNDAI MOTOR CO.
