Repair procedures (A5HF1): Removal

  1. Remove the shift lever knob (A).
    Fig 1: Locating Shift Lever Knob
    G06805170Courtesy of HYUNDAI MOTOR CO.

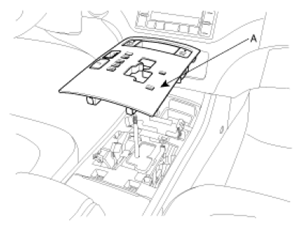

  2. Remove the indicator assembly (A).
    Fig 2: Locating Indicator Assembly
    G06805171Courtesy of HYUNDAI MOTOR CO.
  3. Remove the two bolts (A) in the console box.
    Fig 3: Locating Bolts And Console Box
    G06805172Courtesy of HYUNDAI MOTOR CO.

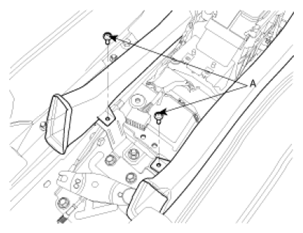

  4. Remove the two screws (A) mounting floor air duct.
    Fig 4: Locating Screws Mounting Floor Air Duct
    G06805173Courtesy of HYUNDAI MOTOR CO.

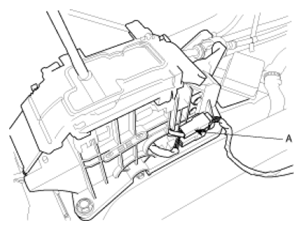

  5. Disconnect the interlock connector (A).
    Fig 5: Locating Interlock Connector
    G06805174Courtesy of HYUNDAI MOTOR CO.

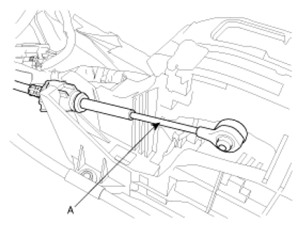

  6. Disconnect the control cable (A).
    Fig 6: Locating Control Cable
    G06805175Courtesy of HYUNDAI MOTOR CO.

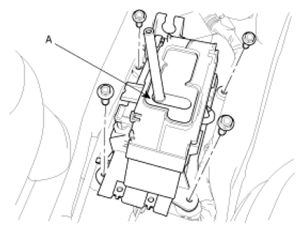

  7. Remove the shift lever assembly (A). (Bolt : 4EA)
    Fig 7: Locating Shift Lever Assembly And Bolt
    G06805176Courtesy of HYUNDAI MOTOR CO.
